Telemecanique LC1D6511 – TeSys D Contactor
3 Pole, 65A (AC-3) / 80A (AC-1), 600V Max – 1 N.O. + 1 N.C. Auxiliary

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

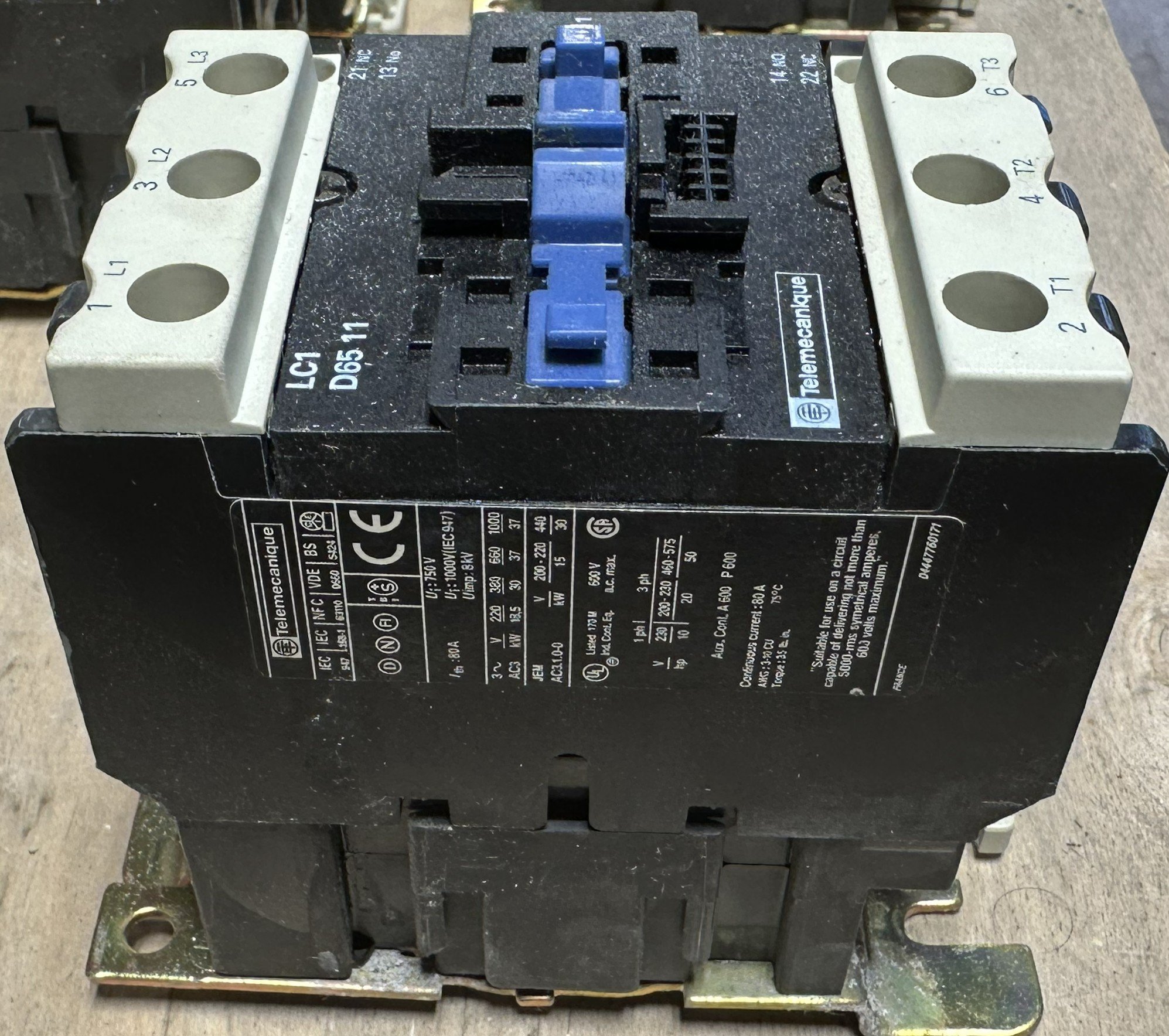

Telemecanique (Schneider Electric) TeSys D 3-pole contactor, catalogue no. LC1D6511. It is rated 65A AC-3 and 80A AC-1 thermal current, 600V max (UL/CSA). It has a built-in 1 N.O. + 1 N.C. auxiliary contact (13-14 / 21-22). UL/CSA horsepower ratings are 10 HP single-phase at 230V, 20 HP three-phase at 200–230V and 50 HP at 460–575V. It is mounted on a metal mounting plate.

IMPORTANT: The coil voltage is not marked on the visible faces of the contactor. The buyer must confirm the coil voltage before use; photos of the coil can be provided on request.

SPECIFICATIONS

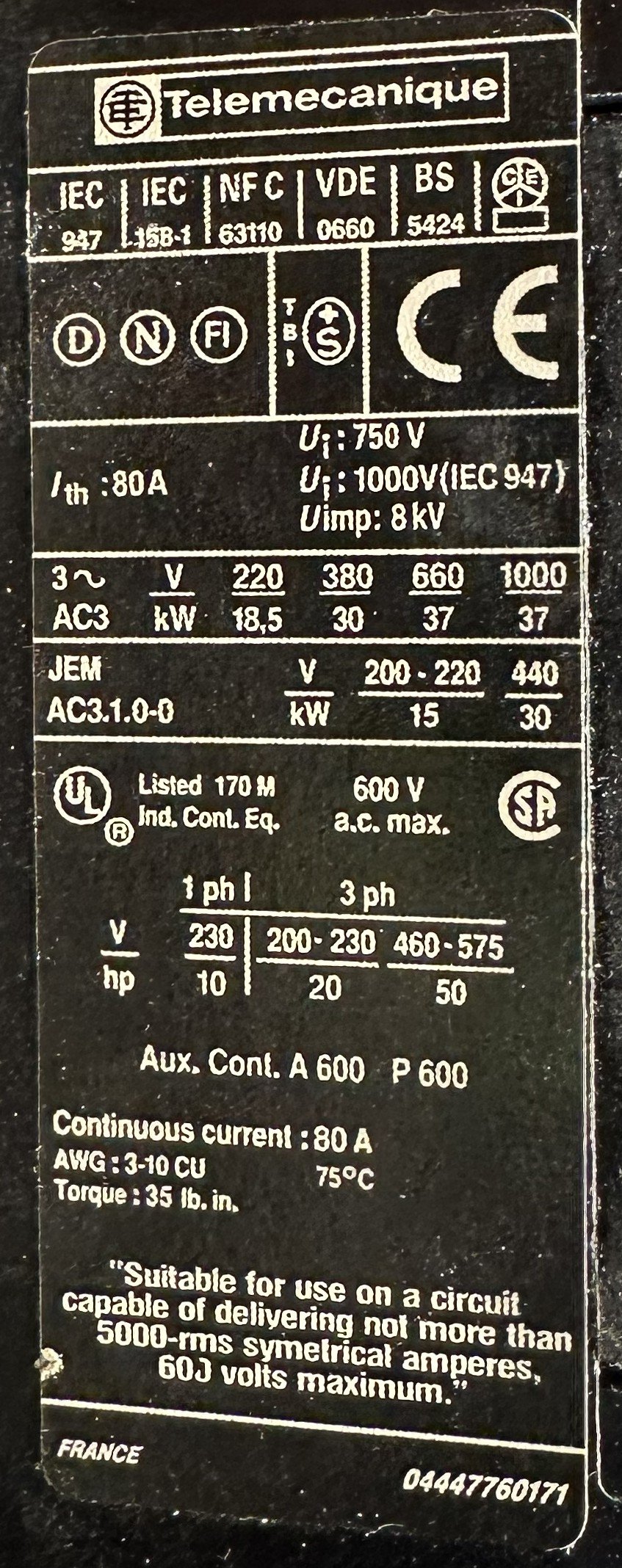

Manufacturer: Telemecanique (Schneider Electric)
Catalogue No.: LC1D6511
Series: TeSys D
Poles: 3
AC-3 Rating: 65A
Thermal Current (Ith / AC-1): 80A; continuous current (UL/CSA) 80A
Max Voltage: 600V (UL/CSA)
Insulation Voltage: 750V (UL/CSA); 1000V (IEC 947)
Impulse Withstand: 8 kV
IEC AC-3 Power: 18.5 kW @ 220V; 30 kW @ 380V; 37 kW @ 660V; 37 kW @ 1000V
JEM AC-3 Power: 15 kW @ 200–220V; 30 kW @ 440V
UL/CSA HP: 1-ph 10 HP @ 230V; 3-ph 20 HP @ 200–230V, 50 HP @ 460–575V
Auxiliary Contacts: 1 N.O. + 1 N.C. (A600, P600)
Short-Circuit Rating: 5,000A RMS sym., 600V max
Wire Range: #10 – #3 AWG Cu, 75°C; 35 lb-in
Coil Voltage: Not marked on visible faces
Mounting: Metal mounting plate attached

CONDITION
Used – As-Is. Removed from service. Labels intact and legible. Shows normal signs of use and age. Please review the photos.

TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CON-0001
