Details
| Category | Replacement Contactor Coils Motor Controls And Starters |
|---|---|
| Manufacturer | Other |
| Stock # | CON - 0002 |
Description
Telemecanique CA2DN40 – Control Relay, 4 N.O.
10A (Ith), 600 VAC Max (UL/CSA) – A600 / Q600 Pilot Duty
>> Qty 19 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<

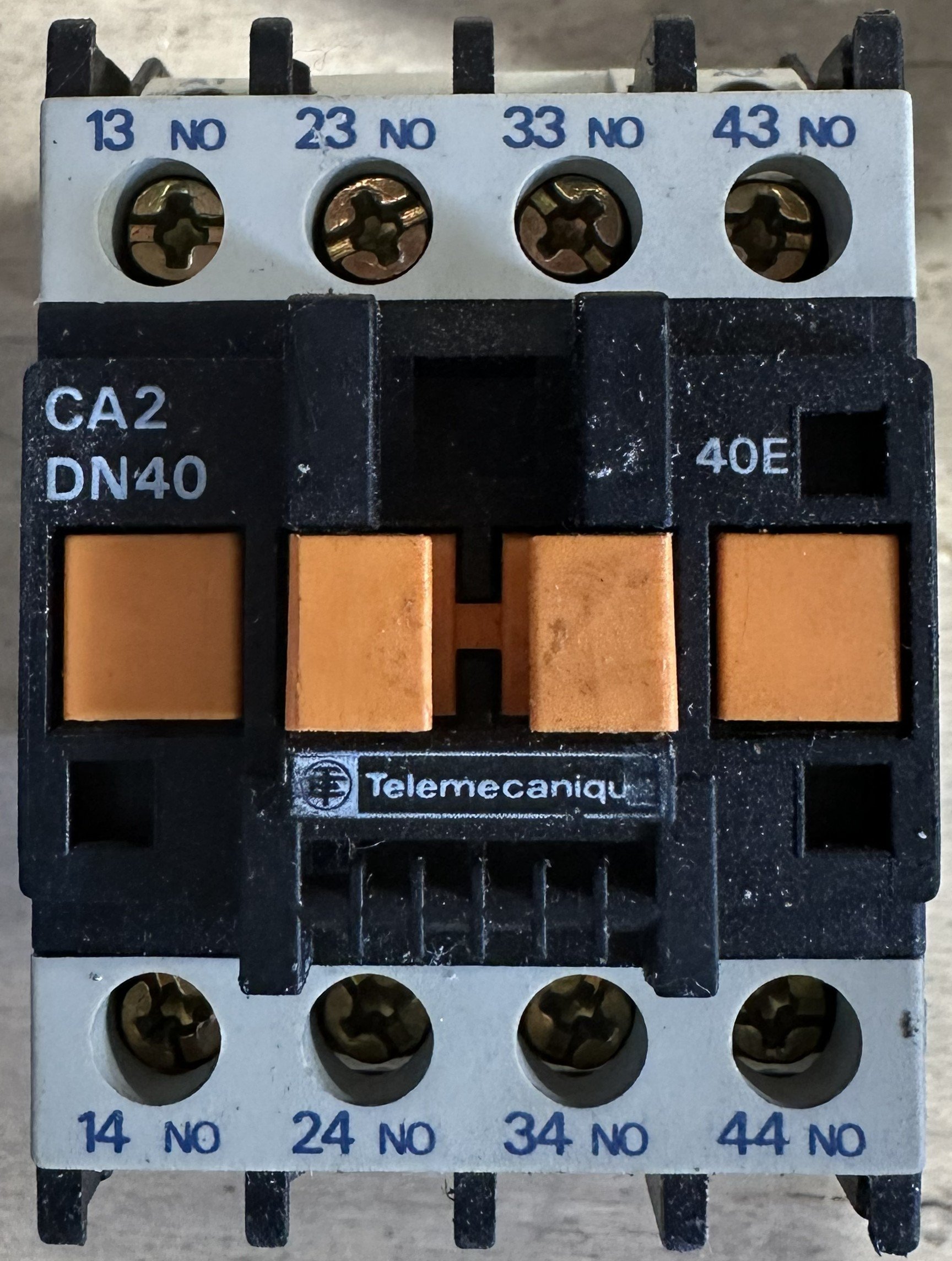

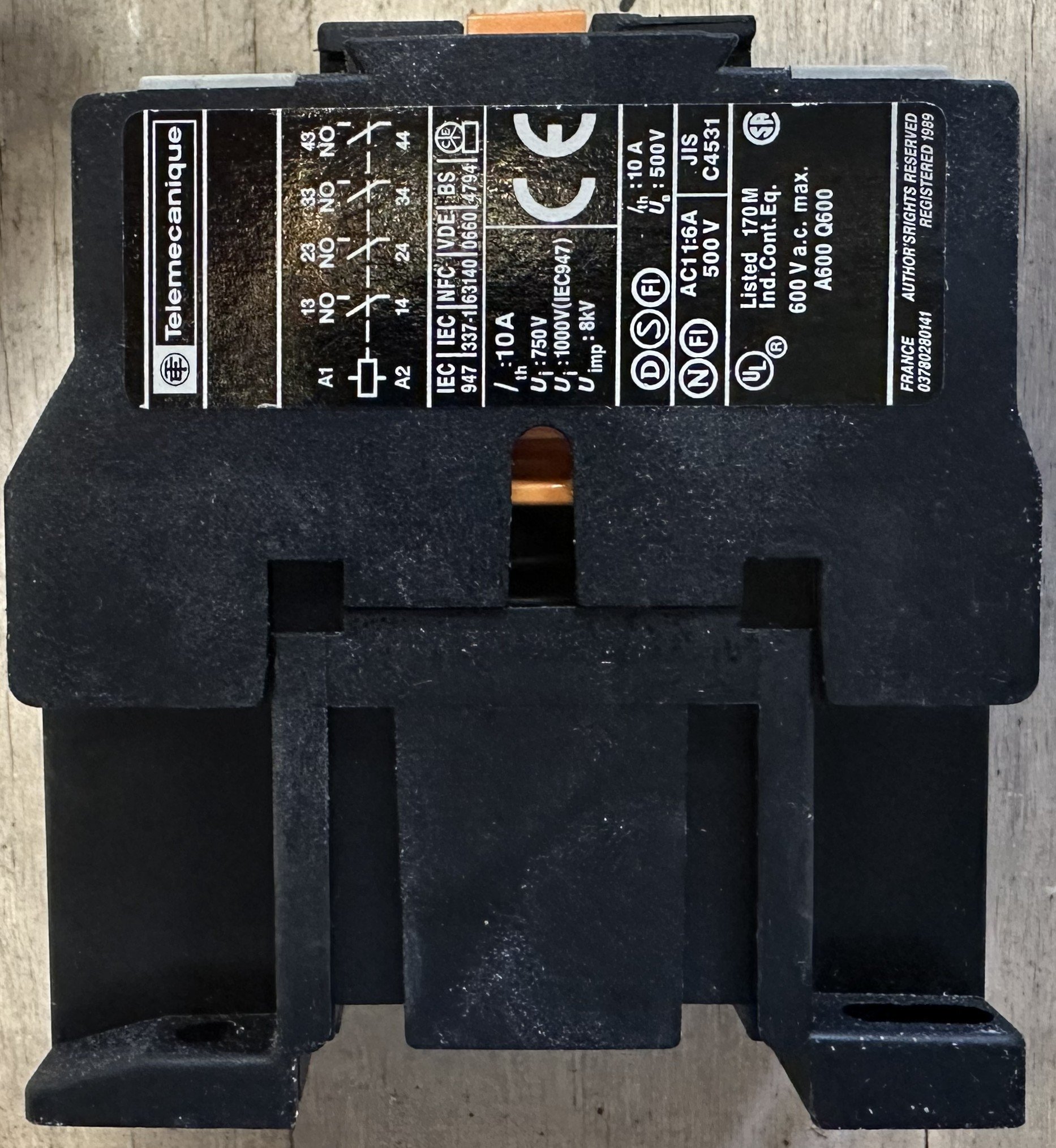

Telemecanique 4-pole control relay, catalogue no. CA2DN40, with four normally-open contacts (code 40E; terminals 13-14, 23-24, 33-34, 43-44). It is rated 10A thermal current (Ith), 600 VAC max (UL/CSA), A600 / Q600 pilot duty, and 6A AC-11 at 500V. It is UL listed, CSA certified and CE marked, and meets IEC 947, VDE 0660, BS 4794 and JIS C4531. It mounts with screws on a two-hole base. Made in France.
IMPORTANT: The coil voltage is not marked on the visible faces of the relay. The buyer must confirm the coil voltage before use; photos of the coil can be provided on request.
SPECIFICATIONS
Manufacturer: Telemecanique (Schneider Electric)
Catalogue No.: CA2DN40
Type: Control relay
Contacts: 4 N.O. (40E)
Thermal Current (Ith): 10A
Max Voltage: 600 VAC (UL/CSA)
Contact Rating: A600 / Q600 pilot duty; AC-11 6A @ 500V
Insulation Voltage: 750V (UL/CSA); 1000V (IEC 947)
Impulse Withstand (Uimp): 8 kV
Coil Voltage: Not marked on visible faces
Mounting: Screw mount, two-hole base
Approvals: UL listed (170M Ind. Cont. Eq.), CSA, CE; IEC 947, IEC 337-1, NF C 63140, VDE 0660, BS 4794, JIS C4531
Ref. No.: 0378028014I
Made in France
CONDITION
Used – As-Is. Removed from service. Labels intact and legible. Shows normal signs of use and age. Please review the photos.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CON-0002
