Telemecanique CA2DN31 – Control Relay, 3 N.O. + 1 N.C.
10A (Ith), 600 VAC Max (UL/CSA) – 340V 60 Hz Coil (code UP6)

>> Qty 10 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

Telemecanique 4-pole control relays, catalogue no. CA2DN31 with coil code UP6 (340V 60 Hz). Each has three normally-open and one normally-closed contact (code 31E). They are rated 10A thermal current (Ith), 600 VAC max (UL/CSA), A600 / Q600 pilot duty, and 6A AC-11 at 500V. They are UL listed, CSA certified and CE marked, and meet IEC 947, VDE 0660, BS 4794 and JIS C4531. They mount with screws on a two-hole base. Made in France. We have 10 in stock, and quantity pricing is available on request.

Please note: The coil is rated 340V 60 Hz. This is not a common control voltage, so please confirm it suits your application before ordering.

SPECIFICATIONS
Manufacturer: Telemecanique (Schneider Electric)
Catalogue No.: CA2DN31 (coil suffix UP6)
Type: Control relay
Contacts: 3 N.O. + 1 N.C. (31E)
Thermal Current (Ith): 10A
Max Voltage: 600 VAC (UL/CSA)
Contact Rating: A600 / Q600 pilot duty; AC-11 6A @ 500V
Insulation Voltage: 750V (UL/CSA); 1000V (IEC 947)
Impulse Withstand (Uimp): 8 kV

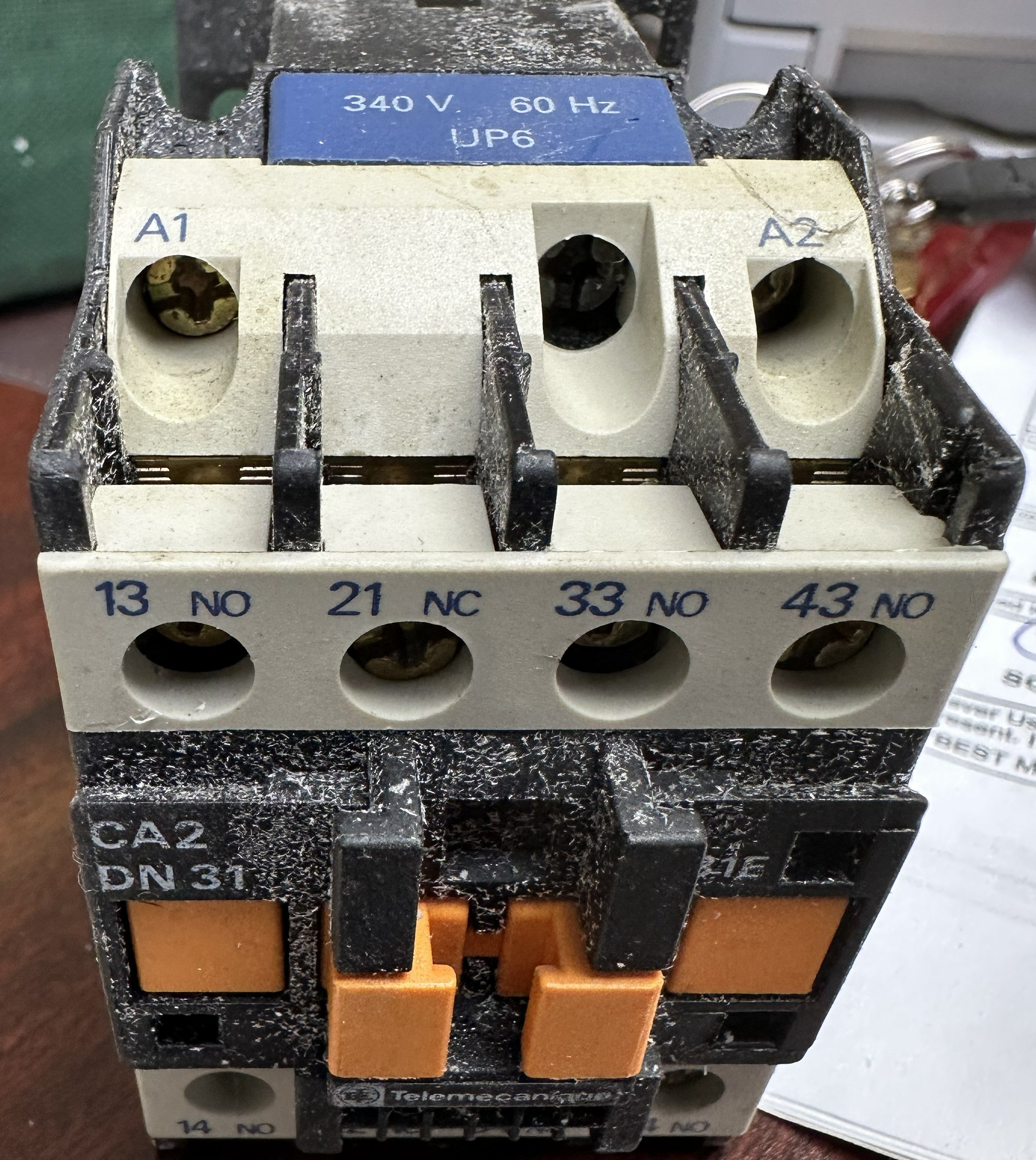

Coil: 340V 60 Hz (code UP6)
Mounting: Screw mount, two-hole base

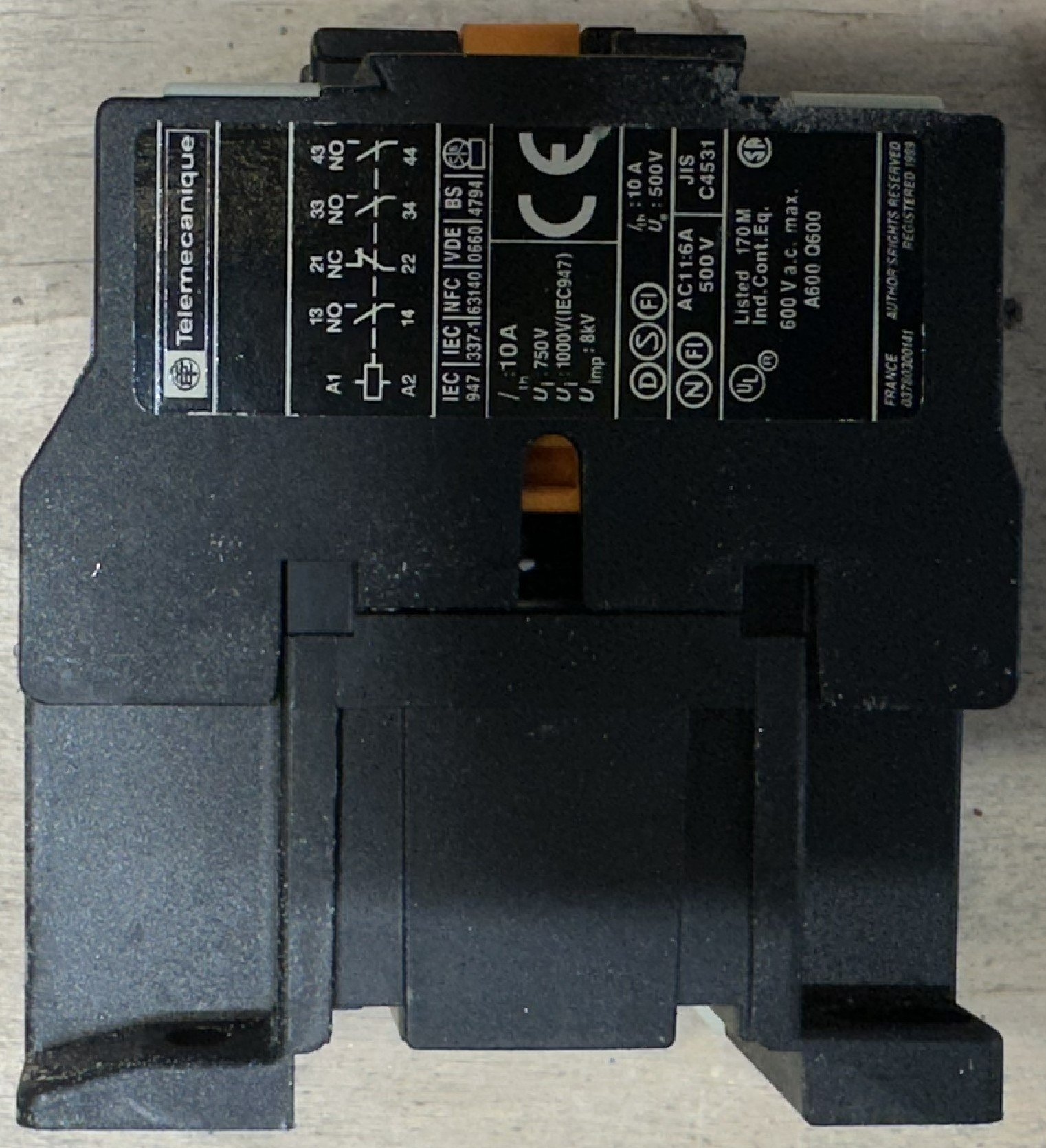

Approvals: UL listed (170M Ind. Cont. Eq.), CSA, CE; IEC 947, IEC 337-1, NF C 63140, VDE 0660, BS 4794, JIS C4531
Ref. No.: 03780300141
Made in France

CONDITION

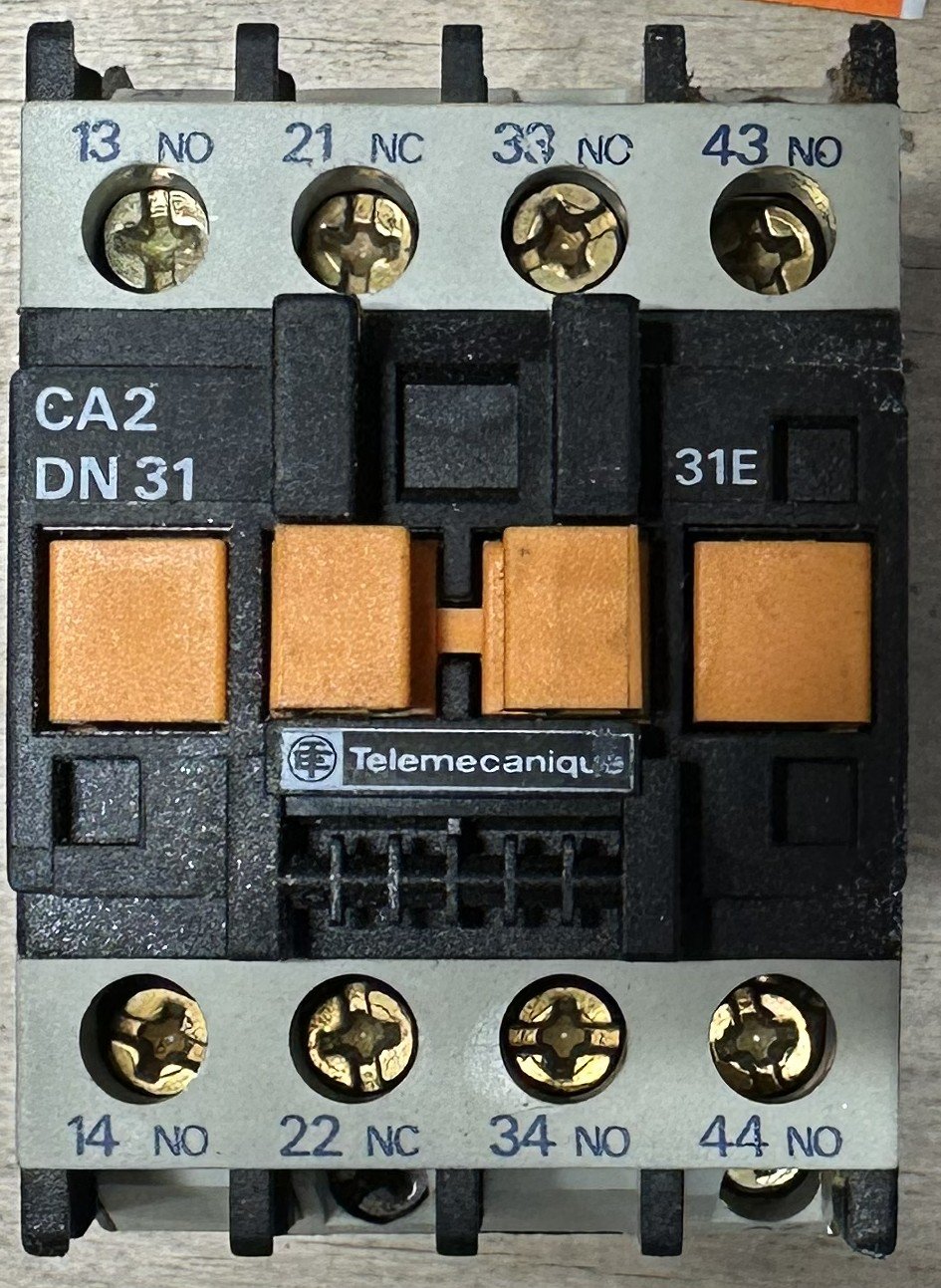

Used – As-Is. Removed from service. Labels intact and legible. They show normal signs of use and age. Please review the photos.

TERMS
Price: Call for Price – quantity pricing available on request
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CON-0003
