Details
| Category | Switchgear Current Transformers |
|---|---|
| Manufacturer | S&c Electric Co |
| Stock # | 40330 A&B |
| Location | Pickering, ON |
Description
Manufacturer | S&C Electric Canada Ltd., Rexdale, Ontario |

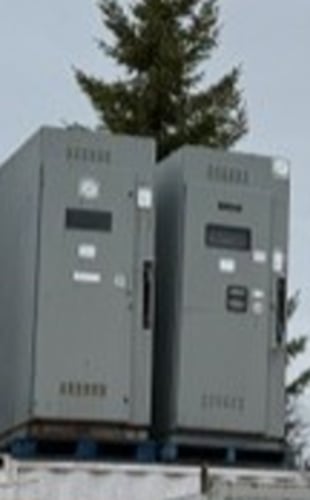

Type | S&C Mini-Rupter Switches with Power Fuses — Indoor Distribution |
Voltage | 4.16 kV nominal / 4.76 kV max design, 60 kV BIL |
Main Bus Amperes | 600A (most bays); 1200A (one main/tie bay — CDT-59630) |
Short-Circuit, RMS Symmetrical | 37,500A |
MVA, Three-Phase Sym. at Rated Voltage | 270 MVA |
Duty-Cycle Fault-Closing, RMS Asymmetrical | 60,000A |
Total Bays | 7 |
Manufacture Dates | Jan 1988 – Feb 1990 (Dwg. Nos. CDT-59153, CDT-59630, CDT-59631, CDT-59632) |
