LOW VOLTAGE Allis-Chalmers POWER CIRCUIT BREAKER - 3200 AMP FRAME, 3 POLE, 50/60 HZ

Details

Description

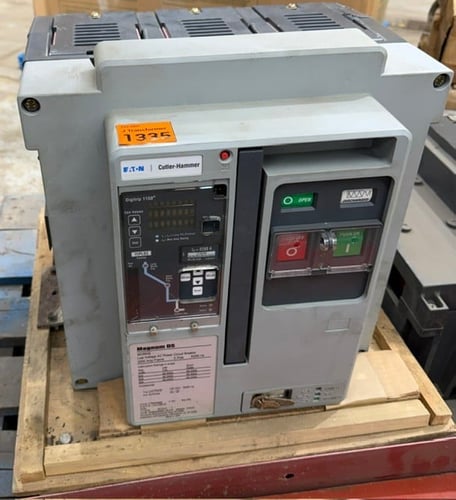

Eaton / Cutler-Hammer Magnum DS MDS632 — 3200A Low Voltage AC Power Circuit Breaker

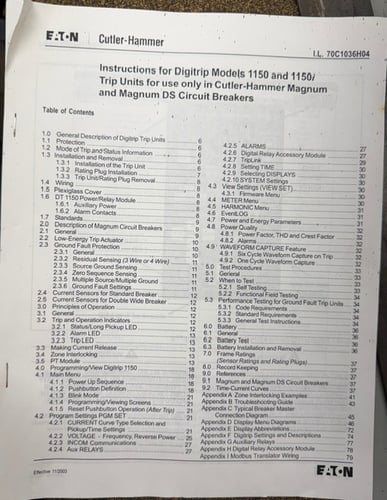

Used, removed from service, in working condition with manual.

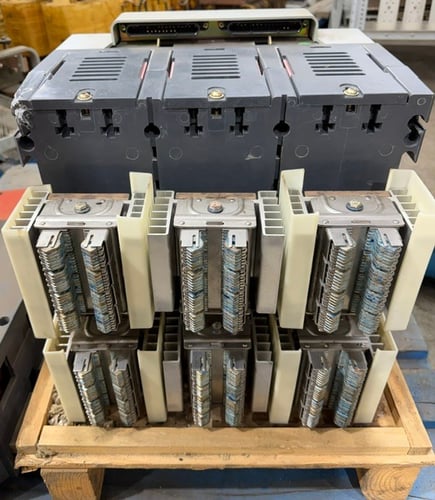

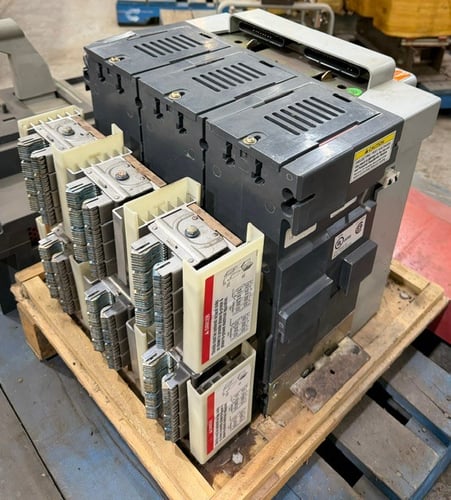

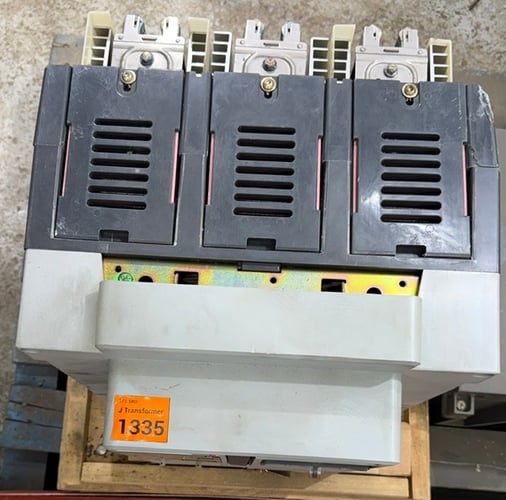

This is a 3-pole, 3200A frame drawout-style low voltage power circuit breaker manufactured by Eaton (Cutler-Hammer), part of the widely-used Magnum DS product line still supported and stocked by Eaton today.

Specifications:

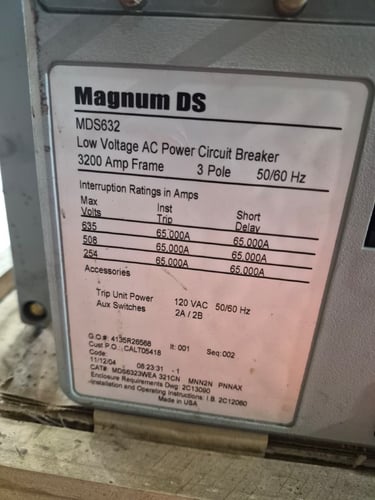

  • Catalog #: MDS6323WEA 321CN
  • Model: MDS632 (Magnum DS)
  • Frame rating: 3200A
  • Poles: 3
  • Frequency: 50/60 Hz
  • Max voltage: 635V (also rated at 508V and 254V)
  • Interruption rating: 65,000A (instantaneous trip and short delay, all voltage levels)
  • Trip unit: Digitrip 1150
  • Trip unit power: 120 VAC, 50/60 Hz
  • Auxiliary switches: 2A/2B
  • Mounting: Drawout
  • Manufactured: 2004 (Made in USA)
  • Enclosure/cradle dwg: 2C13090
  • Installation & Operating Instructions: I.B. 2C12060
