Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Case |
| Model | EFFRAME MCCB |
| Stock # | CB - 1580 |
Description

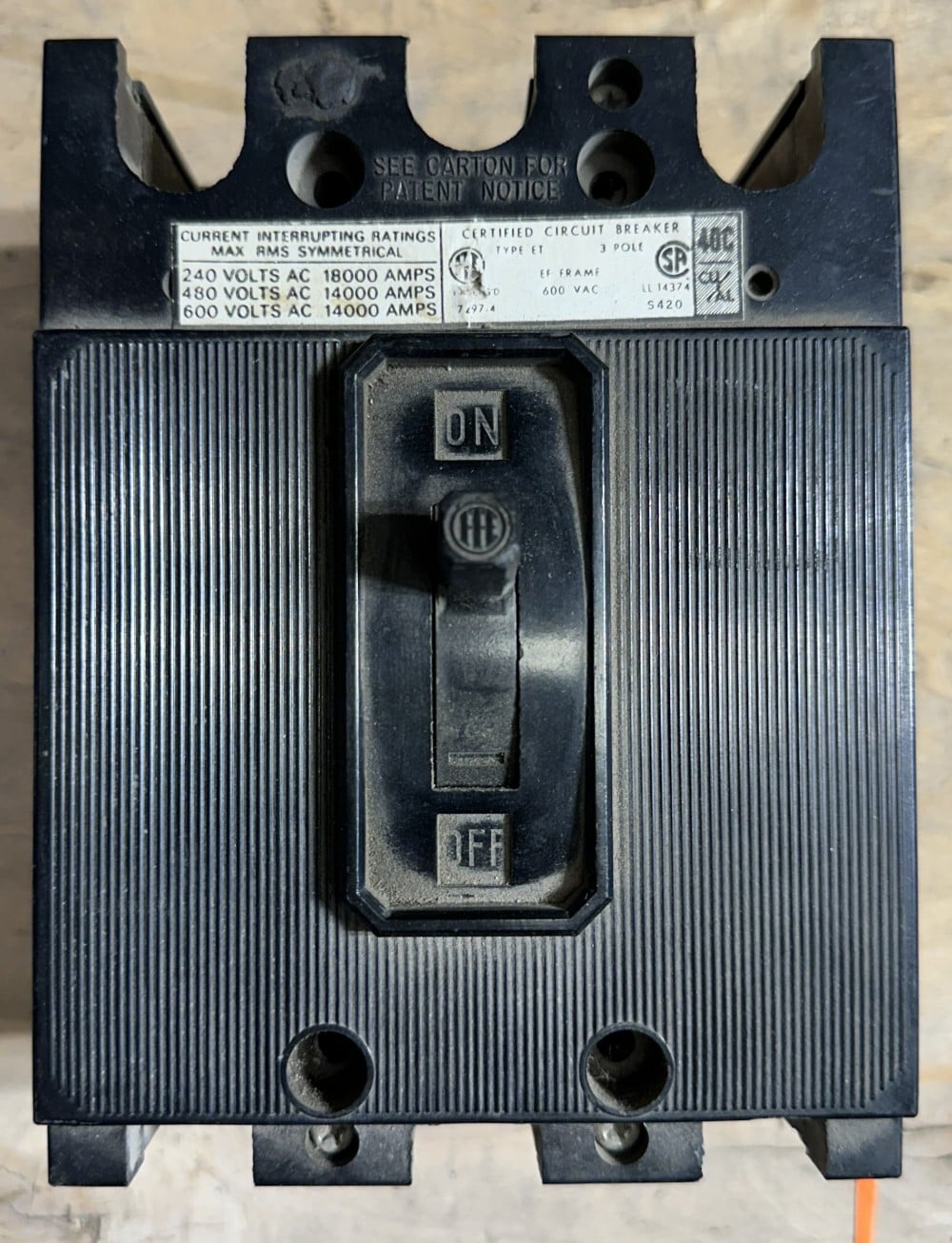

ITE Type ET EF-Frame Molded Case Circuit Breaker – Ampere Rating Not Marked – Vintage
3-Pole – 600V AC – Thermal-Magnetic, Fixed Trip – 18kA @ 240V / 14kA @ 480V / 14kA @ 600V
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Vintage ITE Industries Limited (Canada) Type ET thermal-magnetic molded case circuit breaker, EF frame, 3-pole, 600V AC, with fixed, non-adjustable trip. Interrupting rating of 18,000A at 240V, 14,000A at 480V and 14,000A at 600V (RMS symmetrical). Rated at 40°C. Cu/Al terminals. Trip element factory calibrated, trip unit cover sealed. CSA certified.

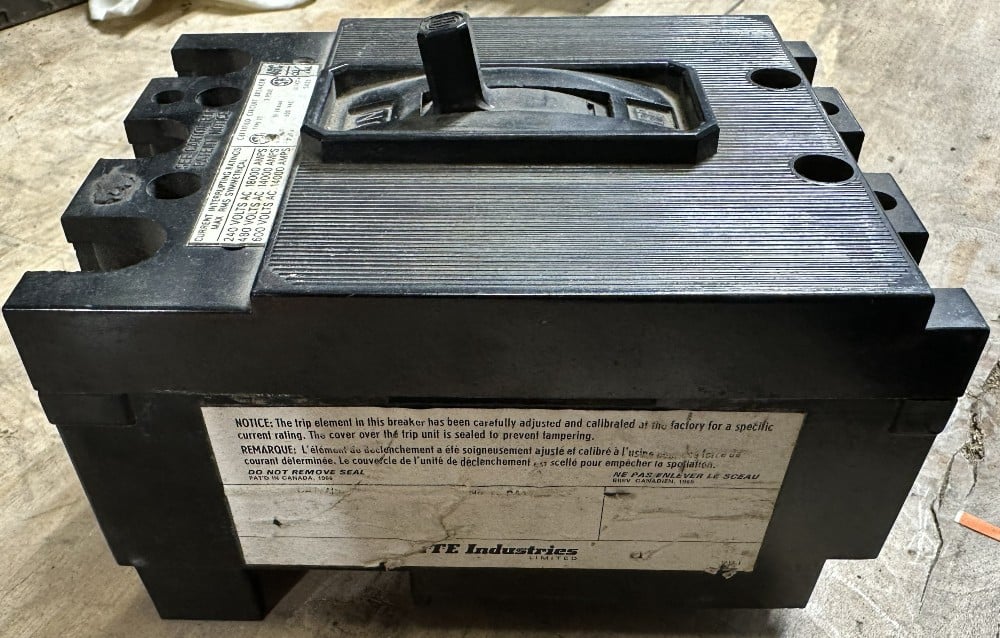

Please note: Ampere rating and catalog number are not marked – handle is unmarked and side label is worn. EF frame is rated up to 100A maximum. Buyer to verify trip rating before use.
SPECIFICATIONS
Manufacturer: ITE Industries Limited (Canada)
Series: Type ET, EF Frame
Catalog #: Not marked
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 3
Ampere Rating: Not marked (EF frame, 100A max.)
Trip Type: Fixed – non-adjustable; factory calibrated, cover sealed
Voltage: 600V AC
Interrupting Rating: 18,000A @ 240V, 14,000A @ 480V, 14,000A @ 600V (RMS Sym.)
Calibration: 40°C
Terminals: Cu/Al
Approvals: CSA (LL 14374, S420; listed 7297-4)
Patent: Canada, 1966
CONDITION
Condition: Used – As-Is. Vintage unit; side label worn; ampere rating not marked.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1580
