Federal Pioneer Type HEZ High-Interrupting Circuit Breaker 15A, 347 VAC, 1 Pole – Thermal-Magnetic, Non-Adjustable Trip

Details

Description

Federal Pioneer Type HEZ High-Interrupting Circuit Breaker
15A, 347 VAC, 1 Pole – Thermal-Magnetic, Non-Adjustable Trip

>> Qty 2 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

Federal Pioneer Type HEZ single-pole high-interrupting circuit breakers, rated 15A, 347 VAC, with a non-adjustable thermal-magnetic trip (calibrated at 40°C) and a red handle. Interrupting ratings (RMS symmetrical) are 25kA at 347 VAC, 65kA at 277 VAC and 100kA at 120 VAC. They are suitable for 60/75°C wire and are CSA certified. Well suited to 347V lighting circuits. We have 2 in stock.

Please note: The single-pole 347 VAC rating is for line-to-neutral circuits on 600Y/347V solidly grounded wye systems.

SPECIFICATIONS
Manufacturer: Federal Pioneer
Type: HEZ (high-interrupting)
Catalogue No.: Not confirmed
Amperage: 15A
Voltage: 347 VAC
Poles: 1
Trip Unit: Thermal-Magnetic, non-adjustable, 40°C calibration
Interrupting Rating (RMS sym.): 25kA @ 347 VAC; 65kA @ 277 VAC; 100kA @ 120 VAC
Wire: 60/75°C
Lug Torque (min.): #14–10 AWG 25 lb-in; #8–6 AWG 30 lb-in
Handle: Red
Approvals: CSA

CONDITION

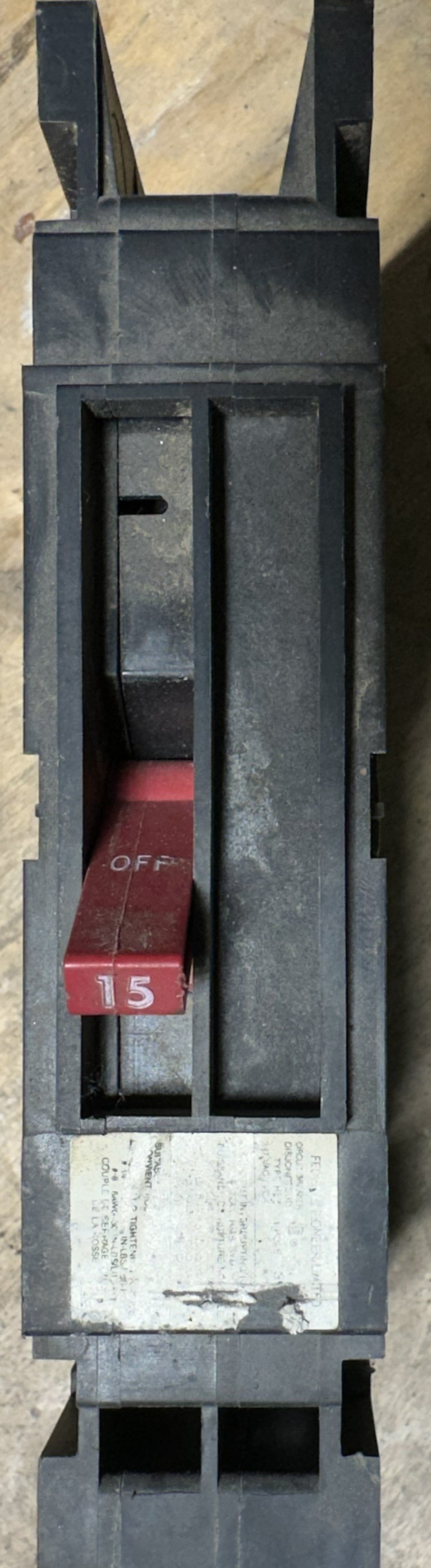

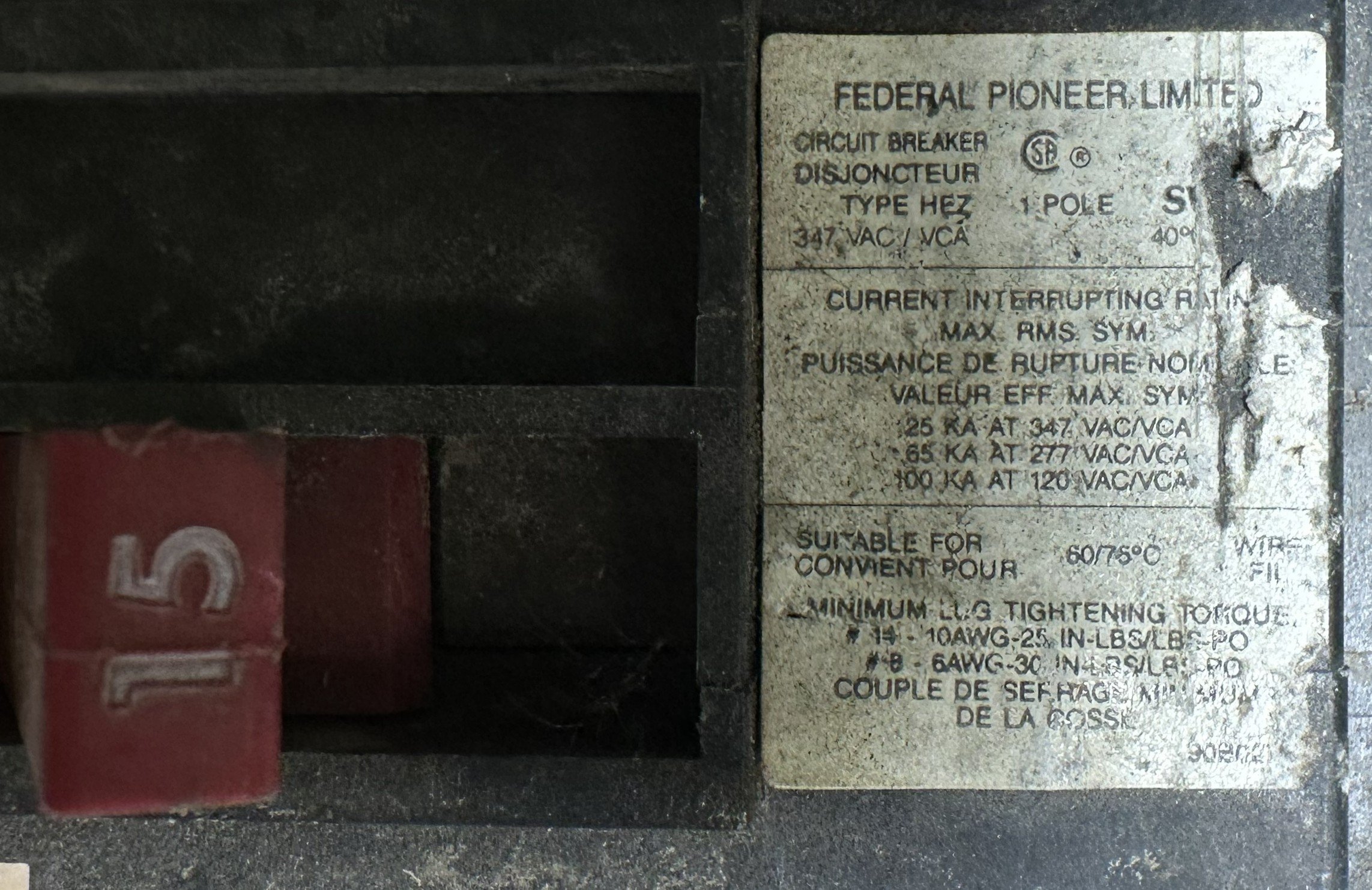

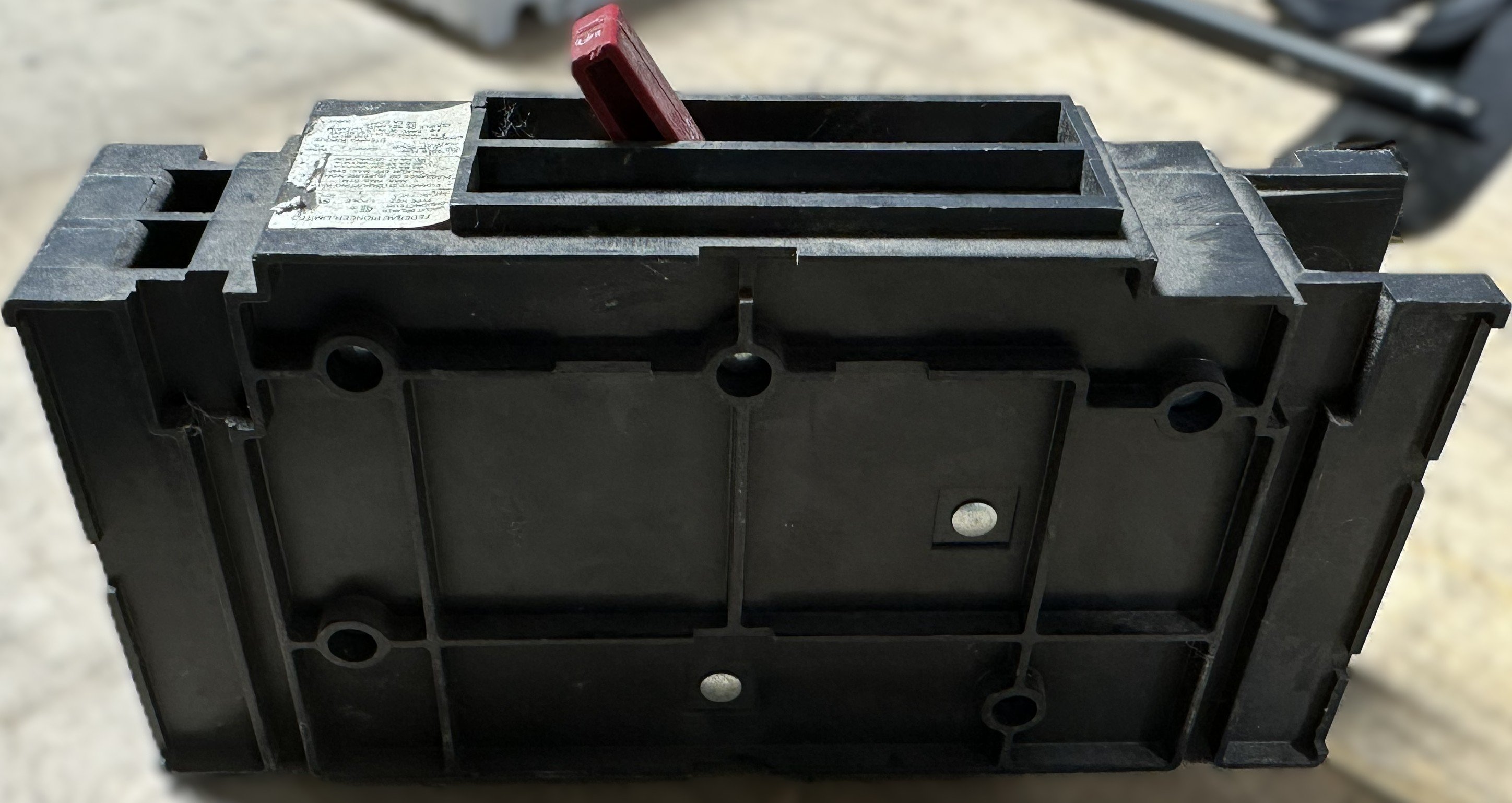

Used – As-Is. Removed from service. Labels worn and partly torn but ratings legible. Light dust and normal signs of use and age. Please review the photos.

TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1623
