Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Federal Pioneer |
| Stock # | CB - 1624 |
Description
Federal Pioneer Stab-Lok Type NB SWD Plug-In Circuit Breaker
15A, 120/240 VAC, 1 Pole – Thermal-Magnetic, Non-Adjustable Trip
>> Qty 23 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Federal Pioneer Stab-Lok Type NB single-pole plug-in circuit breakers, SWD (switching duty) rated, 15A, 120/240 VAC. Each has a non-adjustable thermal-magnetic trip (calibrated at 40°C). Interrupting rating is 10,000A RMS symmetrical at 120/240 V. They have Cu-Al terminals for 60/75°C wire and are CSA certified. SWD rating means they suit lighting circuits switched at the panel. A good replacement stock for Federal Pioneer Stab-Lok panelboards and load centres. We have 23 in stock, and quantity pricing is available on request for multiple units or the full lot.
SPECIFICATIONS
Manufacturer: Federal Pioneer
Series / Type: Stab-Lok, Type NB SWD (plug-in)
Catalogue No.: Not confirmed
Amperage: 15A
Voltage: 120/240 VAC
Poles: 1
Trip Unit: Thermal-Magnetic, non-adjustable, 40°C calibration
Interrupting Rating: 10kA RMS sym. @ 120/240 V
Terminals: Cu-Al, 60/75°C wire; 35 lb-in min. torque
Features: SWD (switching duty) rated
Approvals: CSA (LR12188)
CONDITION

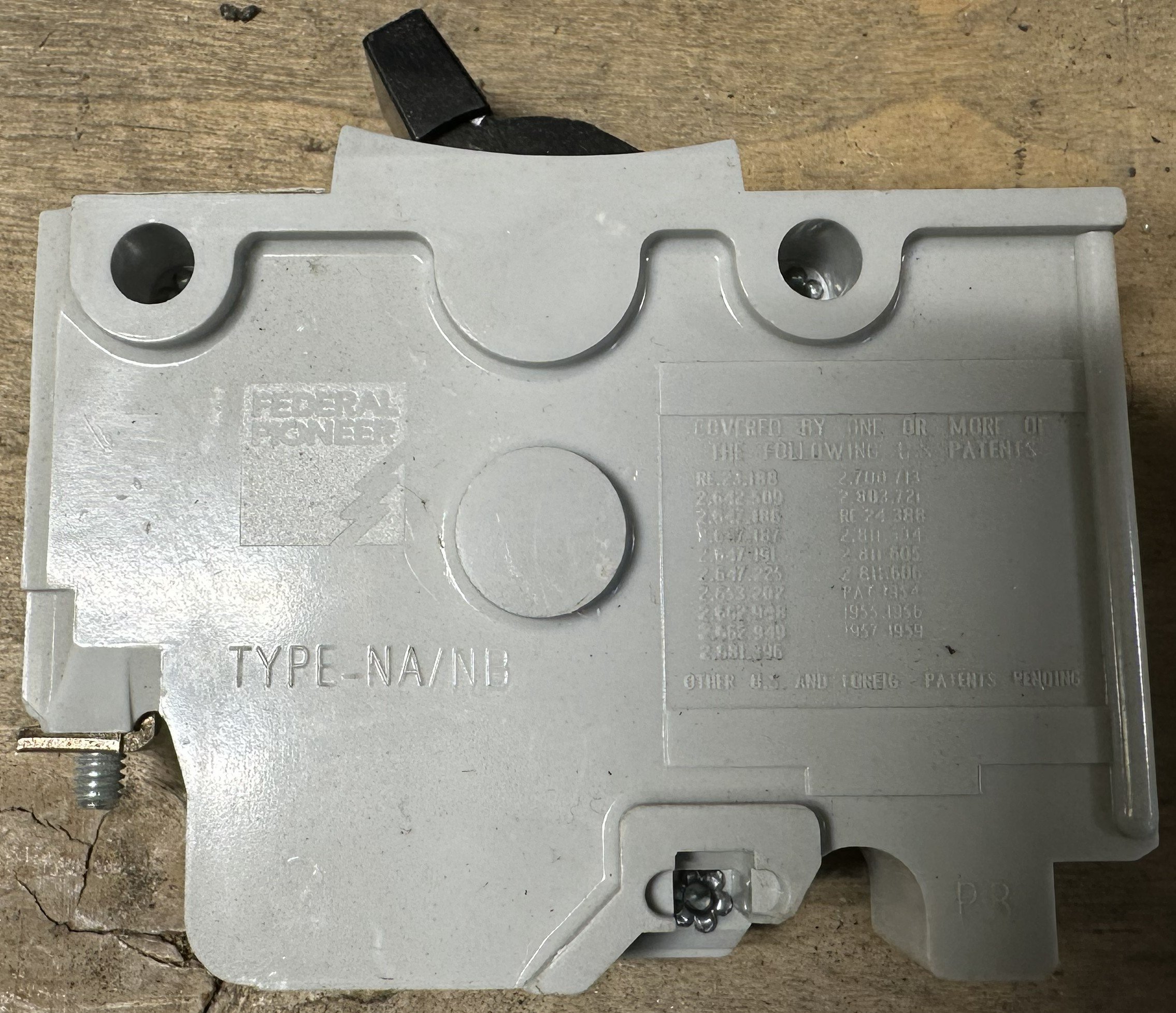

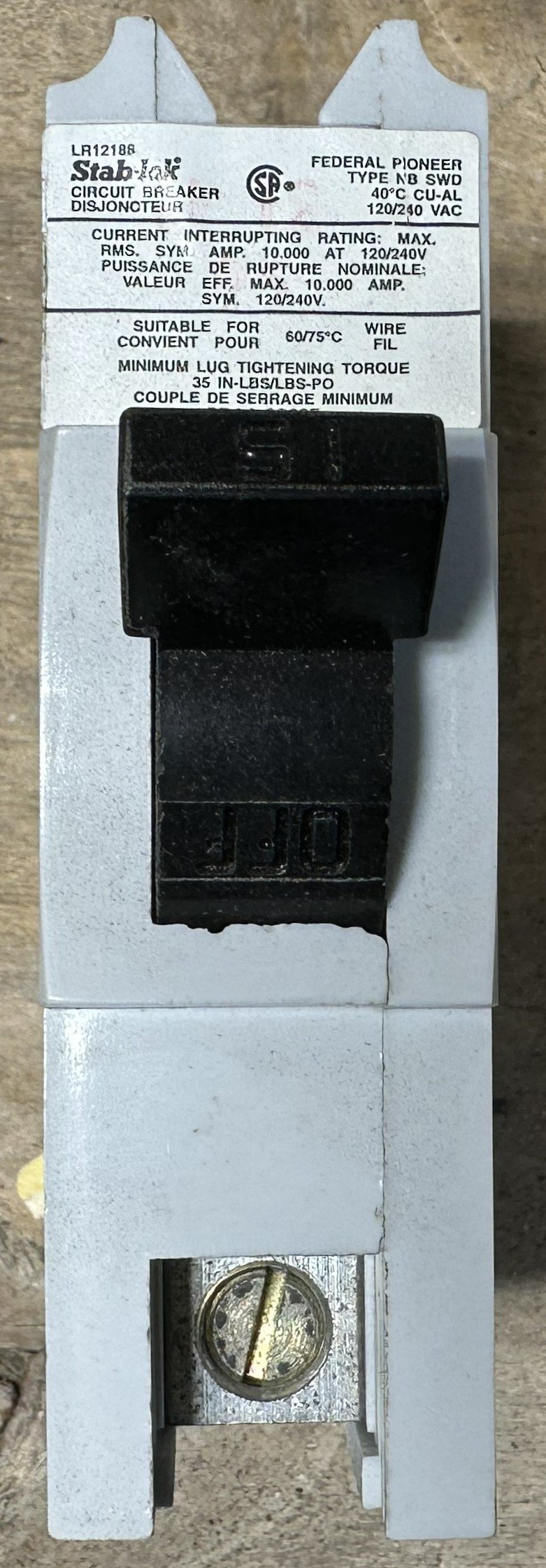

Surplus – sold as-is. The pictured unit is clean, with an intact label and light scuffing, but unused condition is not confirmed. Please review the photos.
TERMS
Price: Call for Price – quantity pricing available on request
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1624
