Federal Pioneer Stab-Lok Type NB Plug-In Circuit Breaker 70A, 240 VAC, 3 Pole – Thermal-Magnetic, Non-Adjustable Trip

Details

Description

Federal Pioneer Stab-Lok Type NB Plug-In Circuit Breaker
70A, 240 VAC, 3 Pole – Thermal-Magnetic, Non-Adjustable Trip

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

Federal Pioneer Type NB 3-pole plug-in circuit breaker, rated 70A, 240 VAC, with a non-adjustable thermal-magnetic trip (calibrated at 40°C) and a single common handle. Interrupting rating is 10,000A RMS symmetrical at 240 V. It has Cu-Al terminals for 60/75°C wire and is CSA certified. Made by Federal Pioneer Limited, Canada. A good replacement for Federal Pioneer Stab-Lok panelboards and load centres.

SPECIFICATIONS
Manufacturer: Federal Pioneer Limited, Canada

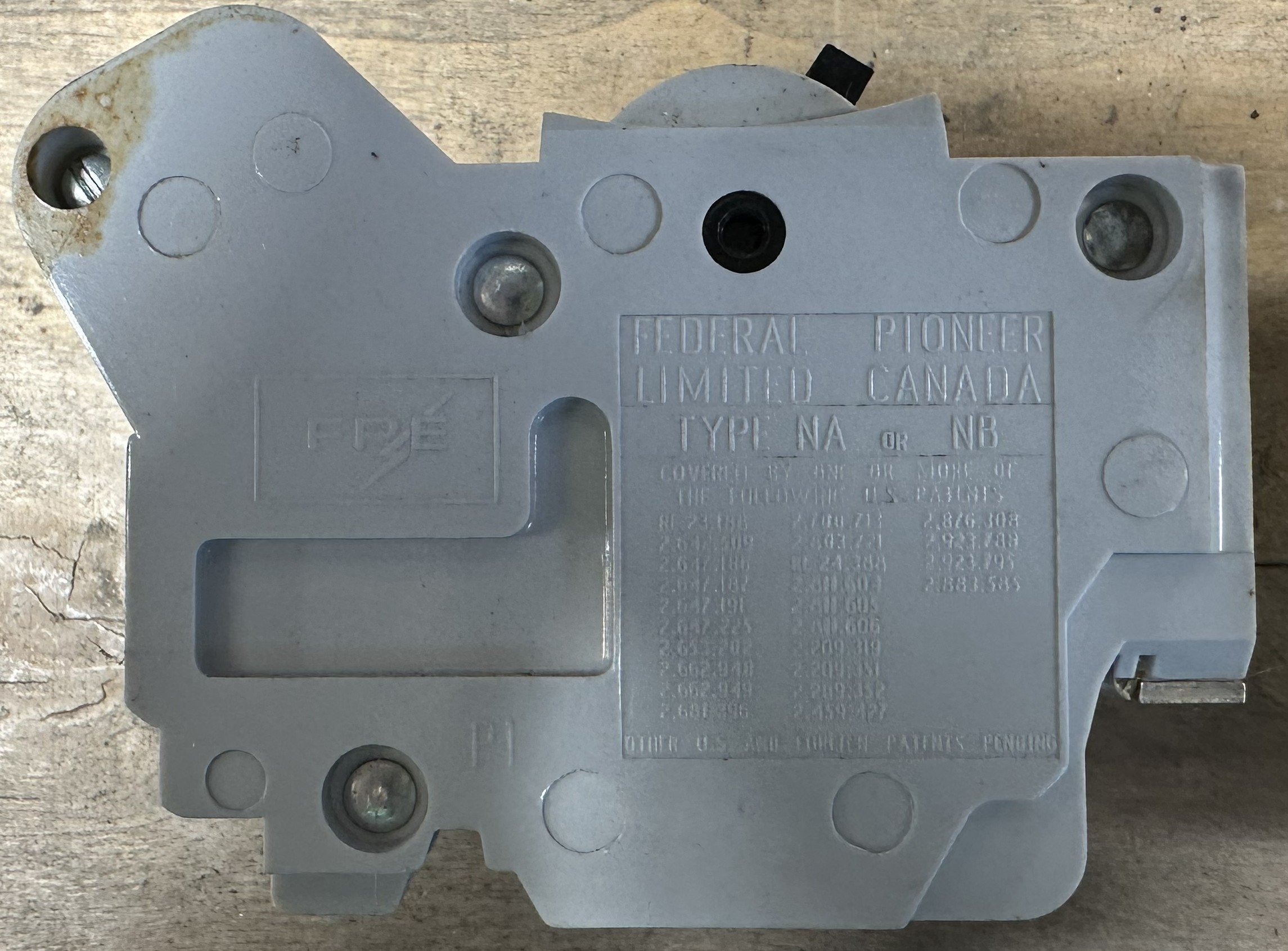

Series / Type: Stab-Lok, Type NB (case moulded “Type NA or NB”); plug-in
Catalogue No.: Not confirmed
Amperage: 70A
Voltage: 240 VAC
Poles: 3 (common handle)
Trip Unit: Thermal-Magnetic, non-adjustable, 40°C calibration
Interrupting Rating: 10kA RMS sym. @ 240 V
Terminals: Cu-Al, 60/75°C wire
Lug Torque (min.): #14–10 AWG 35 lb-in; #8 AWG 40 lb-in; #6–4 AWG 45 lb-in; #3–1/0 AWG 50 lb-in
Approvals: CSA
Made in Canada

CONDITION

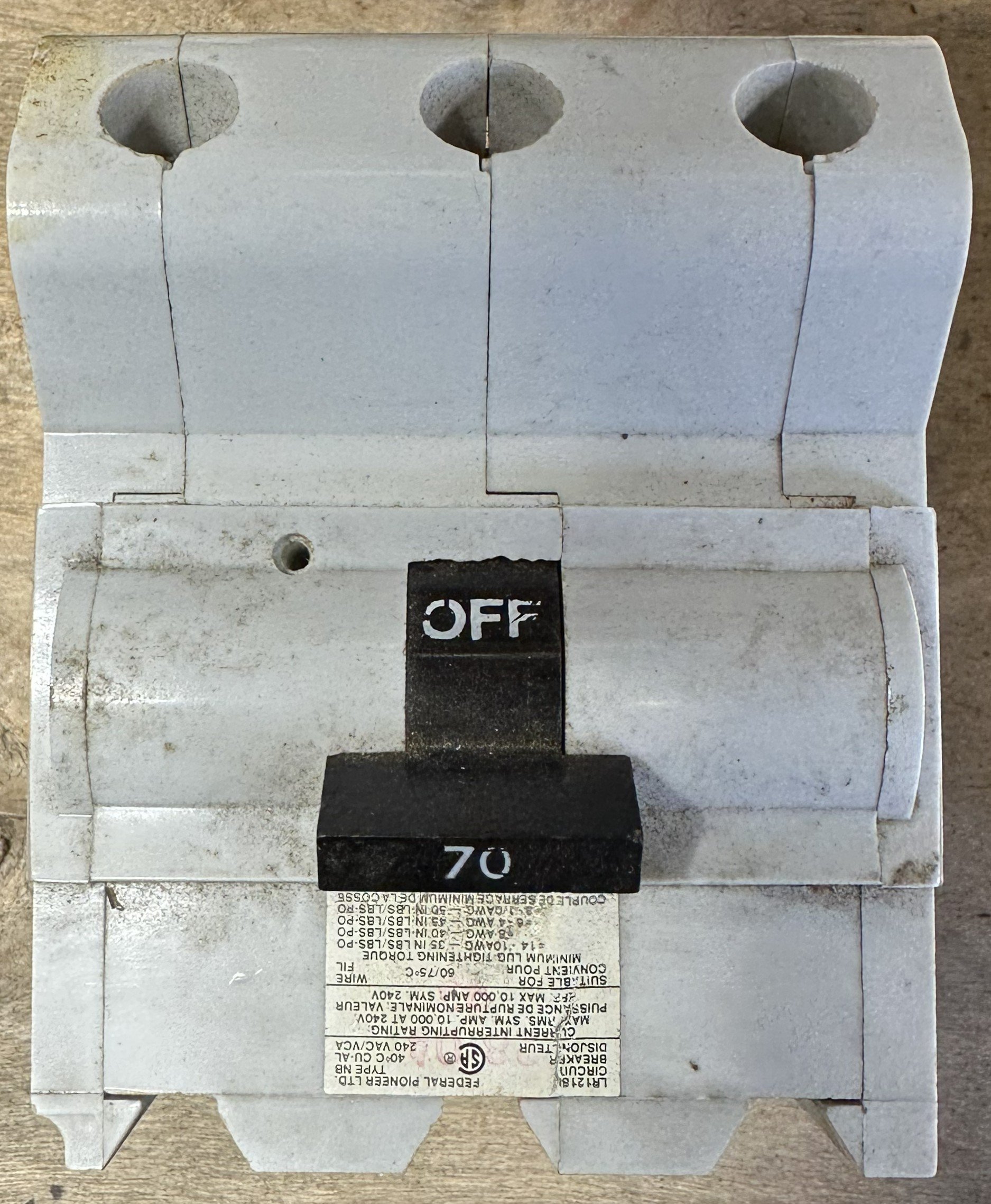

Used – As-Is. Removed from service. Label intact and legible. Light dust, and some discolouration near the plug-in clip end of the case. Shows normal signs of use and age. Please review the photos.

TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1619
