Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Federal Pioneer |
| Stock # | CB - 1626 |
Description
Federal Pioneer Stab-Lok Type NB Plug-In Circuit Breaker
40A, 120/240 VAC, 2 Pole – Thermal-Magnetic, Non-Adjustable Trip
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Federal Pioneer Stab-Lok Type NB 2-pole plug-in circuit breaker, rated 40A, 120/240 VAC, with a non-adjustable thermal-magnetic trip (calibrated at 40°C). Interrupting rating is 10,000A RMS symmetrical at 120/240 V. It has Cu-Al terminals for 60/75°C wire, accepting up to #1/0 AWG, and is CSA certified. A good replacement for Federal Pioneer Stab-Lok panelboards and load centres.
SPECIFICATIONS
Manufacturer: Federal Pioneer
Series / Type: Stab-Lok, Type NB (plug-in)
Catalogue No.: Not confirmed
Amperage: 40A
Voltage: 120/240 VAC
Poles: 2
Trip Unit: Thermal-Magnetic, non-adjustable, 40°C calibration
Interrupting Rating: 10kA RMS sym. @ 120/240 V
Terminals: Cu-Al, 60/75°C wire
Lug Torque (min.): #14–10 AWG 35 lb-in; #8 AWG 40 lb-in; #6–4 AWG 45 lb-in; #3–1/0 AWG 50 lb-in
Approvals: CSA
Lot No.: 153555
Assembled in Mexico
CONDITION

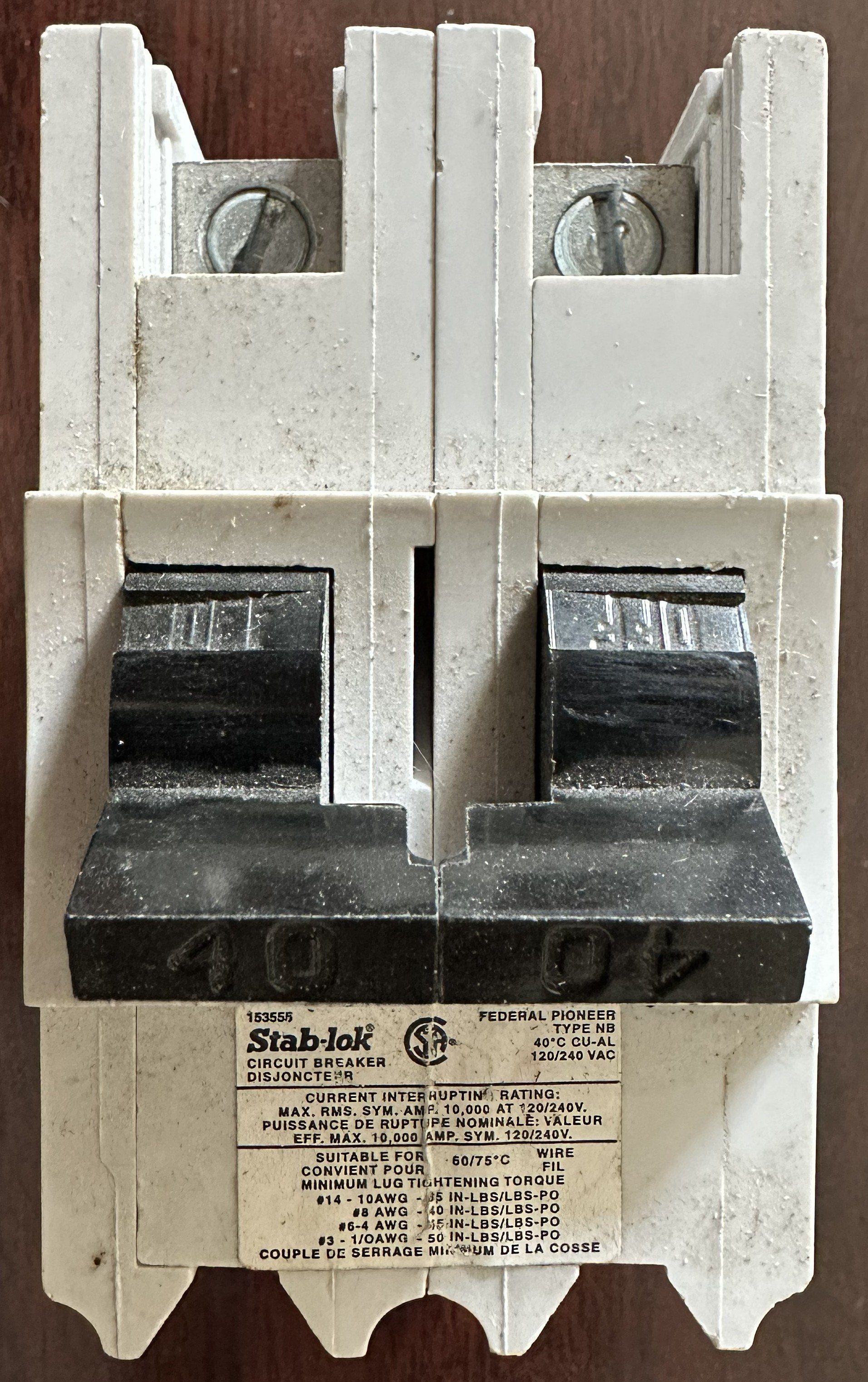

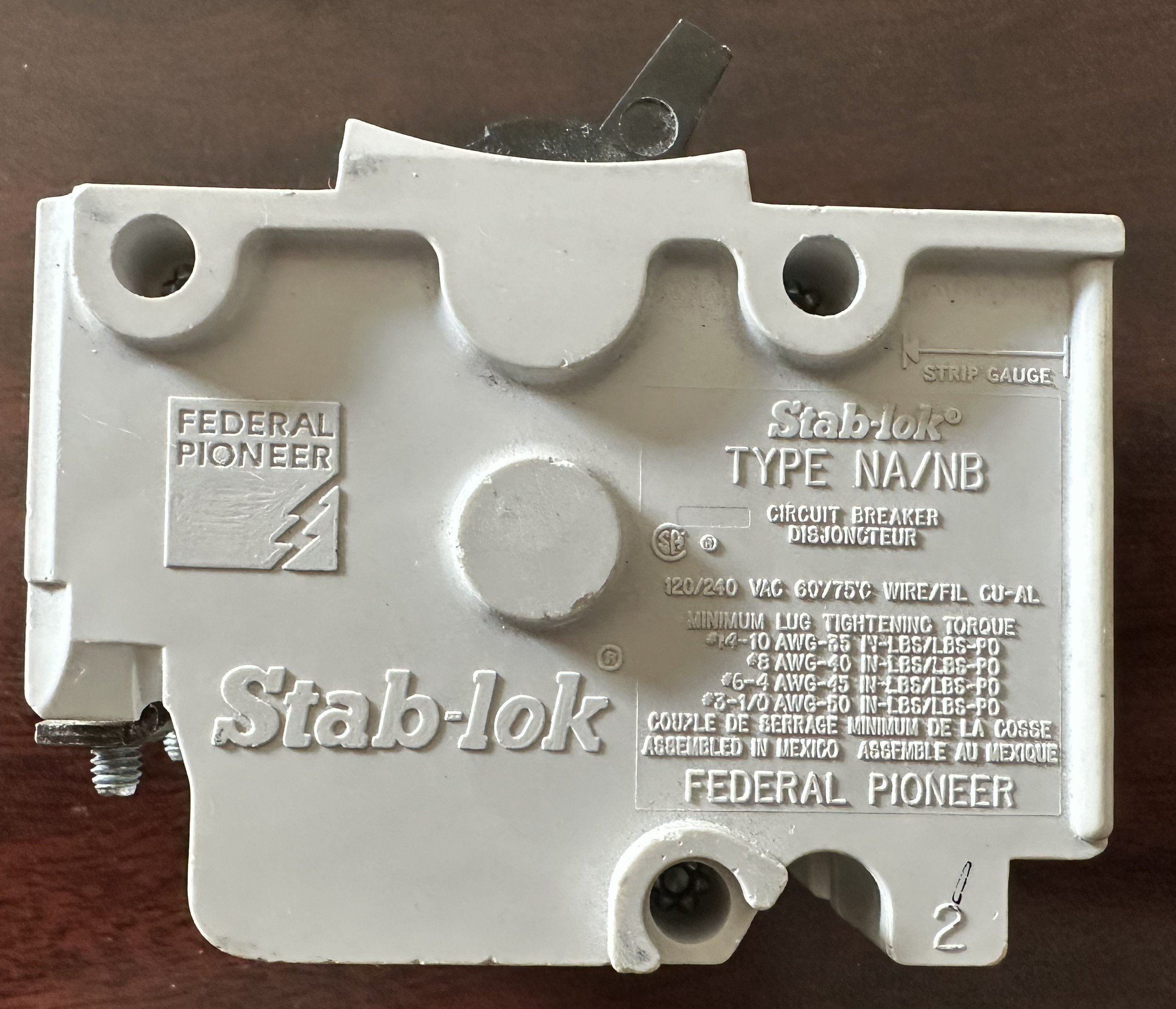

Used – As-Is. Label intact and legible. Light dust and normal signs of handling. Please review the photos.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1626
