Federal Pioneer Stab-Lok Type NB Plug-In Circuit Breaker 30A, 120/240 VAC, 1 Pole – Thermal-Magnetic, Non-Adjustable Trip

Details

Description

Federal Pioneer Stab-Lok Type NB Plug-In Circuit Breaker
30A, 120/240 VAC, 1 Pole – Thermal-Magnetic, Non-Adjustable Trip

>> Qty 3 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

Federal Pioneer Stab-Lok Type NB single-pole plug-in circuit breakers, rated 30A, 120/240 VAC, with a non-adjustable thermal-magnetic trip (calibrated at 40°C). Interrupting rating is 10,000A RMS symmetrical at 120/240 V. They have Cu-Al terminals for 60/75°C wire, accepting up to #1/0 AWG, and are CSA certified. A good replacement stock for Federal Pioneer Stab-Lok panelboards and load centres. We have 3 in stock.

SPECIFICATIONS
Manufacturer: Federal Pioneer Limited
Series / Type: Stab-Lok, Type NB (plug-in)
Catalogue No.: Not confirmed
Amperage: 30A
Voltage: 120/240 VAC
Poles: 1
Trip Unit: Thermal-Magnetic, non-adjustable, 40°C calibration
Interrupting Rating: 10kA RMS sym. @ 120/240 V
Terminals: Cu-Al, 60/75°C wire
Lug Torque (min.): #14–10 AWG 35 lb-in; #8 AWG 40 lb-in; #6–4 AWG 45 lb-in; #3–1/0 AWG 50 lb-in
Approvals: CSA
Lot No.: 153555
Assembled in Mexico

CONDITION

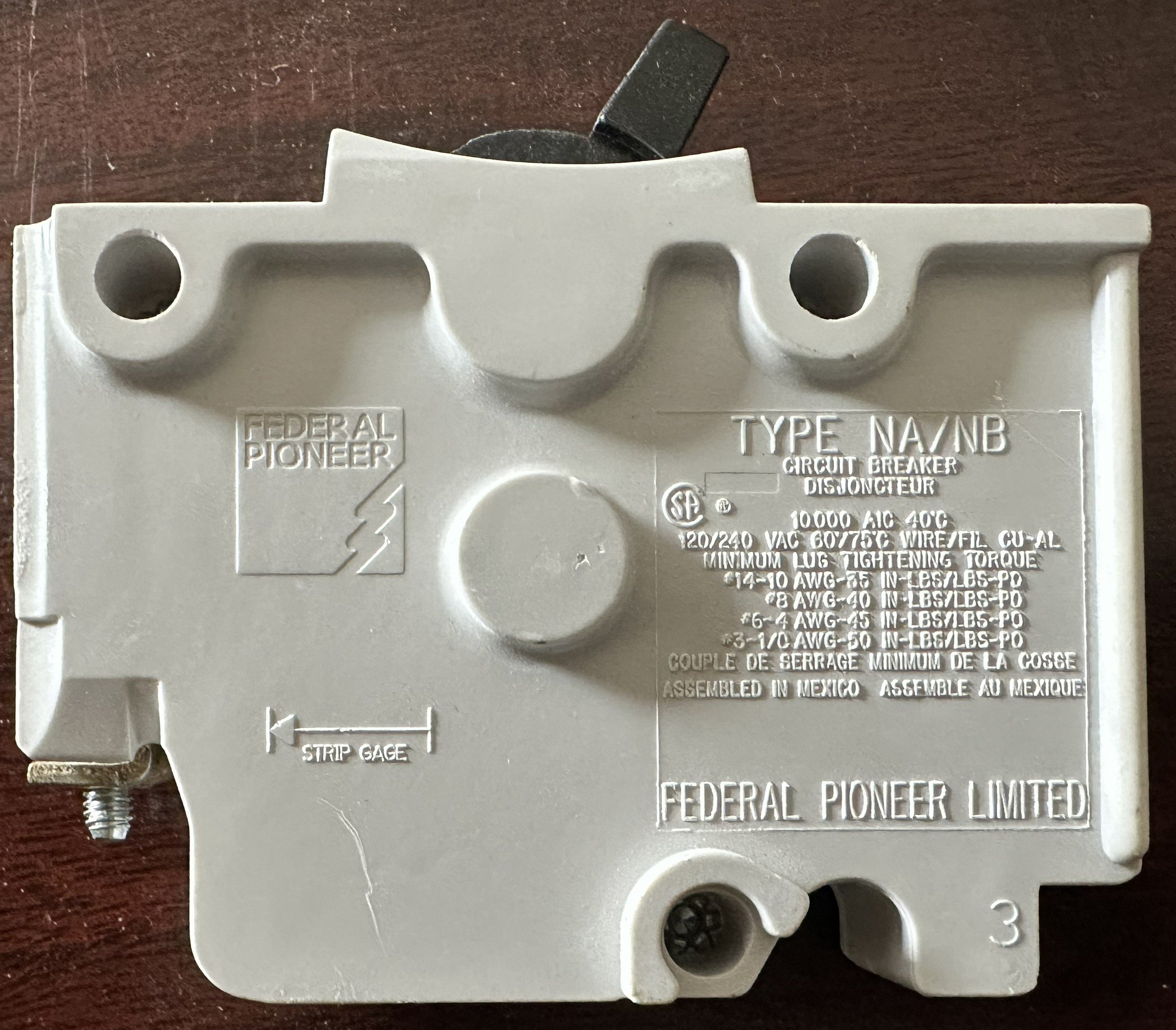

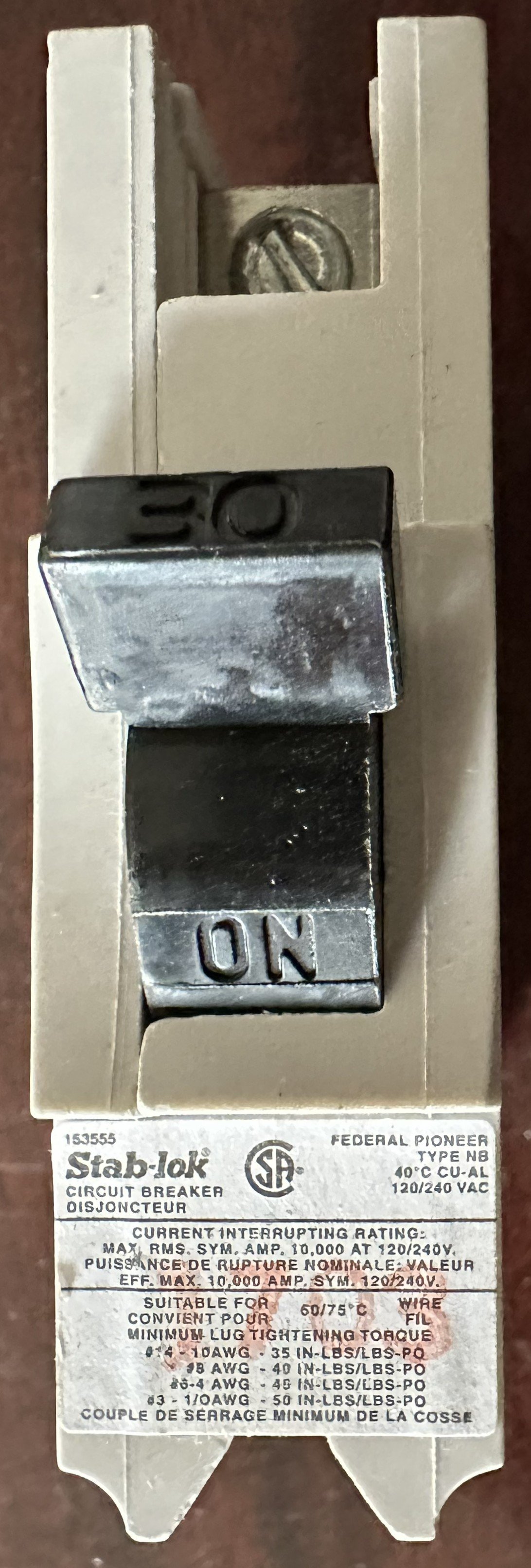

Surplus – sold as-is. The pictured unit is clean with an intact label and a faint red marking on the label. Unused condition is not confirmed. Please review the photos.

TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1630
