Federal Pioneer Stab-Lok Type NB Plug-In Circuit Breaker 15A, 240 VAC, 3 Pole – Thermal-Magnetic, Non-Adjustable Trip

Details

Description

Federal Pioneer Stab-Lok Type NB Plug-In Circuit Breaker
15A, 240 VAC, 3 Pole – Thermal-Magnetic, Non-Adjustable Trip

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

Federal Pioneer Stab-Lok Type NB 3-pole plug-in circuit breaker, rated 15A, 240 VAC, with a non-adjustable thermal-magnetic trip (calibrated at 40°C). Interrupting rating is 10,000A RMS symmetrical at 240 V. It has Cu-Al terminals for 60/75°C wire and is CSA certified. A good replacement for Federal Pioneer Stab-Lok panelboards and load centres.

SPECIFICATIONS
Manufacturer: Federal Pioneer
Series / Type: Stab-Lok, Type NB (plug-in)
Catalogue No.: Not confirmed
Amperage: 15A
Voltage: 240 VAC
Poles: 3
Trip Unit: Thermal-Magnetic, non-adjustable, 40°C calibration
Interrupting Rating: 10kA RMS sym. @ 240 V
Terminals: Cu-Al, 60/75°C wire
Lug Torque (min.): #14–10 AWG 35 lb-in
Approvals: CSA (LR12188)

CONDITION

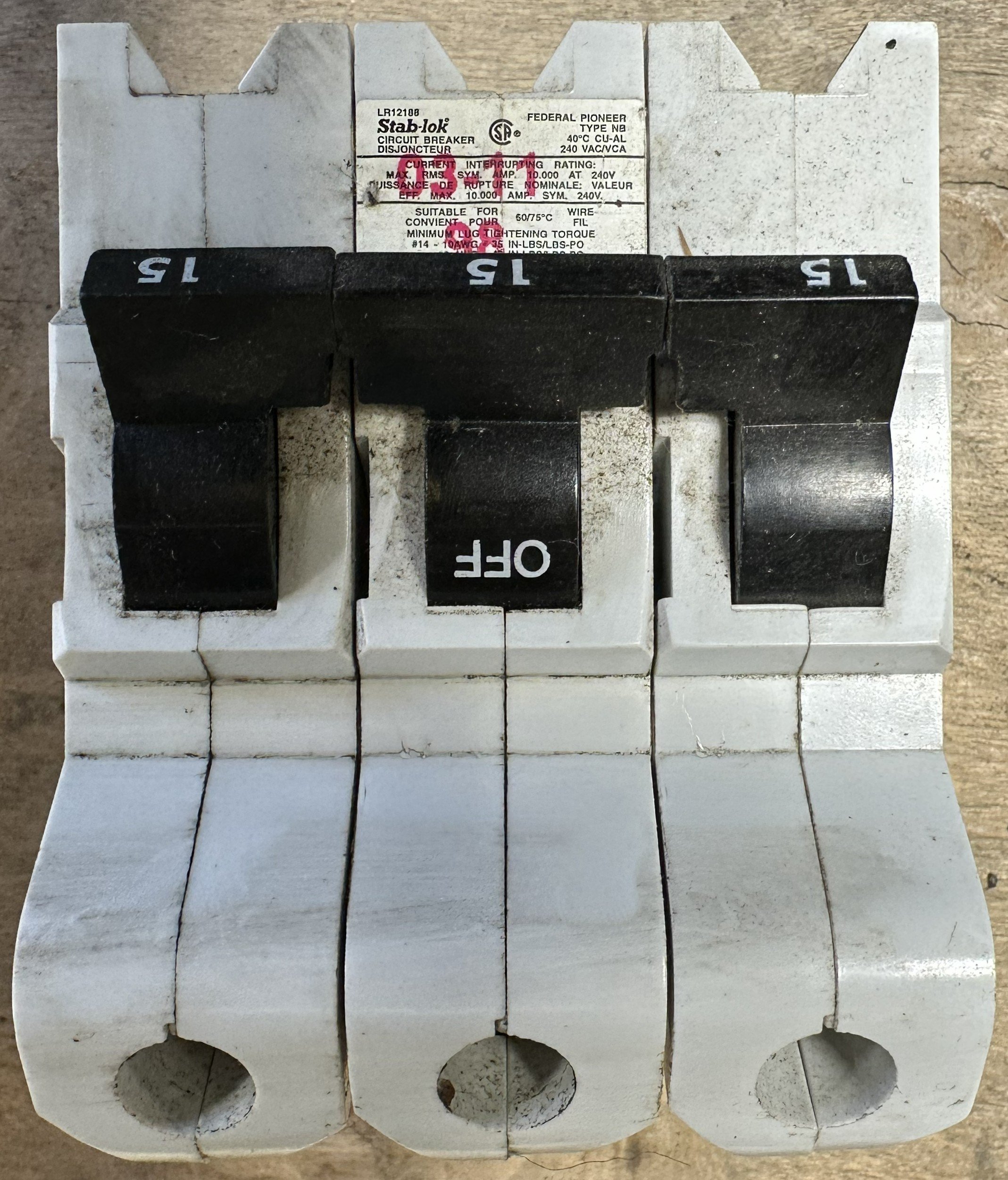

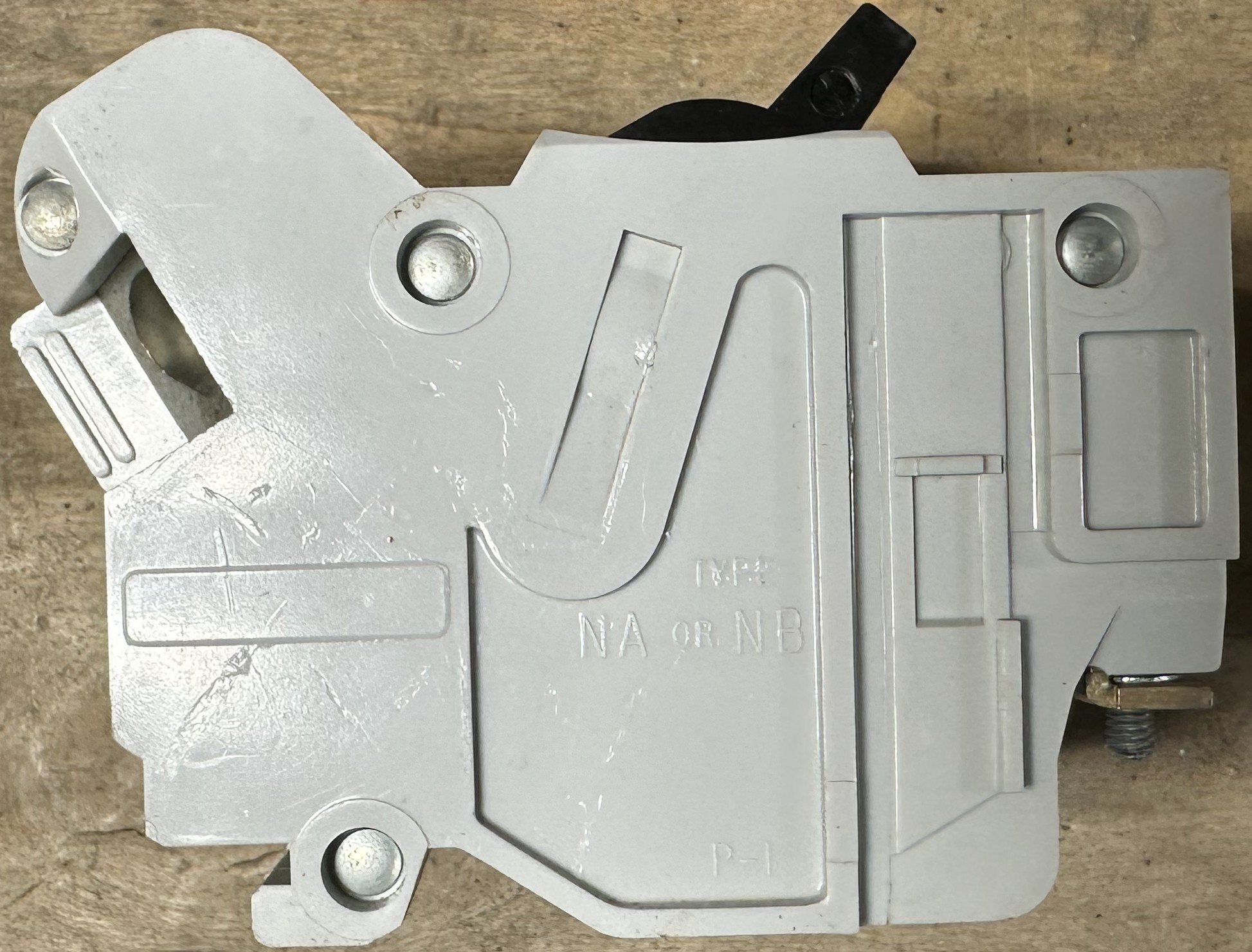

Used – As-Is. Removed from service. Label legible, with a handwritten previous-owner circuit marking in red over part of it. Light dust and scuffs, with normal signs of use and age. Please review the photos.

TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1621
