Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Cutler-Hammer |
| Model | FIXED TRIP |
| Stock # | CB - 1552 |
Description
Cutler-Hammer Type GBH GBH2100 Bolt-On Circuit Breaker
100A – 2-Pole – 347/600V AC – Thermal-Magnetic, Fixed Trip – 10kA @ 347/600V AC
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Cutler-Hammer Canada Type GBH bolt-on circuit breaker, catalog GBH2100, rated 100A at 40°C, 2-pole, 347/600V AC, with fixed, non-adjustable trip. Interrupting rating of 10,000A symmetrical at 347/600V AC. Cu/Al wire, 60/75°C. CSA certified, factory sealed.
Please note: 347/600V slash rating – for use on solidly grounded wye systems only.
SPECIFICATIONS
Manufacturer: Cutler-Hammer Canada
Series: Type GBH (bolt-on)
Catalog #: GBH2100
Type: Thermal-Magnetic Bolt-On Circuit Breaker
Poles: 2
Current Rating: 100A @ 40°C
Trip Type: Fixed – non-adjustable; factory sealed
Voltage: 347/600V AC

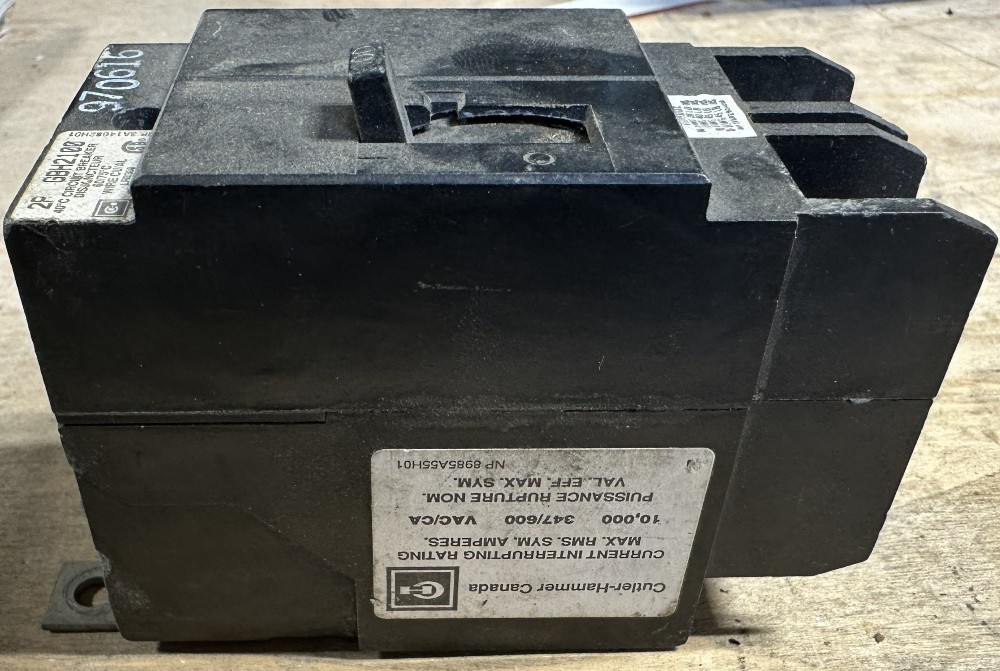

Interrupting Rating: 10,000A Sym. @ 347/600V AC
Wire: Cu/Al, 60/75°C

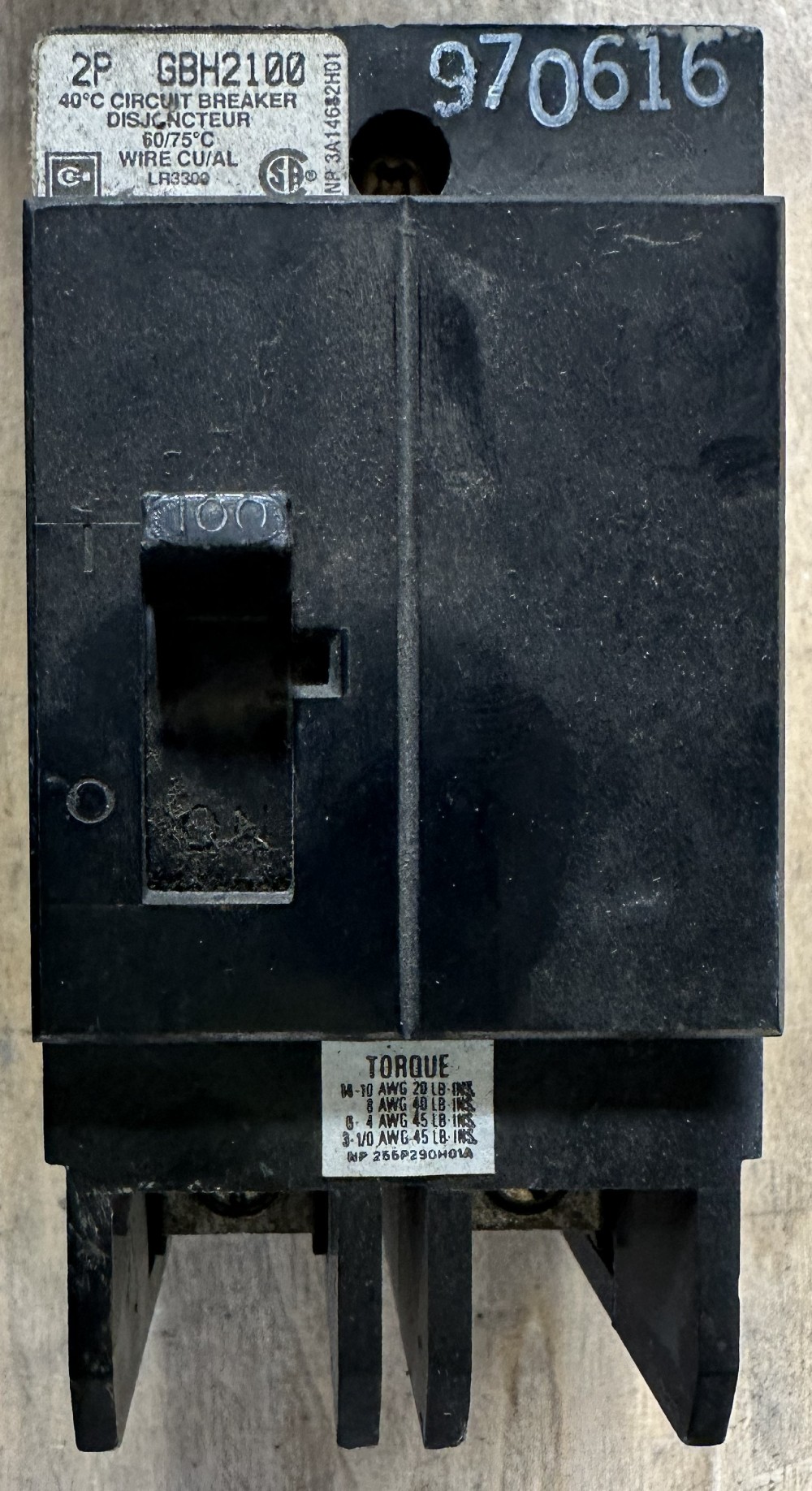

Terminal Torque: 14–10 AWG 20 lb-in; 8 AWG 40 lb-in; 6–4 AWG 45 lb-in; 3–1/0 AWG 45 lb-in
Nameplate #: NP 3A14682H01
Approvals: CSA
CONDITION
Condition: Used – As-Is. Inventory number marked on case.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1552
