Details
| Category | Replacement Contactor Coils Motor Controls And Starters |
|---|---|
| Manufacturer | Cutler-Hammer |
| Stock # | CON - 0010 |
Description
Cutler-Hammer C10ED2 – CEMA Size 3 Contactor, Series CA1
2 Pole, 90A Continuous, 600V – with N.O. Auxiliary Contact
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<

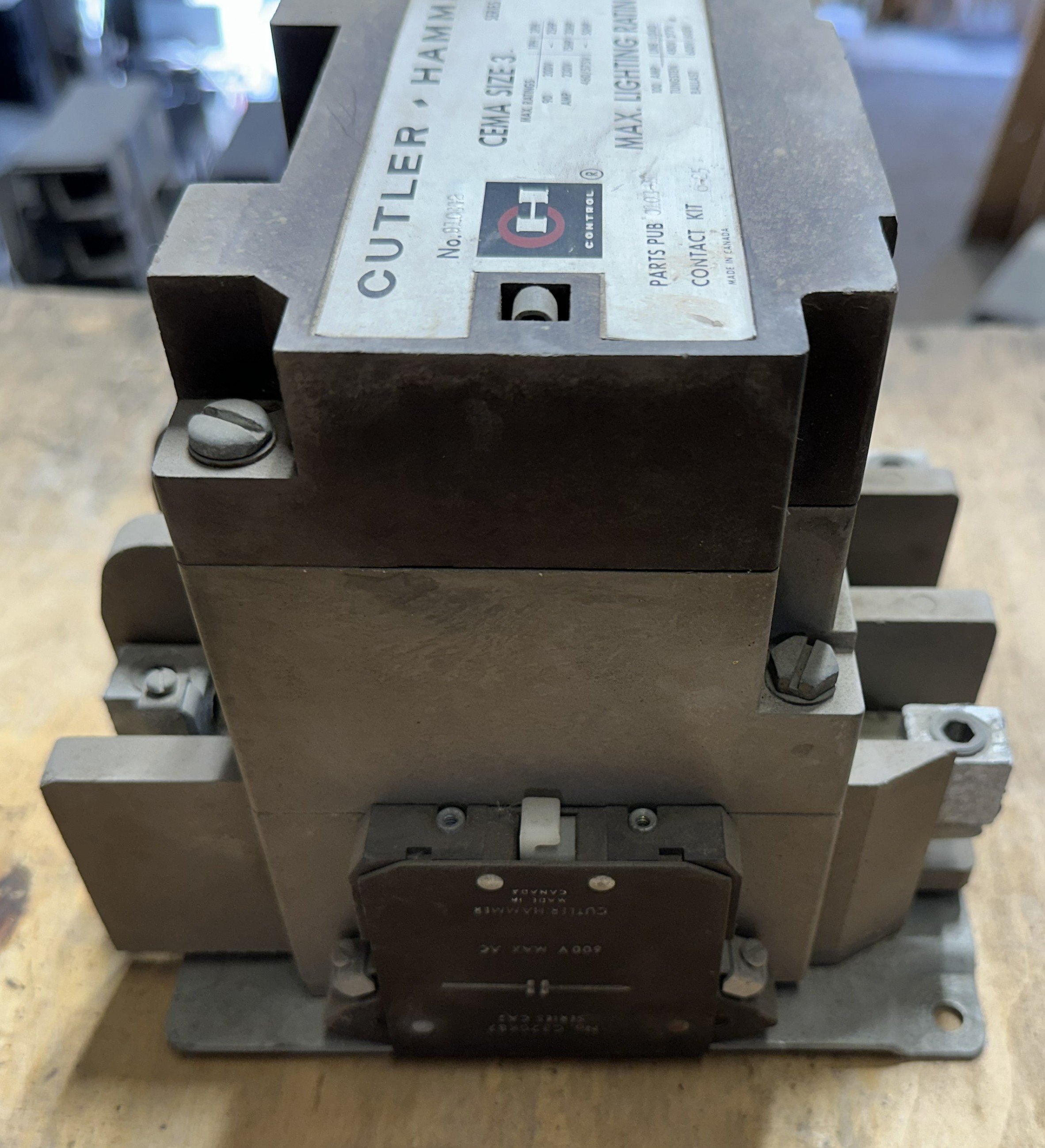

Cutler-Hammer CEMA Size 3 2-pole magnetic contactor, catalogue no. C10ED2, Series CA1. It is rated 90A continuous at 600V. The maximum lighting rating is 100A (tungsten 480V line / 277V load; ballast 600V line / 600V load). It has a Cutler-Hammer normally-open auxiliary contact (600 VAC max, Series CA1) on the side. It is CSA certified and made in Canada. Parts publication C10E-1; contact kit 6-25.

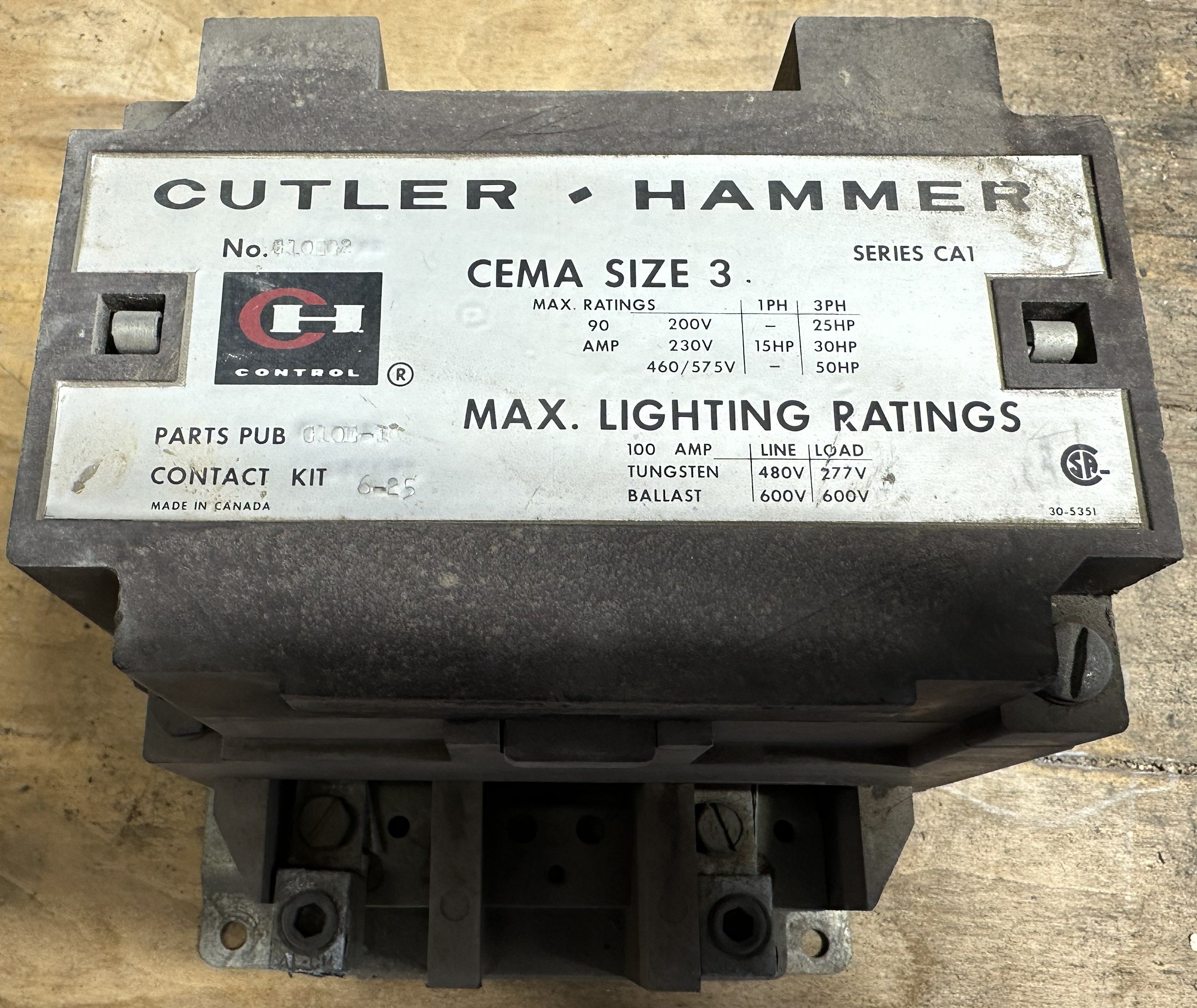

IMPORTANT: The coil voltage is not marked on the visible faces. The buyer must confirm the coil voltage before use; photos of the coil can be provided on request. The nameplate shows the Size 3 frame ratings: 1-phase 15 HP at 230V, and 3-phase 25 HP at 200V, 30 HP at 230V and 50 HP at 460/575V. This unit is 2-pole, so it is suited to single-phase motor and lighting loads; three-phase motor control requires a 3-pole contactor.
SPECIFICATIONS
Manufacturer: Cutler-Hammer
Catalogue No.: C10ED2
Series: CA1
Size: CEMA Size 3
Poles: 2
Continuous Rating: 90A
Voltage: 600V max.
Motor Ratings (nameplate): 1-ph 15 HP @ 230V; 3-ph 25 HP @ 200V, 30 HP @ 230V, 50 HP @ 460/575V
Lighting Ratings: 100A; tungsten 480V line / 277V load; ballast 600V line / 600V load
Auxiliary Contact: 1 N.O., 600 VAC max., Series CA1
Coil Voltage: Not marked on visible faces
Parts Publication: C10E-1; Contact Kit 6-25
Approvals: CSA
Made in Canada
CONDITION

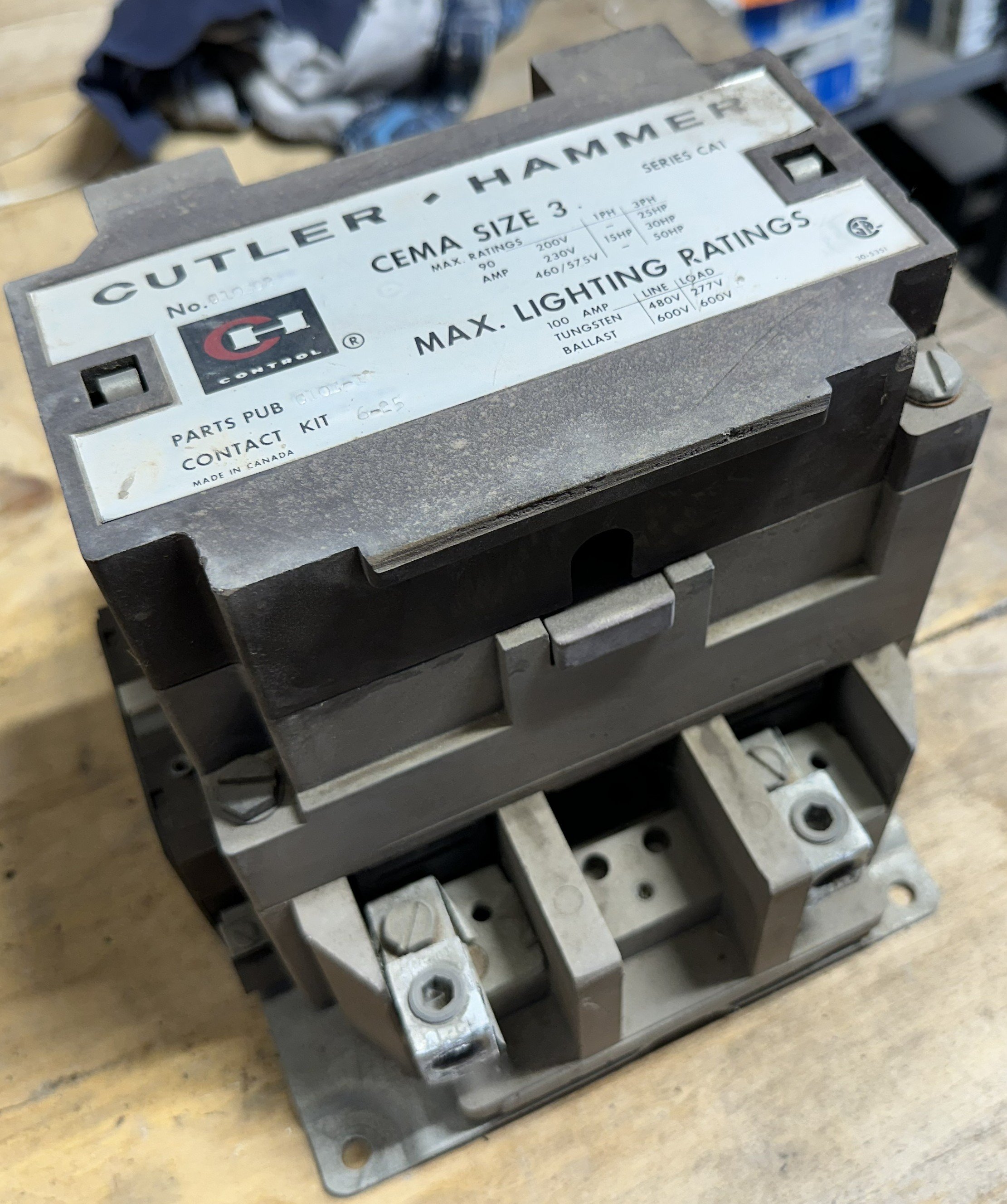

Used – As-Is. Removed from service. Nameplate legible, with some wear on the stamped catalogue number. Shows dust and normal signs of use and age. Please review the photos.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CON-0010
