Allen-Bradley Bulletin 500 – NEMA Size 4 Magnetic Contactor (Vintage)
3 Pole, 135A Continuous, 600 VAC Max – 120V 60 Hz Coil

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

Vintage Allen-Bradley Bulletin 500 open-type AC magnetic contactor, NEMA Size 4, 3-pole. It is rated 135A continuous, 600 VAC max. The coil is catalogue no. 74A86, rated 120V 60 Hz / 110V 50 Hz. It is top-wired, with six cast box lugs with hex-socket set screws (3 line, 3 load). Standard NEMA Size 4 three-phase ratings are 40 HP at 200V, 50 HP at 230V and 100 HP at 460–575V. A good replacement for older Allen-Bradley Size 4 starters and control panels.

Please note: The full catalogue number and series are not confirmed. The probable catalogue number is 500-EOD93, and the series is probably K, based on the coil. The buyer should verify that it suits the intended application before installing it.

SPECIFICATIONS
Manufacturer: Allen-Bradley
Bulletin: 500, open-type AC magnetic contactor
Catalogue No.: Probable 500-EOD93 (not confirmed)
Series: Probable K (not confirmed)
NEMA Size: 4
Poles: 3
Continuous Current: 135A
Max Voltage: 600 VAC
NEMA Size 4 HP (3-phase): 40 HP @ 200V; 50 HP @ 230V; 100 HP @ 460–575V
Coil: Cat. No. 74A86, 120V 60 Hz / 110V 50 Hz
Lugs: 6 cast box lugs with hex-socket set screws (3 line, 3 load)
Wiring: Top-wired

CONDITION

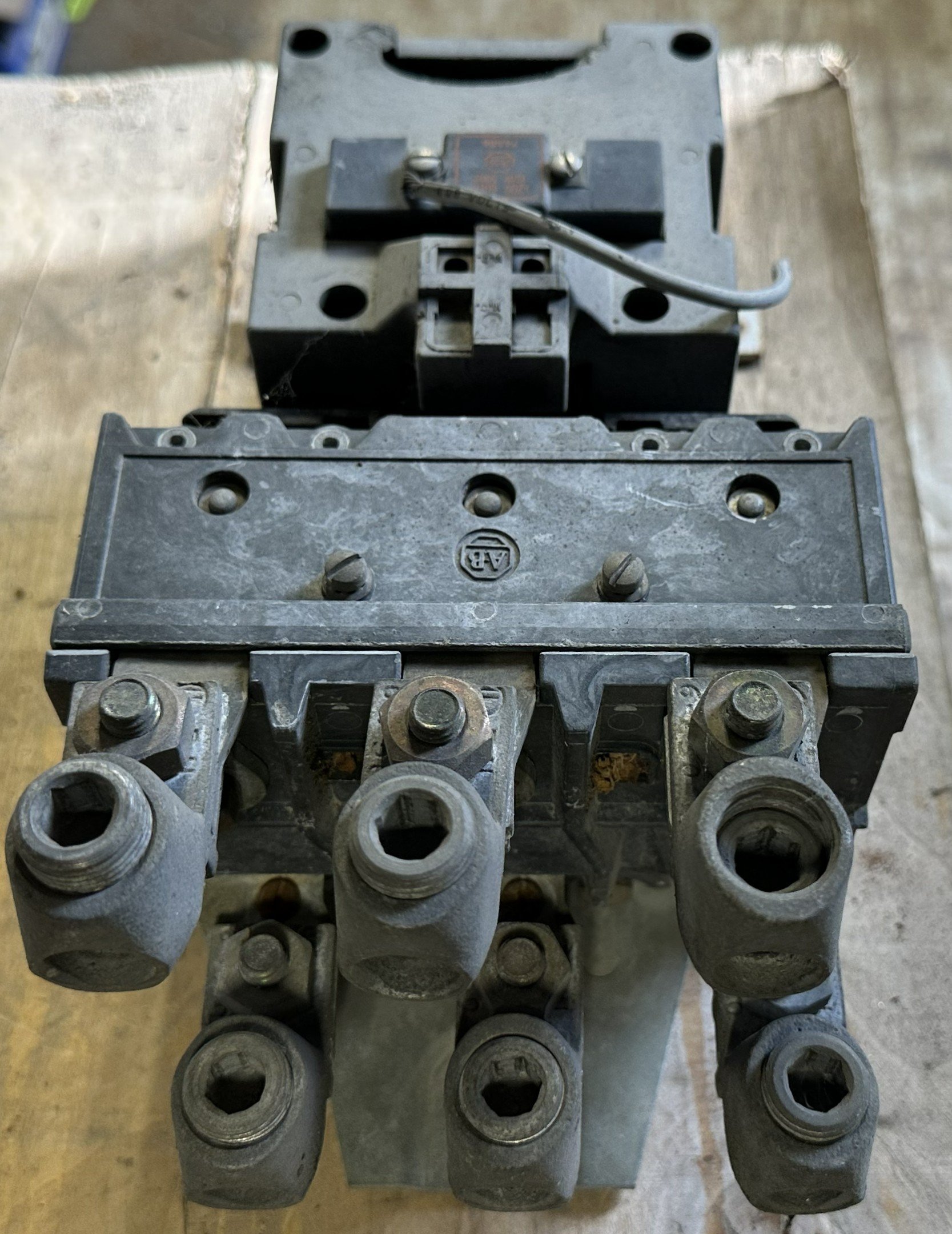

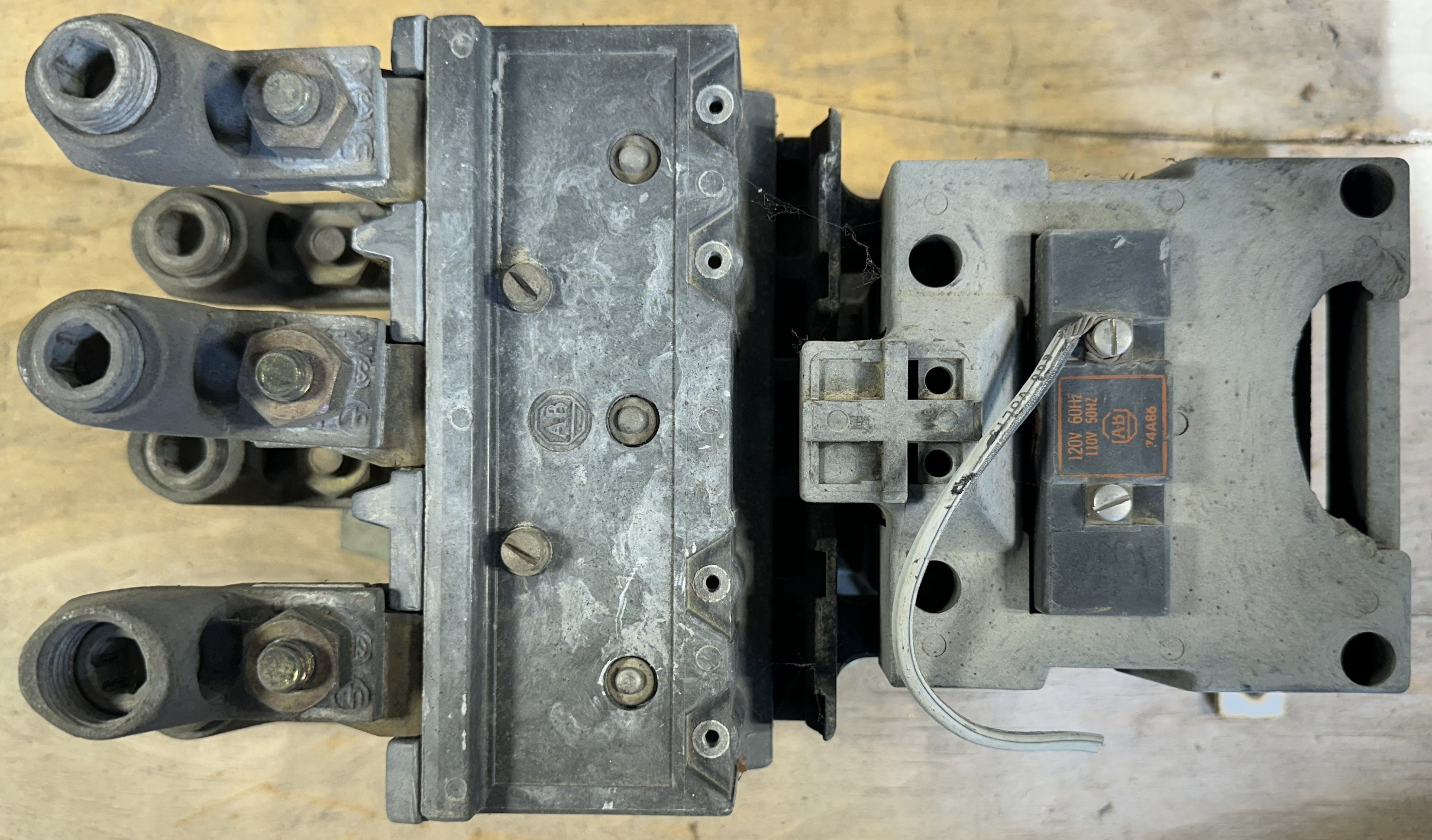

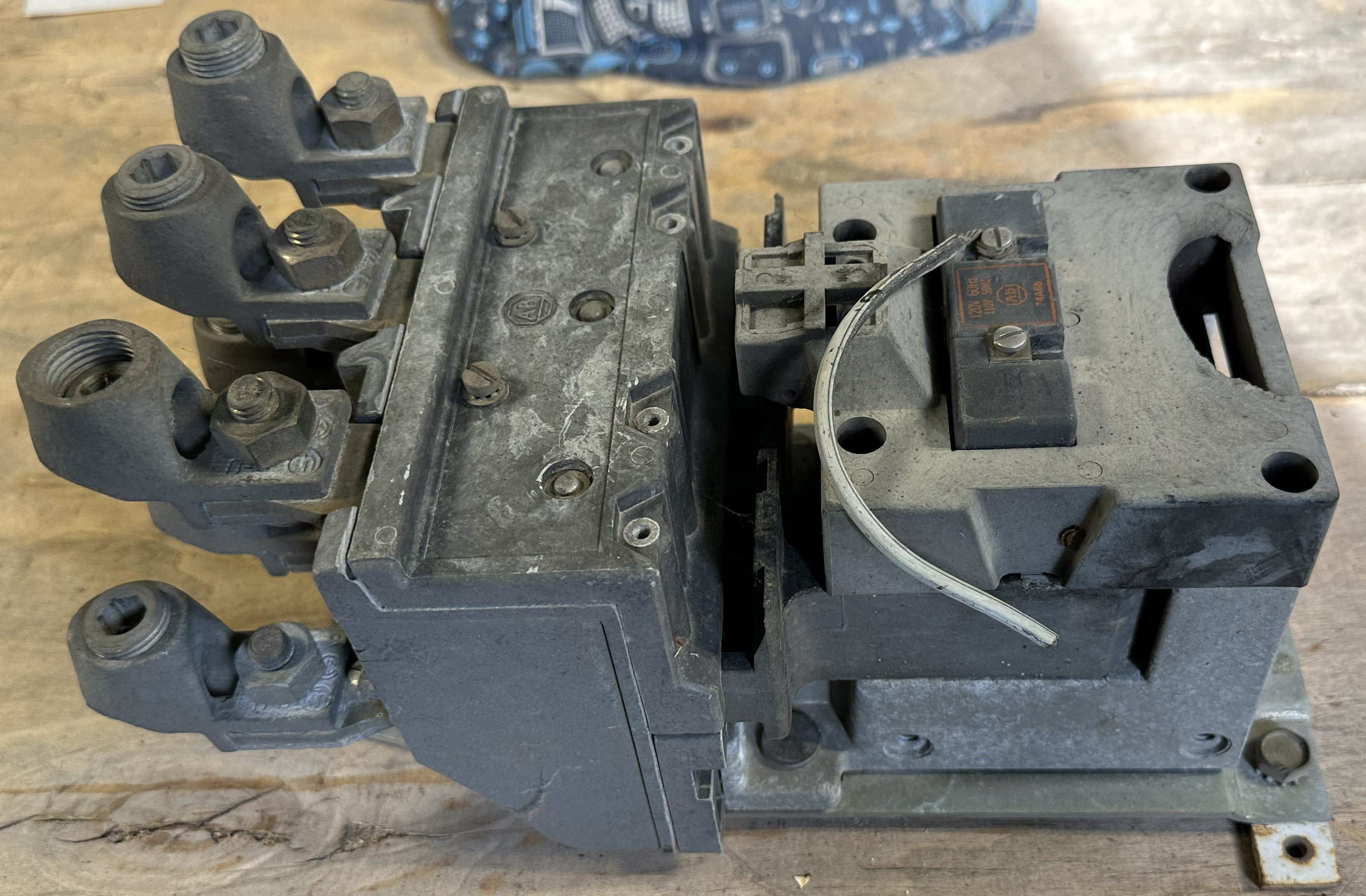

Used – As-Is. Removed from service. Shows dust, surface oxidation on the cast lugs and normal signs of use and age. Please review the photos.

TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed or on pallet (LTL)
Stock #: CON-0011
