Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Westinghouse |
| Model | HFB3090 |
| Stock # | CB - 1511 |
Description

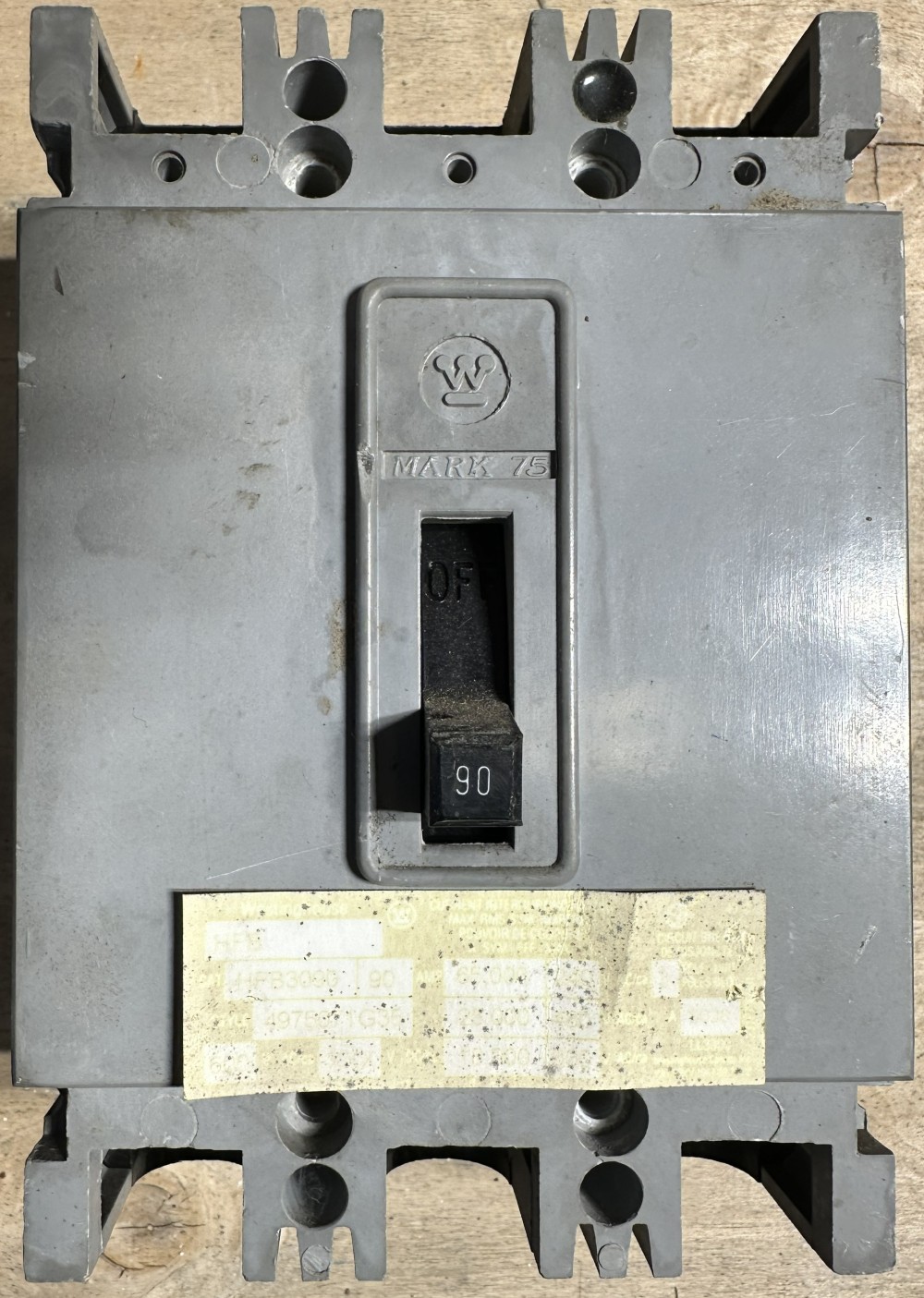

Westinghouse Mark 75 HFB3090 Molded Case Circuit Breaker
90A – 3-Pole – 600V AC / 250V DC – Thermal-Magnetic, Fixed Trip
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<

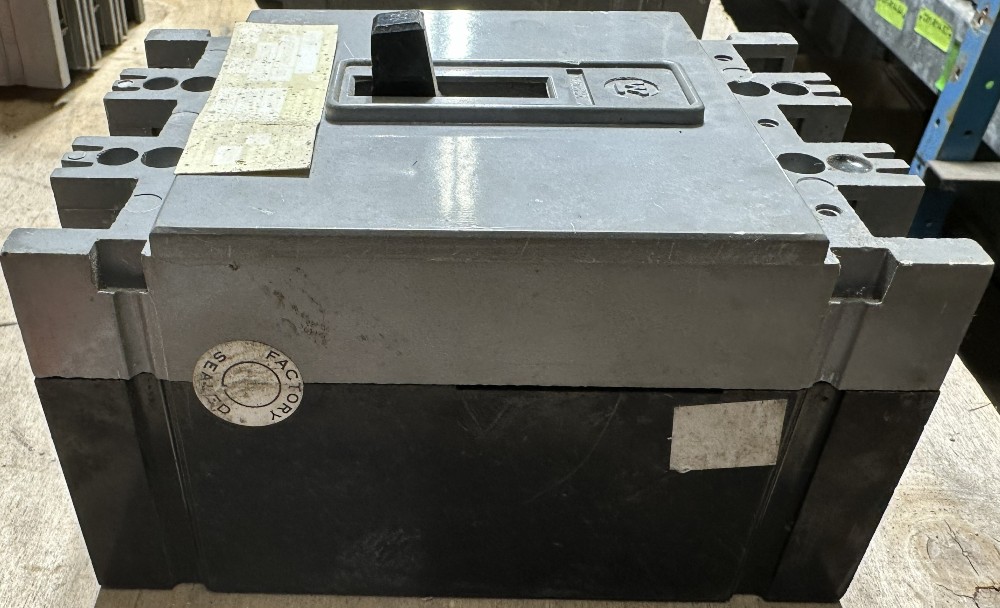

Westinghouse Mark 75 HFB thermal-magnetic molded case circuit breaker, catalog HFB3090, rated 90A, 3-pole, 600V AC / 250V DC with fixed, non-adjustable trip. Interrupting rating of 65,000A at 240V, 25,000A at 480V and 18,000A at 600V. Factory seal sticker on side.

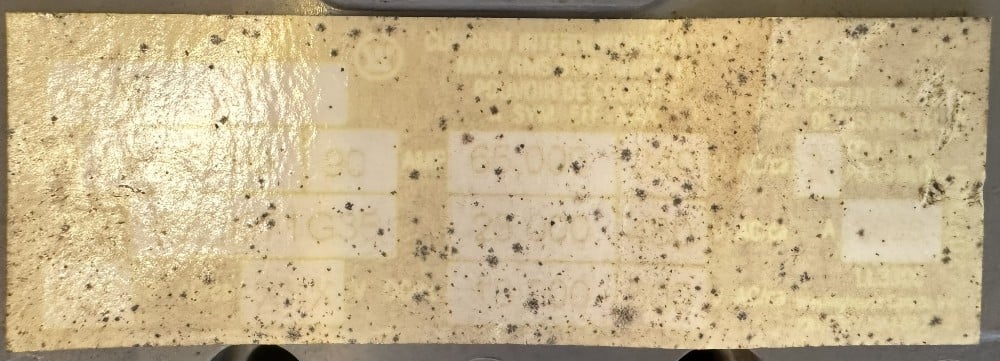

Please note: Nameplate label is heavily faded. Voltage and interrupting ratings are best readings from the label and should be verified by the buyer.
SPECIFICATIONS
Manufacturer: Westinghouse
Series: Mark 75 HFB
Catalog #: HFB3090
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 3
Current Rating: 90A
Trip Type: Fixed – non-adjustable
Voltage: 600V AC / 250V DC (per faded nameplate)
Interrupting Rating: 65,000A @ 240V, 25,000A @ 480V, 18,000A @ 600V (per faded nameplate)
Wire Rating: Not legible
CONDITION
Condition: Used – As-Is. Nameplate heavily faded.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1511
