Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Ge |
| Model | TKM836F000 |
| Stock # | CB - 1566 |
Description

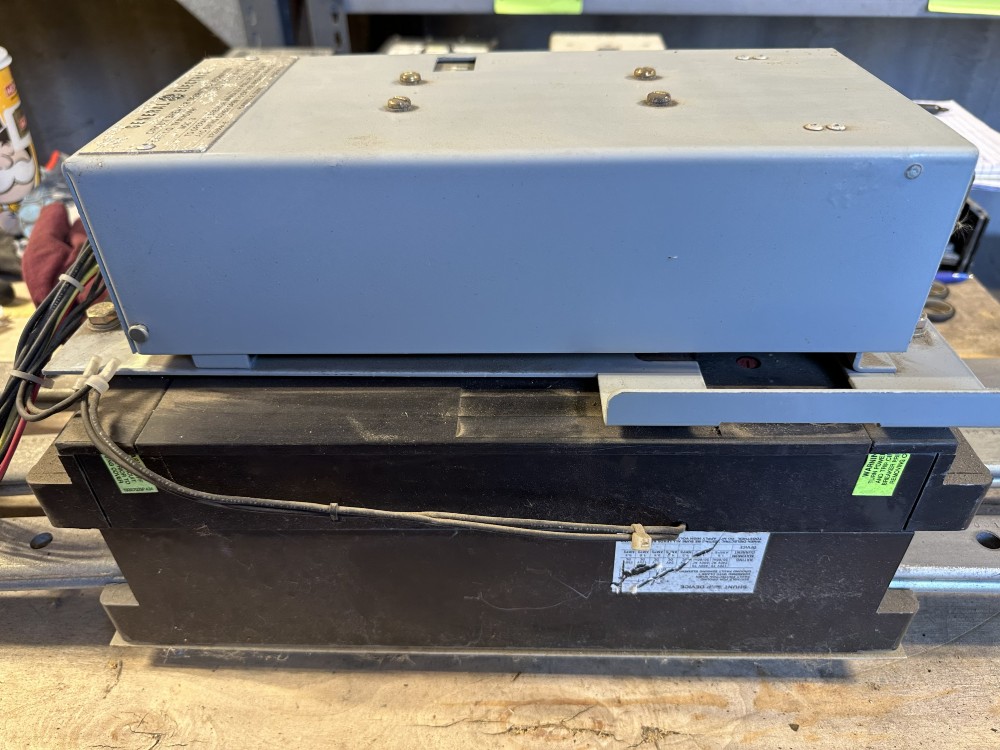

GE Type TKM TKM836F000 Molded Case Circuit Breaker with Motor Operator, Shunt Trip & Auxiliary Switch
800A Frame – 3-Pole – 600V AC – 30kA @ 480V – TKMMOMA1 Motor Operator – Bus Extensions
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
General Electric Type TKM molded case circuit breaker, frame catalog TKM836F000, 800A maximum frame (breaker ratings 300–800A), 3-pole, 600V AC. Interrupting rating of 42,000A at 240V, 30,000A at 480V and 22,000A at 600V. Complete with TKMMOMA1 Mod. 3 motor operating mechanism (120 VAC 50/60 Hz 6.0A / 125 VDC 4.5A), shunt trip device and 286A7732P20 auxiliary switch. Bus bar extensions installed (one side marked E11ØA, E12ØB, E13ØC), with control wiring and TB1/TB2 terminal blocks on mounting bracket.
Please note: Installed trip rating and shunt trip coil voltage available on request.
SPECIFICATIONS
Manufacturer: General Electric
Series: Type TKM
Frame Catalog #: TKM836F000
Type: Molded Case Circuit Breaker
Poles: 3
Frame Rating: 800A maximum (breaker ratings 300–800A)
Voltage: 600V AC

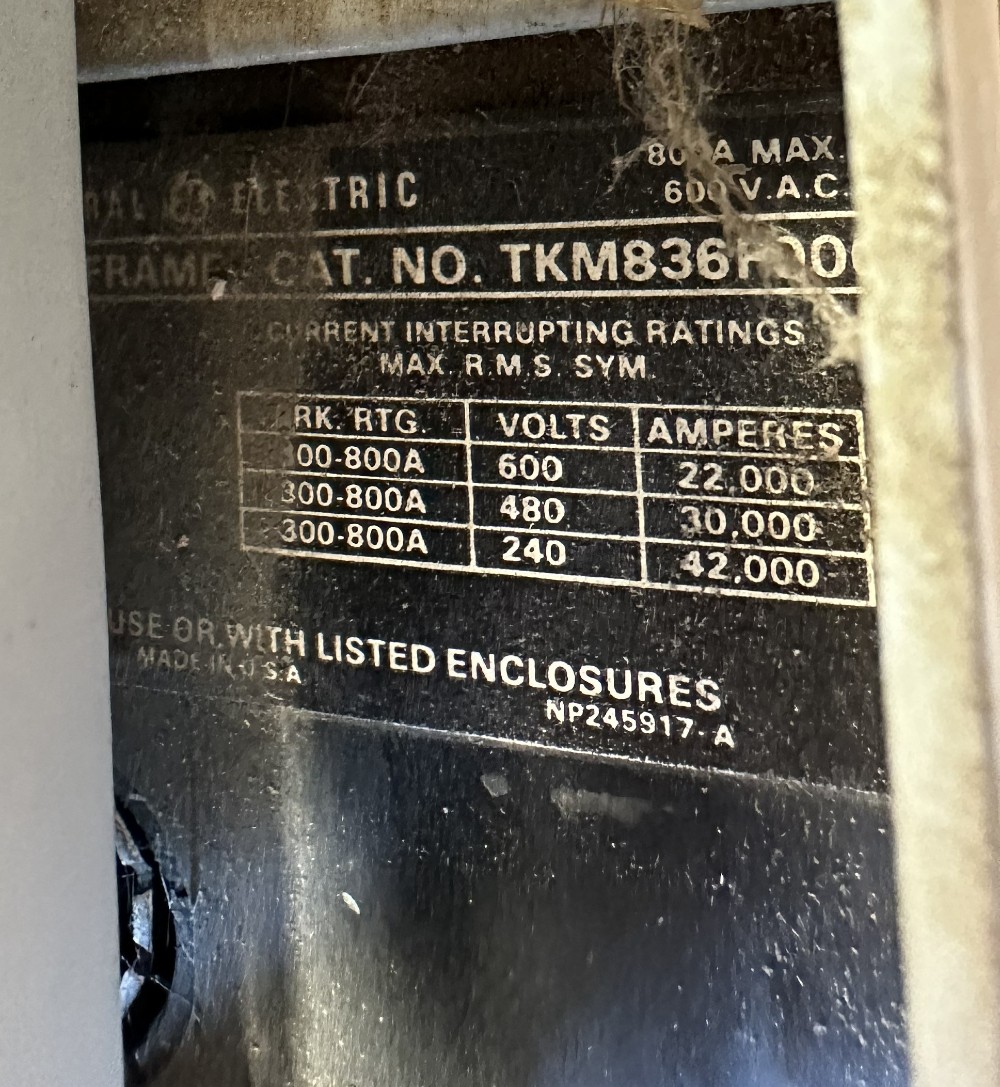

Interrupting Rating: 42,000A @ 240V, 30,000A @ 480V, 22,000A @ 600V

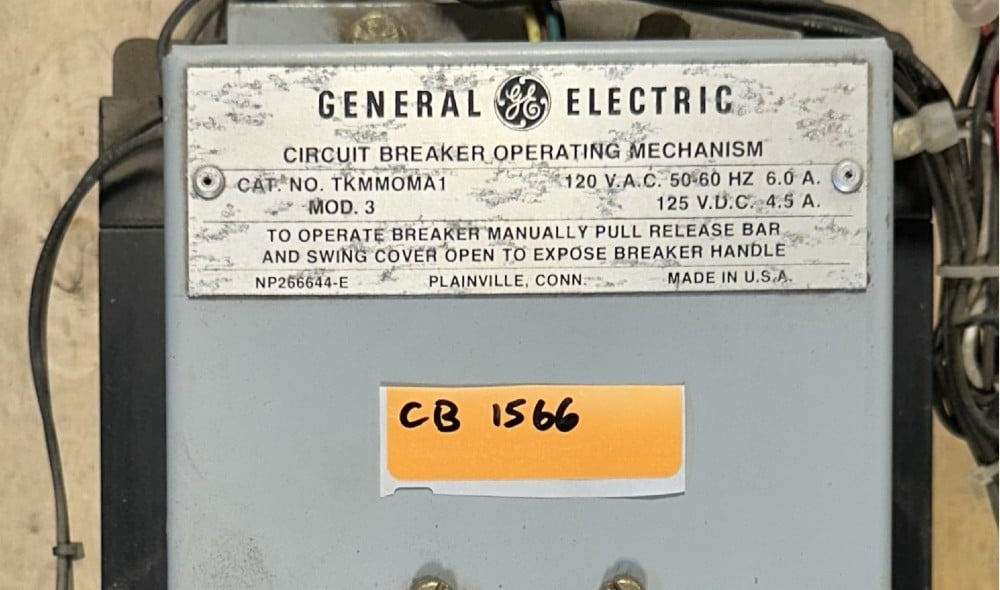

Motor Operator: TKMMOMA1 Mod. 3, 120 VAC 50/60 Hz 6.0A / 125 VDC 4.5A (installed)
Shunt Trip: Installed

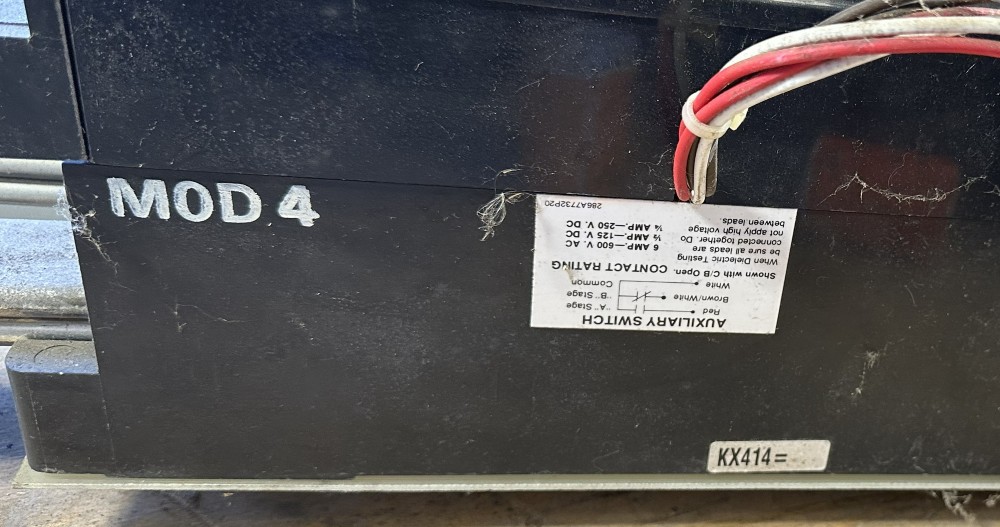

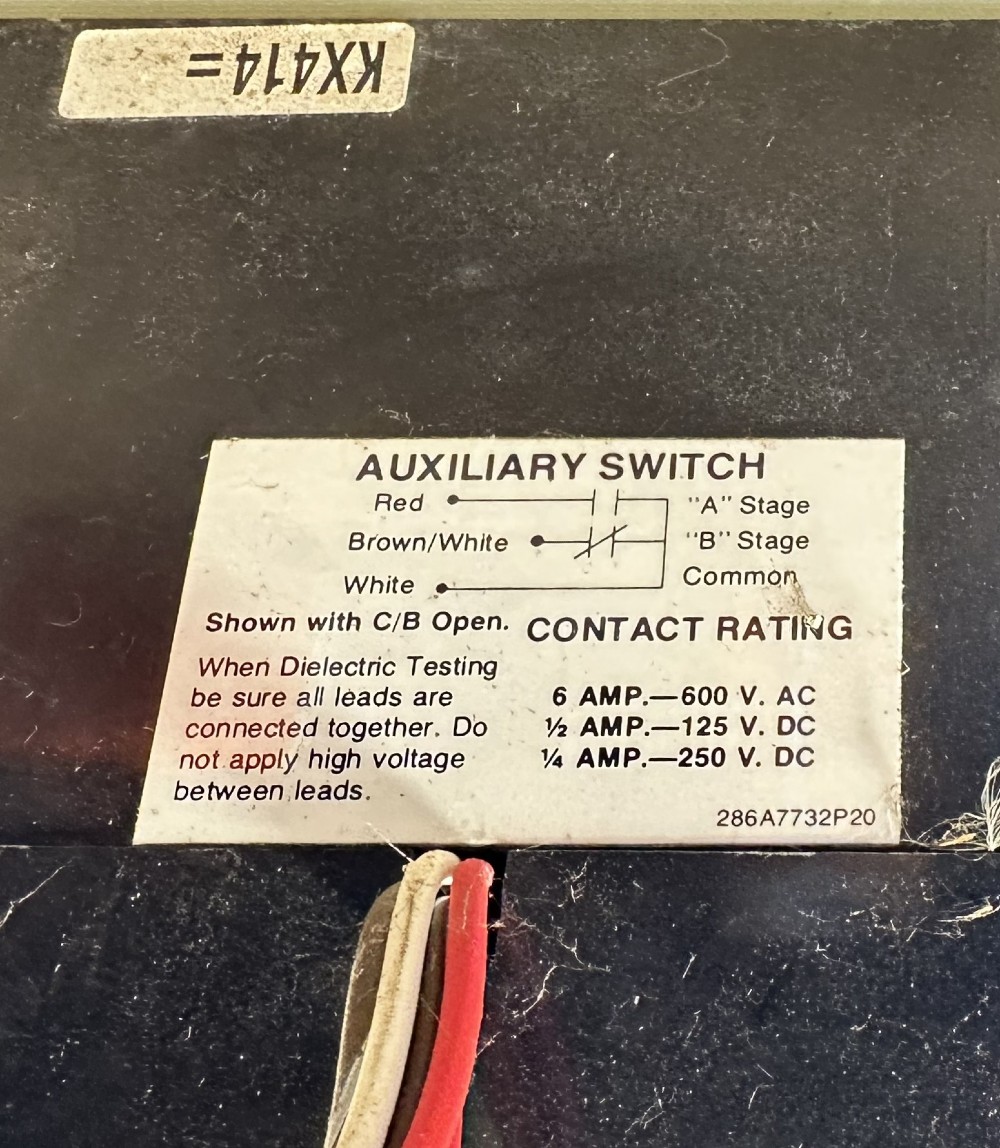

Auxiliary Switch: 286A7732P20 – 6A @ 600 VAC, 0.5A @ 125 VDC, 0.25A @ 250 VDC (installed)

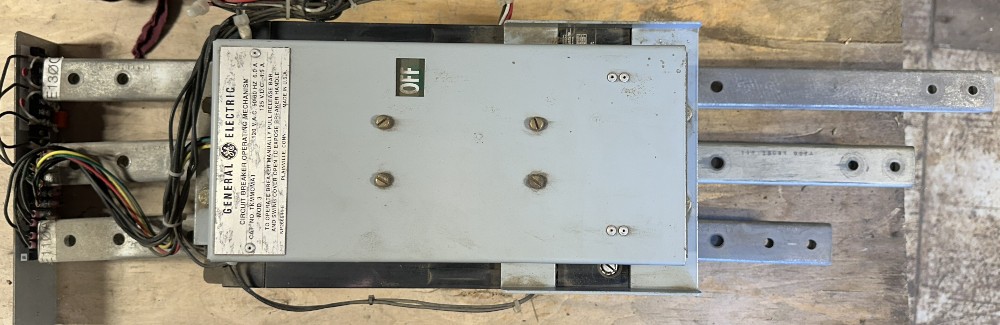

Bus Extensions: Installed, one side marked E11ØA, E12ØB, E13ØC

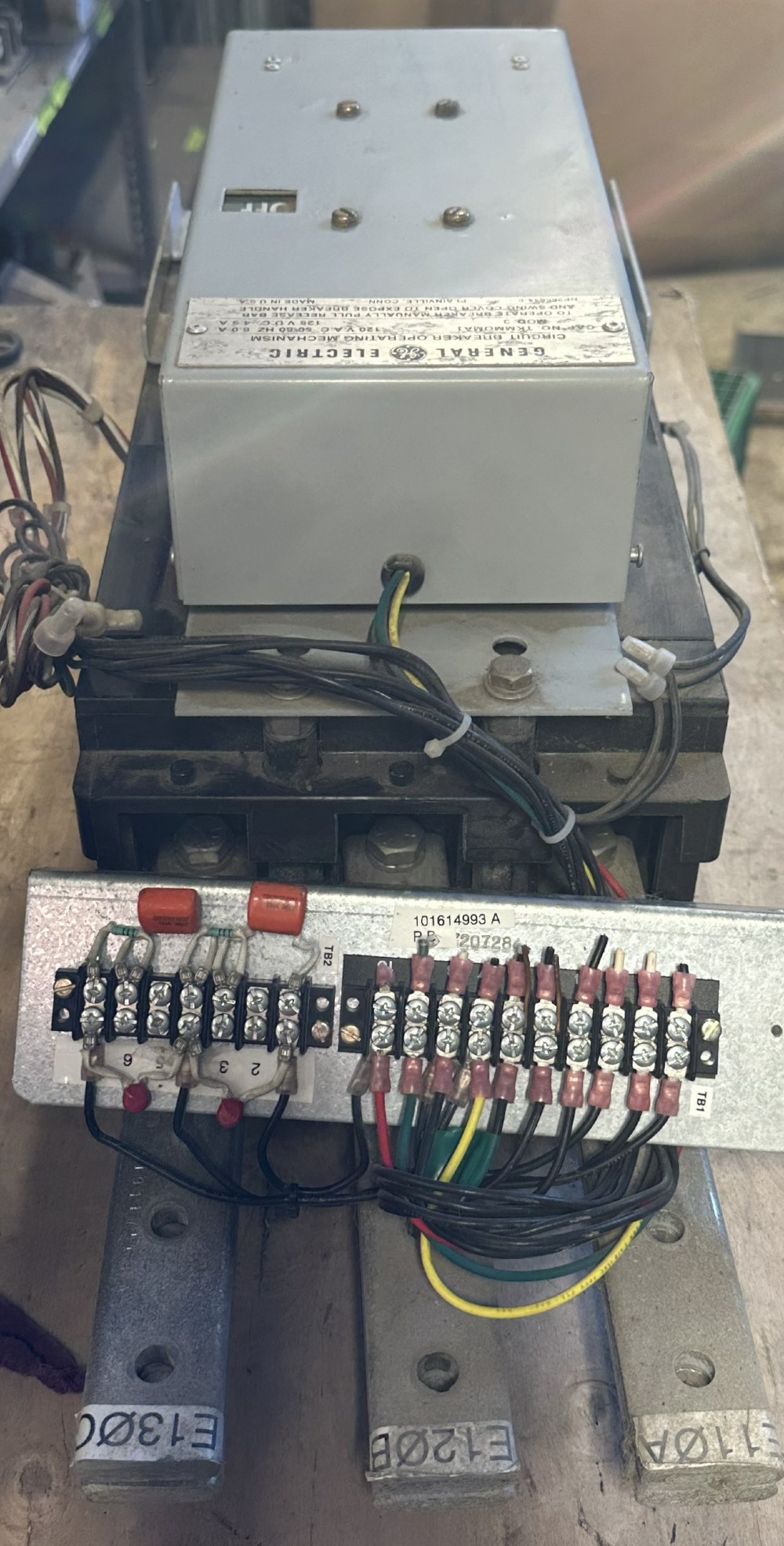

Control Wiring: Terminal blocks TB1/TB2 on mounting bracket (marked 101614993 A)
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships on pallet (LTL)
Stock #: CB-1566
