Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Square D |
| Model | MA36800 |
| Stock # | CB - 1569 |
Description

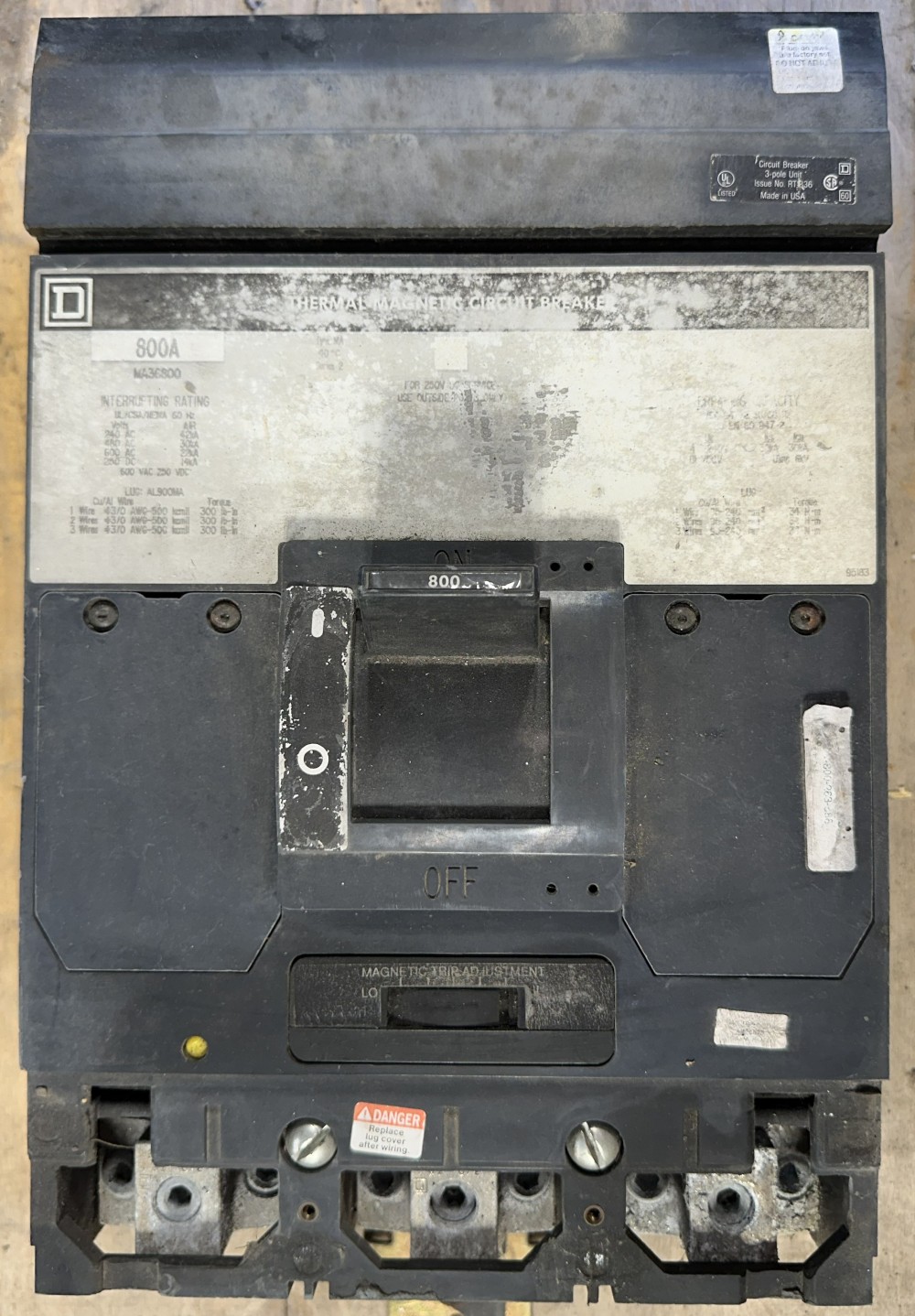

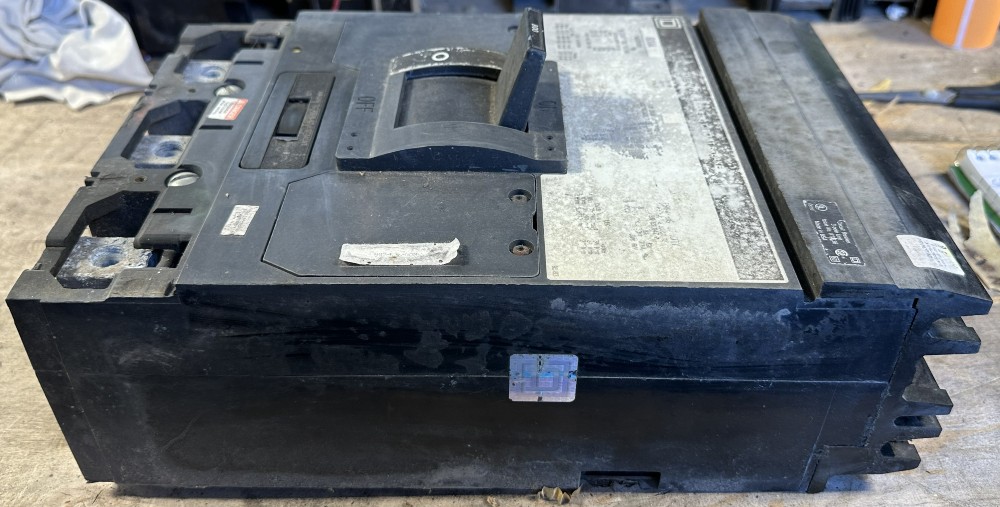

Square D Type MA MA36800 I-Line Molded Case Circuit Breaker, Series 2
800A – 3-Pole – 600V AC / 250V DC – Thermal-Magnetic – Adjustable Magnetic Trip (LO–HI) – 30kA @ 480V – Load Lugs Installed
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Square D Type MA Series 2 thermal-magnetic molded case circuit breaker, catalog MA36800, rated 800A at 40°C, 3-pole, 600V AC / 250V DC. Single-slide adjustable magnetic trip (LO–HI). Interrupting rating of 42kA at 240V, 30kA at 480V, 22kA at 600V and 14kA at 250V DC. Plug-on (I-Line style) jaws on line end, factory set. Load-side AL900MA lugs installed, 1 to 3 wires #3/0 AWG–500 kcmil Cu/Al per phase. UL listed and CSA certified.
SPECIFICATIONS
Manufacturer: Square D
Series: Type MA, Series 2
Catalog #: MA36800
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 3
Current Rating: 800A @ 40°C
Magnetic Trip: Adjustable, single slide (LO–HI)
Voltage: 600V AC / 250V DC

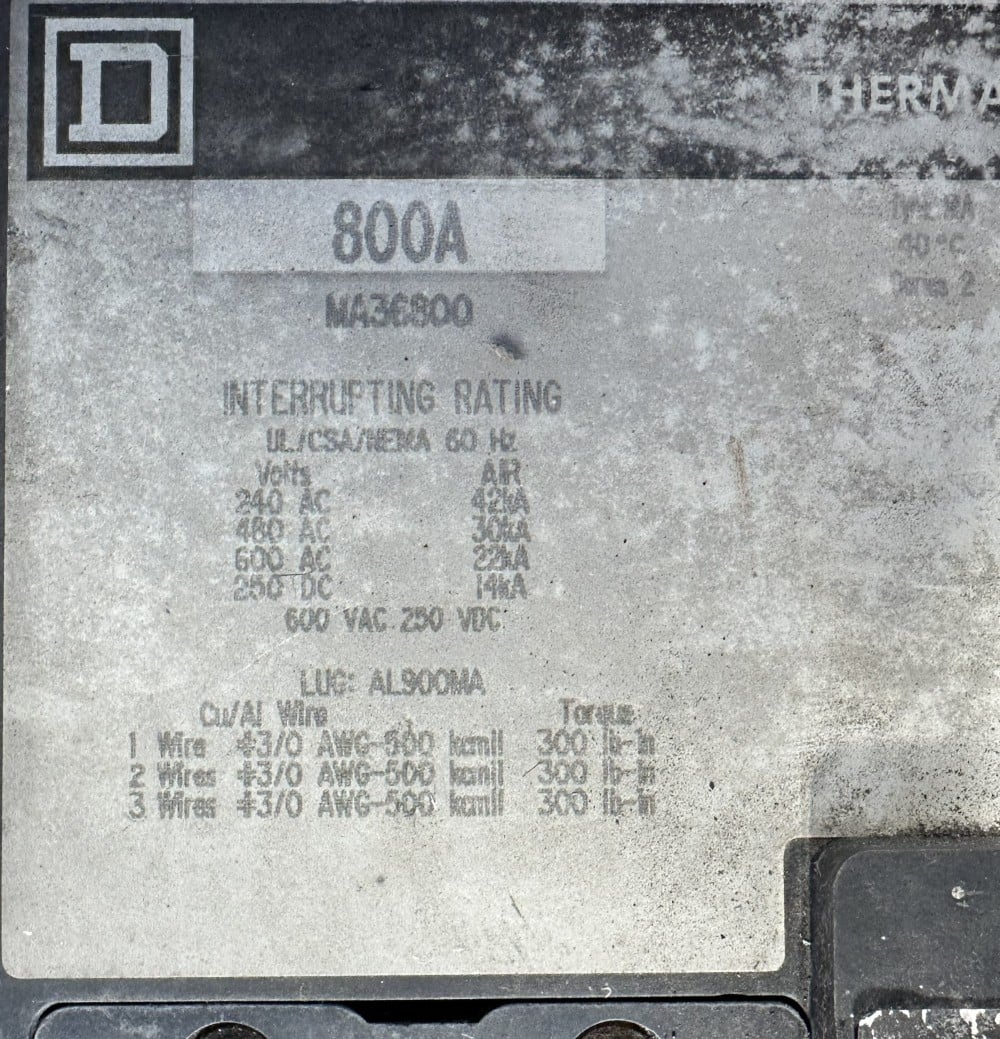

Interrupting Rating: 42kA @ 240V AC, 30kA @ 480V AC, 22kA @ 600V AC, 14kA @ 250V DC
Line Connection: Plug-on jaws (I-Line style), factory set
Load Lugs: AL900MA installed – 1 to 3 wires #3/0 AWG–500 kcmil Cu/Al, 300 lb-in
Issue #: RT-136
Approvals: UL Listed, CSA
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships on pallet (LTL)
Stock #: CB-1569
