Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Square D |
| Model | FA36070 |
| Stock # | CB - 1587 |
Description

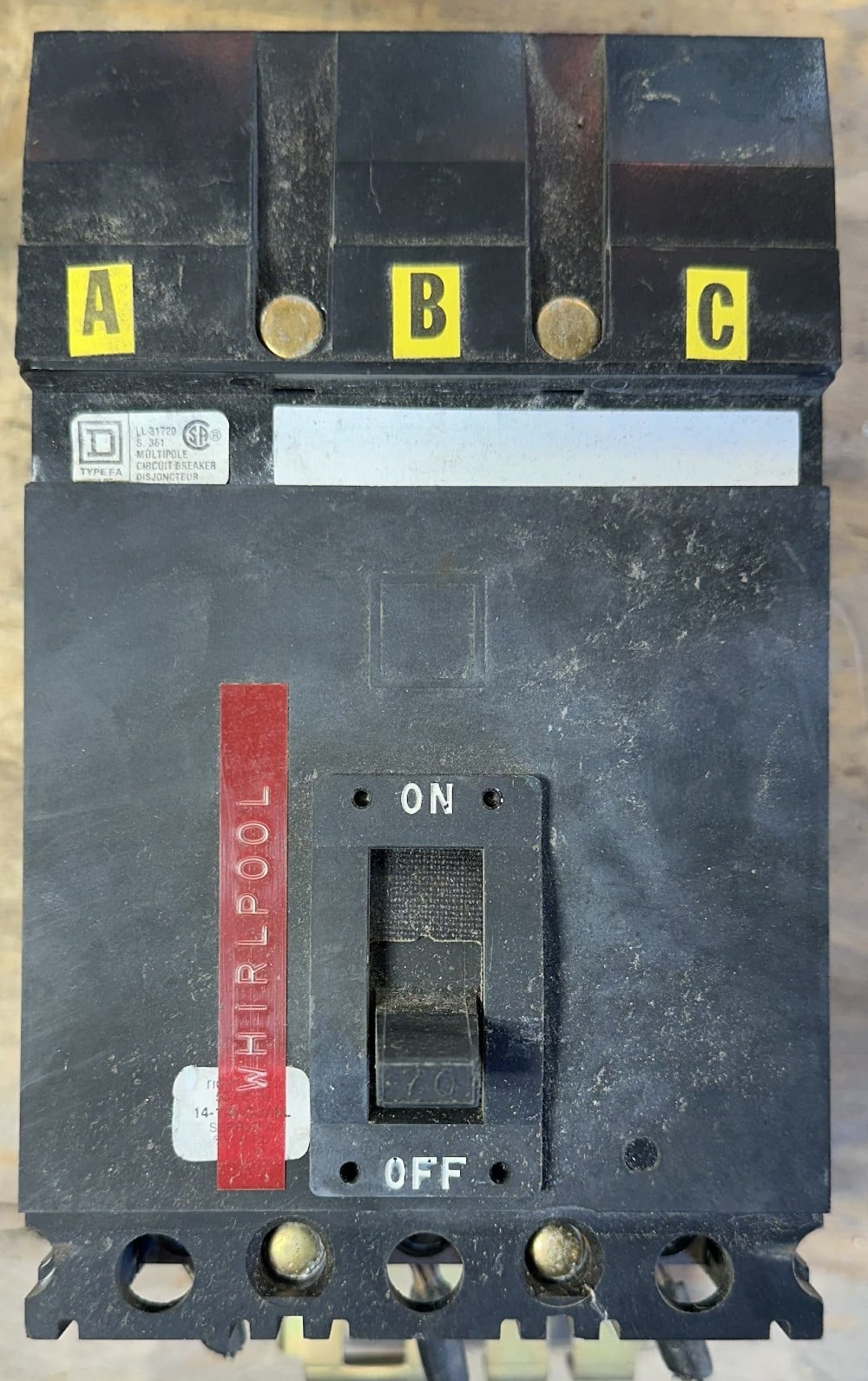

Square D FA36070 Type FA I-Line Plug-In Molded Case Circuit Breaker
70A – 3-Pole – Thermal-Magnetic, Fixed Trip – I-Line Plug-On
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Square D Type FA multipole thermal-magnetic molded case circuit breaker, catalog FA36070, rated 70A, 3-pole, with fixed, non-adjustable trip. I-Line plug-in jaws on line end with A-B-C phase labels. Load terminals #14–1/0 AWG Cu/Al. Mounting bracket at load end. CSA certified.
Please note: Voltage and interrupting rating are not visible on the labels. Cut cable tails are attached to the load terminals. Buyer to verify suitability before use.
SPECIFICATIONS
Manufacturer: Square D
Series: Type FA (CSA LL 31720, S.361)

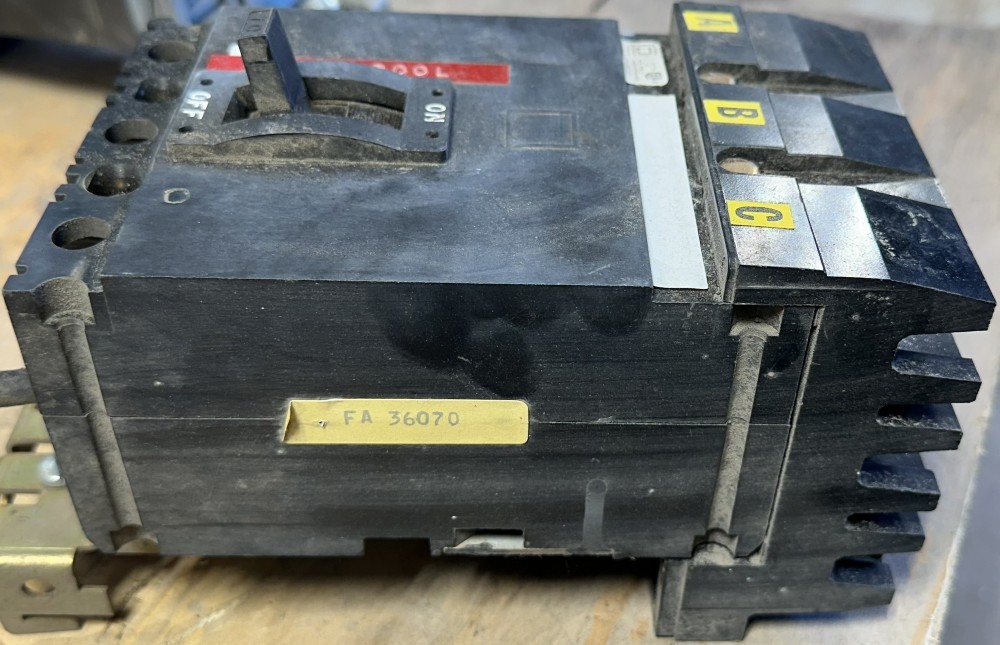

Catalog #: FA36070 (per side label)
Type: Thermal-Magnetic Molded Case Circuit Breaker, I-Line plug-in
Poles: 3 (A-B-C)
Current Rating: 70A
Trip Type: Fixed – non-adjustable
Voltage / Interrupting Rating: Not visible on labels
Line Connection: Plug-in jaws
Load Terminals: #14–1/0 AWG Cu/Al
Accessories: Mounting bracket at load end
Approvals: CSA
CONDITION
Condition: Used – As-Is. Cut cable tails attached; previous-owner circuit label on cover.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1587
