Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Siemens Sentron |
| Stock # | CB - 1509 |
Description

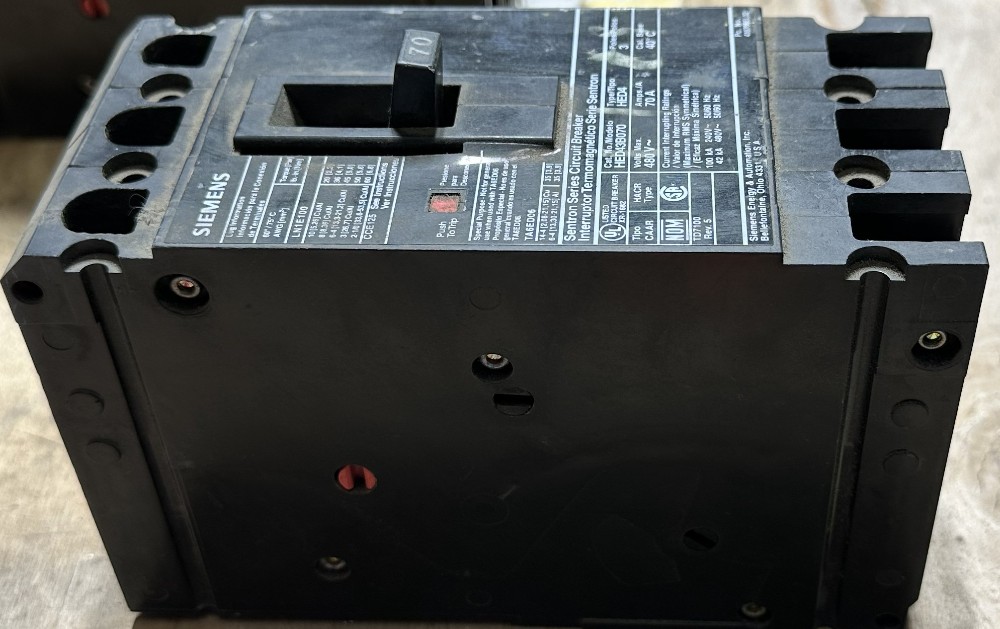

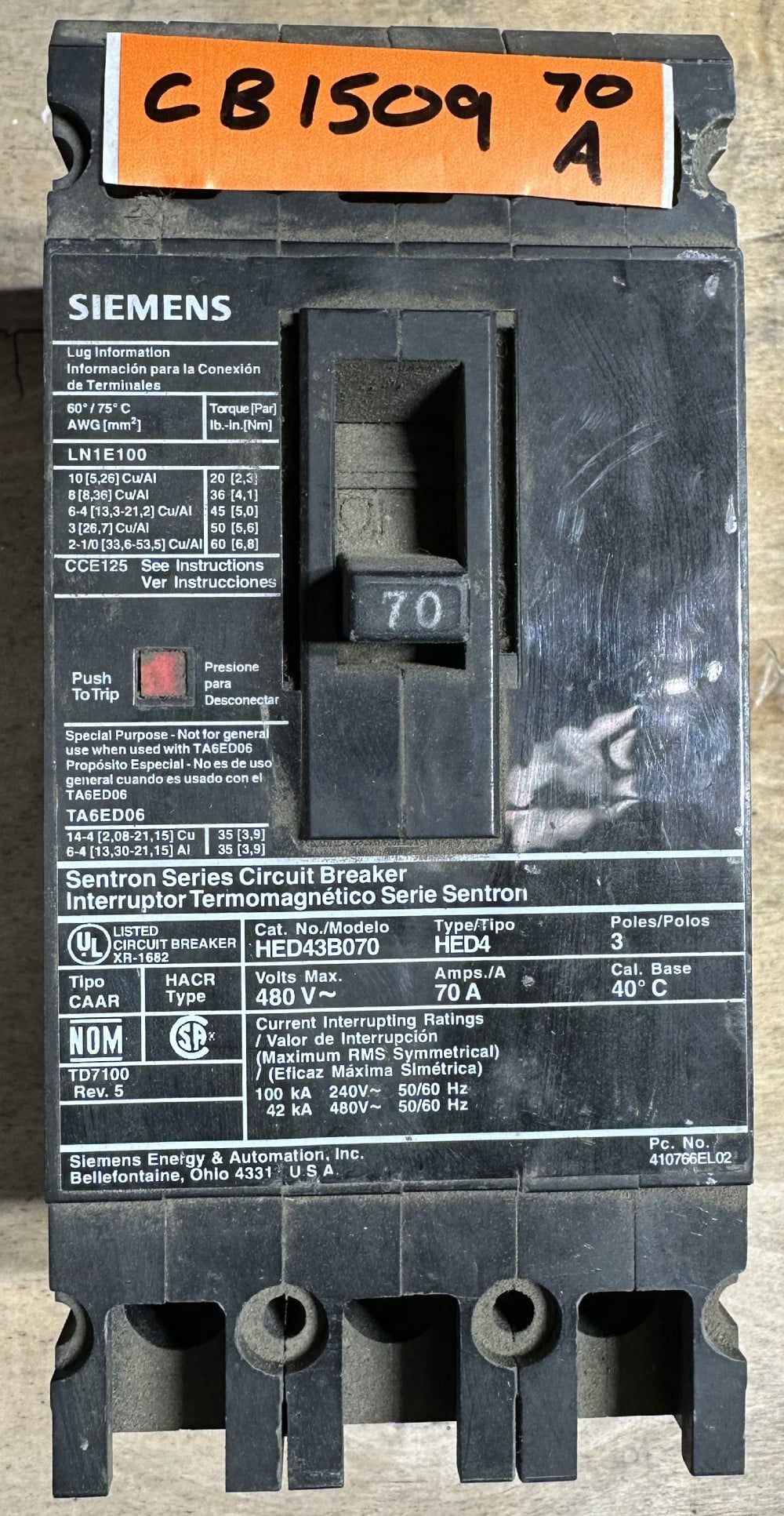

Siemens Sentron HED43B070 Molded Case Circuit Breaker
70A – 3-Pole – 480V AC – Thermal-Magnetic, Fixed Trip – 100kA @ 240V / 42kA @ 480V – HACR
>> Qty 2 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Siemens Sentron Series HED4 high-interrupting thermal-magnetic molded case circuit breaker, catalog HED43B070, rated 70A, 3-pole, 480V AC with fixed, non-adjustable trip. Interrupting rating of 100kA at 240V and 42kA at 480V. HACR rated, calibrated at 40°C. Two units available – priced each.
SPECIFICATIONS
Manufacturer: Siemens (Siemens Energy & Automation, Inc.)
Series: Sentron HED4
Catalog #: HED43B070
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 3
Current Rating: 70A
Trip Type: Fixed – non-adjustable
Voltage: 480V AC
Interrupting Rating: 100kA @ 240V, 42kA @ 480V
Calibration: 40°C
Wire Rating (per nameplate lug data): LN1E100 lugs (60/75°C), #10–1/0 Cu/Al, torque 20–60 lb-in by wire size; optional TA6ED06 lugs, #14–4 Cu / #6–4 Al, 35 lb-in (special purpose)
Ratings: HACR Type
Approvals: UL Listed
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1509
