Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Westinghouse |
| Model | JK3225F |
| Stock # | CB - 1525 |
Description

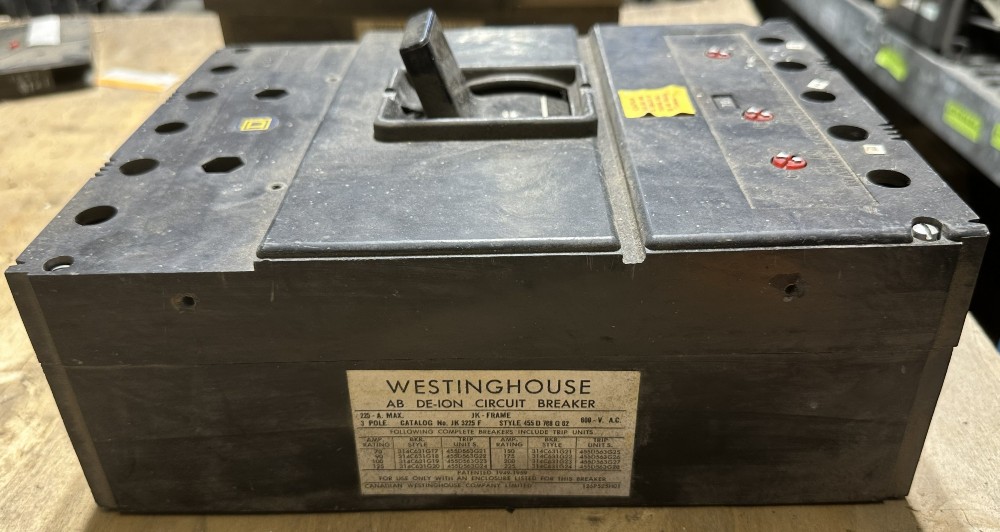

Westinghouse AB De-ion JK3225F Molded Case Circuit Breaker
70A Trip Unit in 225A JK-Frame – 3-Pole – 600V AC – Interchangeable Thermal-Magnetic Trip – Adjustable Magnetic HI/LO (2–6)
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Canadian Westinghouse AB De-ion JK-frame molded case circuit breaker, frame catalog JK3225F (225A maximum), 3-pole, 600V AC. Fitted with a 70A interchangeable thermal-magnetic trip unit with individually adjustable magnetic trip settings (HI/LO, 2–6) on each pole. Lugs not installed.

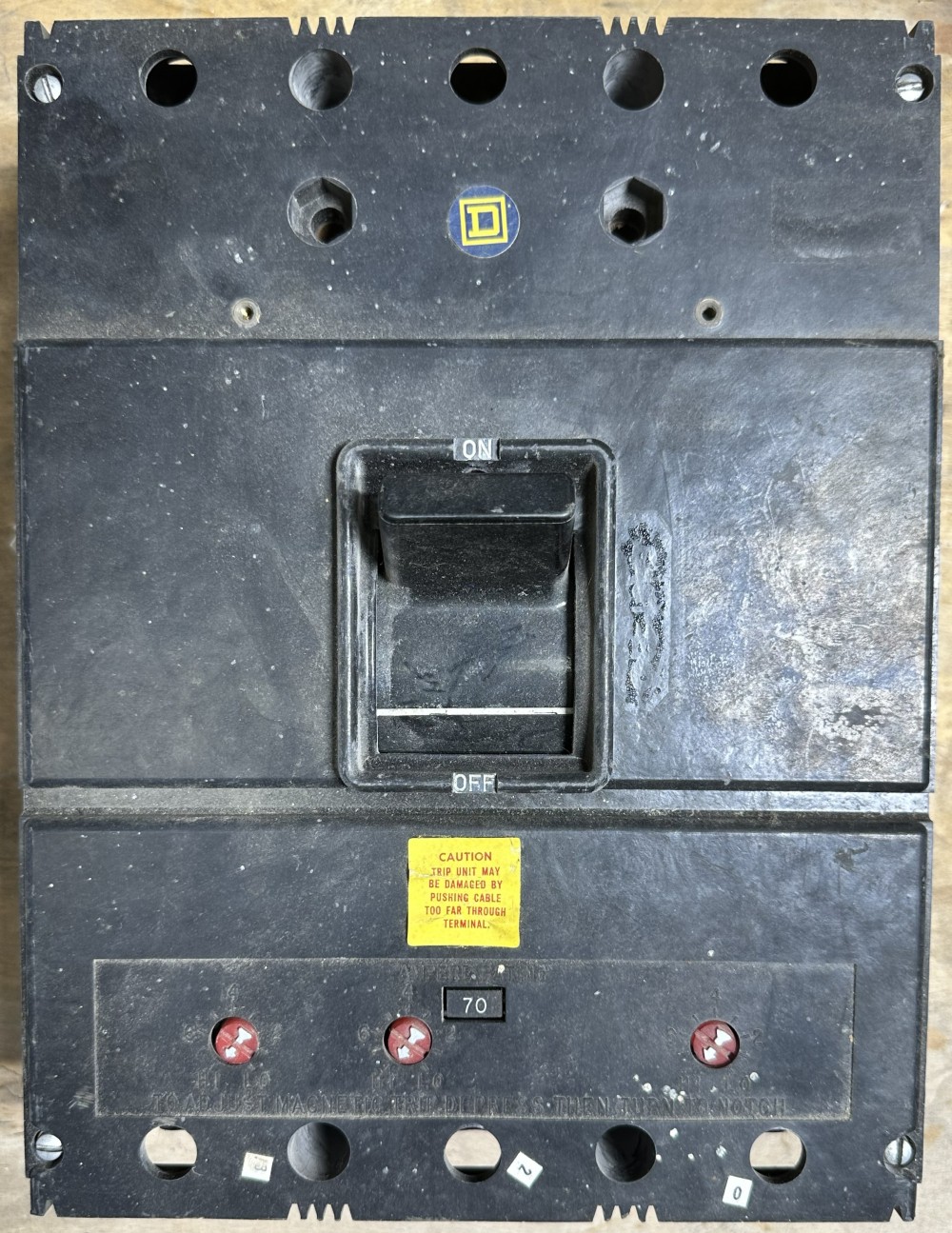

Please note: A Square D logo decal is applied to the line end of the case. The breaker itself is Westinghouse, per the nameplate.
SPECIFICATIONS
Manufacturer: Westinghouse (Canadian Westinghouse Company Limited)
Series: AB De-ion, JK-Frame
Frame Catalog #: JK3225F (Style 455D788G02), 225A maximum
Type: Molded Case Circuit Breaker, interchangeable trip unit
Poles: 3
Trip Unit Rating: 70A
Trip Unit: Thermal-Magnetic, interchangeable
Magnetic Trip Adjustment: HI/LO (2–6), adjustable on each pole
Voltage: 600V AC

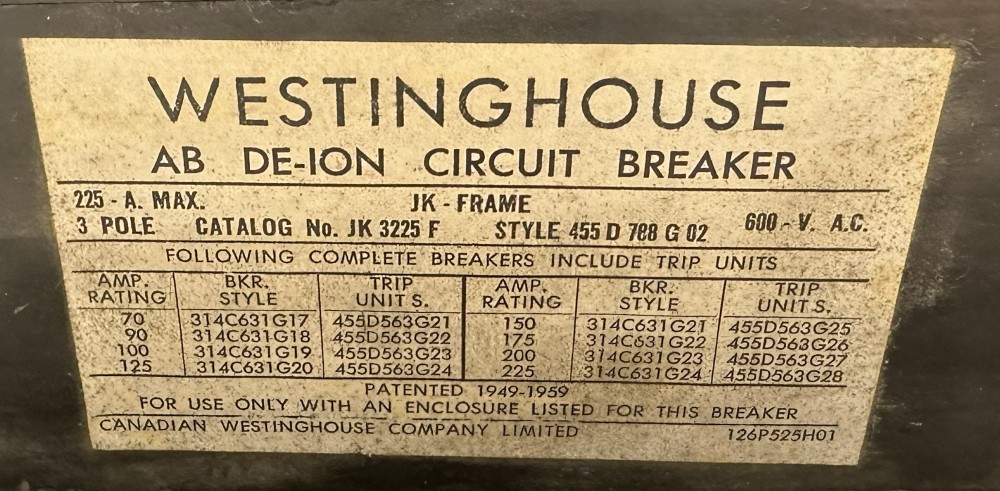

Style #s for 70A (per nameplate): Breaker 314C631G17; Trip Unit 455D563G21
Lugs: Not installed
Patent Dates: 1949–1959
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed or on pallet (LTL)
Stock #: CB-1525
