Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Siemens |
| Model | HED43B070 |
| Stock # | CB - 1529 |
Description

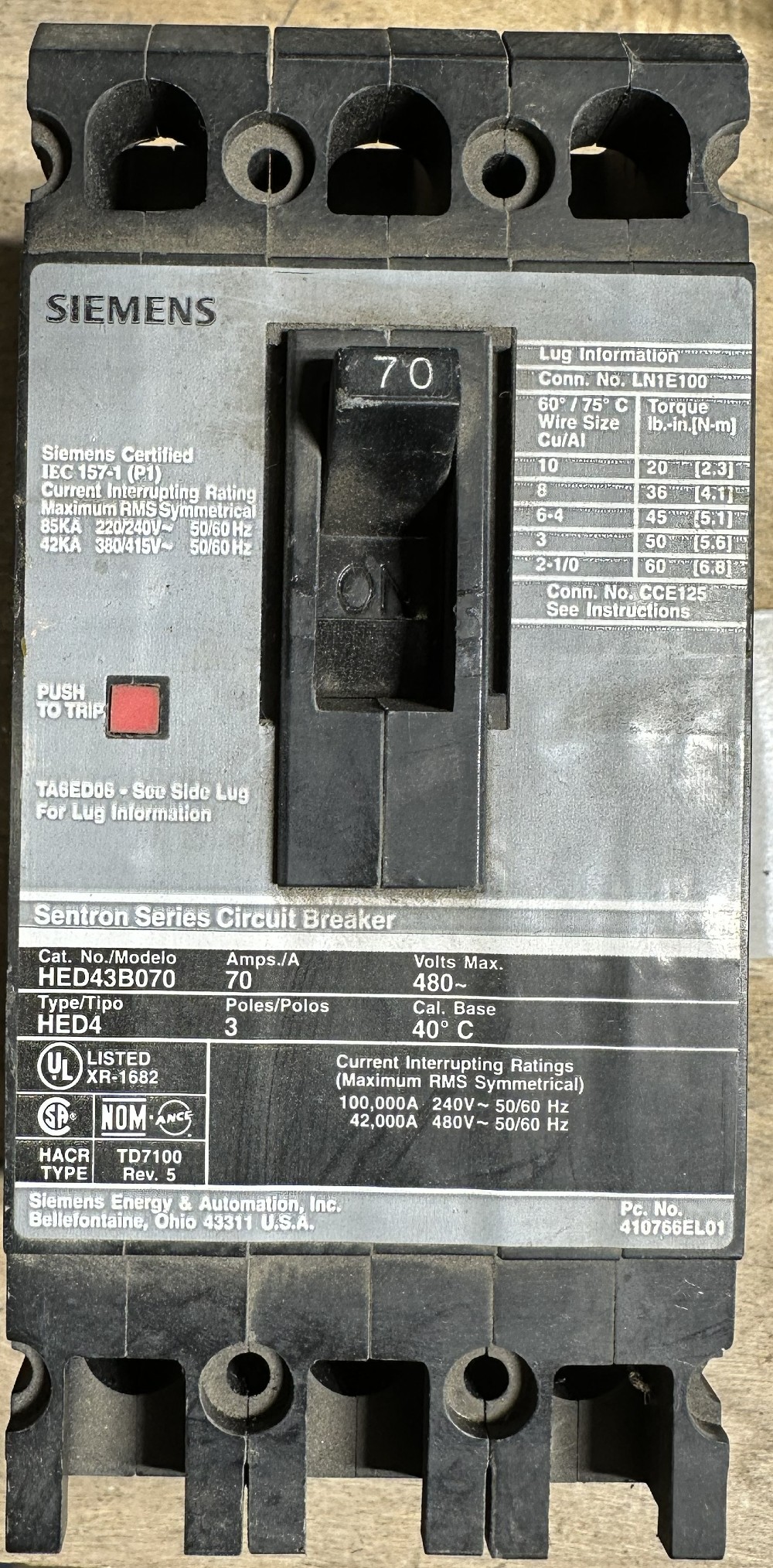

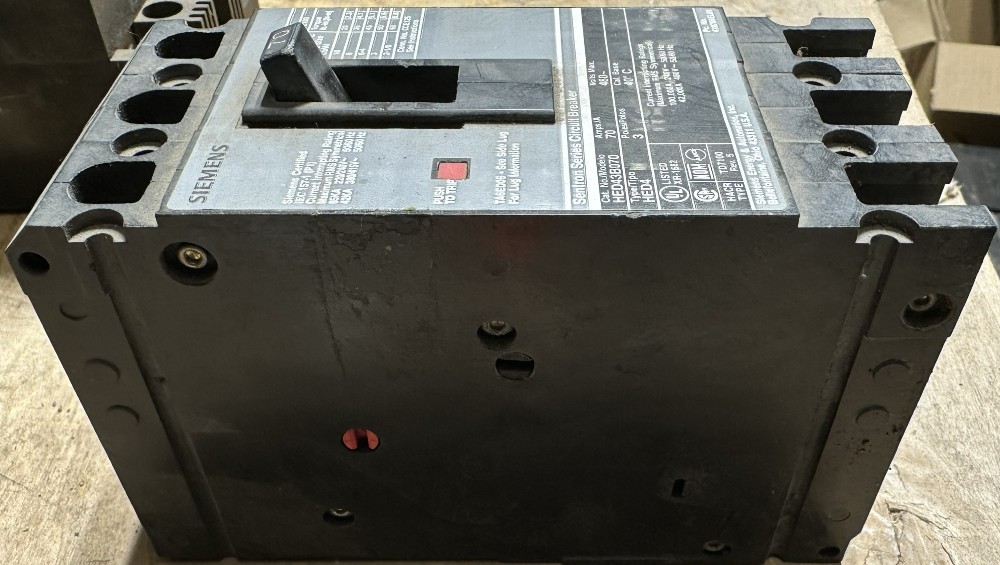

Siemens Sentron HED43B070 Molded Case Circuit Breaker
70A – 3-Pole – 480V AC – Thermal-Magnetic, Fixed Trip – 100kA @ 240V / 42kA @ 480V – HACR
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Siemens Sentron Series Type HED4 high-interrupting thermal-magnetic molded case circuit breaker, catalog HED43B070, rated 70A, 3-pole, 480V AC with fixed, non-adjustable trip. Interrupting rating of 100kA at 240V and 42kA at 480V (UL). HACR rated, calibrated at 40°C. UL Listed, CSA and NOM certified.
SPECIFICATIONS
Manufacturer: Siemens Energy & Automation, Inc. (Bellefontaine, Ohio, U.S.A.)
Series: Sentron, Type HED4
Catalog #: HED43B070
Piece #: 410766EL01
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 3
Current Rating: 70A
Trip Type: Fixed – non-adjustable
Voltage: 480V AC Max
Calibration: 40°C
Interrupting Rating (UL): 100,000A @ 240V AC, 42,000A @ 480V AC
Interrupting Rating (IEC 157-1, P1): 85kA @ 220/240V AC, 42kA @ 380/415V AC
Wire Rating (per nameplate lug data): Conn. No. LN1E100, Cu/Al #10–1/0 AWG, torque 20–60 lb-in; optional Conn. No. CCE125
Ratings: HACR Type
Approvals: UL Listed (XR-1682), CSA, NOM-ANCE
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1529
