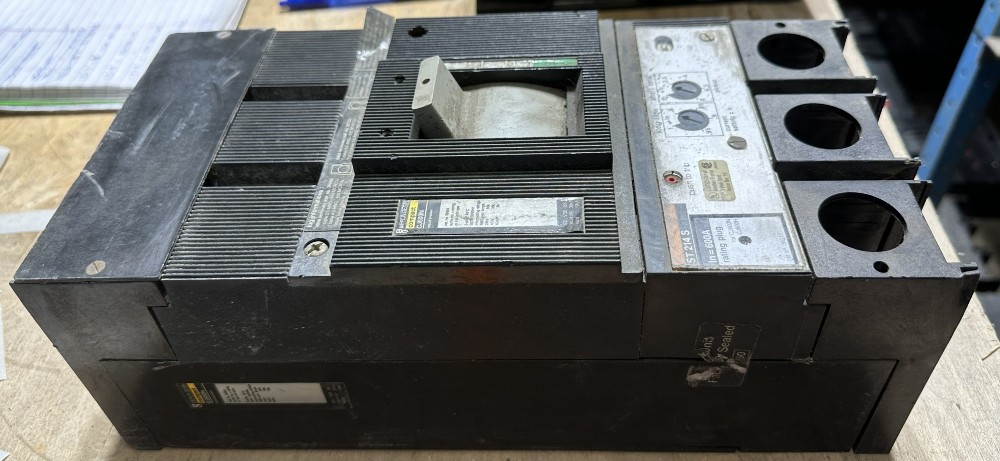

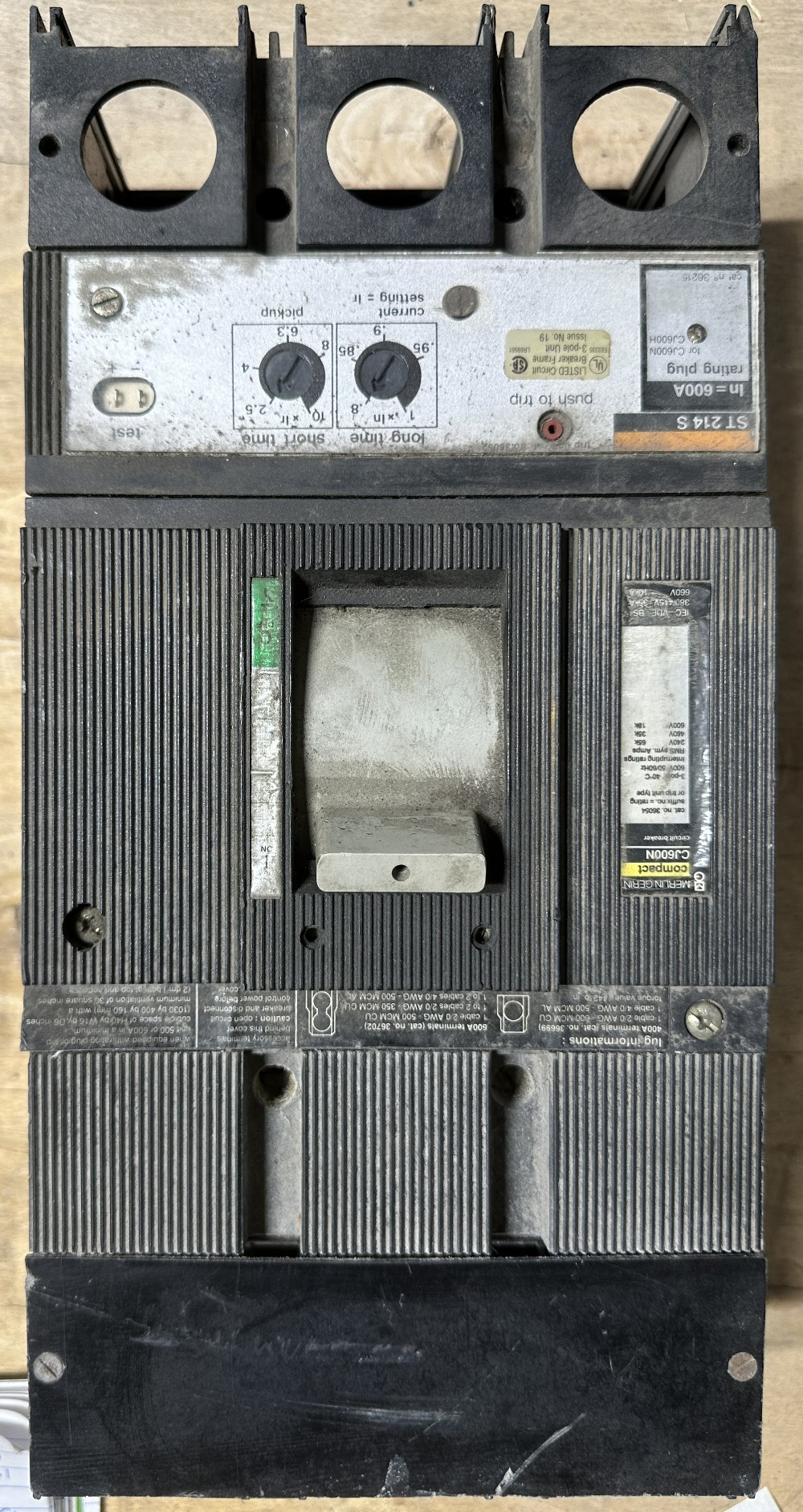

Merlin Gerin Compact CJ600N Molded Case Circuit Breaker
600A – 3-Pole – 600V AC – ST 214 S Electronic Trip Unit – Adjustable Long Time / Short Time – 35kA @ 480V

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

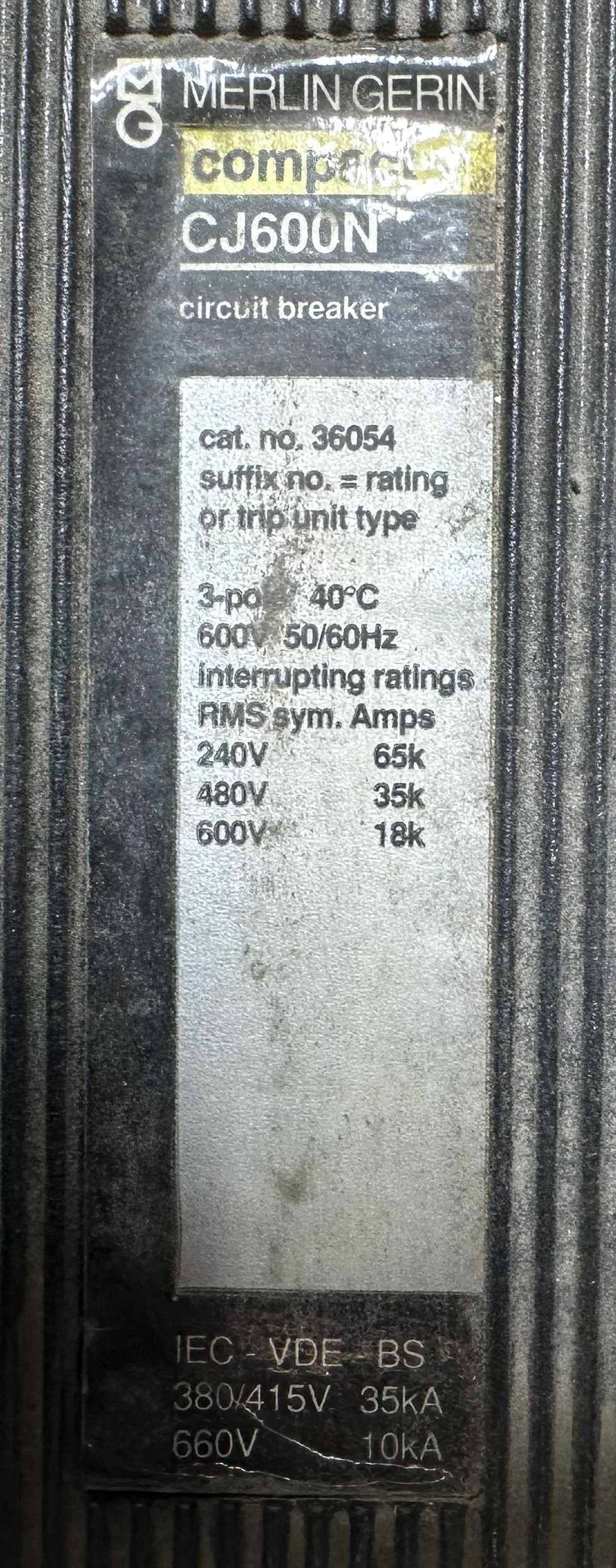

Merlin Gerin Compact CJ600N molded case circuit breaker, catalog no. 36054, 3-pole, 600V AC, 50/60 Hz. Fitted with an ST 214 S electronic trip unit with adjustable long time (Ir 0.8–1 × In) and short time pickup (2.5–10 × Ir), plus push-to-trip button and test port. Installed 600A rating plug (cat. no. 36215). Interrupting rating of 65kA at 240V, 35kA at 480V and 18kA at 600V. UL listed and CSA certified. Lugs not included.

SPECIFICATIONS

Manufacturer: Merlin Gerin
Series: Compact CJ600N
Catalog #: CJ600N (cat. no. 36054)
Type: Molded Case Circuit Breaker, electronic trip
Poles: 3
Rating Plug: In = 600A, cat. no. 36215 (for CJ600N/CJ600H)
Voltage: 600V AC, 50/60 Hz

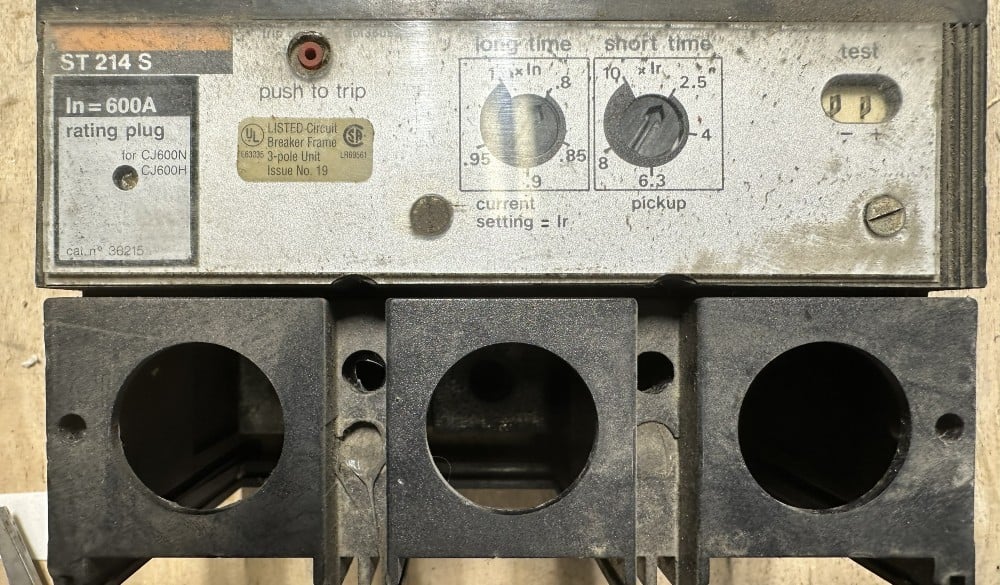

Trip Unit: ST 214 S Electronic
Long Time: Ir adjustable 0.8–1 × In
Short Time Pickup: Adjustable 2.5–10 × Ir
Features: Push-to-trip button, test port
Interrupting Rating (UL): 65kA @ 240V, 35kA @ 480V, 18kA @ 600V
Interrupting Rating (IEC/VDE/BS): 35kA @ 380/415V, 10kA @ 660V

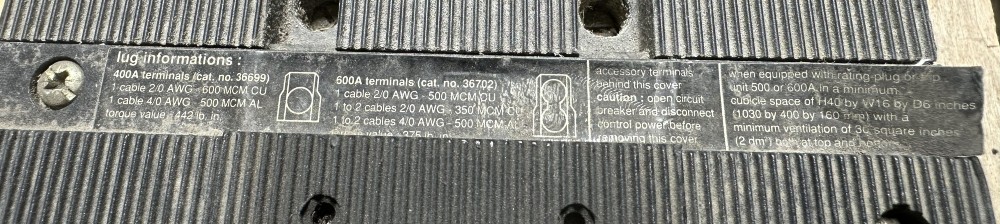

Lugs: Not installed – accepts 400A terminals (cat. no. 36699) or 600A terminals (cat. no. 36702)
Approvals: UL Listed, CSA

CONDITION

Condition: Used – As-Is

TERMS

Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed or on pallet (LTL)
Stock #: CB-1523
