Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Westinghouse Canada |
| Model | EB3060 |
| Stock # | CB - 1527 |
Description

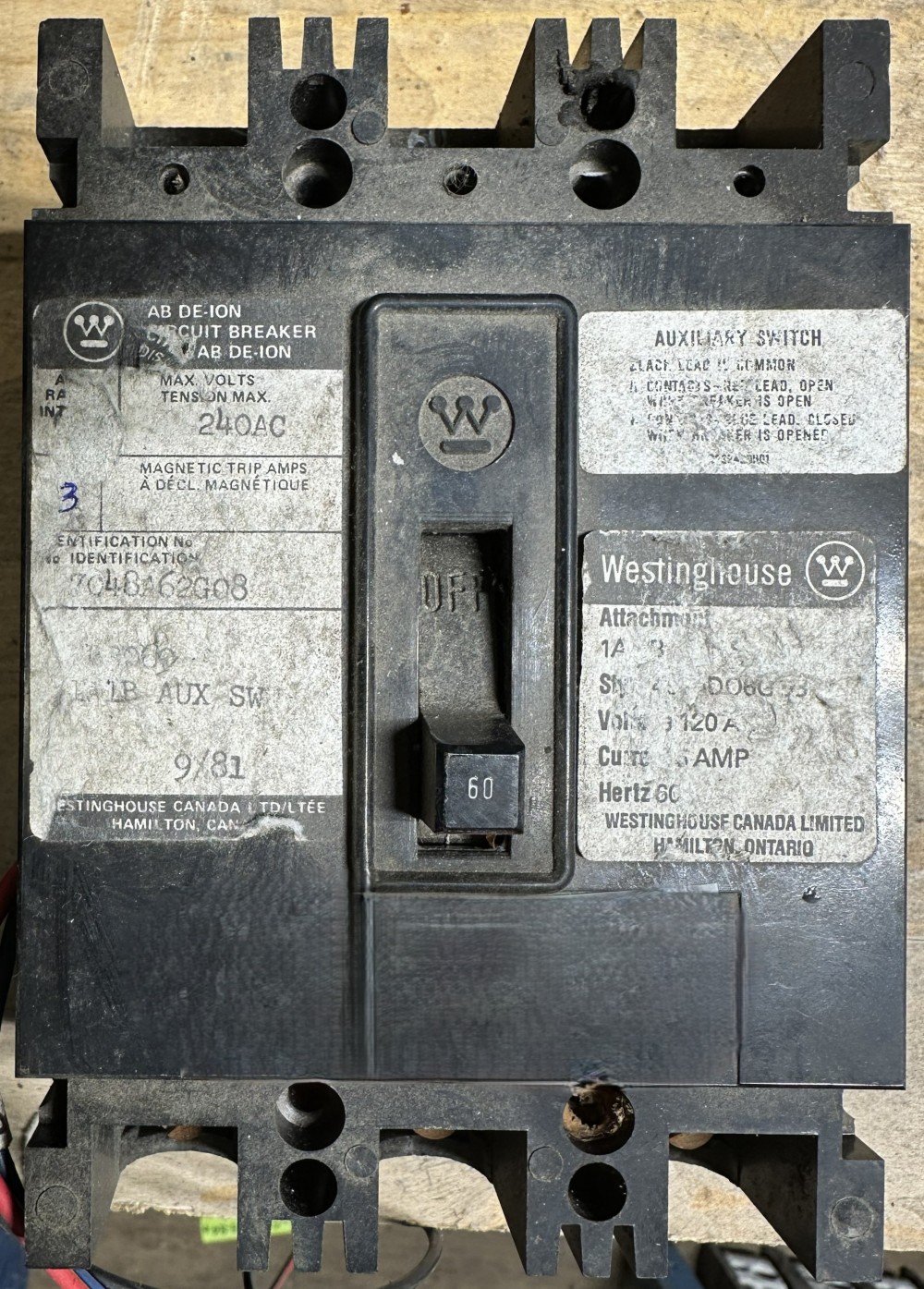

Westinghouse Canada AB De-ion Type EB EB3060 Molded Case Circuit Breaker with Auxiliary Switch
60A – 3-Pole – 240V AC – Thermal-Magnetic, Fixed Trip – 10kA @ 240V – 1A/1B Aux Switch
>> Qty 3 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<

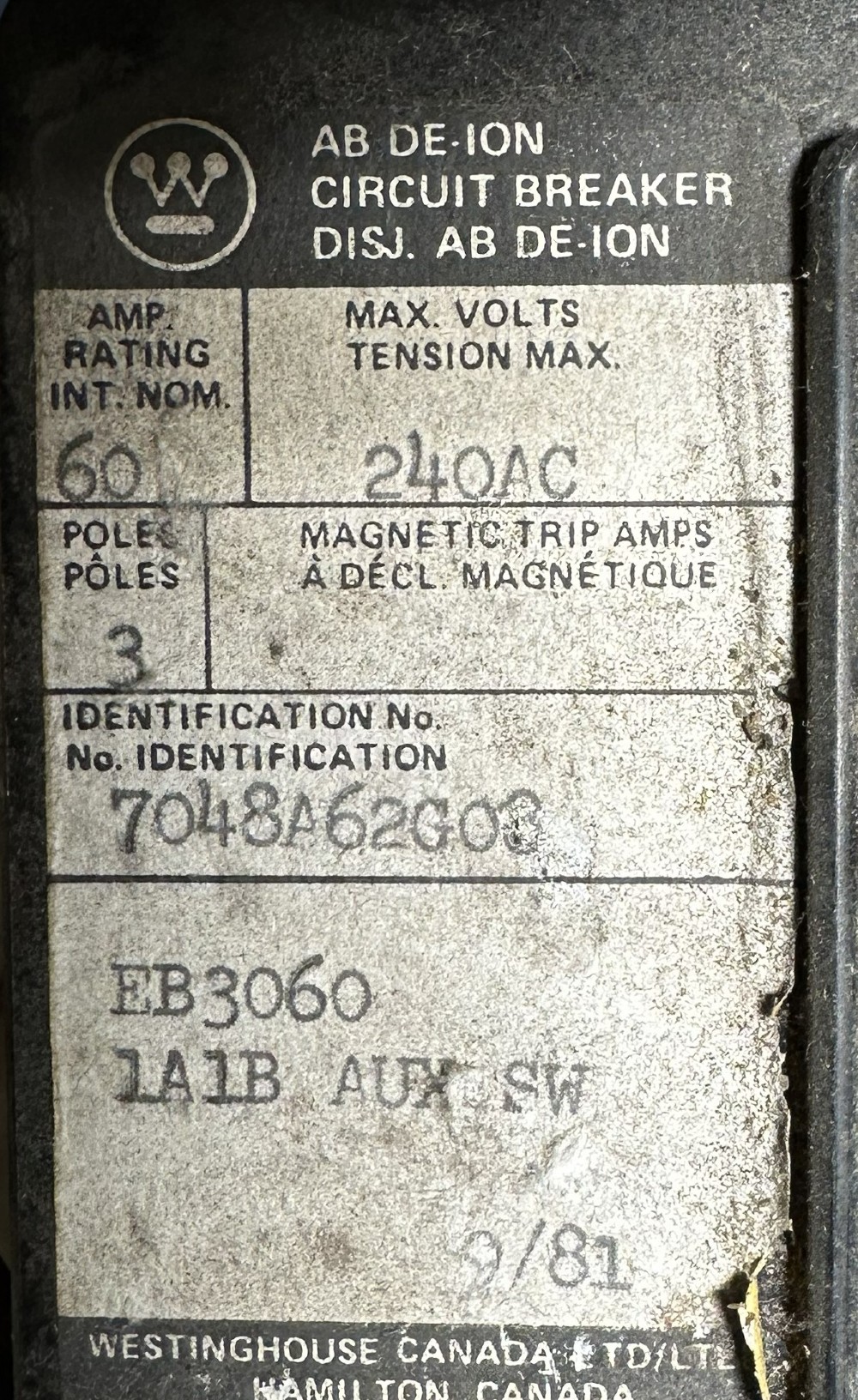

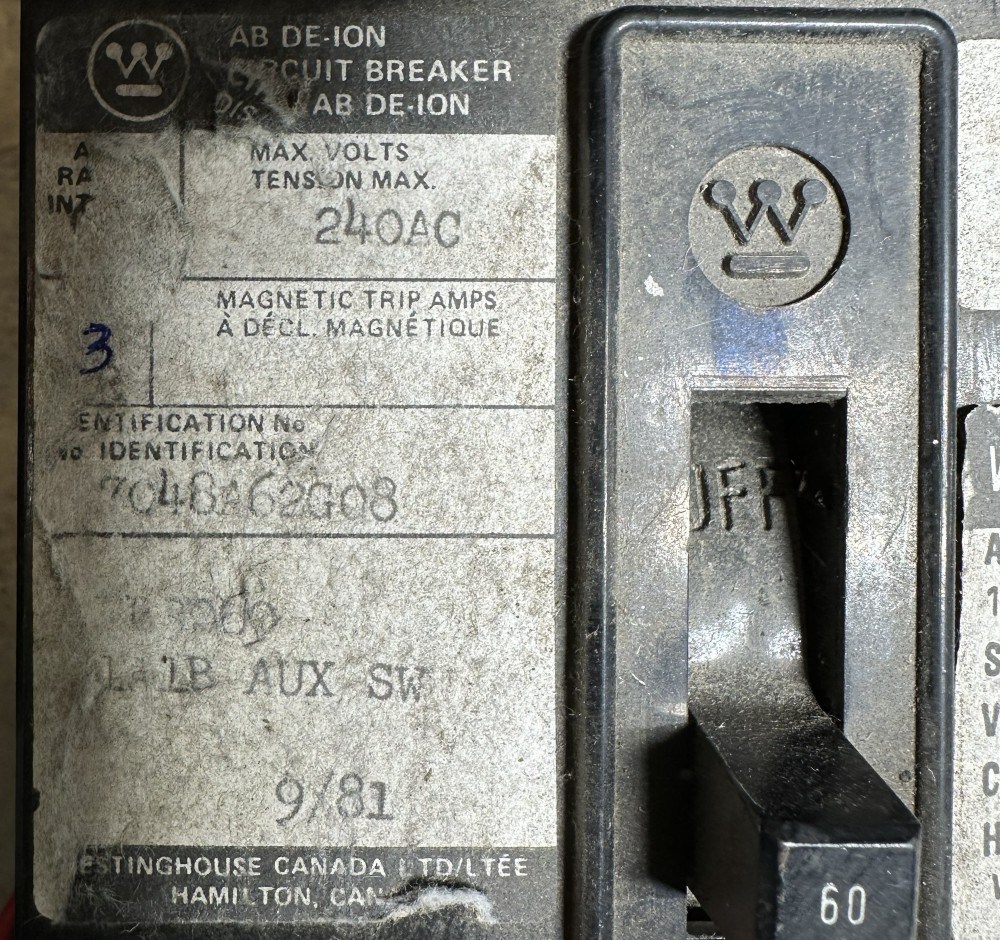

Westinghouse Canada Ltd. (Hamilton, Ontario) AB De-ion Type EB thermal-magnetic molded case circuit breaker, catalog EB3060, Identification No. 7048A62G08. Rated 60A, 3-pole, 240V AC maximum, with fixed, non-adjustable trip. Interrupting rating of 10,000A RMS symmetrical at 240V. Fitted with a 1A/1B auxiliary switch rated 120 VAC, 5A, 60 Hz. Cu/Al lugs, #14 to 1/0 AWG. Date coded 9/81. Three units available – priced each.
SPECIFICATIONS
Manufacturer: Westinghouse Canada Ltd., Hamilton, Ontario
Series: AB De-ion, Type EB
Catalog #: EB3060
Identification #: 7048A62G08
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 3
Ampere Rating: 60A
Trip Type: Fixed – non-adjustable
Voltage: 240V AC Max

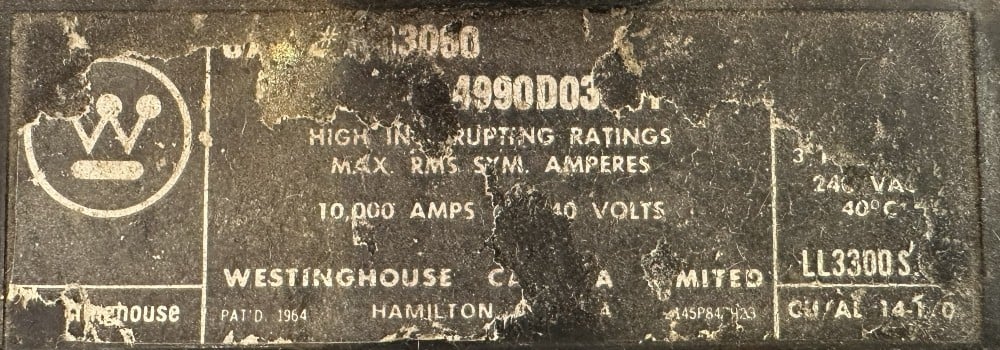

Interrupting Rating: 10,000A RMS Sym. @ 240V
Auxiliary Switch: 1A/1B, 120 VAC, 5A, 60 Hz (installed)
Lugs: Cu/Al, #14–1/0 AWG
Date Code: 9/81
Approvals: CSA
CONDITION
Condition: Used – As-Is. Side nameplate label worn.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)

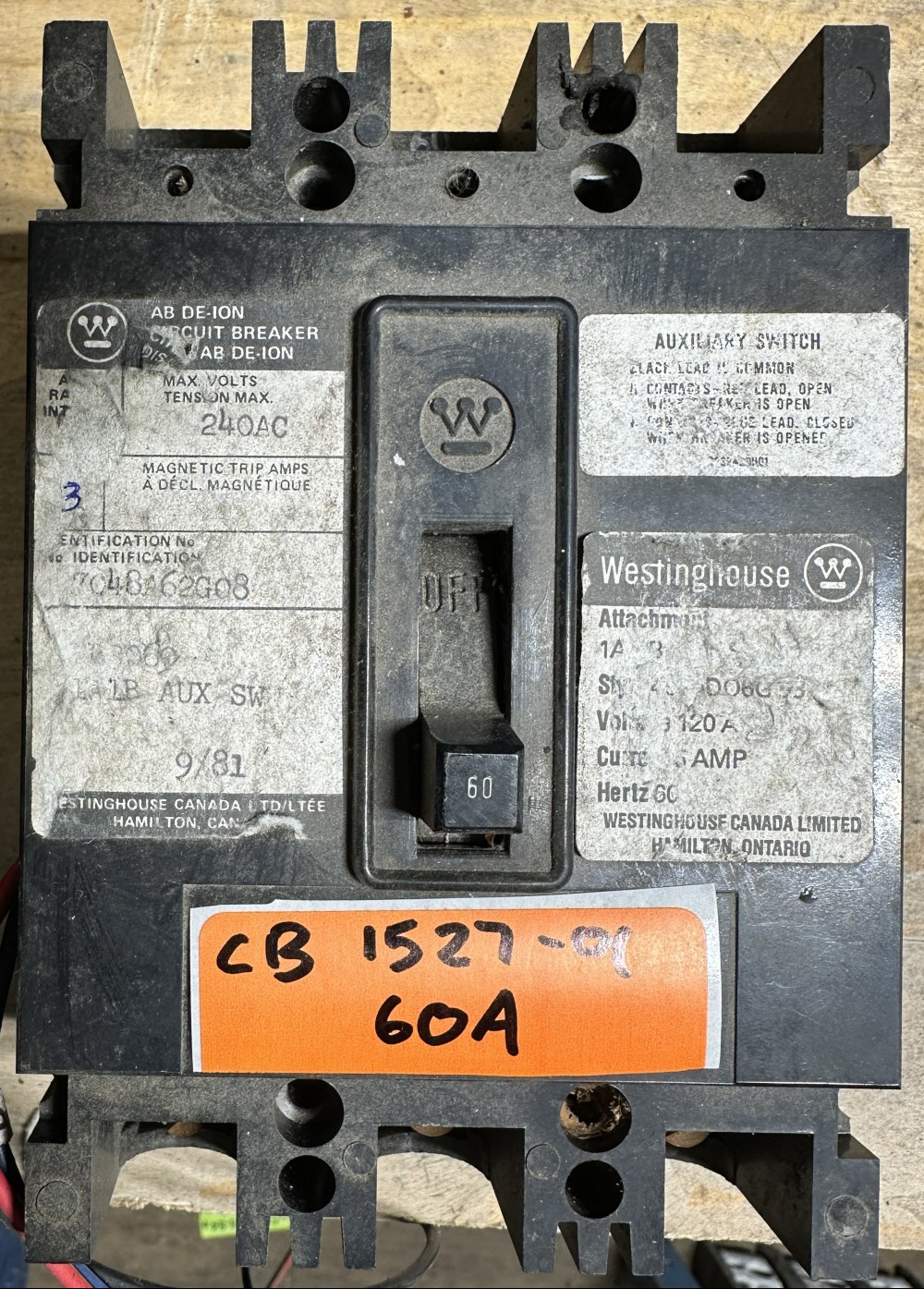

Stock #: CB-1527
