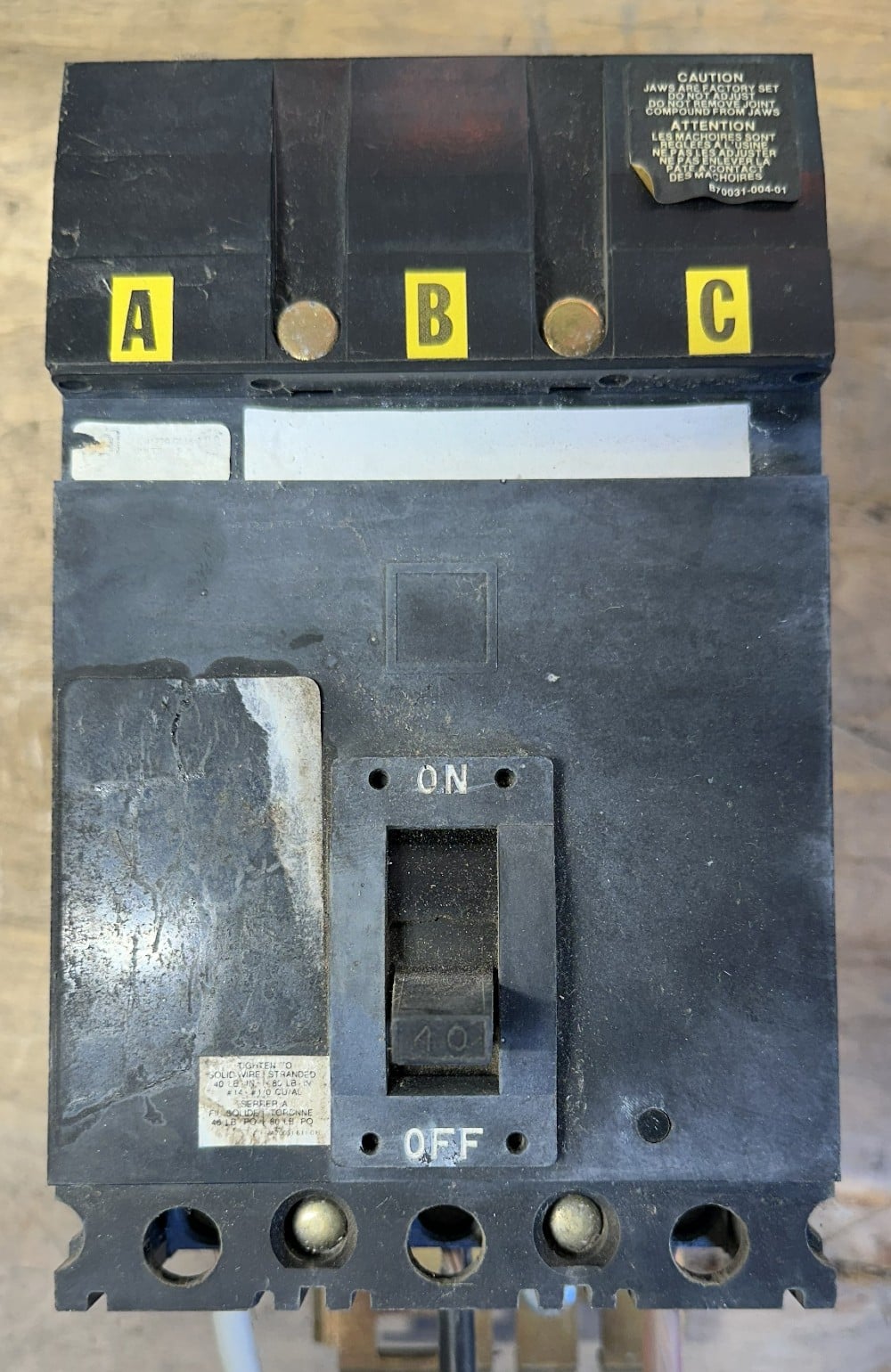

Square D Type FA I-Line Plug-In Molded Case Circuit Breaker – Probable FA36040
40A – 3-Pole – Thermal-Magnetic, Fixed Trip – I-Line Plug-On

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

Square D Type FA thermal-magnetic molded case circuit breaker, probable catalog FA36040, 40A handle rating, 3-pole, with fixed, non-adjustable trip. I-Line plug-in jaws on line end (factory set) with A-B-C phase labels. Load terminals #14–1/0 AWG Cu/Al, solid 40 lb-in / stranded 80 lb-in. Mounting bracket at load end.

Please note: The main rating label has been removed from the cover and the CSA label is worn. Catalog number, voltage and interrupting rating are not confirmed. Cut wire tails are attached to the load terminals. Buyer to verify suitability before use.

SPECIFICATIONS

Manufacturer: Square D
Series: Type FA
Catalog #: Probable FA36040 (not confirmed)
Type: Thermal-Magnetic Molded Case Circuit Breaker, I-Line plug-in
Poles: 3 (A-B-C)
Current Rating: 40A (handle marking)
Trip Type: Fixed – non-adjustable
Voltage / Interrupting Rating: Not visible
Line Connection: Plug-in jaws (factory set, caution label B70031-004-01)
Load Terminals: #14–1/0 AWG Cu/Al; solid 40 lb-in / stranded 80 lb-in
Accessories: Mounting bracket at load end

CONDITION

Condition: Used – As-Is. Rating label removed (residue on cover); CSA label worn; cut wire tails attached.

TERMS

Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1588
