Westinghouse Series C KD3400F Molded Case Circuit Breaker with KT3400T Trip Unit
400A – 3-Pole – 600V AC / 250V DC – Thermal-Magnetic – Adjustable Magnetic 5–10 × In – 35kA @ 480V

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

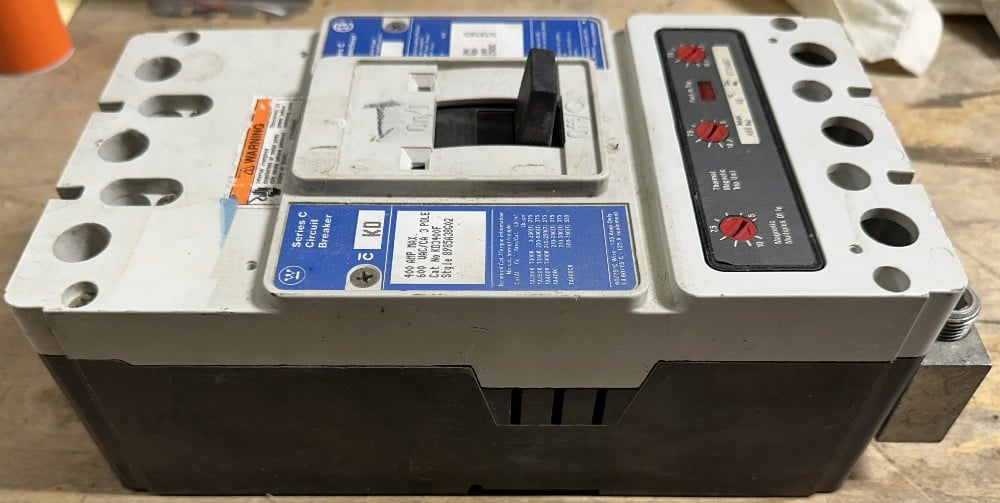

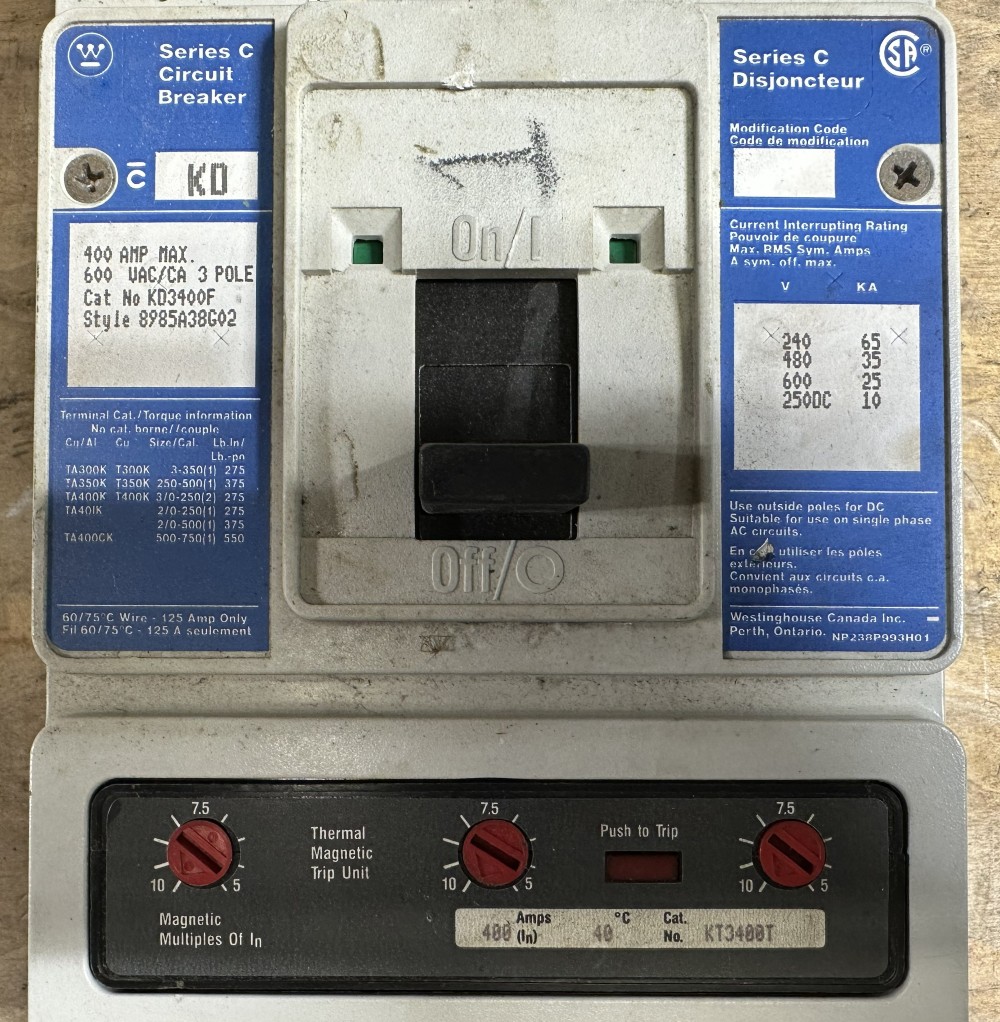

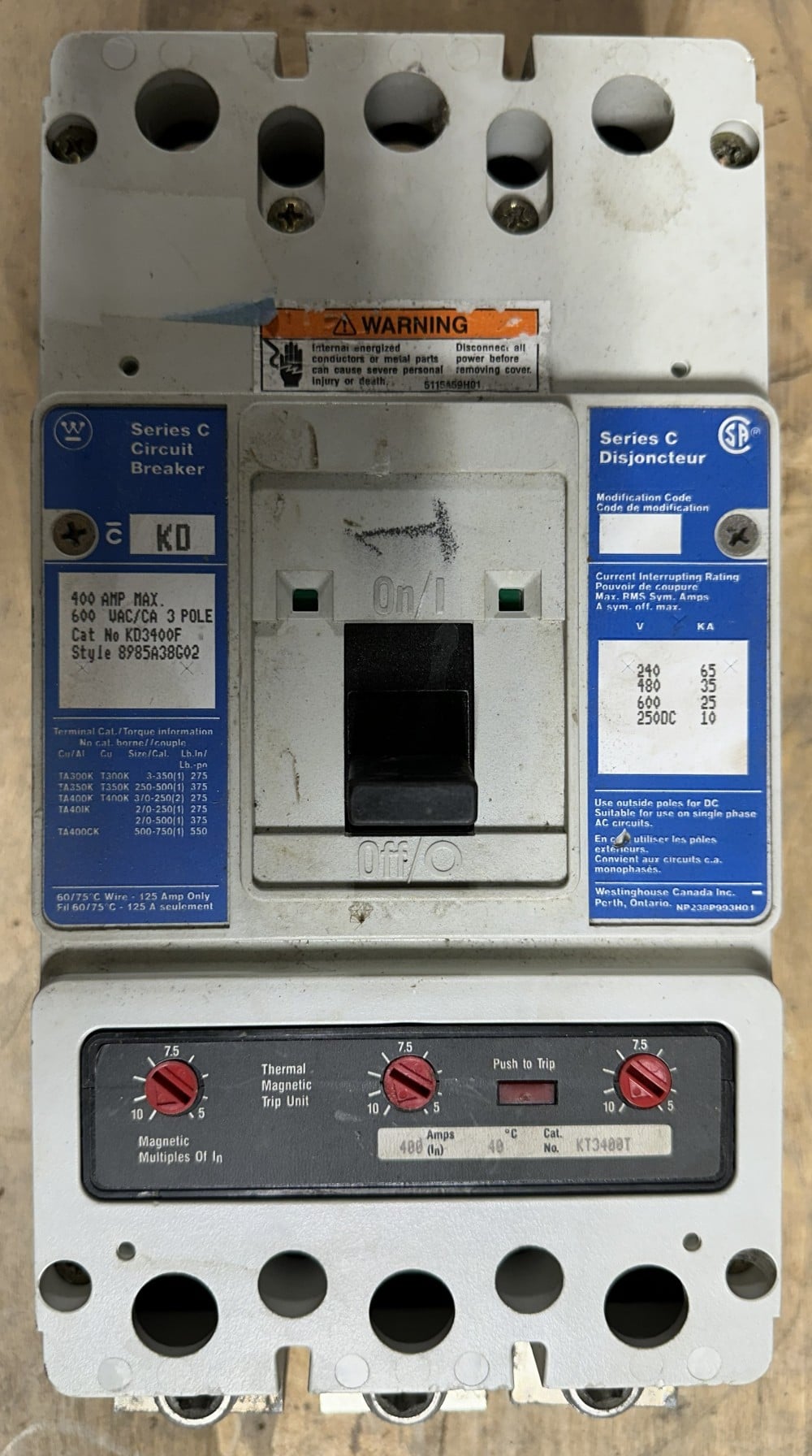

Westinghouse Canada (Perth, Ontario) Series C Type KD molded case circuit breaker, frame catalog KD3400F, Style 8985A38G02, 3-pole, 600V AC. Fitted with a KT3400T interchangeable thermal-magnetic trip unit rated 400A at 40°C, with magnetic trip adjustable from 5 to 10 × In and push-to-trip button. Interrupting rating of 65kA at 240V, 35kA at 480V, 25kA at 600V and 10kA at 250V DC (outside poles). Suitable for single-phase AC circuits. CSA certified. Terminals not installed.

SPECIFICATIONS

Manufacturer: Westinghouse Canada Inc., Perth, Ontario
Series: Series C, Type KD
Frame Catalog #: KD3400F
Style #: 8985A38G02
Trip Unit: KT3400T, thermal-magnetic, 400A (In) @ 40°C, interchangeable
Magnetic Trip: Adjustable, 5–10 × In
Poles: 3
Voltage: 600V AC; 250V DC (outside poles); suitable for single-phase AC
Interrupting Rating: 65kA @ 240V AC, 35kA @ 480V AC, 25kA @ 600V AC, 10kA @ 250V DC
Terminals: Not installed – accepts TA300K/T300K (3–350, 275 lb-in), TA350K/T350K (250–500, 375 lb-in), TA400K/T400K (2 × 3/0–250, 275 lb-in), TA401K (2/0–250 or 2/0–500), TA400CK (500–750, 550 lb-in)
Features: Push-to-trip button
Approvals: CSA

CONDITION

Condition: Used – As-Is

TERMS

Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed or on pallet (LTL)
Stock #: CB-1582
