Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Westinghouse |
| Model | LB3400FS |
| Stock # | CB - 1506 |
Description

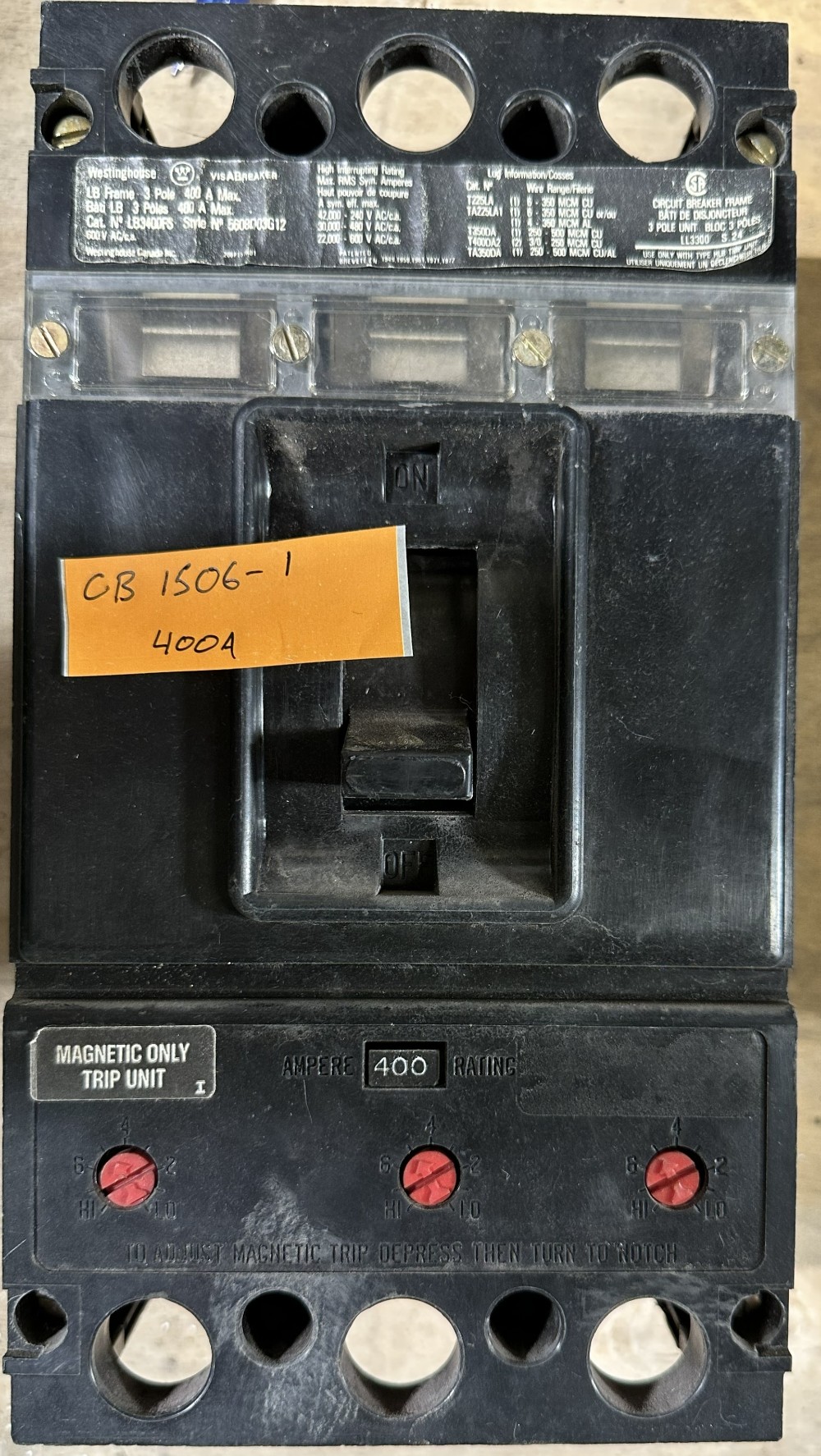

Westinghouse VisABreaker LB3400FS Molded Case Circuit Breaker
400A Frame – 3-Pole – 600V Max – Magnetic Only Trip Unit, 400A – Adjustable HI/LO (2–6)
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Westinghouse Canada VisABreaker LB-frame 3-pole molded case circuit breaker, catalog LB3400FS, with interchangeable trip unit. Fitted with a 400A Magnetic Only Trip Unit with individually adjustable magnetic trip settings (HI/LO, 2–6) on each pole. Interrupting rating of 42,000A at 240V, 30,000A at 480V and 22,000A at 600V. Frame accepts Type HLB trip units only.
IMPORTANT: Magnetic-only trip unit provides short-circuit protection only; no thermal (overload) protection.
SPECIFICATIONS
Manufacturer: Westinghouse (Westinghouse Canada Inc.)
Series: VisABreaker
Type: LB-Frame Molded Case Circuit Breaker, interchangeable trip unit
Catalog #: LB3400FS
Style #: 5608D03G12
Poles: 3
Frame Rating: 400A (LB Frame, 400A Max)
Voltage: 600V AC
Trip Unit: Magnetic Only, 400A – short-circuit protection only, no thermal (overload) element

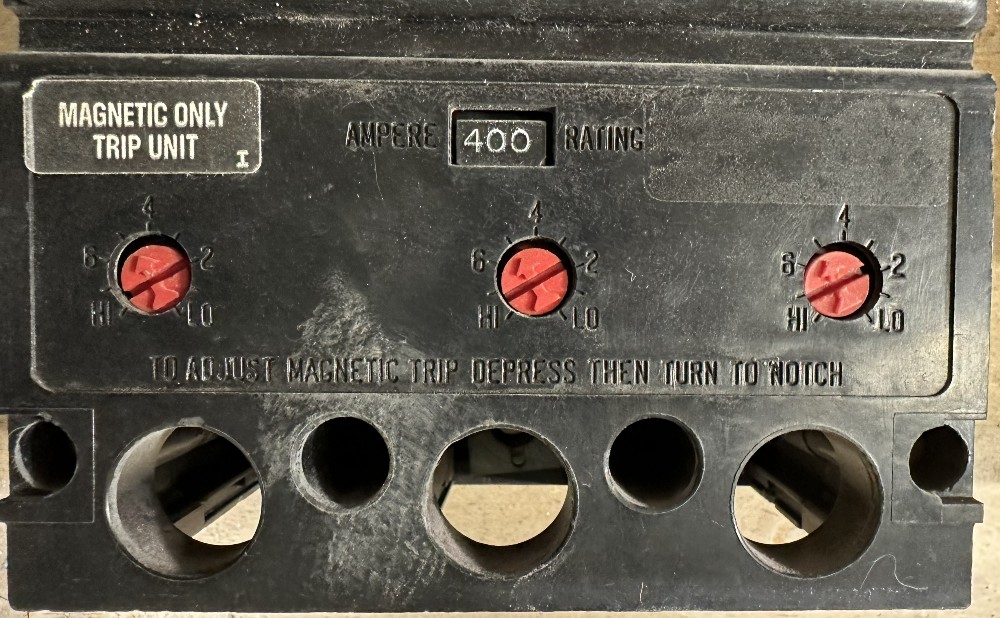

Magnetic Trip Adjustment: HI/LO (2–6), adjustable on each pole
Trip Unit Compatibility: Type HLB trip units only
Interrupting Rating: 42,000A @ 240V, 30,000A @ 480V, 22,000A @ 600V

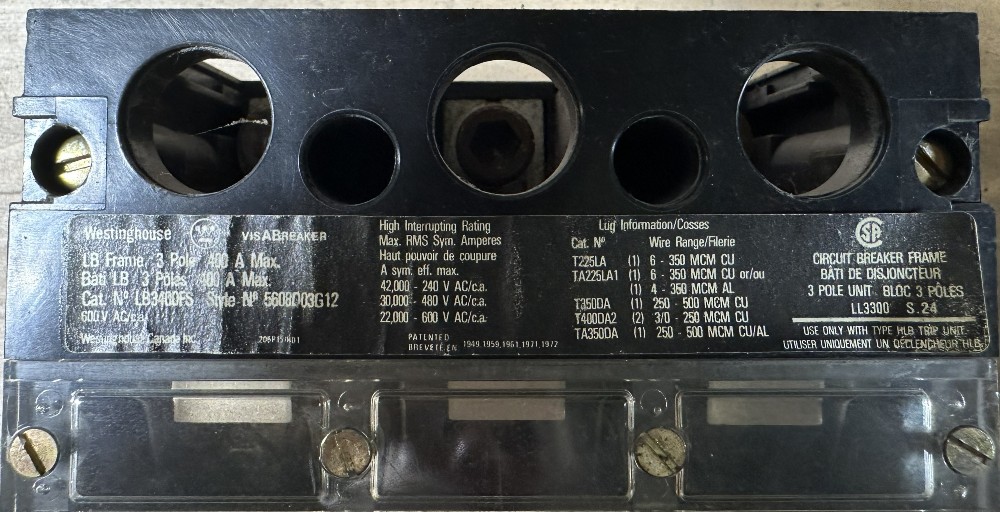

Wire Rating (per nameplate lug data): T350DA (1) 250–500 MCM Cu; T400DA2 (2) 3/0–250 MCM Cu; TA350DA (1) 250–500 MCM Cu/Al
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed or on pallet (LTL)
Stock #: CB-1506-2
