Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Square D |
| Model | TYPE LA |
| Stock # | CB - 1565 |
Description
Square D Type LA Molded Case Circuit Breaker – Probable LA36400
400A – 3-Pole – Thermal-Magnetic – Adjustable Magnetic Trip (LO–HI) – Load Lugs Installed
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<

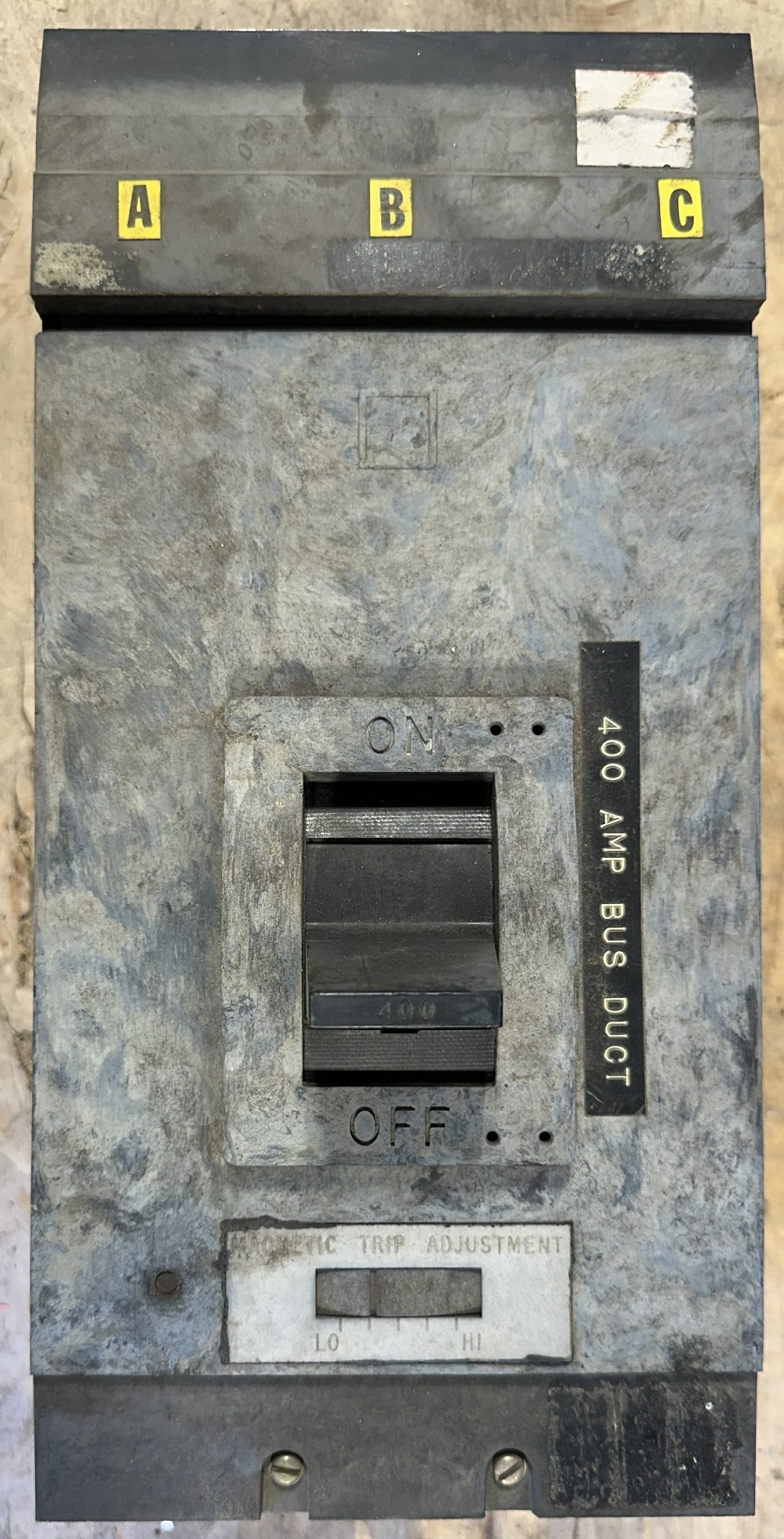

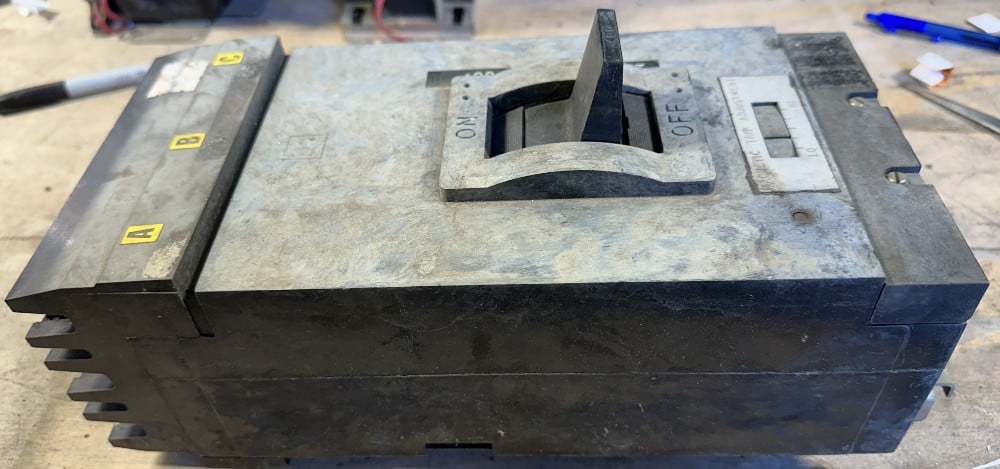

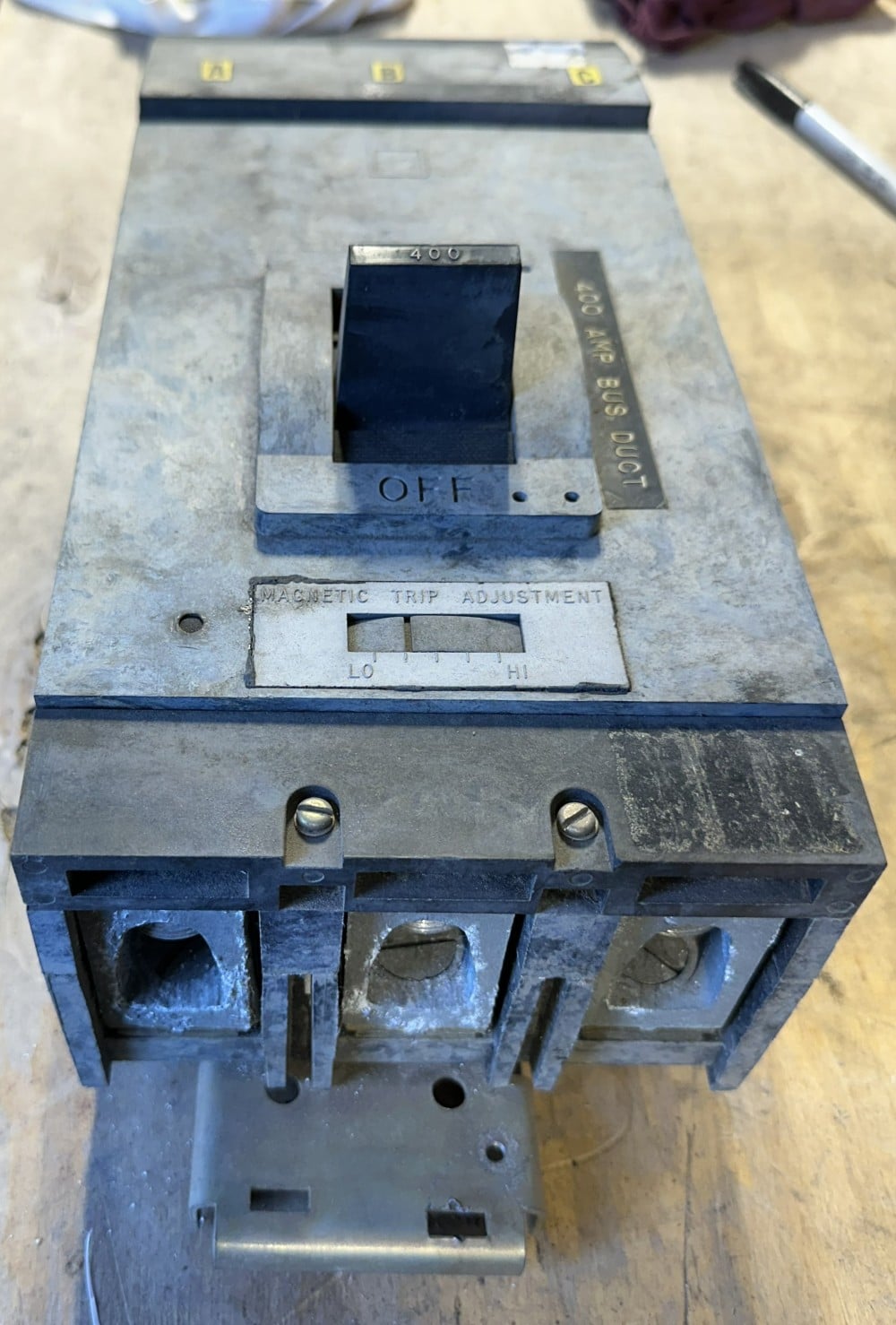

Square D Type LA thermal-magnetic molded case circuit breaker, probable catalog LA36400, 400A handle rating, 3-pole, with single-slide adjustable magnetic trip (LO–HI). Load-side lugs installed; mounting bracket attached at load end. A-B-C phase labels on line end.
Please note: Catalog number (probable LA36400), voltage and interrupting rating are not confirmed from a nameplate. Cover carries a "400 AMP BUS DUCT" circuit label from previous installation (identification only, not a rating). Buyer to verify suitability before use.
SPECIFICATIONS
Manufacturer: Square D
Series: Type LA (probable)
Catalog #: Probable LA36400 – not confirmed
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 3
Current Rating: 400A (handle marking)
Magnetic Trip: Adjustable, single slide (LO–HI)
Voltage: Not confirmed
Interrupting Rating: Not confirmed
Lugs: Load-side lugs installed; line-side not installed
Accessories: Mounting bracket attached at load end; A-B-C phase labels on line end
CONDITION
Condition: Used – As-Is. "400 AMP BUS DUCT" circuit label on cover.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed or on pallet (LTL)
Stock #: CB-1565
