400 Amps, Goulds I-T-E, KM3-F800, Type KM 800A Frame MCCB, 3-Pole, 600 VAC / 125 - 250 VDC, Adjustable Magnetic Trip

Details

Description

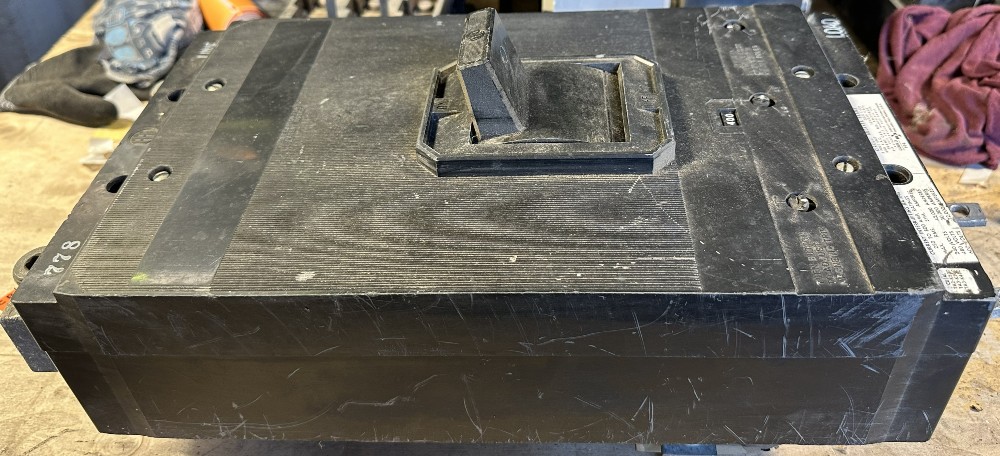

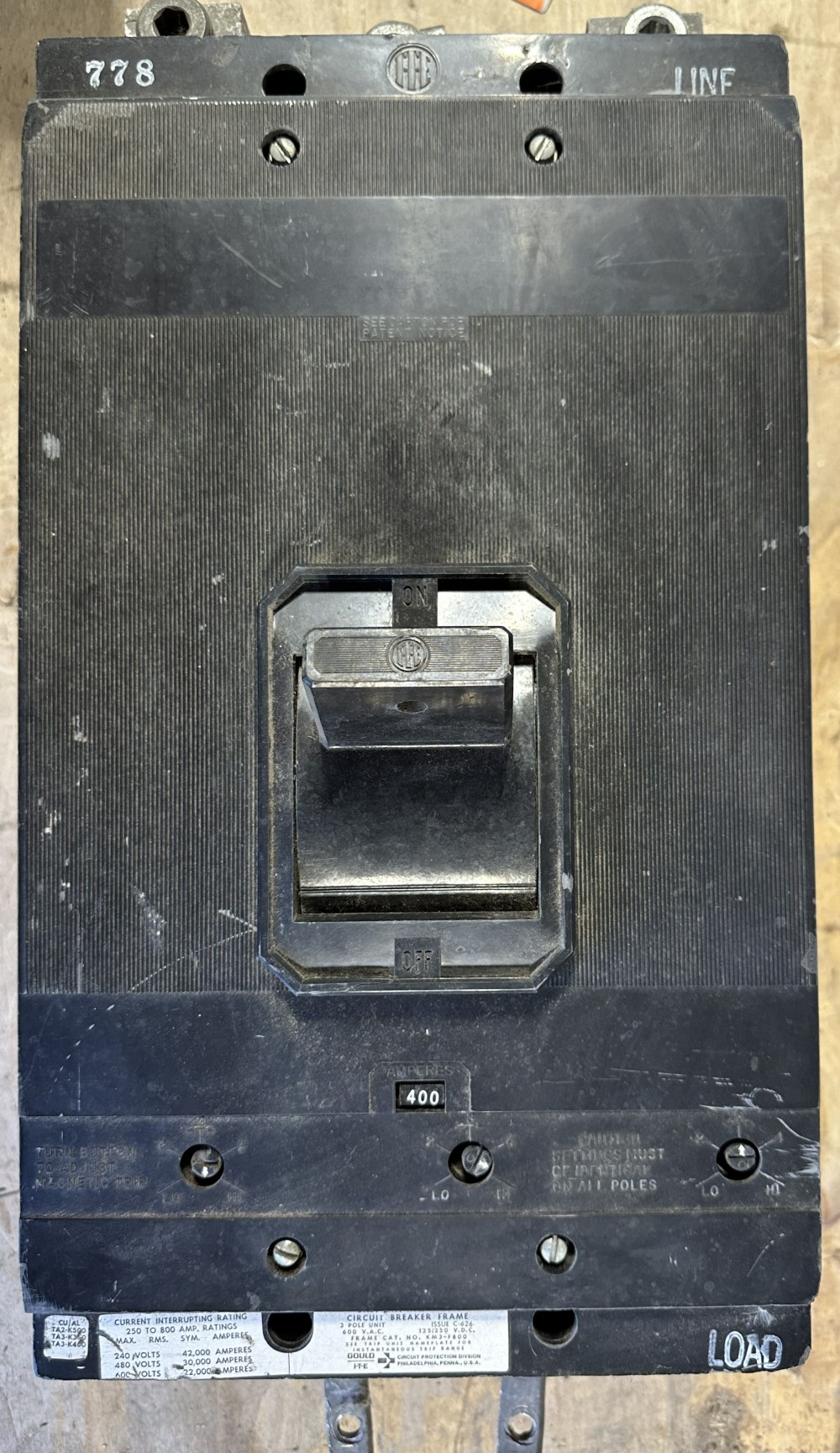

Gould I-T-E Type KM KM3-F800 Molded Case Circuit Breaker with 400A Trip Unit
400A Trip Unit in 800A KM Frame – 3-Pole – 600V AC / 125-250V DC – Thermal-Magnetic – Adjustable Magnetic Trip (LO–HI) – 30kA @ 480V

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

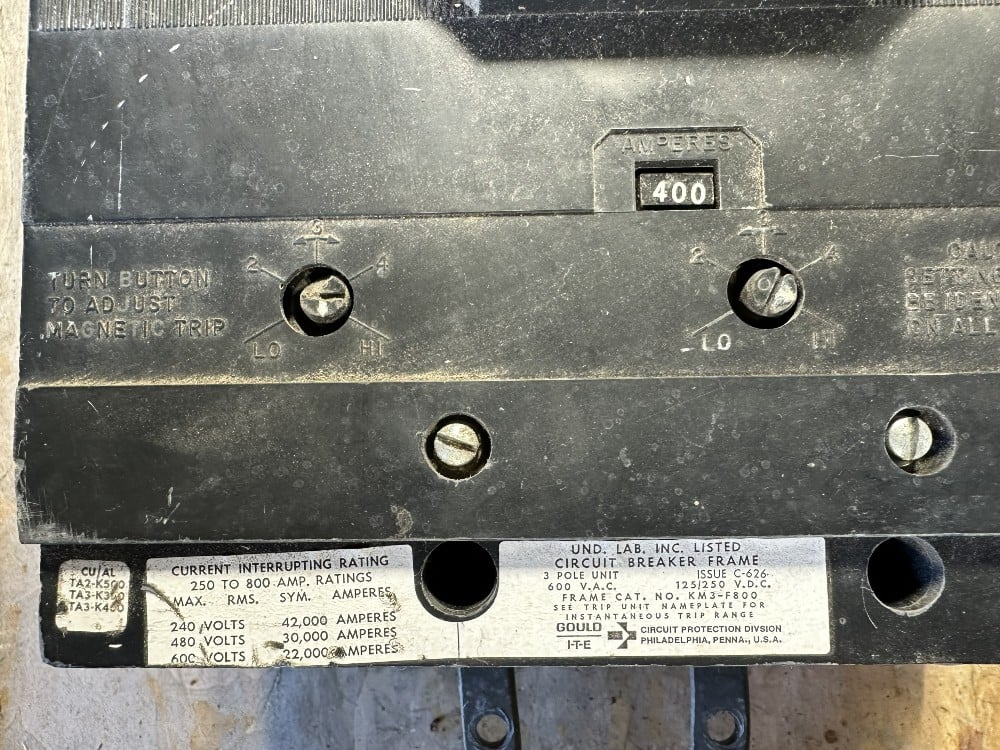

Gould I-T-E Type KM molded case circuit breaker, frame catalog KM3-F800 (Issue C-626, for 250–800A ratings), 3-pole, 600V AC / 125-250V DC. Fitted with a 400A thermal-magnetic trip unit with magnetic trip adjustable 2 to 4 (LO–HI) on each pole. Interrupting rating of 42,000A at 240V, 30,000A at 480V and 22,000A at 600V. Line-side Cu/Al lugs installed; load-side lugs not installed.

SPECIFICATIONS

Manufacturer: Gould I-T-E
Series: Type KM
Frame Catalog #: KM3-F800 (Issue C-626), 800A frame, 250–800A ratings
Trip Unit: 400A, thermal-magnetic
Type: Molded Case Circuit Breaker
Poles: 3
Magnetic Trip: Adjustable 2–4 (LO–HI), on each pole
Voltage: 600V AC / 125-250V DC
Interrupting Rating: 42,000A @ 240V, 30,000A @ 480V, 22,000A @ 600V
Lugs: Line-side Cu/Al lugs installed; load-side not installed (frame accepts TA2-K500, TA3-K350, TA3-K400)

CONDITION

Condition: Used – As-Is

TERMS

Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships on pallet (LTL)
Stock #: CB-1563
