400 Amp. ABB, OS400J03, Enclosed Fusible Disconnect Switch, 3-pole, 600 Volts, Class J, Rittal Enclosure

Details

Description

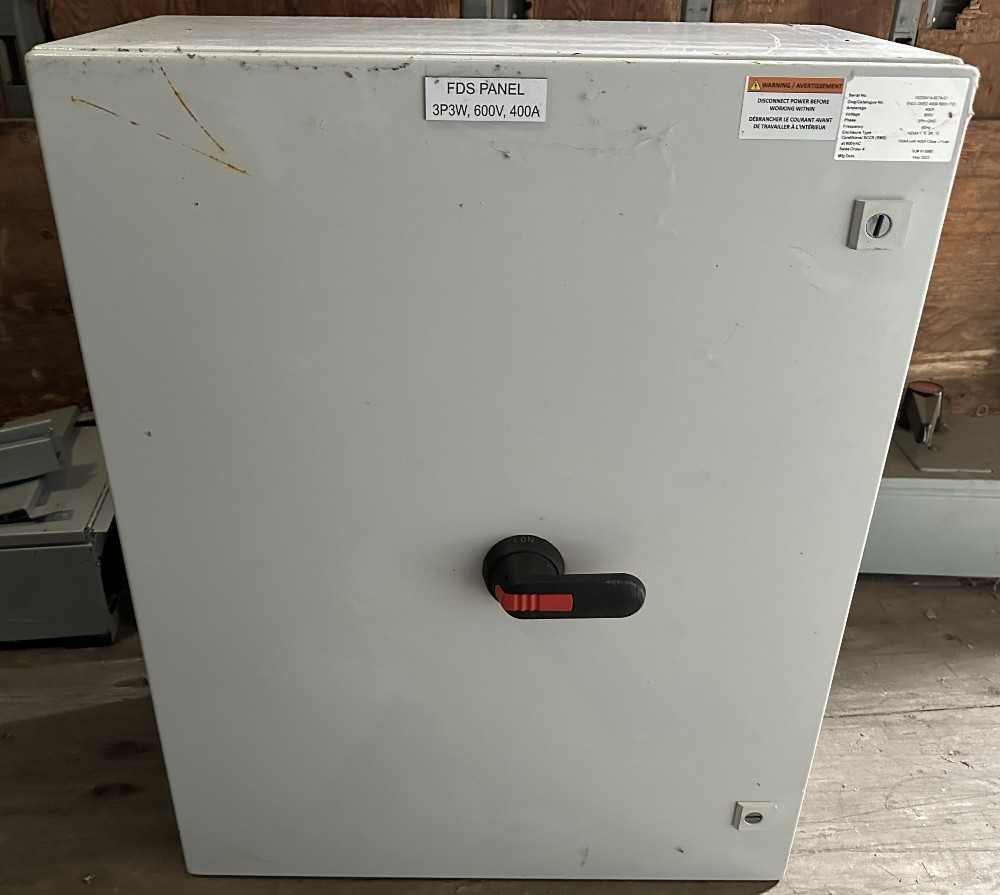

ABB OS400J03 Enclosed Fusible Disconnect Switch in Rittal Wall-Mount Enclosure
400A – 3-Pole – 600V – Class J Fusible – 100kA SCCR

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

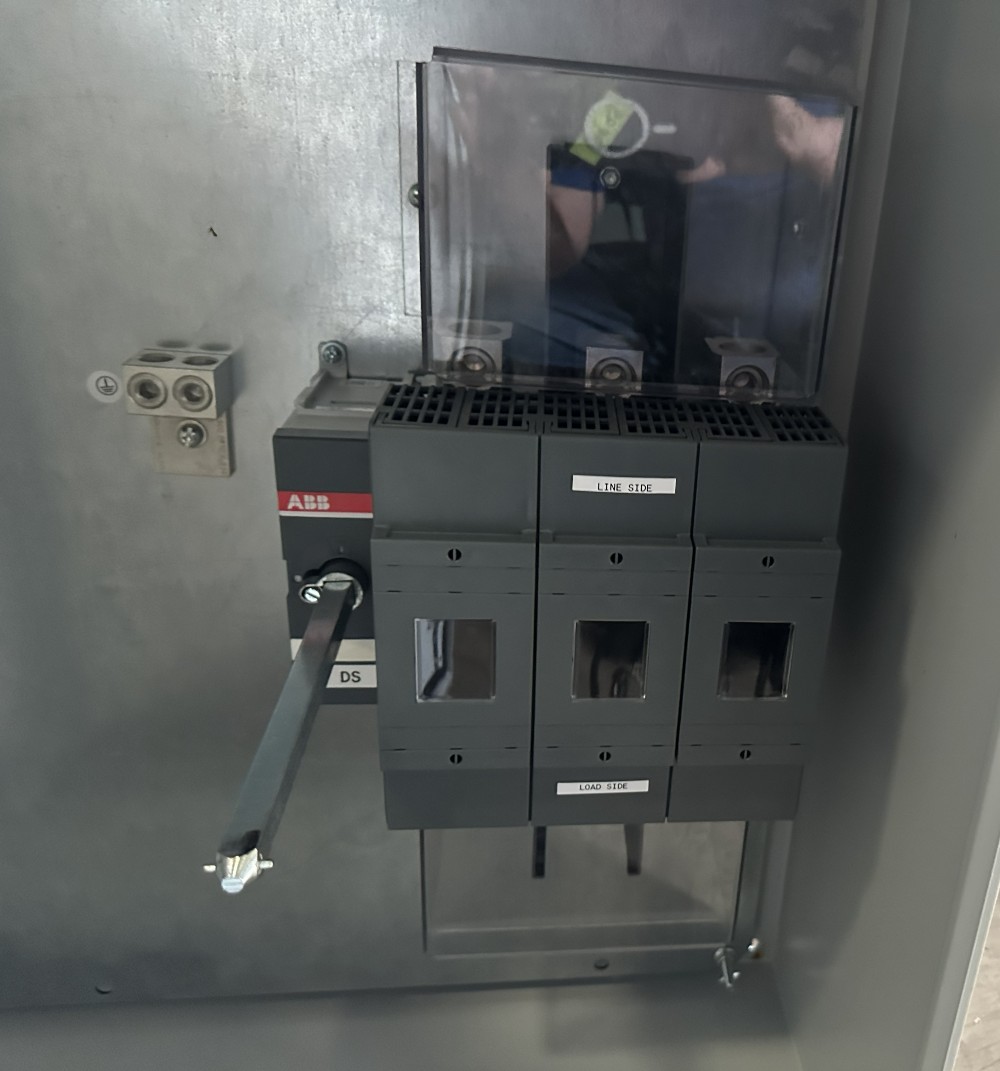

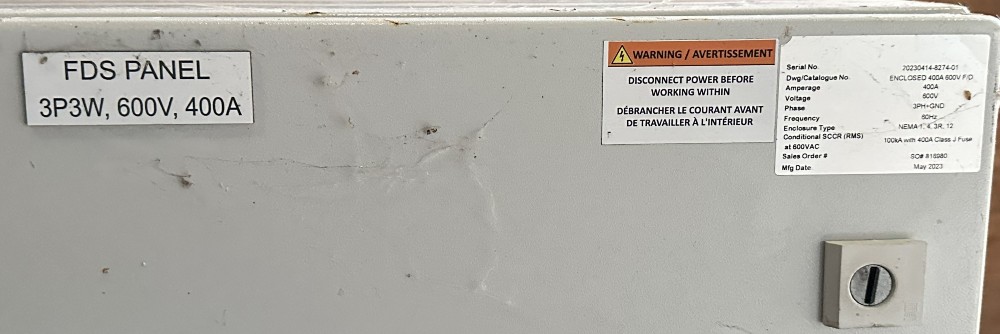

ABB OS Series OS400J03 fusible disconnect switch, 400A, 3-pole, 600V, factory-mounted in a Rittal wall-mount enclosure with external door-mounted operating handle. Accepts 400A Class J fuses directly with no fuse kit required. Conditional short-circuit current rating of 100kA RMS at 600VAC with 400A Class J fuses. Line and load lugs on the switch, with the line side under a clear protective shield, plus a dual-barrel ground lug on the mounting panel. Panel labelled "Enclosed 400A 600V F/D."

SPECIFICATIONS

Manufacturer: ABB (switch); Rittal (enclosure)
Series: ABB OS Series (UL 98)
Catalog #: OS400J03
Type: Enclosed Fusible Disconnect Switch
Ampere Rating: 400A
Poles: 3
Voltage: 600V, 3-Phase + Ground, 60 Hz
Fuse Type: Class J
Maximum Fuse Size: 400A
Short-Circuit Rating: 100kA RMS (conditional) @ 600VAC with 400A Class J fuses
Fuse Kit: Not required – accepts Class J fuses directly
Lugs: Line and load lugs on switch (line side under clear protective shield); dual-barrel ground lug on mounting panel
Operator: External door-mounted rotary handle

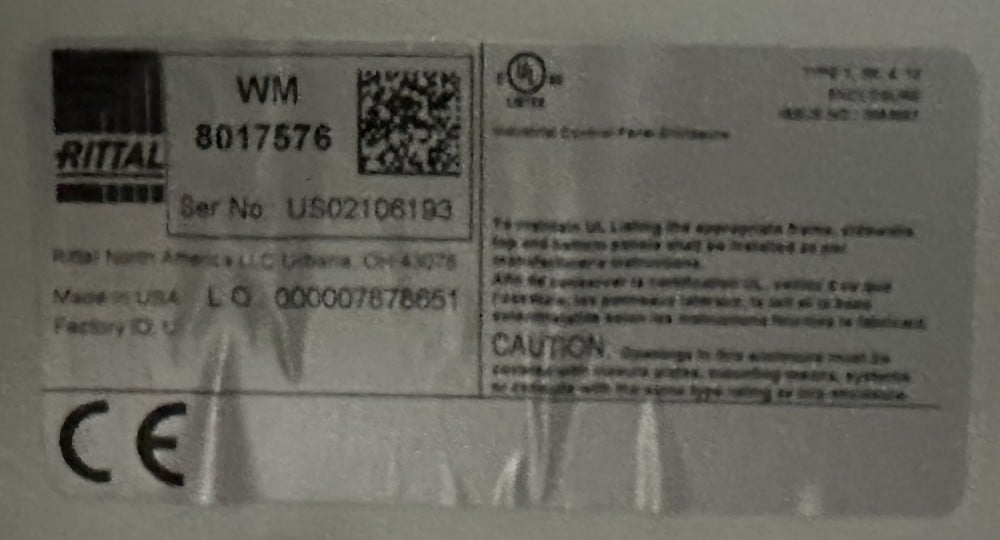

Enclosure: Rittal wall-mount

CONDITION

Condition: Used – As-Is

TERMS

Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships on pallet (LTL)
Stock #: FDS-3010
