40 Amps, Westinghouse, HFB3040, Mark 75 Molded Case Circuit Breaker, 3-Pole, 600 Volts, 65kA @ 240V

Details

Description

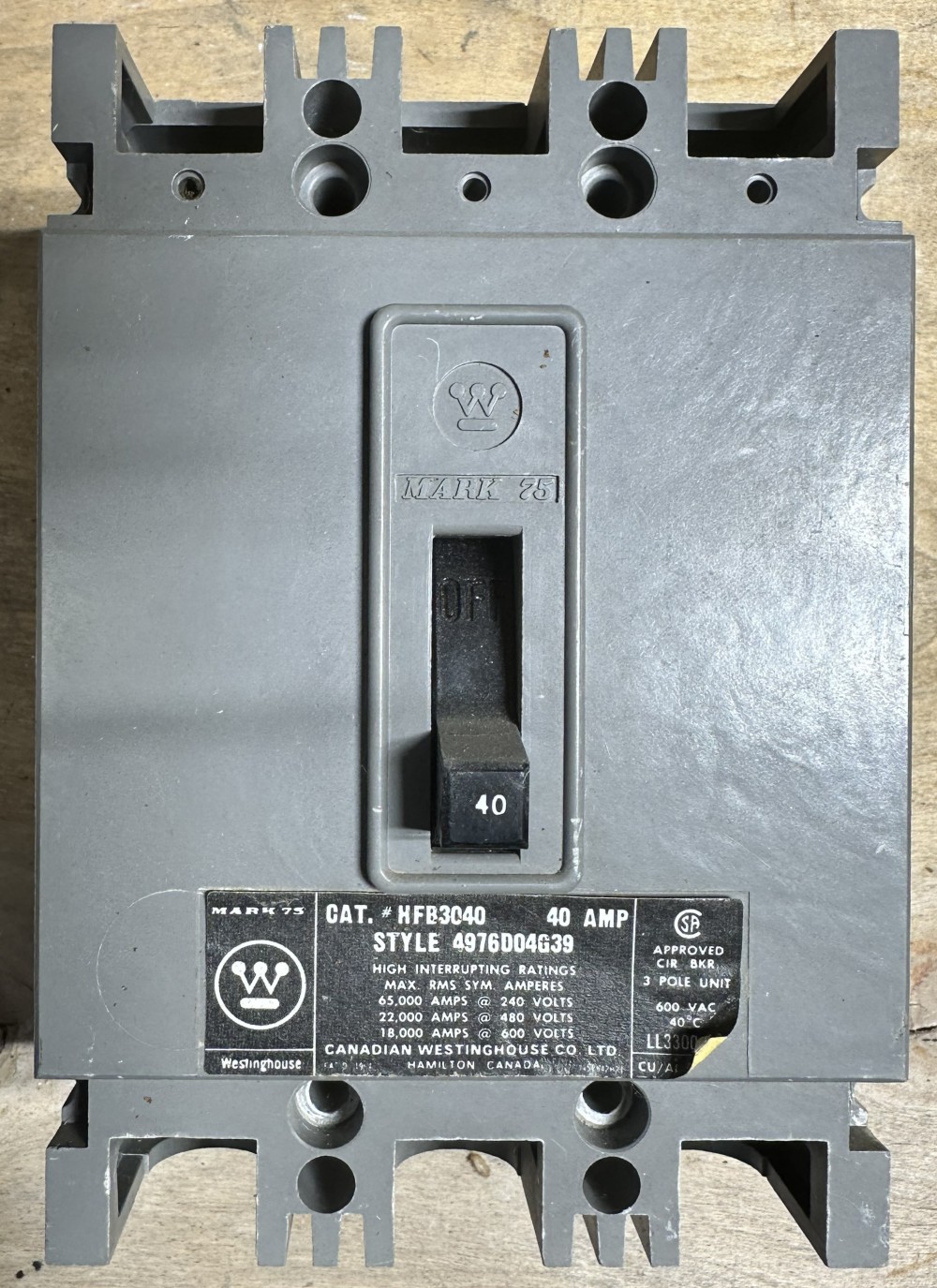

Westinghouse Mark 75 HFB3040 High Interrupting Molded Case Circuit Breaker
40A – 3-Pole – 600V AC – Thermal-Magnetic, Fixed Trip – 65kA @ 240V / 22kA @ 480V / 18kA @ 600V

>> Qty 4 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

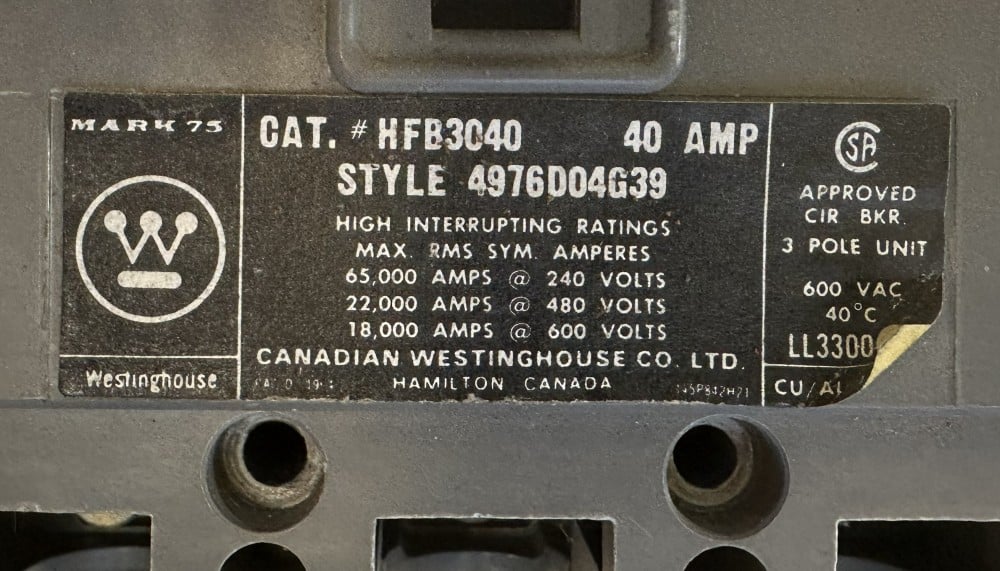

Westinghouse Mark 75 HFB high interrupting thermal-magnetic molded case circuit breaker, catalog HFB3040, rated 40A, 3-pole, 600V AC with fixed, non-adjustable trip. Interrupting rating of 65,000A at 240V, 22,000A at 480V and 18,000A at 600V. Calibrated at 40°C, Cu/Al wire rated. Manufactured by Canadian Westinghouse Co. Ltd., Hamilton, Canada. CSA approved. Four units available – priced each.

SPECIFICATIONS

Manufacturer: Westinghouse (Canadian Westinghouse Co. Ltd., Hamilton, Canada)
Series: Mark 75 HFB (High Interrupting)
Catalog #: HFB3040
Style #: 4976D04G39
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 3
Current Rating: 40A
Trip Type: Fixed – non-adjustable
Voltage: 600V AC
Interrupting Rating: 65,000A @ 240V, 22,000A @ 480V, 18,000A @ 600V
Calibration: 40°C
Wire Rating: Cu/Al
Approvals: CSA Approved

CONDITION

Condition: Used – As-Is

TERMS

Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1514
