Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Square D |
| Model | HLA36040 |
| Stock # | CB - 1500 |
Description

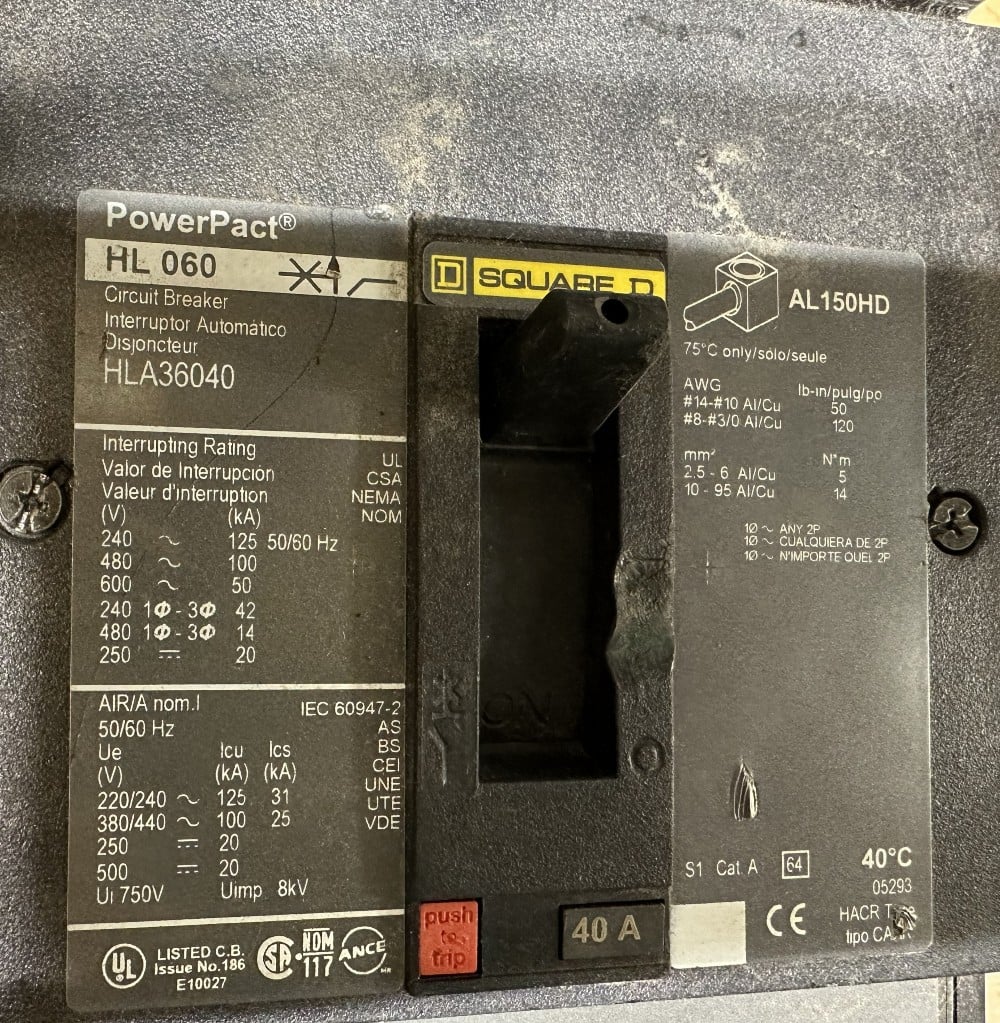

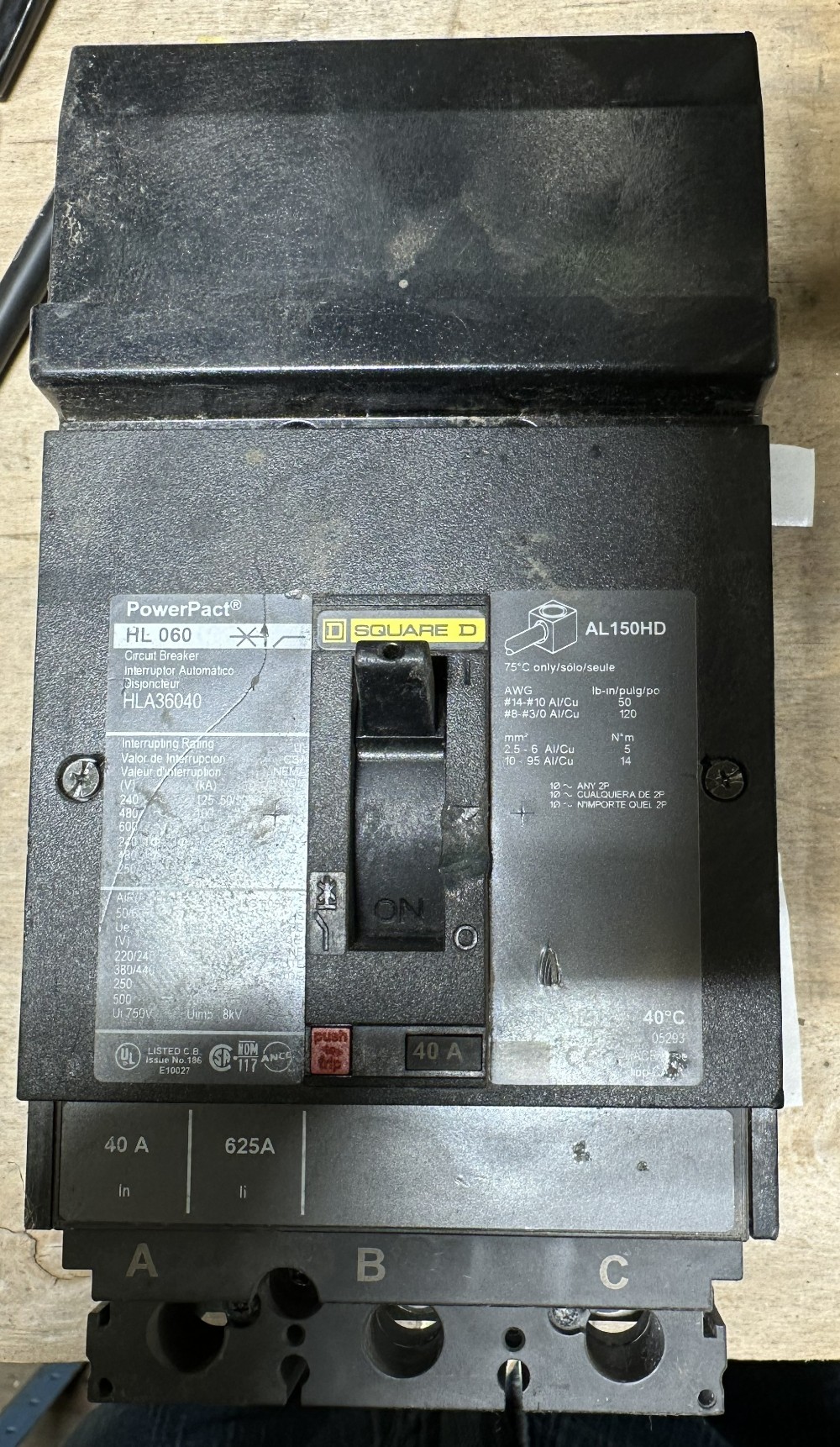

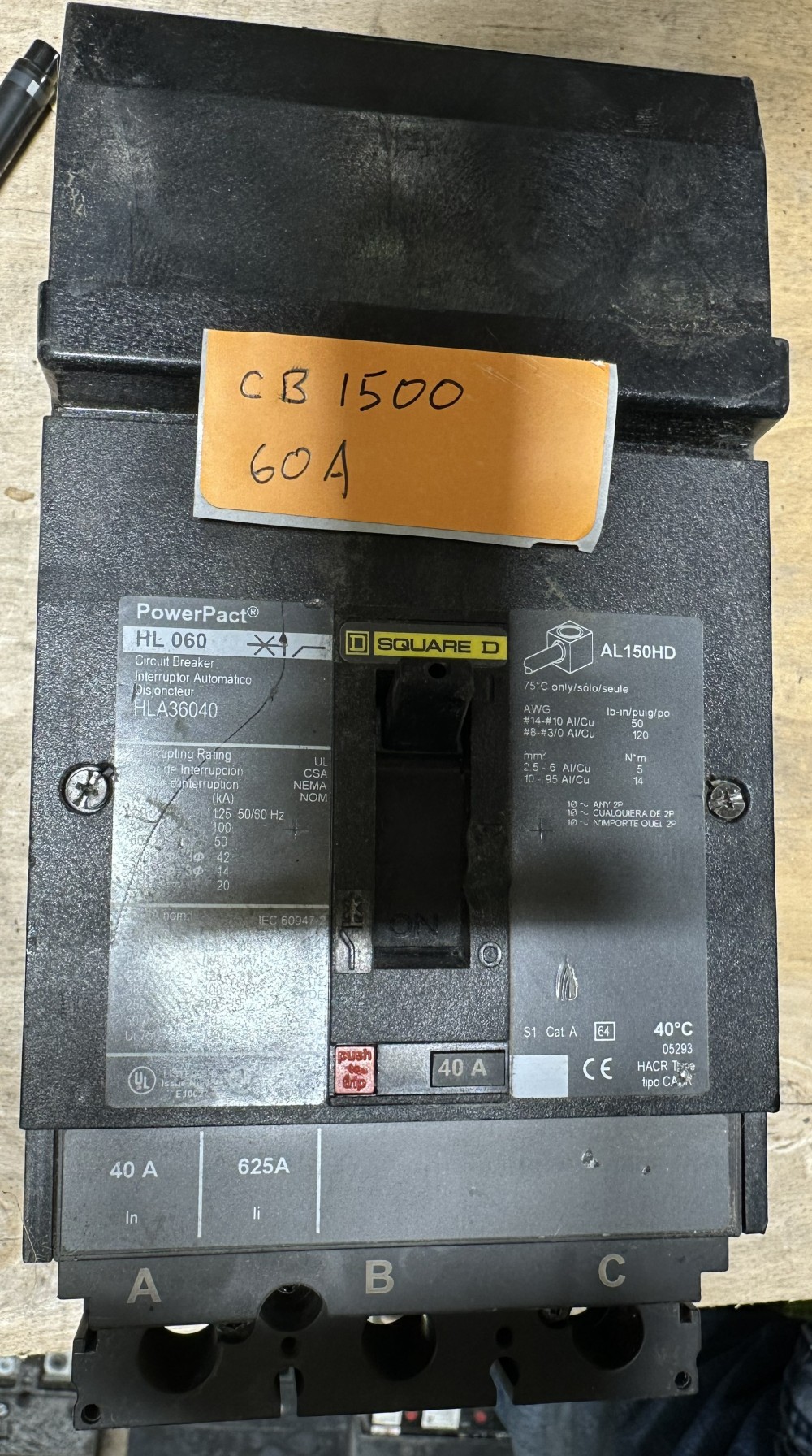

Square D PowerPact HLA36040 I-Line Molded Case Circuit Breaker
40A – 3-Pole – 600V AC / 250V DC – Thermal-Magnetic, Fixed Trip – 100kA @ 480V / 50kA @ 600V
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Square D (Schneider Electric) PowerPact H-frame HL 060 thermal-magnetic molded case circuit breaker, catalog HLA36040, with I-Line plug-in mounting. Rated 40A, 3-pole, 600V AC / 250V DC, with fixed, non-adjustable trip (In 40A, Ii 625A). High interrupting capacity of 125kA at 240V, 100kA at 480V and 50kA at 600V. Supplied with AL150HD load lugs. HACR rated.
SPECIFICATIONS
Manufacturer: Square D (Schneider Electric)
Series: PowerPact H-Frame (HL 060)
Catalog #: HLA36040
Type: Thermal-Magnetic Molded Case Circuit Breaker
Mounting: I-Line Plug-In
Poles: 3 (A-B-C)
Current Rating: 40A (In)
Instantaneous Trip: Ii 625A
Trip Type: Fixed – non-adjustable
Voltage: 600V AC / 250V DC
Interrupting Rating: 125kA @ 240V, 100kA @ 480V, 50kA @ 600V, 20kA @ 250V DC
Lugs: AL150HD, #14–#3/0 AWG Al/Cu (75°C)
Lug Torque: 50 lb-in (#14–#10), 120 lb-in (#8–#3/0)
Approvals: UL Listed, CSA, HACR Type
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1500
