Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Square D |
| Model | FI36040 |
| Stock # | CB - 1504 |
Description

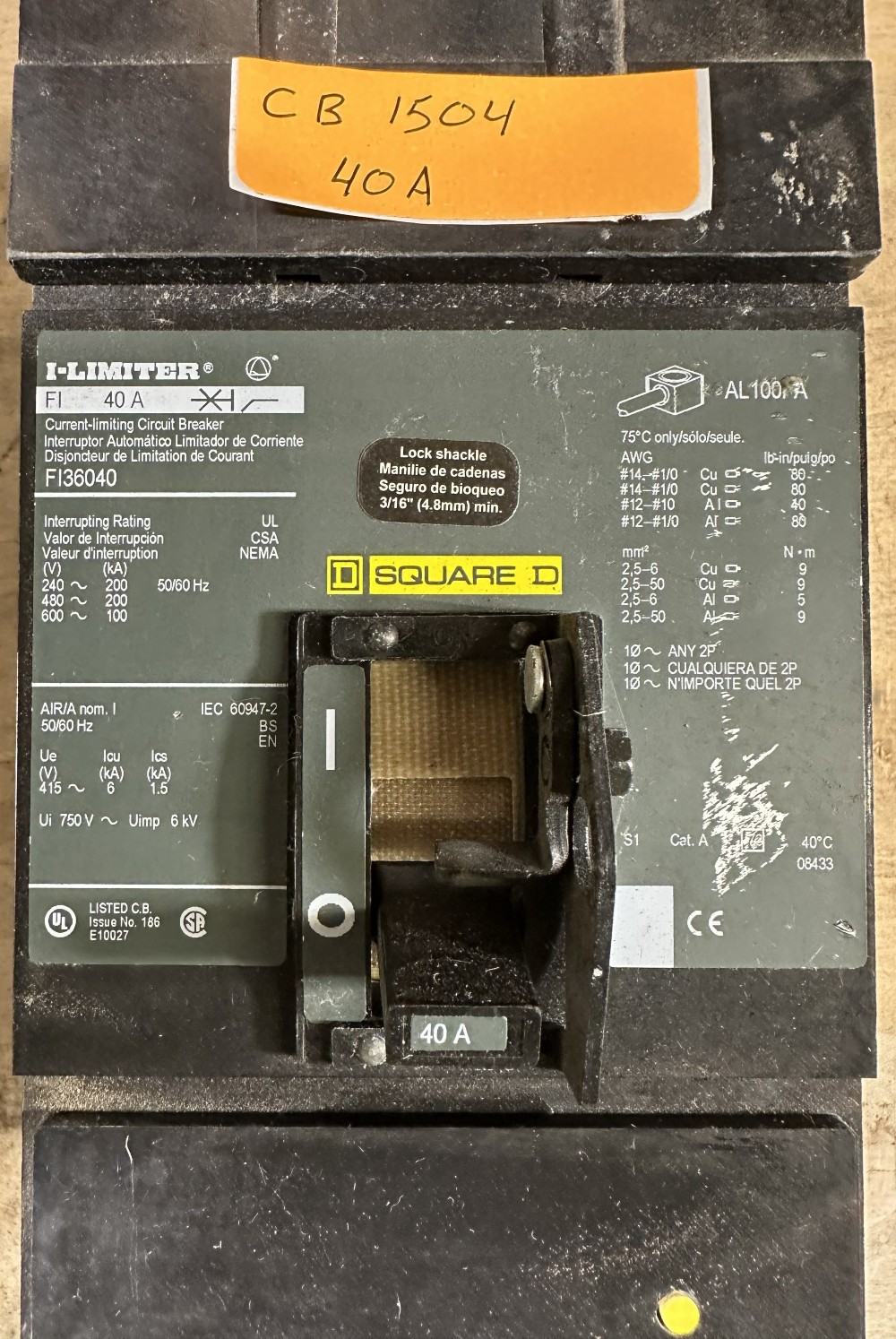

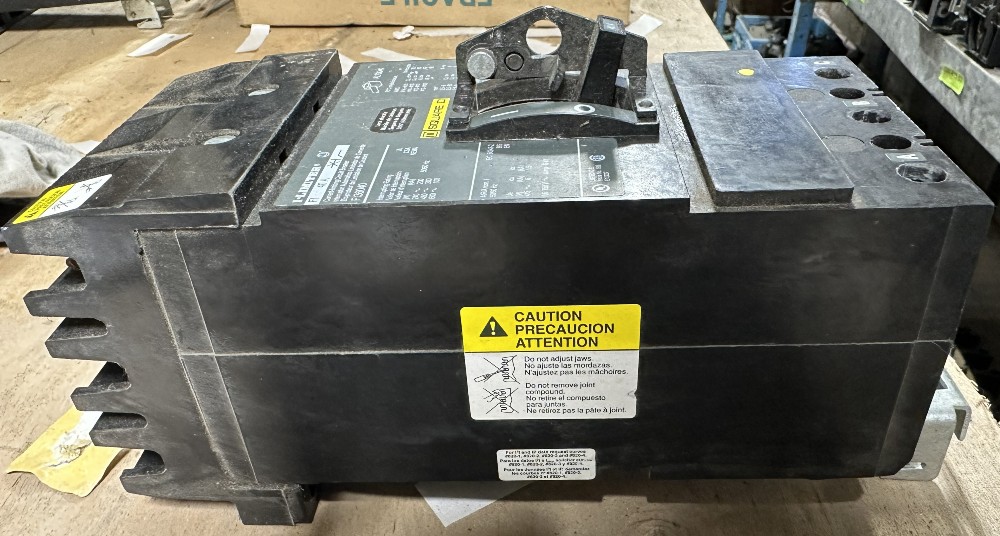

Square D I-Limiter FI36040 Current-Limiting I-Line Molded Case Circuit Breaker
40A – 3-Pole – 600V AC – Thermal-Magnetic, Fixed Trip – 200kA @ 480V / 100kA @ 600V
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Square D (Schneider Electric) I-Limiter FI current-limiting thermal-magnetic molded case circuit breaker, catalog FI36040, with I-Line plug-in mounting. Rated 40A, 3-pole, 600V AC with fixed, non-adjustable trip. Very high interrupting capacity of 200kA at 240V and 480V, and 100kA at 600V. Supplied with AL100FA load lugs and a padlock attachment (accepts 3/16" min. lock shackle).
SPECIFICATIONS
Manufacturer: Square D (Schneider Electric)
Series: I-Limiter FI
Catalog #: FI36040
Type: Current-Limiting Thermal-Magnetic Molded Case Circuit Breaker
Mounting: I-Line Plug-In
Poles: 3 (A-B-C)
Current Rating: 40A
Trip Type: Fixed – non-adjustable
Voltage: 600V AC
Interrupting Rating: 200kA @ 240V, 200kA @ 480V, 100kA @ 600V; IEC Icu 6kA / Ics 1.5kA @ 415V
Lugs: AL100FA – #14–#1/0 Cu (80 lb-in); #12–#10 Al (40 lb-in); #12–#1/0 Al (80 lb-in); 75°C only
Accessories: Padlock attachment installed (3/16" min. shackle)
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1504
