Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Federal Pioneer |
| Stock # | CB - 1604 |
Description

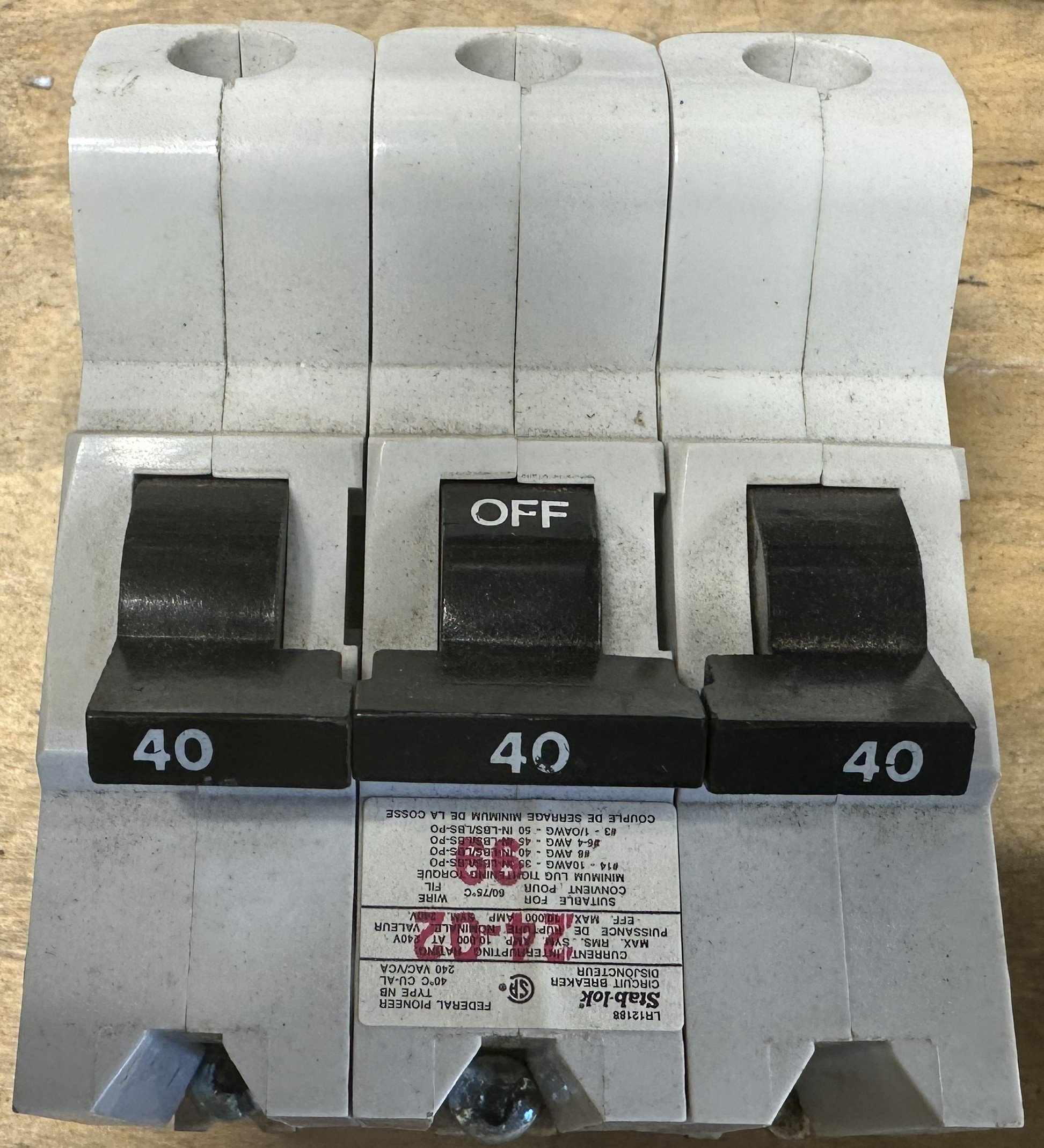

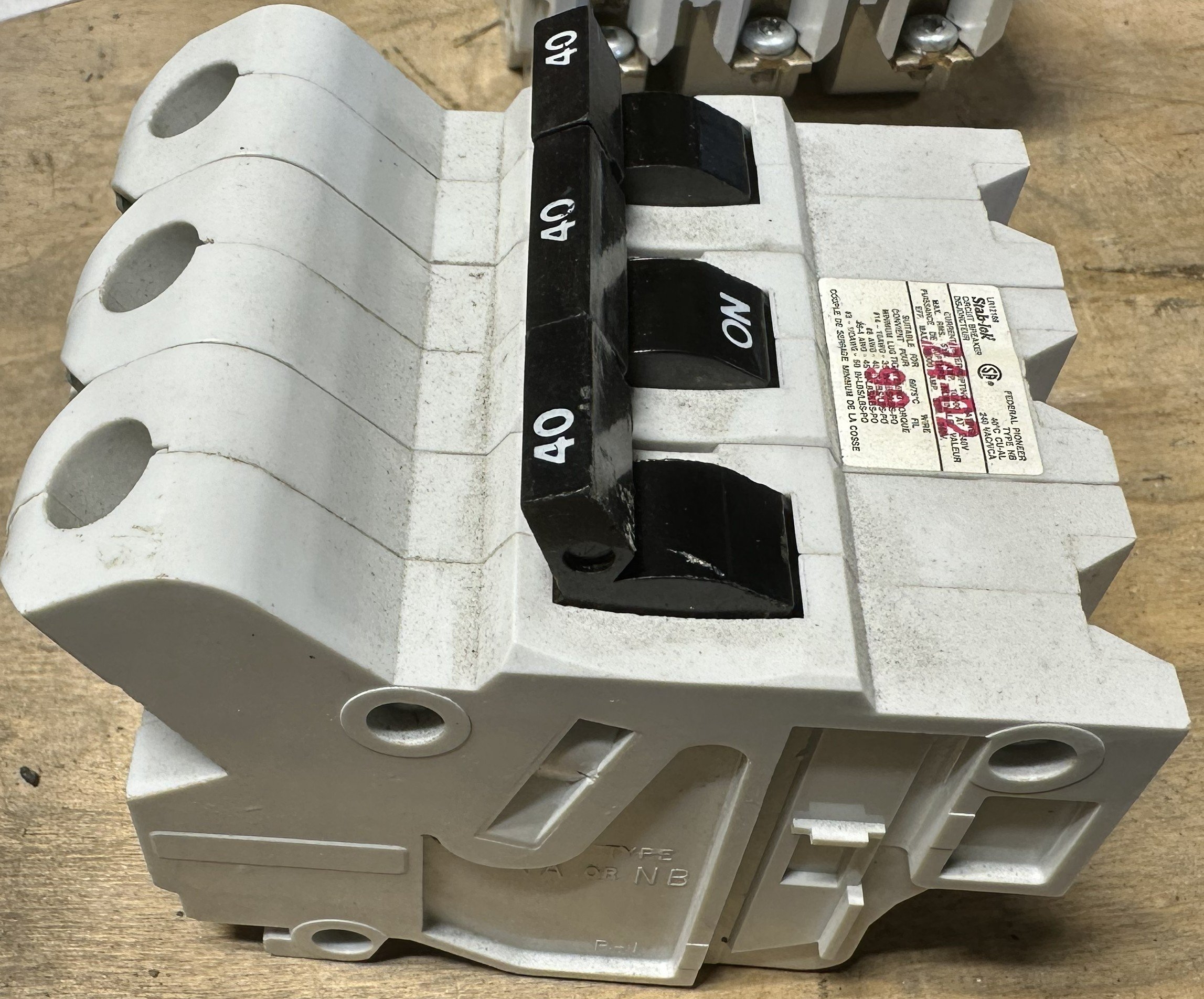

Federal Pioneer Stab-Lok Type NB Circuit Breaker
40A, 240 VAC, 3 Pole – Thermal-Magnetic, Non-Adjustable Trip
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Federal Pioneer Stab-Lok Type NB 3-pole circuit breaker, rated 40A, 240 VAC, with a non-adjustable thermal-magnetic trip (40°C calibration). Interrupting rating is 10kA RMS symmetrical at 240 V. It has Cu-Al terminals suitable for 60/75°C wire and is CSA certified. A good replacement for Federal Pioneer Stab-Lok panelboards.
SPECIFICATIONS
Manufacturer: Federal Pioneer Ltd.
Series / Type: Stab-Lok, Type NB
Catalogue No.: Not confirmed
Amperage: 40A
Voltage: 240 VAC
Poles: 3
Trip Unit: Thermal-Magnetic, non-adjustable, 40°C calibration
Interrupting Rating: 10kA RMS sym. @ 240 V
Terminals: Cu-Al, 60/75°C wire
Lug Torque (min.): #14–10 AWG 35 in-lb; #8 AWG 40 in-lb; #6–4 AWG 45 in-lb; #3–1/0 AWG 50 in-lb
Approvals: CSA (file LR12188)
CONDITION
Used – As-Is. Removed from service. Shows normal signs of use and age. Please review the photos.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1604
