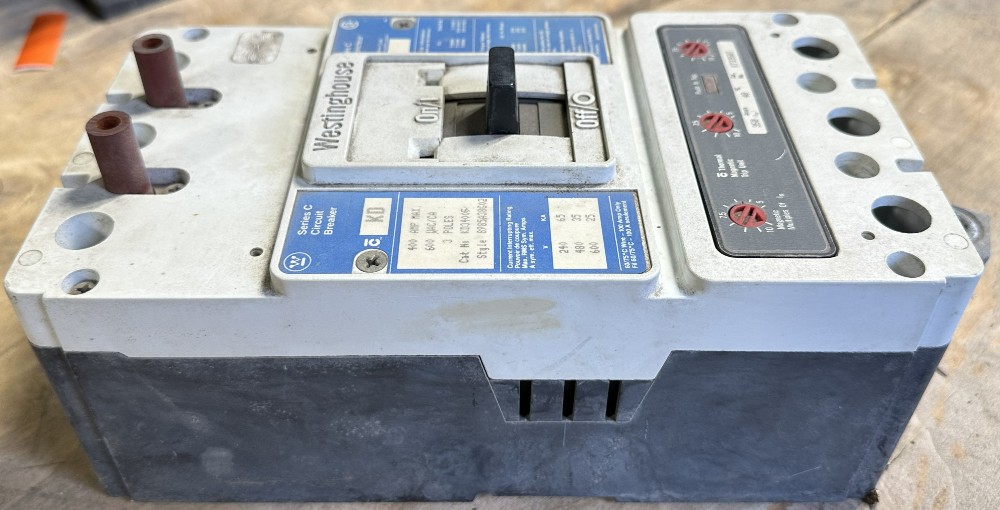

Westinghouse Series C KD3400F Molded Case Circuit Breaker with KT3350T Trip Unit
350A Trip Unit in 400A KD Frame – 3-Pole – 600V AC – Thermal-Magnetic – Adjustable Magnetic 5–10 × In – 35kA @ 480V

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

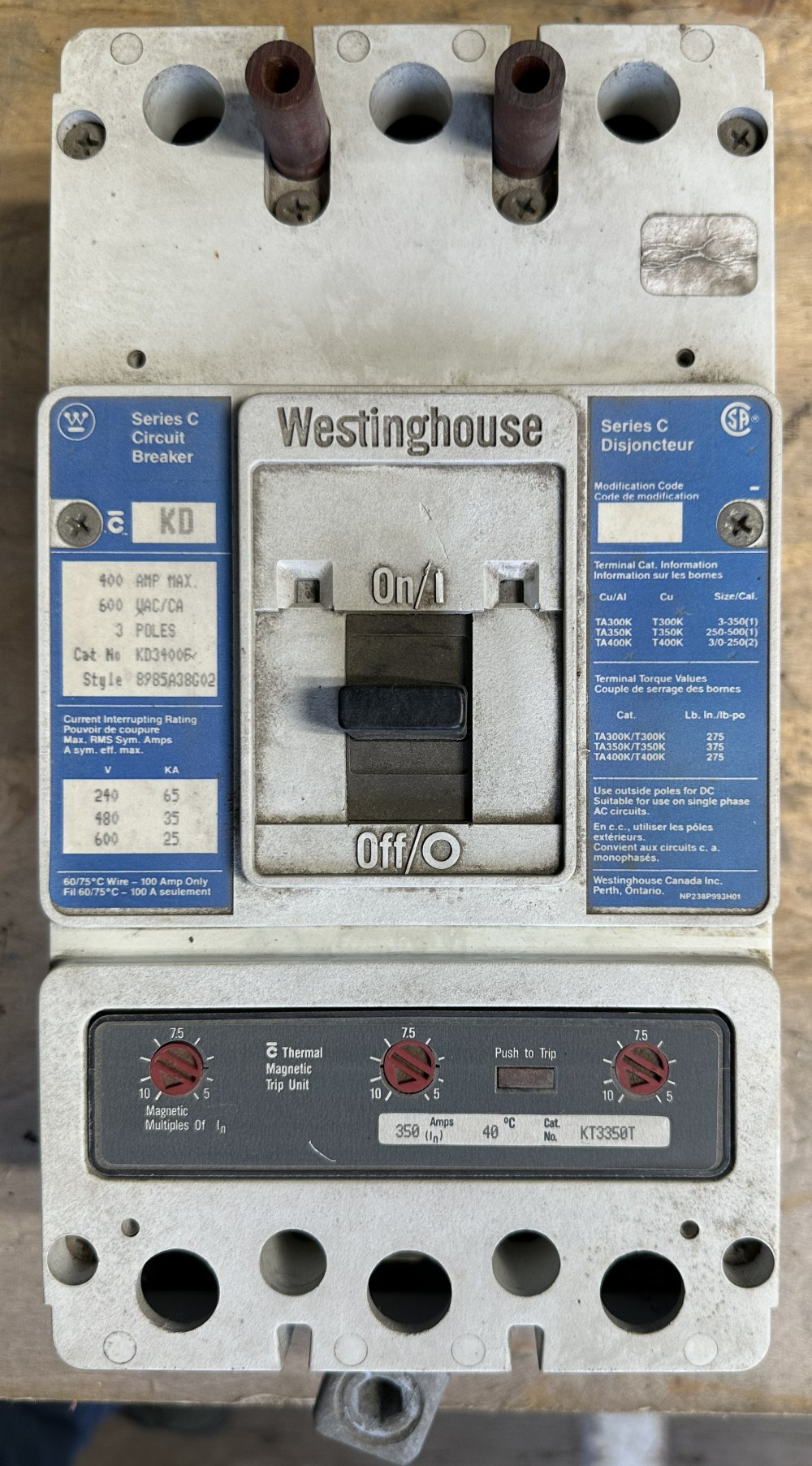

Westinghouse Canada (Perth, Ontario) Series C Type KD molded case circuit breaker, frame catalog KD3400F (400A maximum), Style 8985A38G02, 3-pole, 600V AC. Fitted with a KT3350T interchangeable thermal-magnetic trip unit rated 350A at 40°C, with magnetic trip adjustable from 5 to 10 × In and push-to-trip button. Interrupting rating of 65kA at 240V, 35kA at 480V and 25kA at 600V. CSA certified. Terminals not installed.

SPECIFICATIONS

Manufacturer: Westinghouse Canada Inc., Perth, Ontario
Series: Series C, Type KD
Frame Catalog #: KD3400F, 400A maximum
Style #: 8985A38G02
Trip Unit: KT3350T, thermal-magnetic, 350A @ 40°C, interchangeable
Magnetic Trip: Adjustable, 5–10 × In
Poles: 3
Voltage: 600V AC (use outside poles for DC)
Interrupting Rating: 65kA @ 240V, 35kA @ 480V, 25kA @ 600V
Terminals: Not installed – accepts TA300K/T300K (3–350 MCM, 275 lb-in), TA350K/T350K (250–500 MCM, 375 lb-in), TA400K/T400K (2 × 3/0–250 MCM, 275 lb-in)
Features: Push-to-trip button
Approvals: CSA

CONDITION

Condition: Used – As-Is

TERMS

Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed or on pallet (LTL)
Stock #: CB-1553
