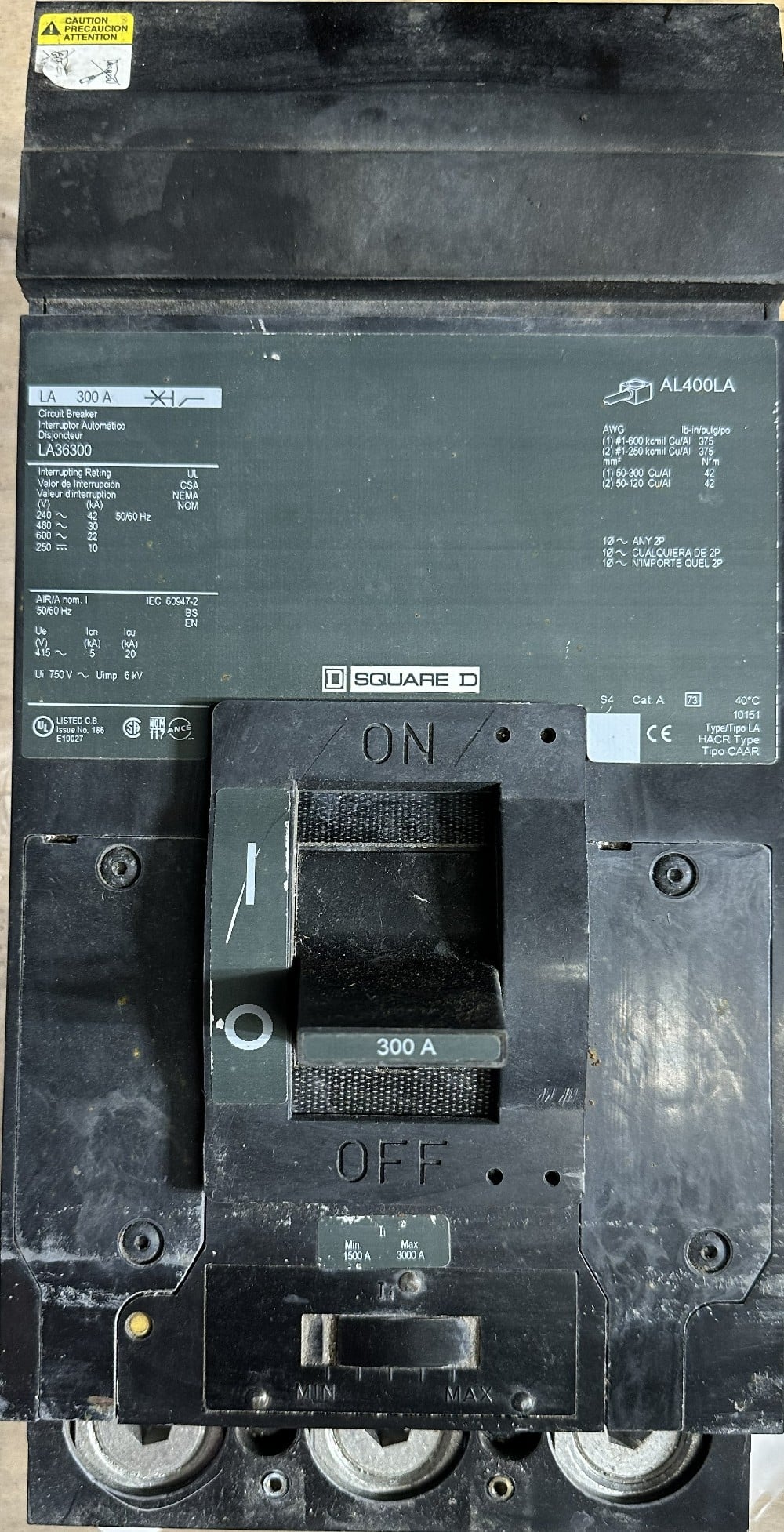

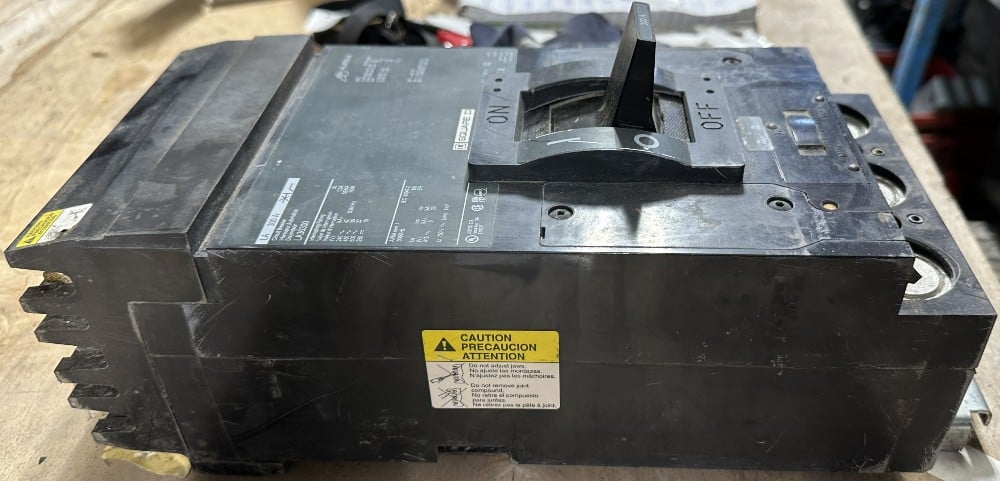

300 Amps, Square D, LA363200, Integral Thermal-Magnetic Adjustable Trip at 1500A - 3000A, MCCB, 3-Pole, 600V Max.

Details

Description

Square D
LA36300
High - Interrupting
Adjustable Thermal-Magnetic Trip
Circuit Breaker

MCCB - Molded Case Circuit Breaker

>> QTY 1 In Stock <<

>> CALL for Price <<


3-Pole
300A
600V Max.
250VDC Outside Poles
Thermal-Magnetic Trip
  Adjustable by Front Dial from LO to HI
Min. 1500A to Max. 3000A
50 / 60 Hz

Cat. No. LA36300
Type KA

Interrupting Rating:

42 kA @ 240VAC
30 kA @ 480VAC
22 kA @ 600VAC
10 kA @ 250VDC

UL / CSA / NEMA / NOM
