Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Gould / Ite |
| Model | KM3F800 |
| Stock # | CB - 1568 |
Description

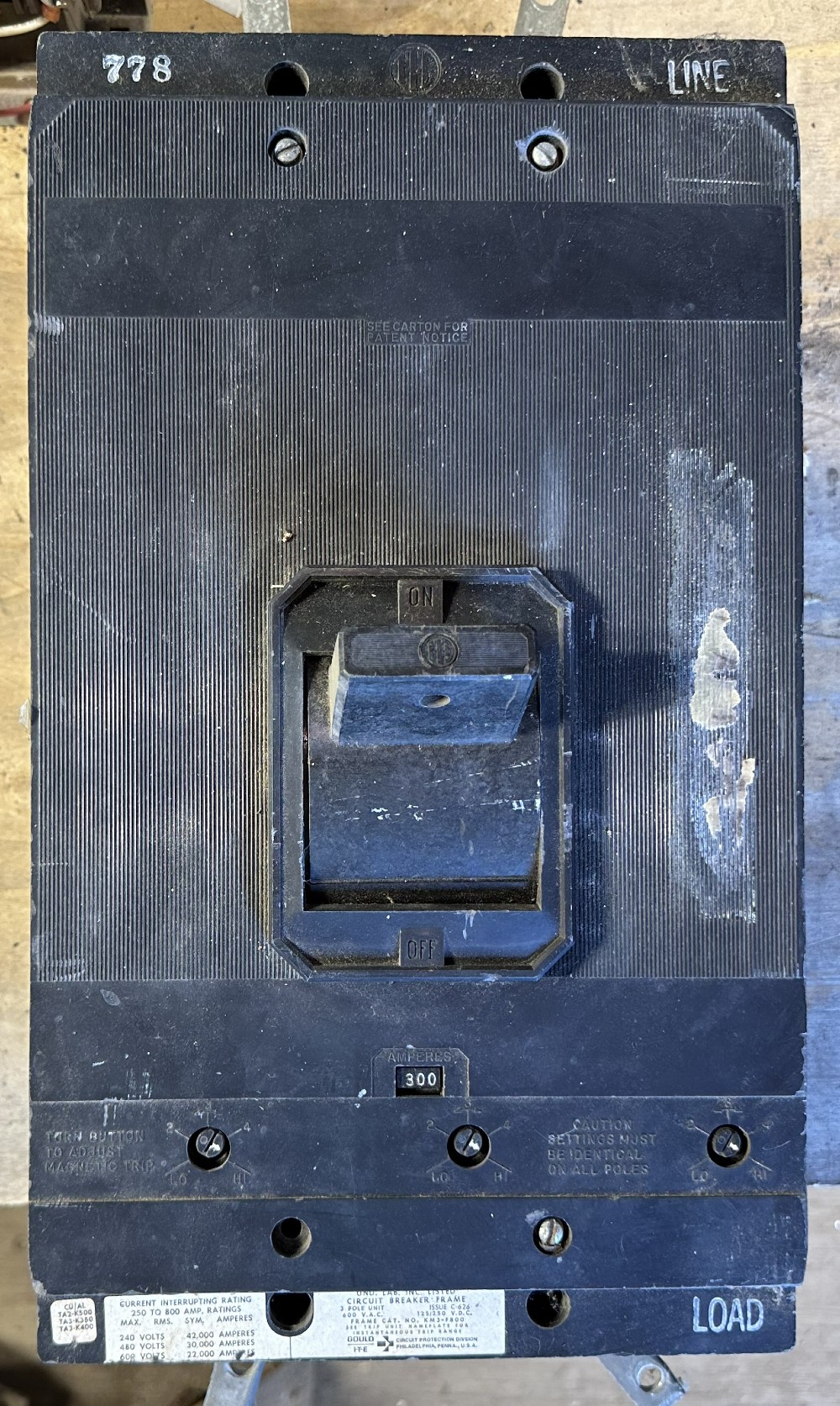

Gould I-T-E Type KM KM3-F800 Molded Case Circuit Breaker with 300A Trip Unit
300A Trip Unit in 800A KM Frame – 3-Pole – 600V AC / 125-250V DC – Thermal-Magnetic – Adjustable Magnetic Trip (LO–HI) – 30kA @ 480V
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<

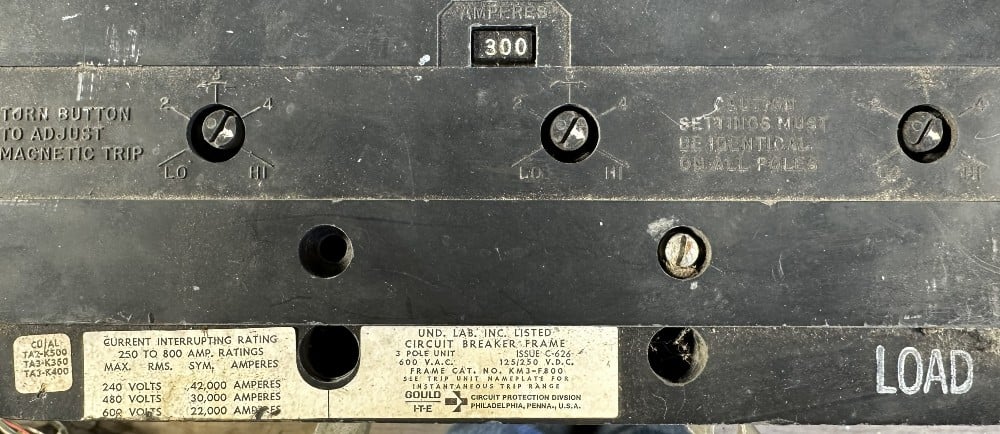

Gould I-T-E (Circuit Protection Division, Philadelphia) Type KM molded case circuit breaker, frame catalog KM3-F800 (Issue C-626, for 250–800A ratings), 3-pole, 600V AC / 125-250V DC. Fitted with a 300A thermal-magnetic trip unit with magnetic trip adjustable 2 to 4 (LO–HI) on each pole. Interrupting rating of 42,000A at 240V, 30,000A at 480V and 22,000A at 600V. UL listed.
SPECIFICATIONS
Manufacturer: Gould I-T-E, Circuit Protection Division, Philadelphia
Series: Type KM
Frame Catalog #: KM3-F800 (Issue C-626), 800A frame, 250–800A ratings
Trip Unit: 300A, thermal-magnetic
Type: Molded Case Circuit Breaker
Poles: 3
Magnetic Trip: Adjustable 2–4 (LO–HI), on each pole
Voltage: 600V AC / 125-250V DC
Interrupting Rating: 42,000A @ 240V, 30,000A @ 480V, 22,000A @ 600V
Lugs: Not confirmed (frame accepts TA2-K500, TA3-K350, TA3-K400 Cu/Al)
Approvals: UL Listed
CONDITION

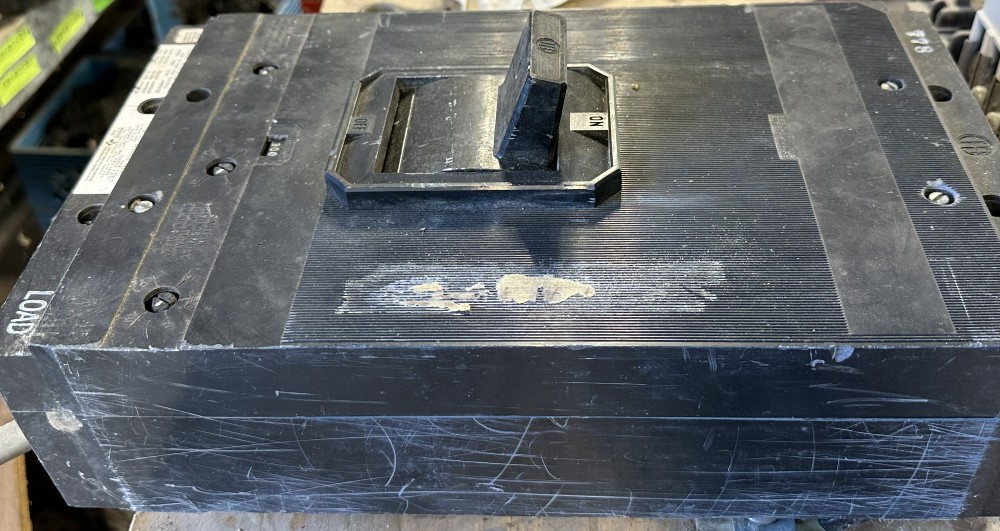

Condition: Used – As-Is. Vintage unit; scuffs and residue on case.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships on pallet (LTL)
Stock #: CB-1568
