Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Cutler-Hammer |
| Model | TYPE GBH BOLTON CIRCUIT BREAKER |
| Stock # | CB - 1551 |
Description

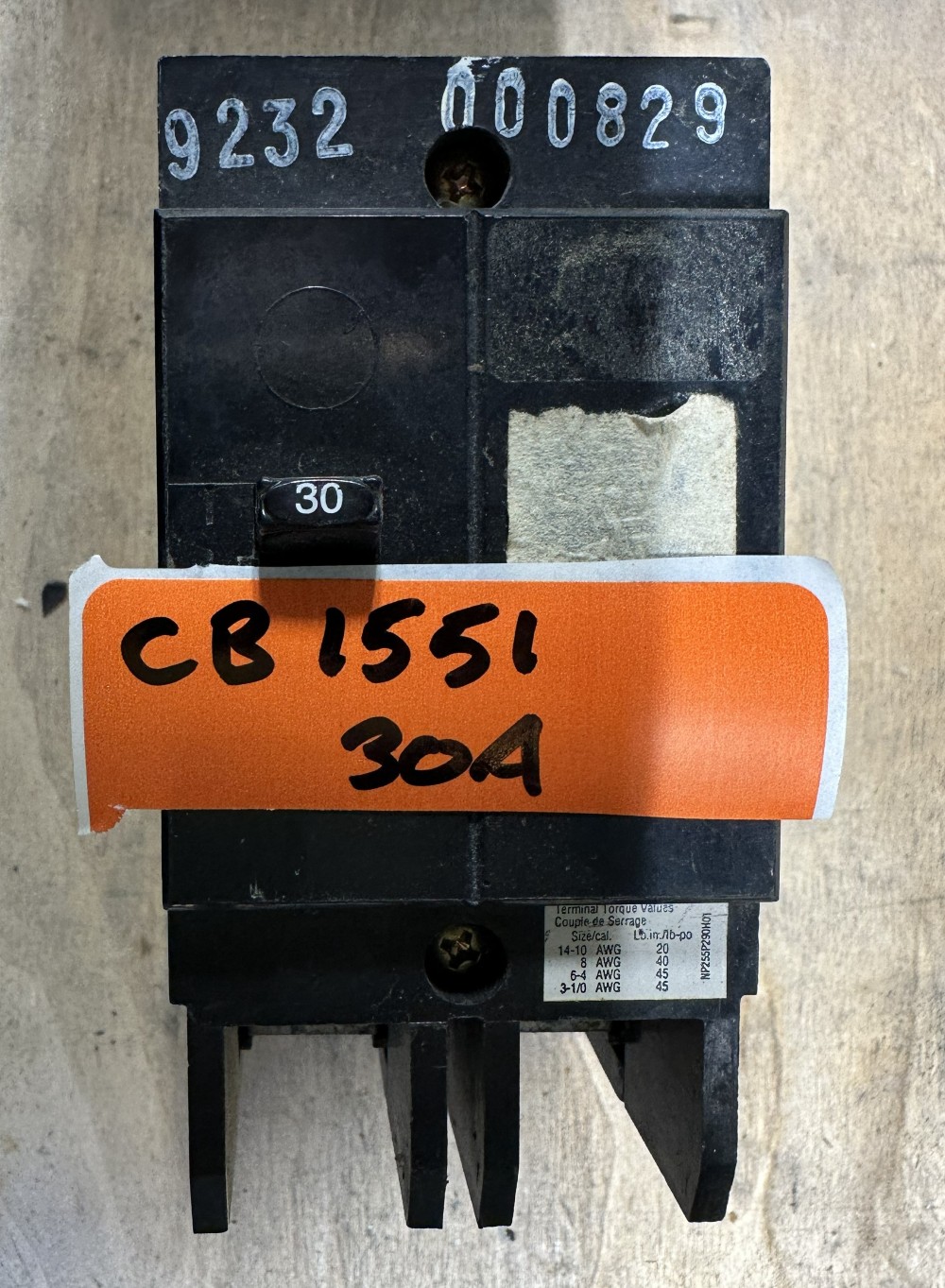

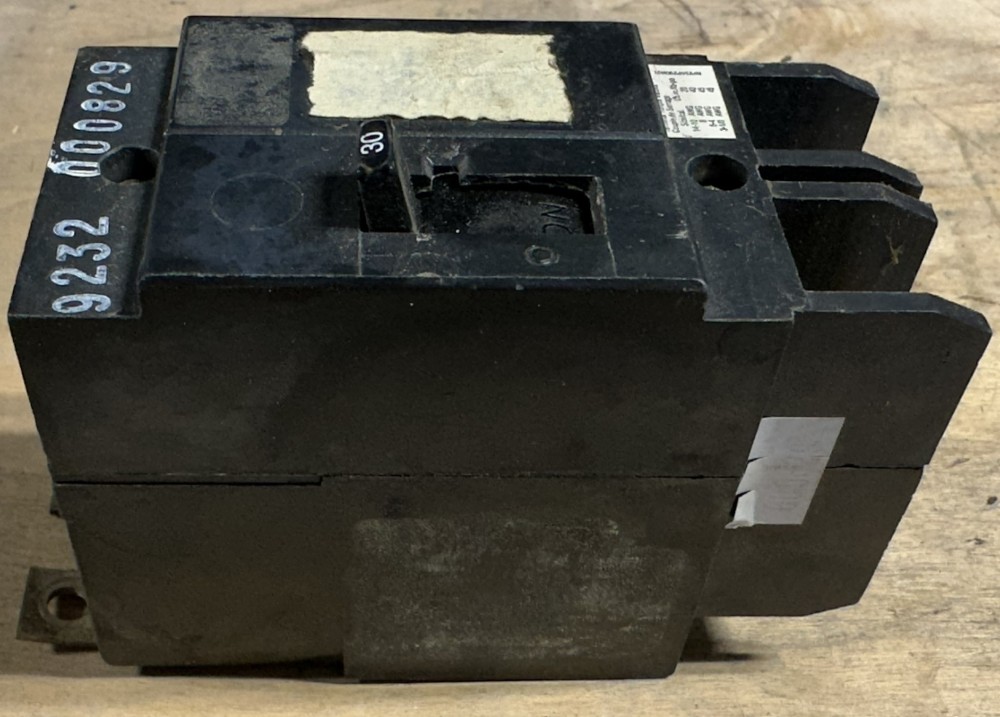

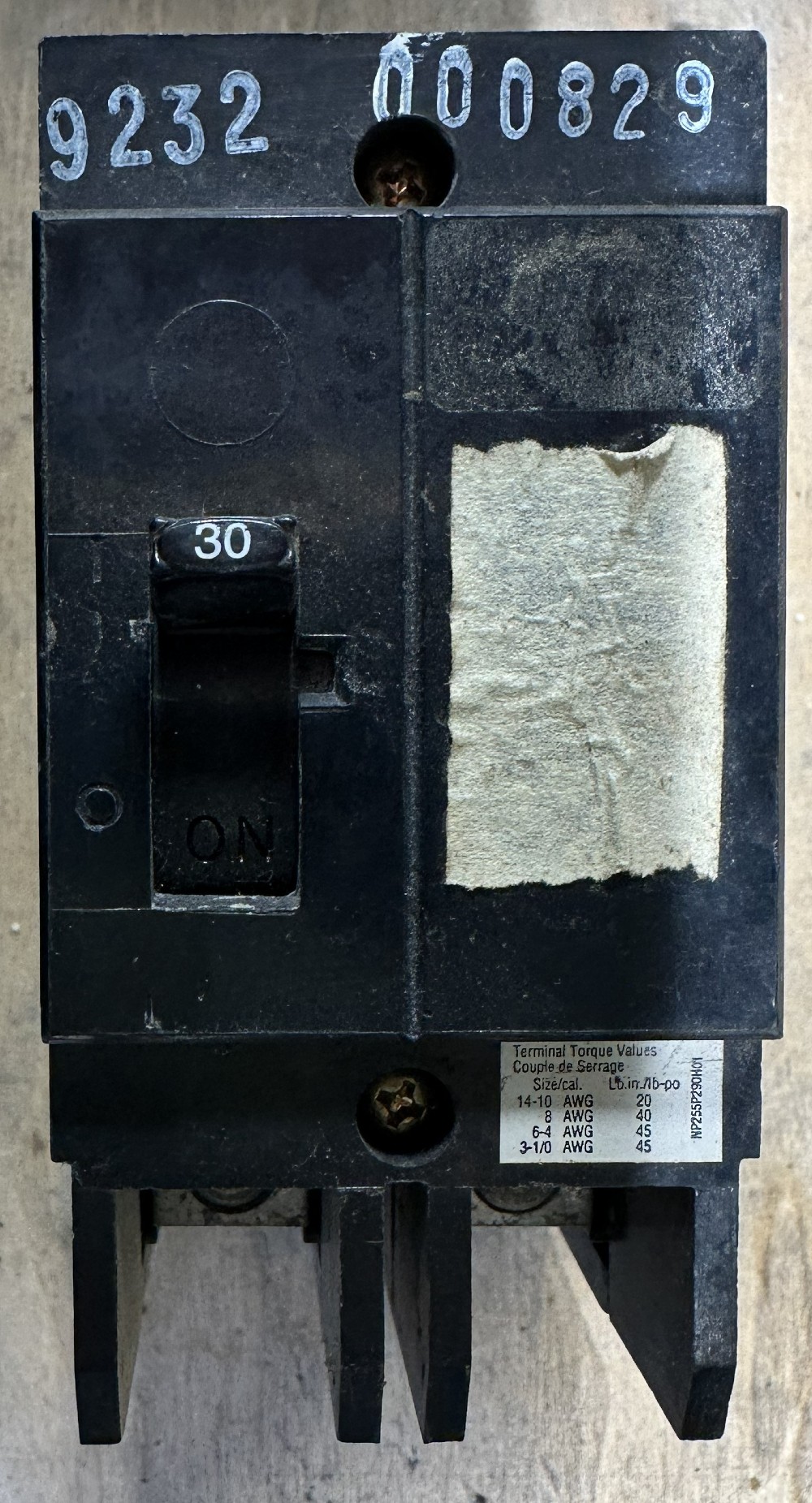

Cutler-Hammer Type GBH Bolt-On Circuit Breaker – Probable GBH2030 (Catalog Label Missing)
30A – 2-Pole – Thermal-Magnetic, Fixed Trip
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Cutler-Hammer Type GBH 2-pole bolt-on circuit breaker with 30A handle rating and fixed, non-adjustable trip. Probable catalog GBH2030. Terminal torque label present.
Please note: The main catalog/rating label is missing. Only the 30A handle rating, 2-pole configuration and GBH-style case are confirmed. Catalog number (probable GBH2030), voltage (standard GBH: 347/600V AC / 125/250V DC) and interrupting ratings (standard GBH: 10kA @ 347/600V AC, 14kA @ 125/250V DC) are not marked on the unit. Buyer to verify suitability before use. Standard GBH 347/600V slash rating is for solidly grounded wye systems only.
SPECIFICATIONS
Manufacturer: Cutler-Hammer
Series: Type GBH (bolt-on)
Catalog #: Label missing – probable GBH2030
Type: Thermal-Magnetic Bolt-On Circuit Breaker
Poles: 2
Current Rating: 30A (handle marking)
Trip Type: Fixed – non-adjustable
Voltage: Not marked – standard GBH rating 347/600V AC; 125/250V DC
Interrupting Rating: Not marked – standard GBH rating 10,000A Sym. @ 347/600V AC; 14,000A Sym. @ 125/250V DC
Terminal Torque: 14–10 AWG 20 lb-in; 8 AWG 40 lb-in; 6–4 AWG 45 lb-in; 3–1/0 AWG 45 lb-in
Nameplate #: NP 255P290H01
CONDITION
Condition: Used – As-Is. Main catalog label missing (residue on case); inventory numbers marked on case.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1551
