Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Cutler-Hammer |
| Stock # | CB - 1615 |
Description
Cutler-Hammer QBHW3030H – Quicklag Bolt-On
30A, 240 VAC, 3 Pole, 22kA – Thermal-Magnetic, Common Trip
>> Qty 15 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<

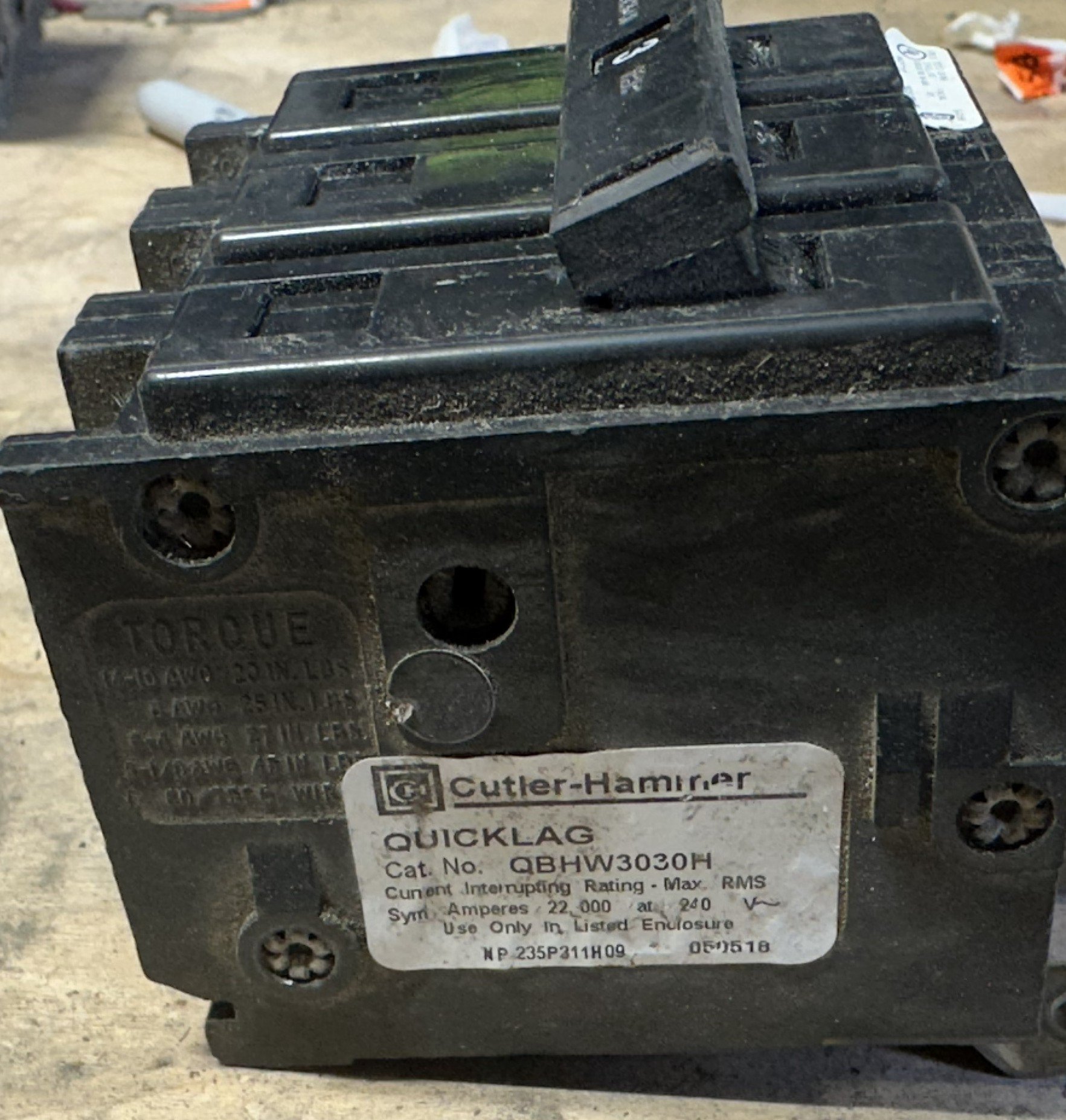

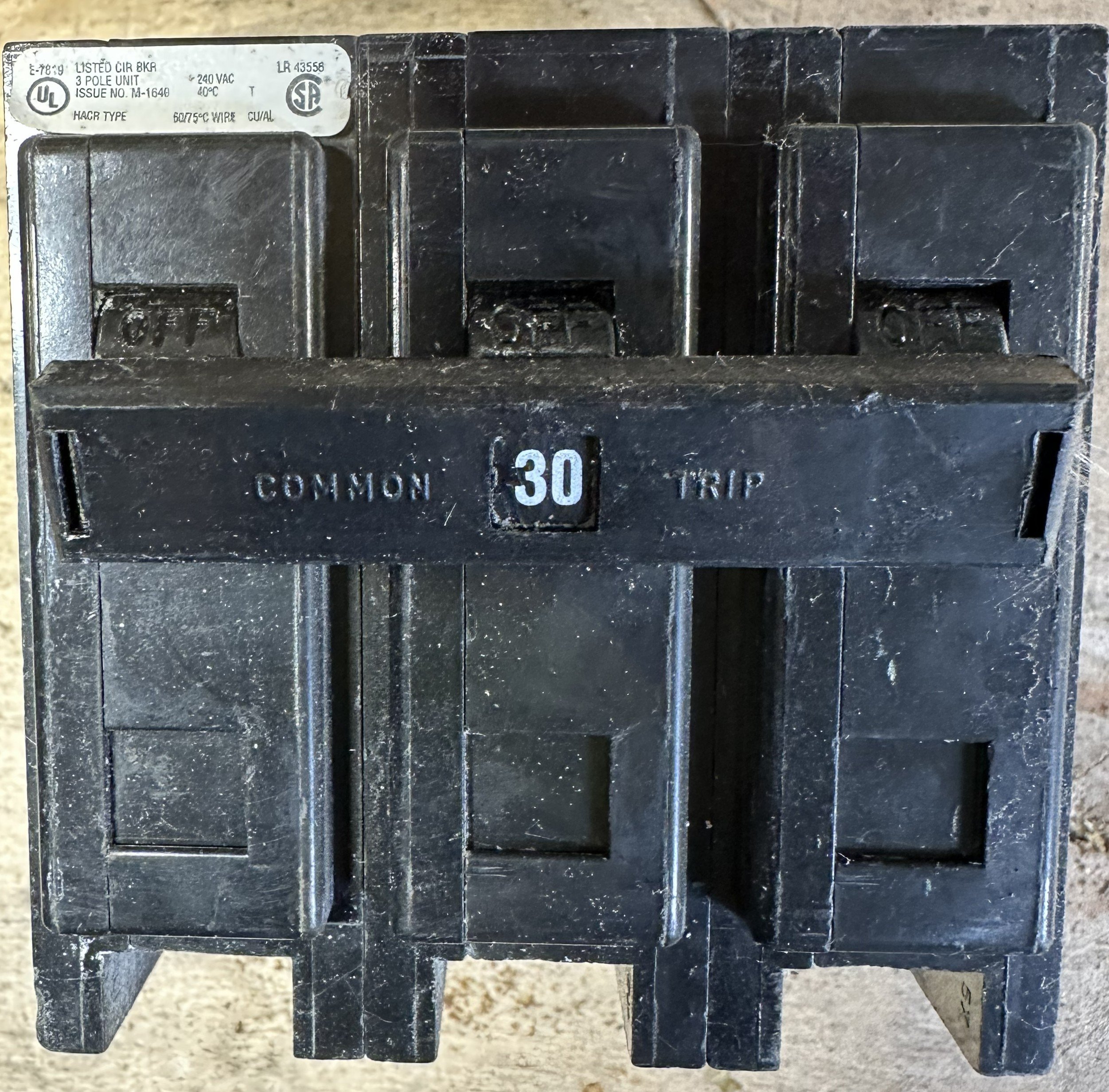

Cutler-Hammer Quicklag bolt-on 3-pole circuit breakers, catalogue no. QBHW3030H. Each is rated 30A, 240 VAC, with a non-adjustable thermal-magnetic trip (40°C calibration) and a common trip handle. Interrupting rating is 22kA RMS symmetrical at 240 VAC. HACR rated, with Cu/Al lugs for 60/75°C wire. UL listed and CSA certified. For use in listed enclosures only. We have 15 in stock, and quantity pricing is available on request.
SPECIFICATIONS
Manufacturer: Cutler-Hammer (Eaton)
Catalogue No.: QBHW3030H
Series / Type: Quicklag, bolt-on
Amperage: 30A
Voltage: 240 VAC
Poles: 3 (common trip)
Trip Unit: Thermal-Magnetic, non-adjustable, 40°C calibration
Interrupting Rating: 22kA RMS sym. @ 240 VAC
Lugs: Cu/Al, 60/75°C wire; 20 lb-in (#14–10 AWG), 25 lb-in (#8 AWG)
Features: HACR type
Approvals: UL listed (E-7819, Issue No. M-1640), CSA (LR 43556)
Nameplate No.: 235P311H09
CONDITION
Used – As-Is. Removed from service. Labels intact and legible. Shows normal signs of use and age. Please review the photos.
TERMS
Price: Call for Price – quantity pricing available on request
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1615
