Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Westinghouse |
| Model | MCP0322S |
| Stock # | CB - 1518 |
Description

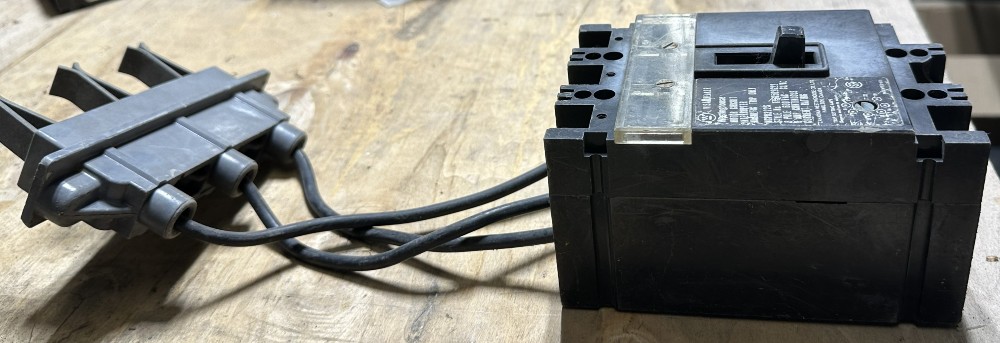

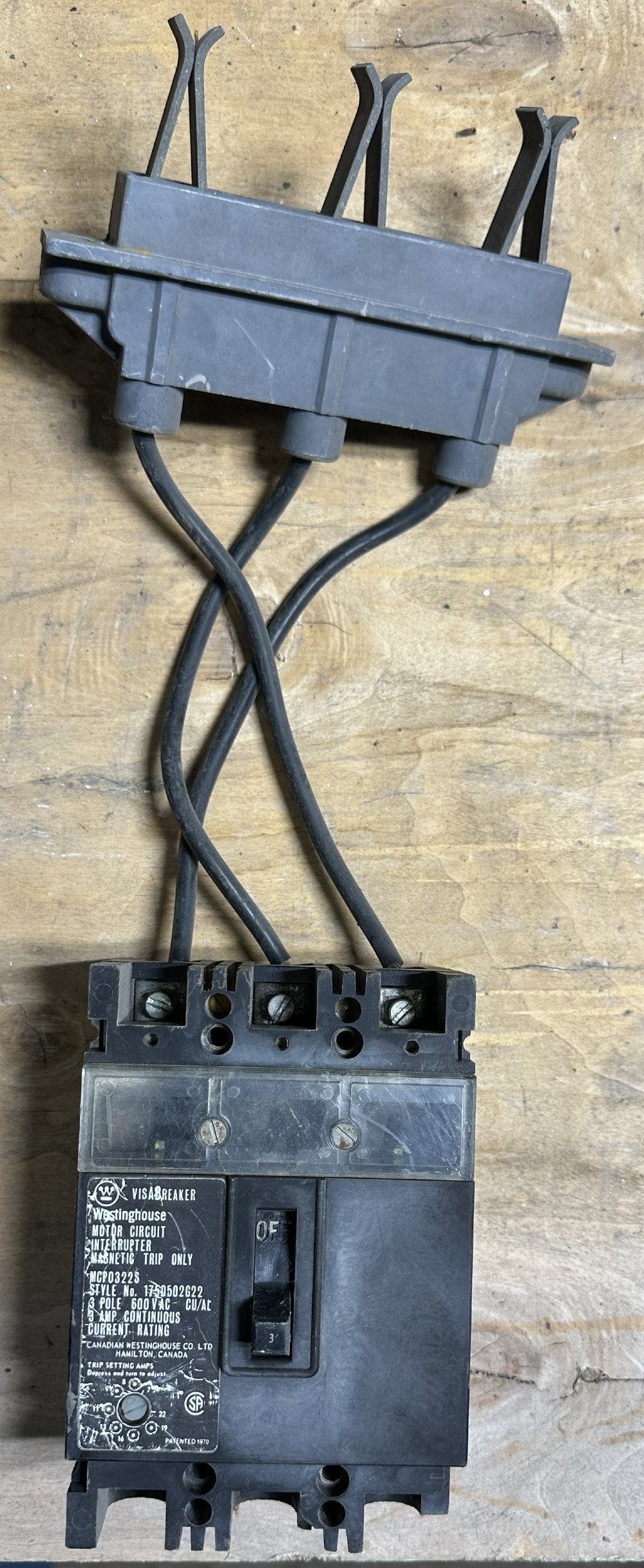

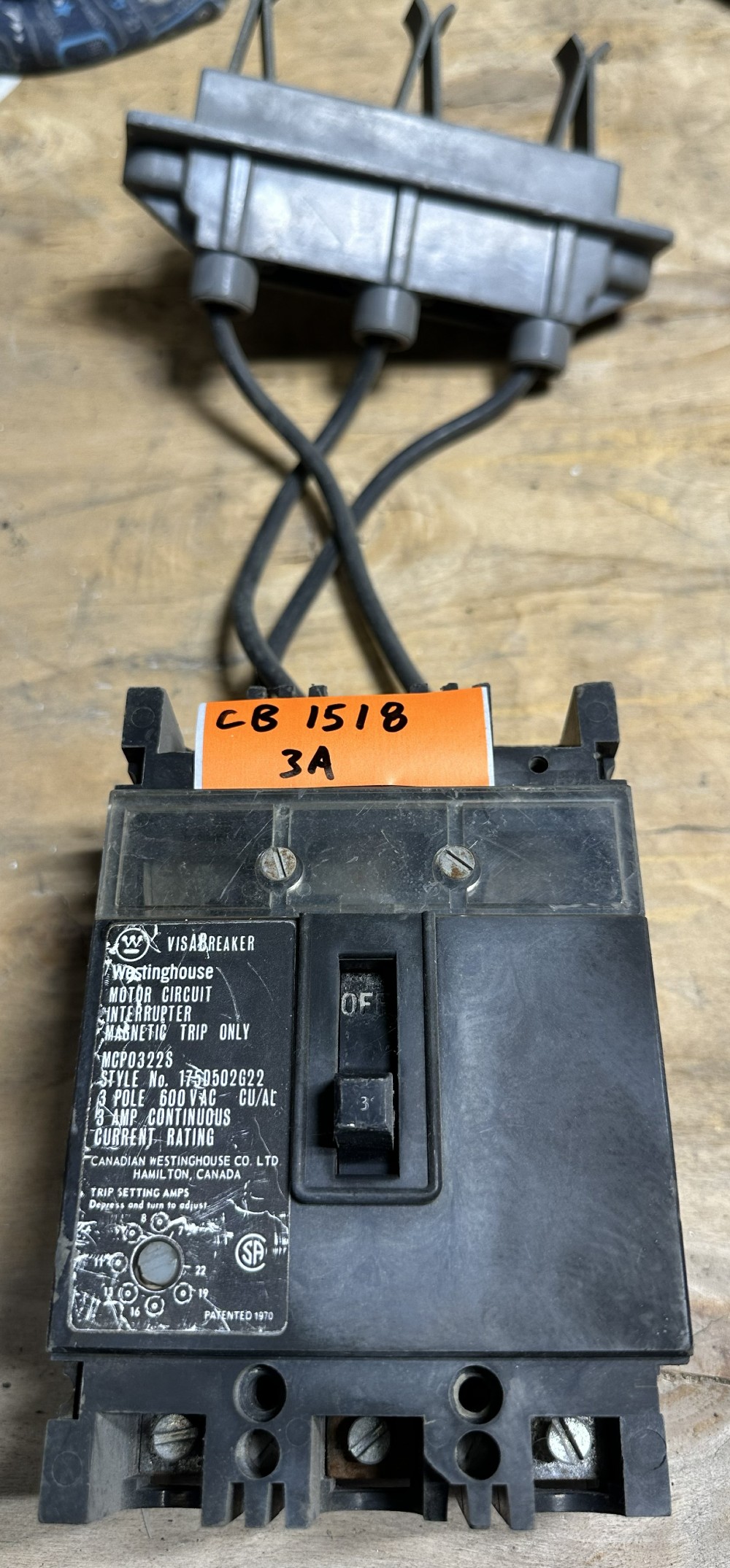

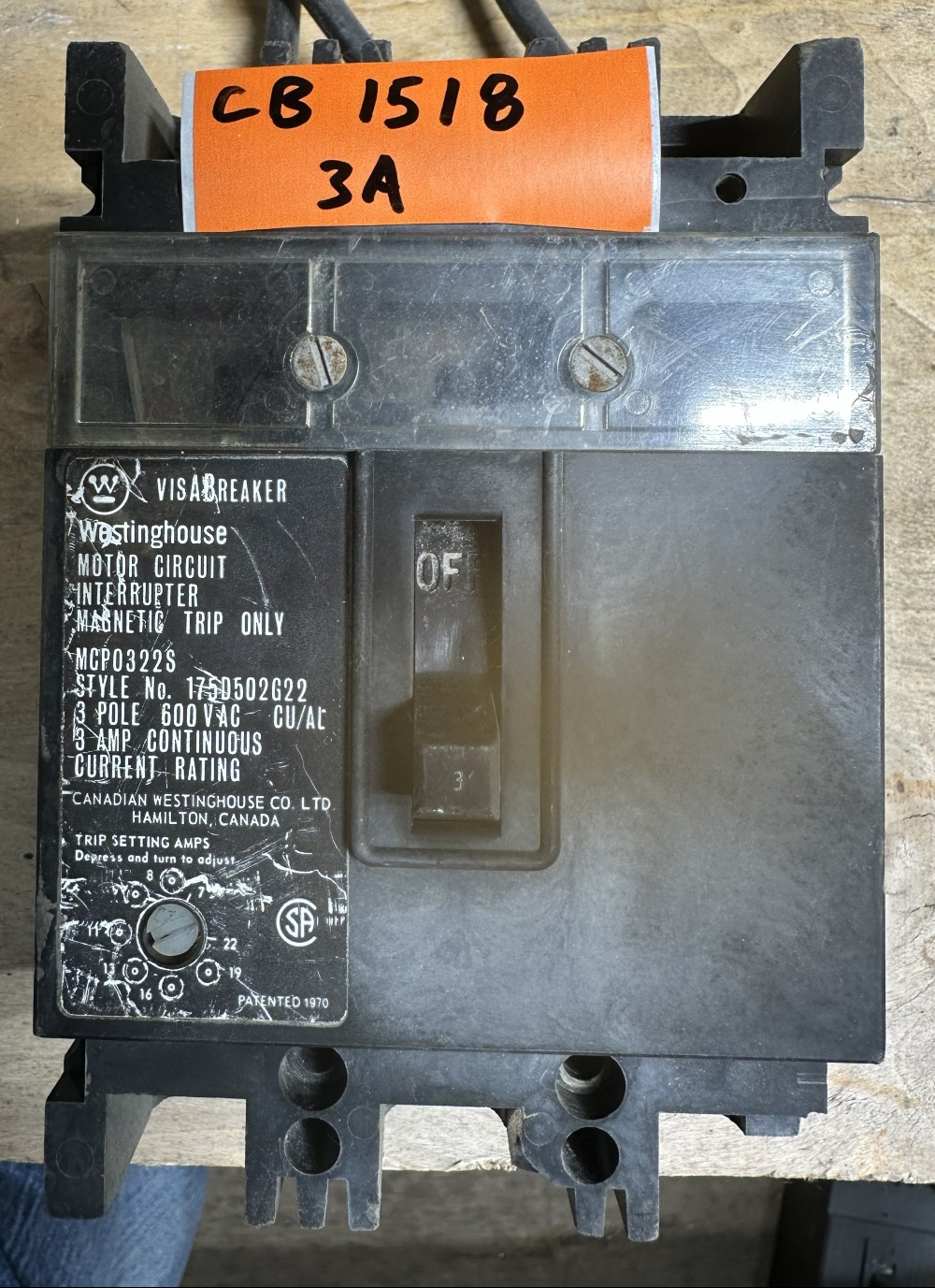

Westinghouse VisABreaker MCP0322S Motor Circuit Protector with Plug-In Stabs
3A – 3-Pole – 600V AC – Magnetic Trip Only – Adjustable 7–22A
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Canadian Westinghouse (Hamilton, Canada) VisABreaker motor circuit interrupter, catalog MCP0322S, rated 3A continuous, 3-pole, 600V AC. Magnetic trip only, adjustable from 7A to 22A (depress and turn to adjust). Complete with plug-in line-side stab assembly with leads attached. Cu/Al terminals, CSA certified.
IMPORTANT: Magnetic trip only – provides short-circuit protection only; no thermal (overload) protection. Intended for use with a separate overload relay in a motor circuit.
SPECIFICATIONS
Manufacturer: Westinghouse (Canadian Westinghouse Co. Ltd., Hamilton, Canada)
Series: VisABreaker
Catalog #: MCP0322S
Style #: 175D502G22
Type: Motor Circuit Interrupter (Motor Circuit Protector)
Poles: 3
Continuous Current Rating: 3A
Voltage: 600V AC
Trip Type: Magnetic only – no thermal (overload) element
Trip Setting: Adjustable, 7–22A (depress and turn to adjust)
Terminals: Cu/Al
Accessory: Plug-in line-side stab assembly with leads attached
Approvals: CSA
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1518
