Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | GE Spectra |
| Model | SFDA36AN0250 |
| Stock # | CB - 1501 |
Description

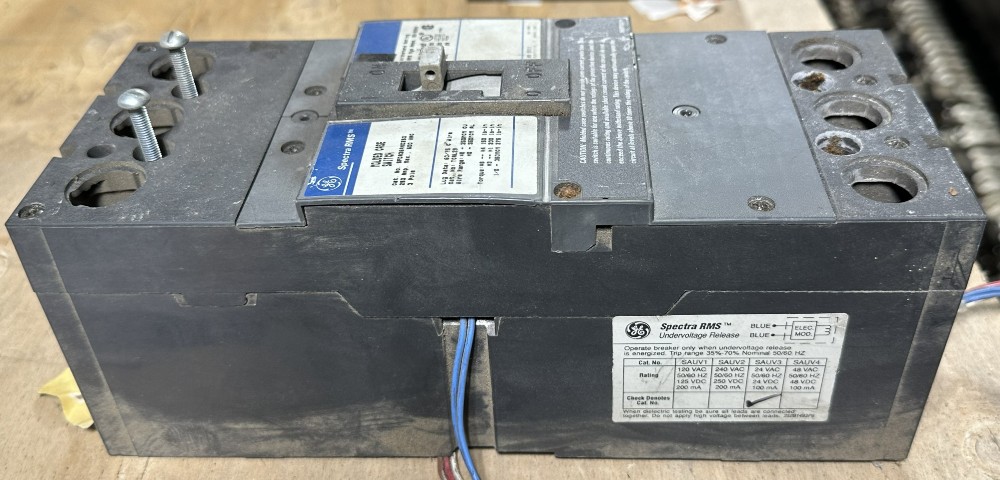

GE Spectra RMS SFDA36AN0250 Molded Case Switch (Non-Automatic Disconnect)
250A – 3-Pole – 600V AC – SF Frame – With Undervoltage Release & Auxiliary Switch
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<

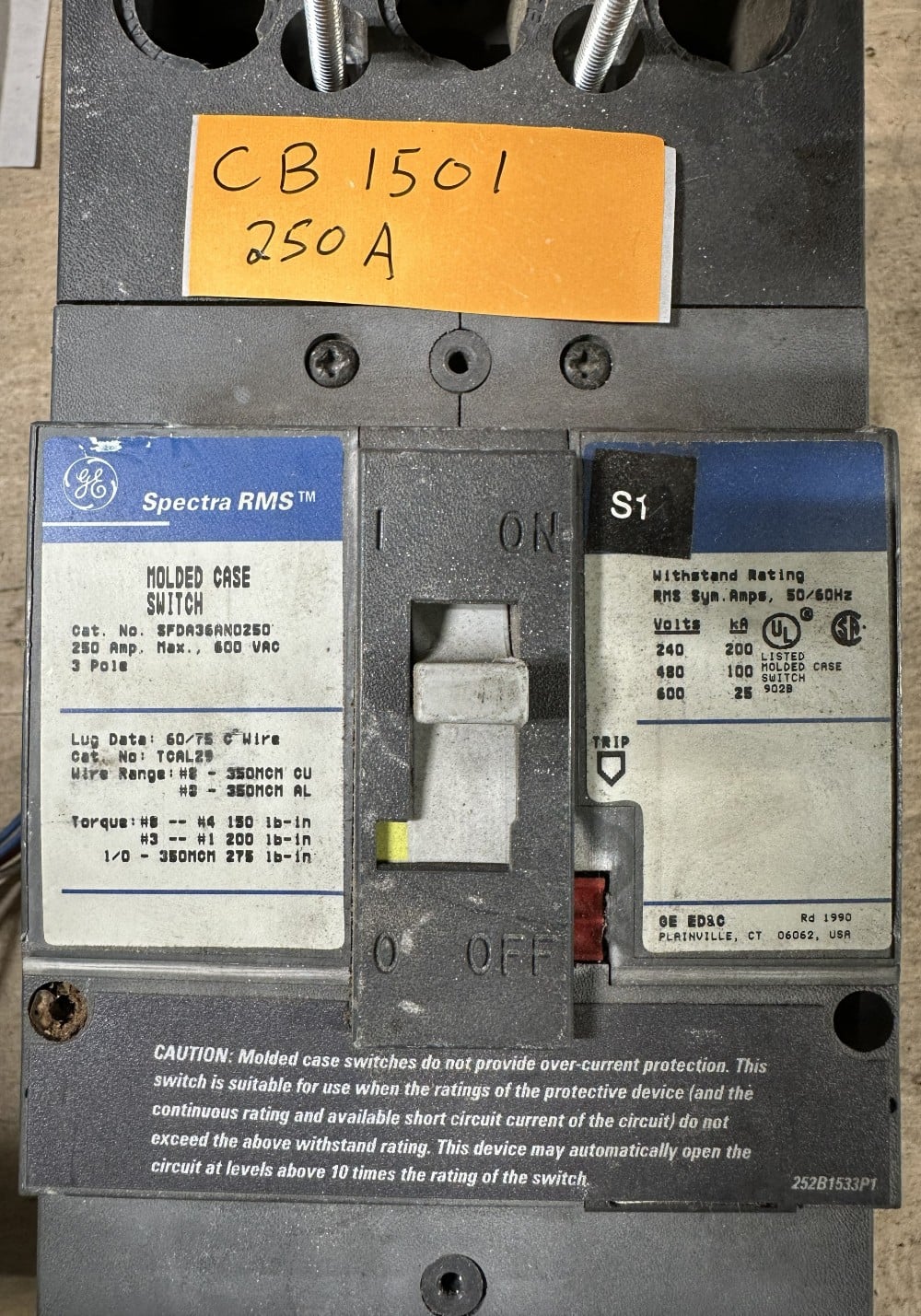

GE (General Electric) Spectra RMS SF-frame molded case switch, catalog SFDA36AN0250, rated 250A, 3-pole, 600V AC. Non-automatic disconnect with no trip unit, with factory-installed accessories: SAUV3 undervoltage release (24V AC/DC) and SAUXPAB1 auxiliary switch. Withstand rating of 200kA at 240V, 100kA at 480V and 25kA at 600V. Supplied with TCAL29 lugs.
IMPORTANT: This is a molded case switch. It provides no overcurrent protection and must be protected by a separate upstream device (fuses or breaker) per nameplate.
SPECIFICATIONS
Manufacturer: GE (General Electric)
Series: Spectra RMS
Type: SF-Frame Molded Case Switch (Non-Automatic)
Catalog #: SFDA36AN0250
Poles: 3
Current Rating: 250A Max
Voltage: 600V AC
Trip Unit: None – molded case switch
Withstand Rating: 200kA @ 240V, 100kA @ 480V, 25kA @ 600V

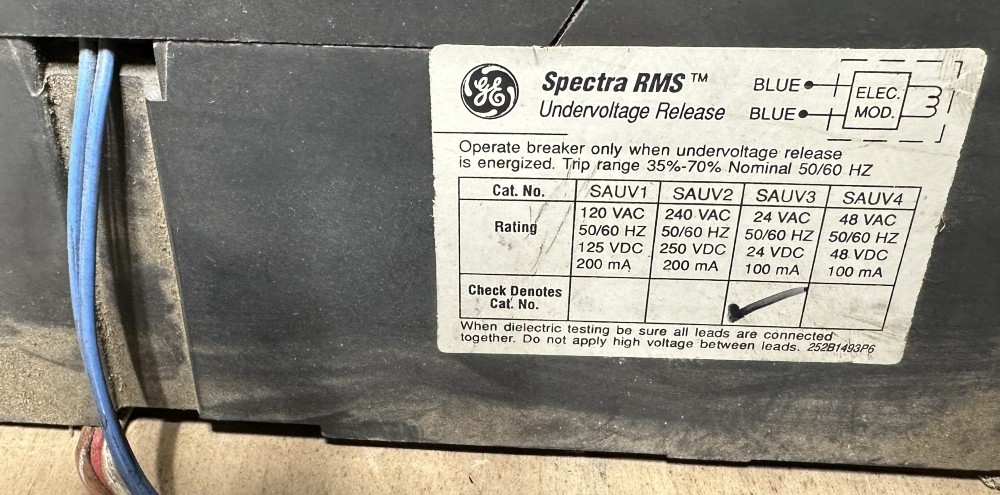

Undervoltage Release: SAUV3, 24V AC/DC

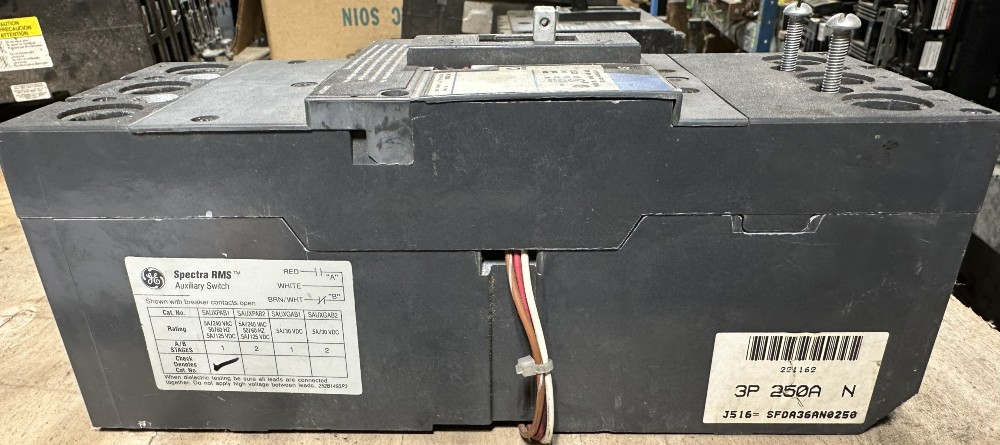

Auxiliary Switch: SAUXPAB1, 1 A/B stage, 5A @ 240V AC
Lugs: TCAL29, #8–350 MCM Cu/Al (60/75°C)
Lug Torque: 150–275 lb-in
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1501
