Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | |
| Model | TYPE ETI FFRAME INSTANTANEOUSTRIP CIRCUIT BREAKER |
| Stock # | CB - 1555 |
Description
I-T-E Type ETI F-Frame Instantaneous-Trip Circuit Breaker – Vintage
25A Continuous – 3-Pole – 600V AC – Magnetic Trip Only – Adjustable 65–160A
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<

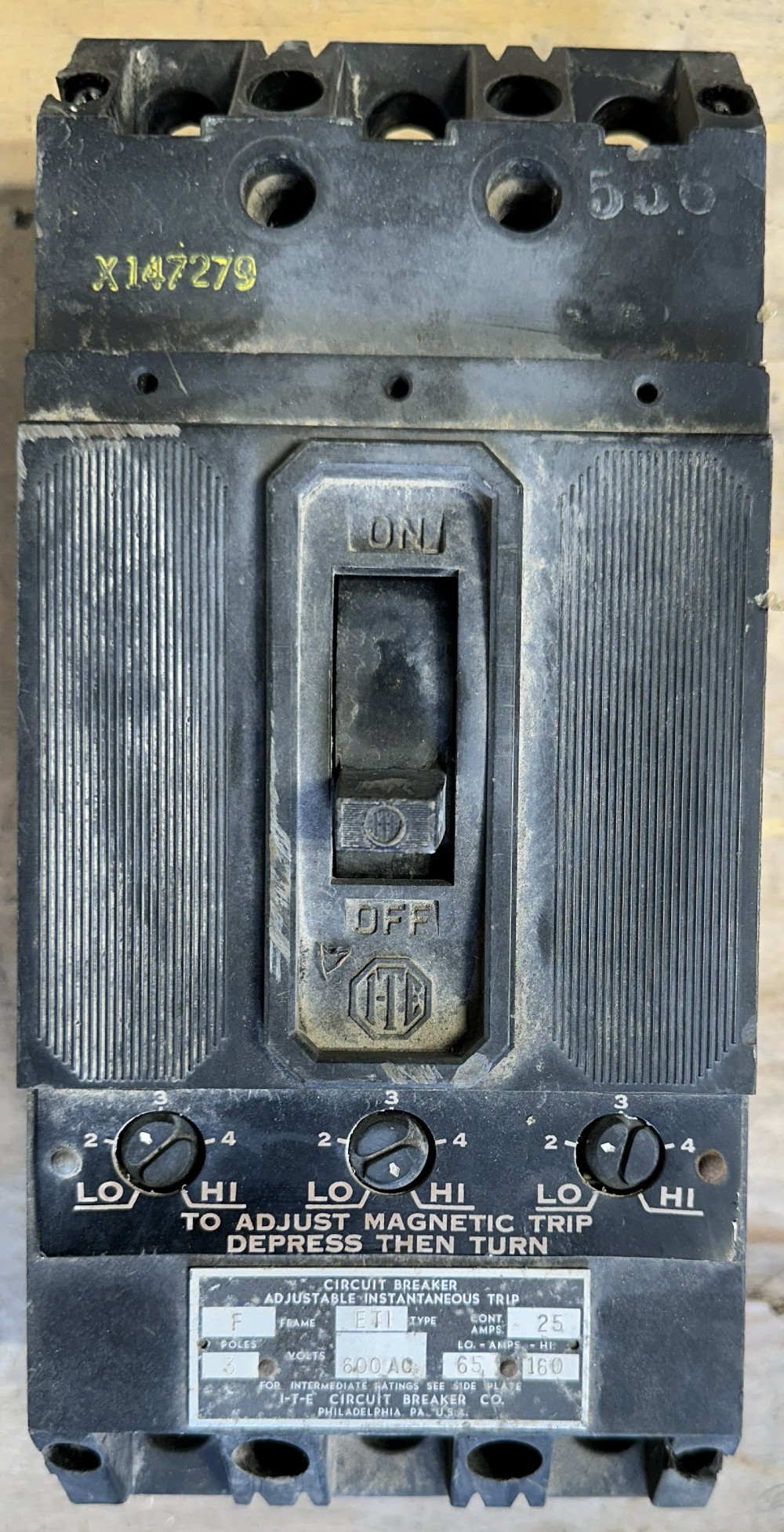

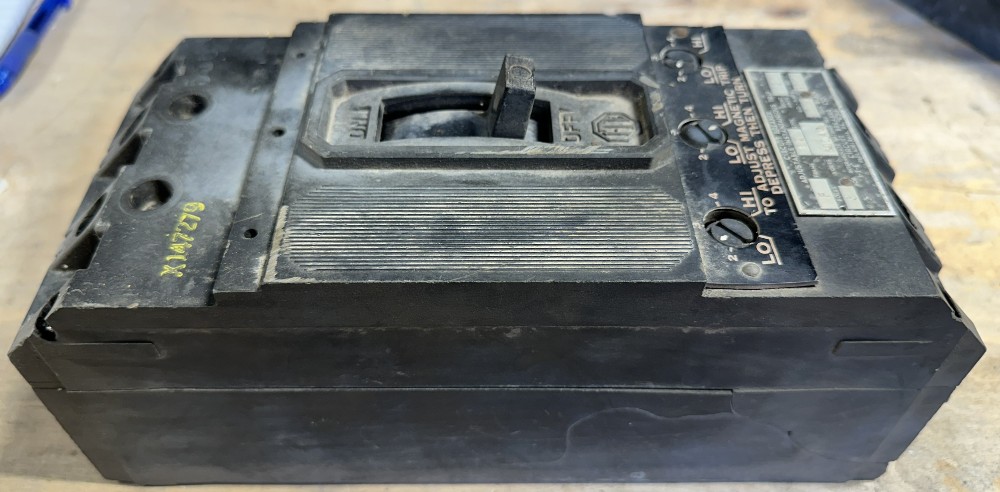

Vintage I-T-E Circuit Breaker Co. (Philadelphia, PA, U.S.A.) Type ETI F-frame instantaneous-trip circuit breaker, 25A continuous, 3-pole, 600V AC. Magnetic trip adjustable on each pole from LO 65A to HI 160A (depress then turn to adjust).
IMPORTANT: Magnetic trip only – provides short-circuit protection only; no thermal (overload) protection. Intended for use with a separate overload relay in a motor circuit.
SPECIFICATIONS
Manufacturer: I-T-E Circuit Breaker Co., Philadelphia, PA, U.S.A.
Series: Type ETI, F Frame
Type: Instantaneous-Trip (Magnetic-Only) Circuit Breaker
Poles: 3
Continuous Current: 25A
Voltage: 600V AC
Trip Type: Magnetic only – no thermal (overload) element
Magnetic Trip Adjustment: LO 65A – HI 160A, adjustable on each pole
Markings: X147279 and 556 marked on case
CONDITION
Condition: Used – As-Is. Vintage unit.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1555
