Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Westinghouse |
| Model | KA3225FS |
| Stock # | CB - 1499 |
| Price | $400 |
Description

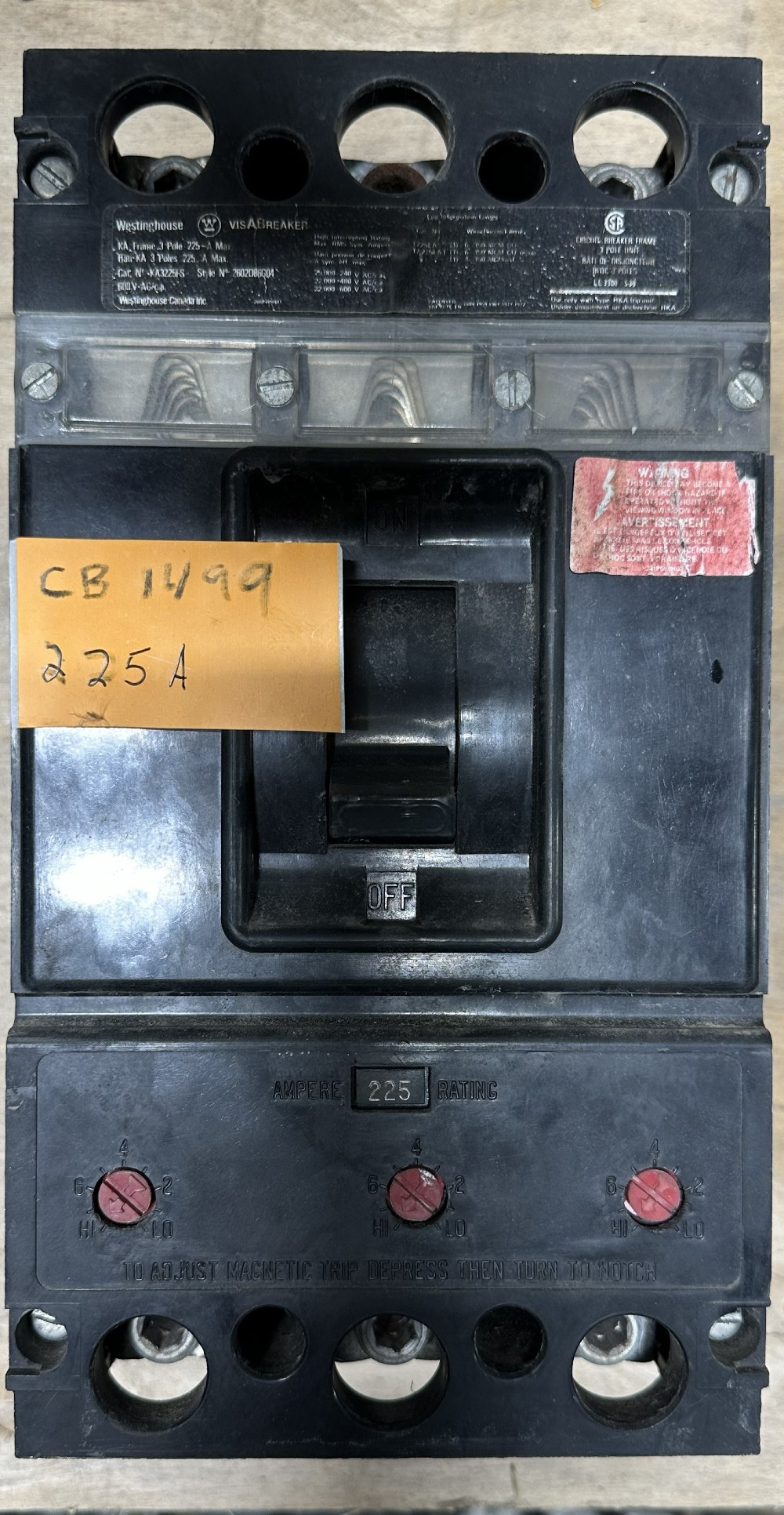

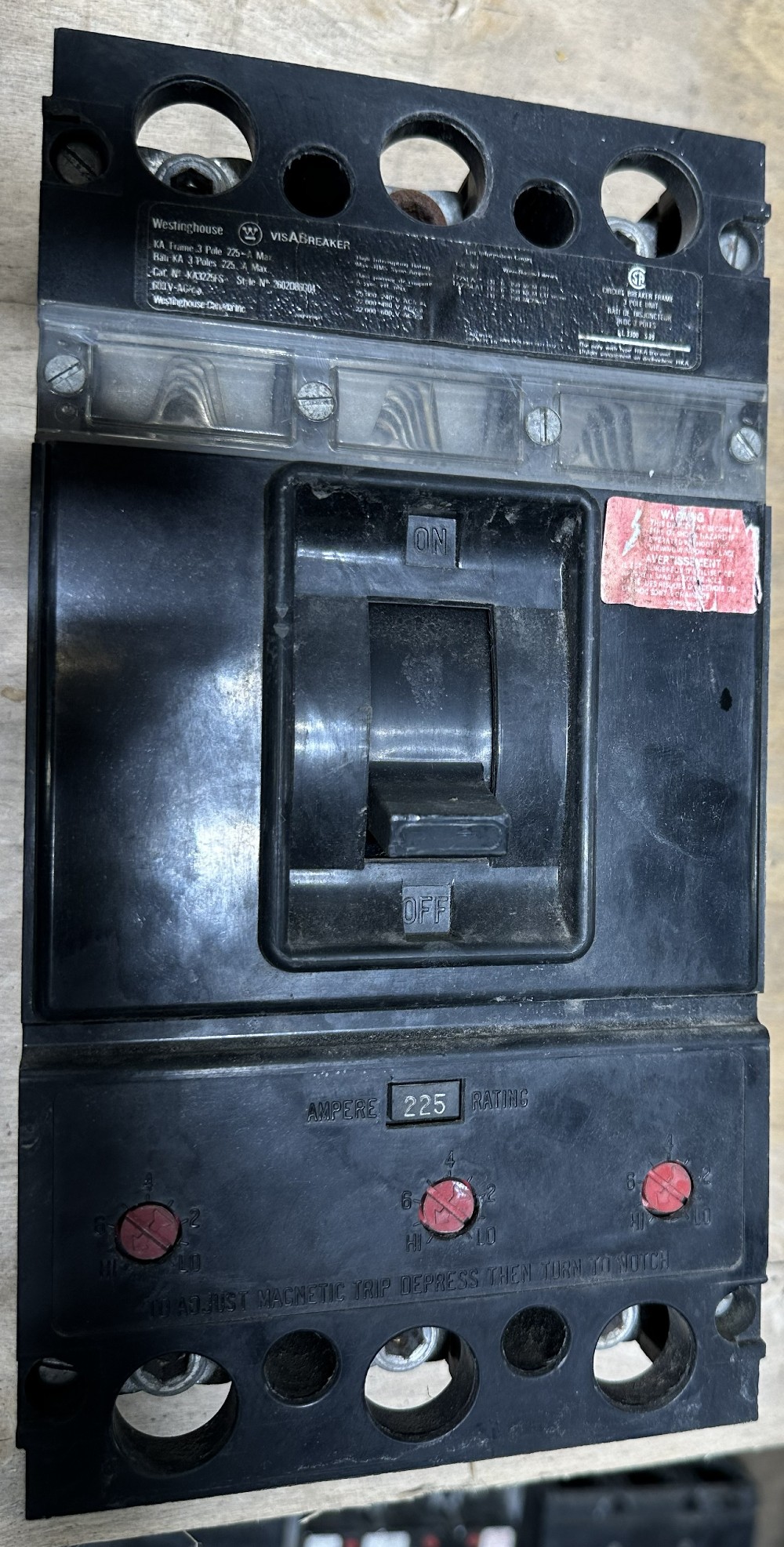

Westinghouse VisABreaker KA3225FS Molded Case Circuit Breaker
225A Frame – 3-Pole – 600V Max – Type HKA Thermal Magnetic Trip Unit, 225A – Adjustable Magnetic HI/LO (2–6)
>> Qty 1 In Stock <<
>> CAD $ 560.00 EACH – FOB Pickering, Ontario <<
Westinghouse Canada VisABreaker KA-frame 3-pole molded case circuit breaker, catalog KA3225FS, with interchangeable trip unit. Fitted with a 225A Type HKA thermal magnetic trip unit with individually adjustable magnetic trip settings (HI/LO, 2–6) on each pole. Interrupting rating of 22,000A at 600V. Frame is for use only with a Type HKA trip unit, per nameplate.
SPECIFICATIONS

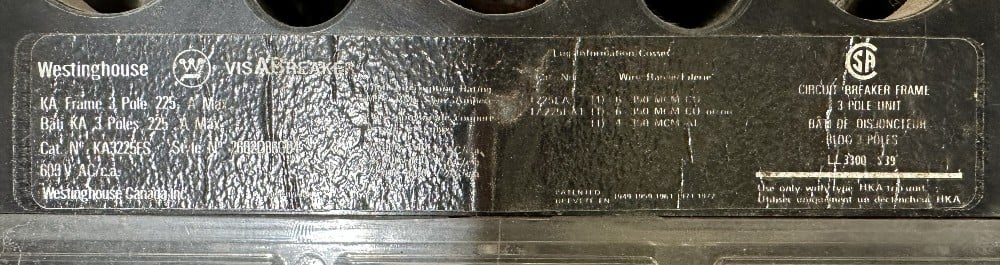

Manufacturer: Westinghouse (Westinghouse Canada Inc.)
Series: VisABreaker
Type: KA-Frame Molded Case Circuit Breaker, interchangeable trip unit
Catalog #: KA3225FS
Style #: 2602D86G04
Poles: 3
Frame Rating: 225A (KA Frame, 225A Max)
Voltage: 600V AC
Trip Unit: Type HKA Thermal Magnetic, 225A (trip unit cat. no. not visible)

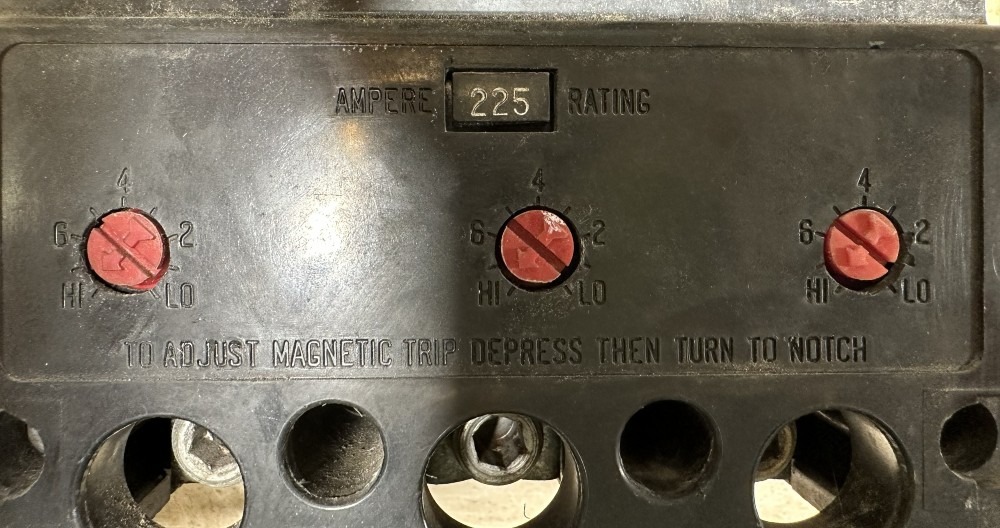

Magnetic Trip Adjustment: HI/LO (2–6), adjustable on each pole
Interrupting Rating: 25,000A @ 240V, 22,000A @ 480V, 22,000A @ 600V
Wire Rating: (1) #6–350 MCM Cu; (1) #4–350 MCM Al
Note: Frame for use only with Type HKA trip unit, per nameplate
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed or on pallet (LTL)
Stock #: CB-1499
