Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Square D |
| Model | TYPE KA |
| Stock # | CB - 1544 |
Description

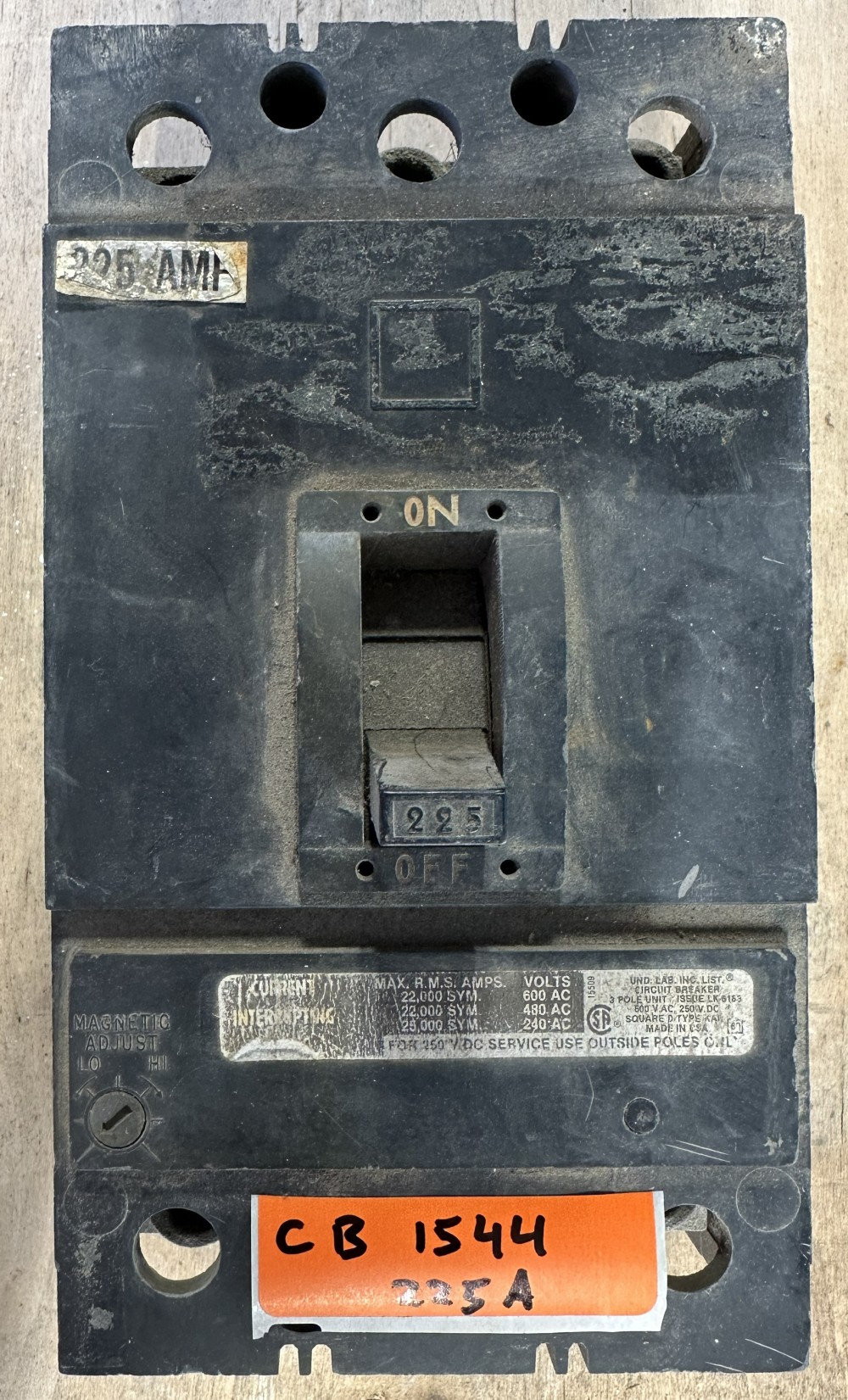

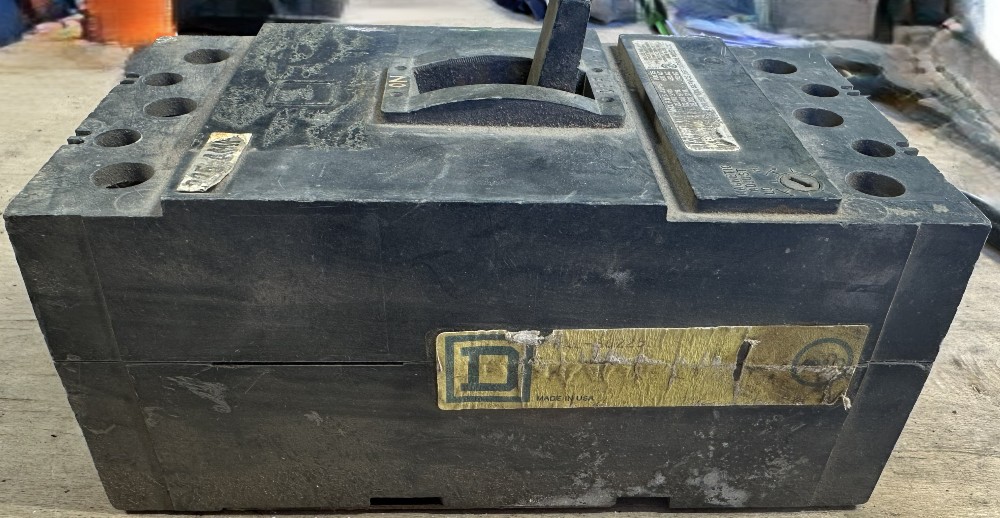

Square D Type KA Molded Case Circuit Breaker (Probable KAL36225)
225A – 3-Pole – 600V AC / 250V DC – Thermal-Magnetic – Adjustable Magnetic Trip (LO–HI) – 22kA @ 480V
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<

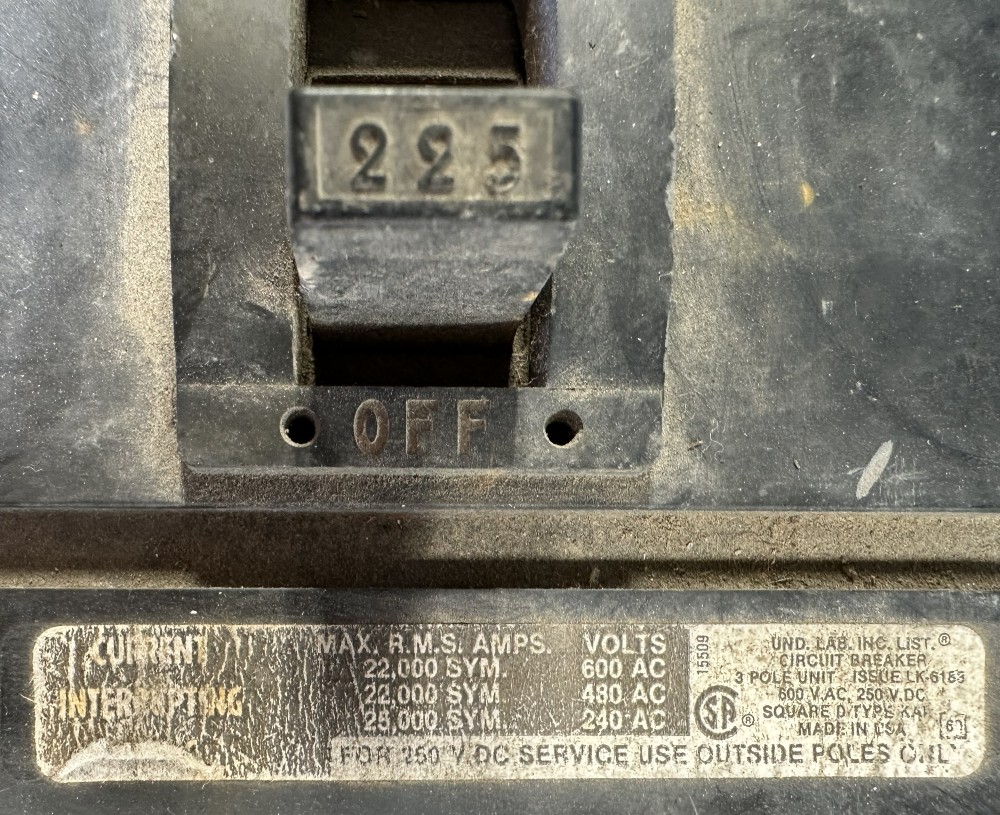

Square D Company (Made in U.S.A.) Type KA thermal-magnetic molded case circuit breaker, probable catalog KAL36225. Rated 225A, 3-pole, 600V AC / 250V DC (outside poles only for DC service), with adjustable magnetic trip (LO–HI). Interrupting rating of 25,000A at 240V, 22,000A at 480V and 22,000A at 600V (RMS symmetrical). UL listed and CSA certified. Lugs not installed.
SPECIFICATIONS
Manufacturer: Square D Company (Made in U.S.A.)
Series: Type KA
Catalog #: Probable KAL36225
Type: Thermal-Magnetic Molded Case Circuit Breaker
Poles: 3
Current Rating: 225A
Magnetic Trip: Adjustable (LO–HI)
Voltage: 600V AC / 250V DC (outside poles only for DC service)
Interrupting Rating: 25,000A @ 240V AC, 22,000A @ 480V AC, 22,000A @ 600V AC (RMS Sym.)
Lugs: Not installed
Approvals: UL Listed (Issue No. LK-6183), CSA
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1544
