Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Square D |
| Model | FA36020 |
| Stock # | CB - 1572 |
Description

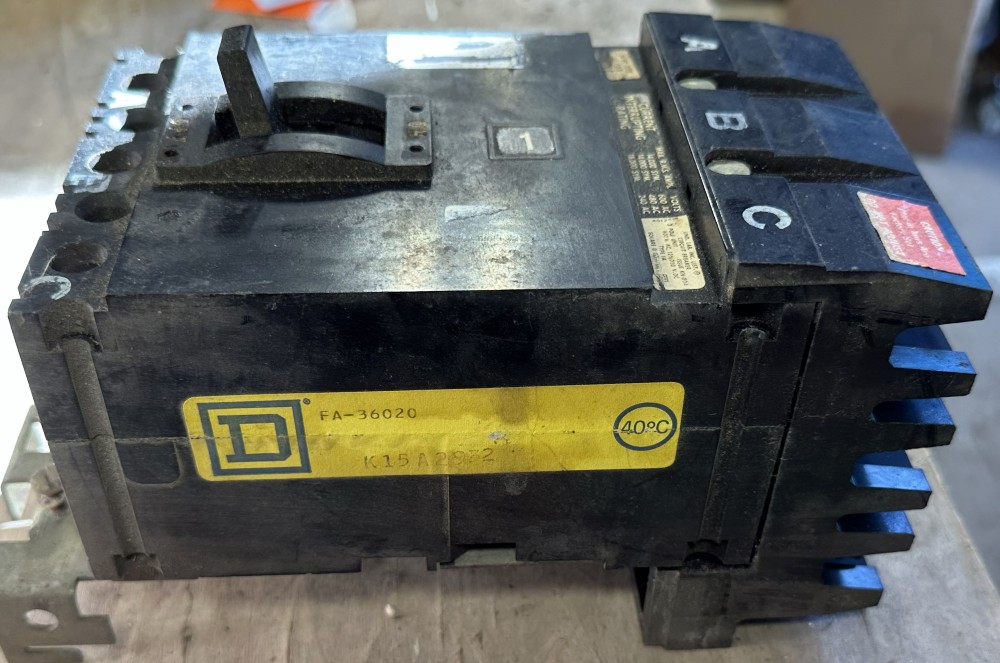

Square D Type FA FA36020 Plug-In Molded Case Circuit Breaker
20A – 3-Pole – 600V AC / 125-250V DC – Thermal-Magnetic, Fixed Trip – 14kA @ 480V / 600V
>> Qty 2 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<

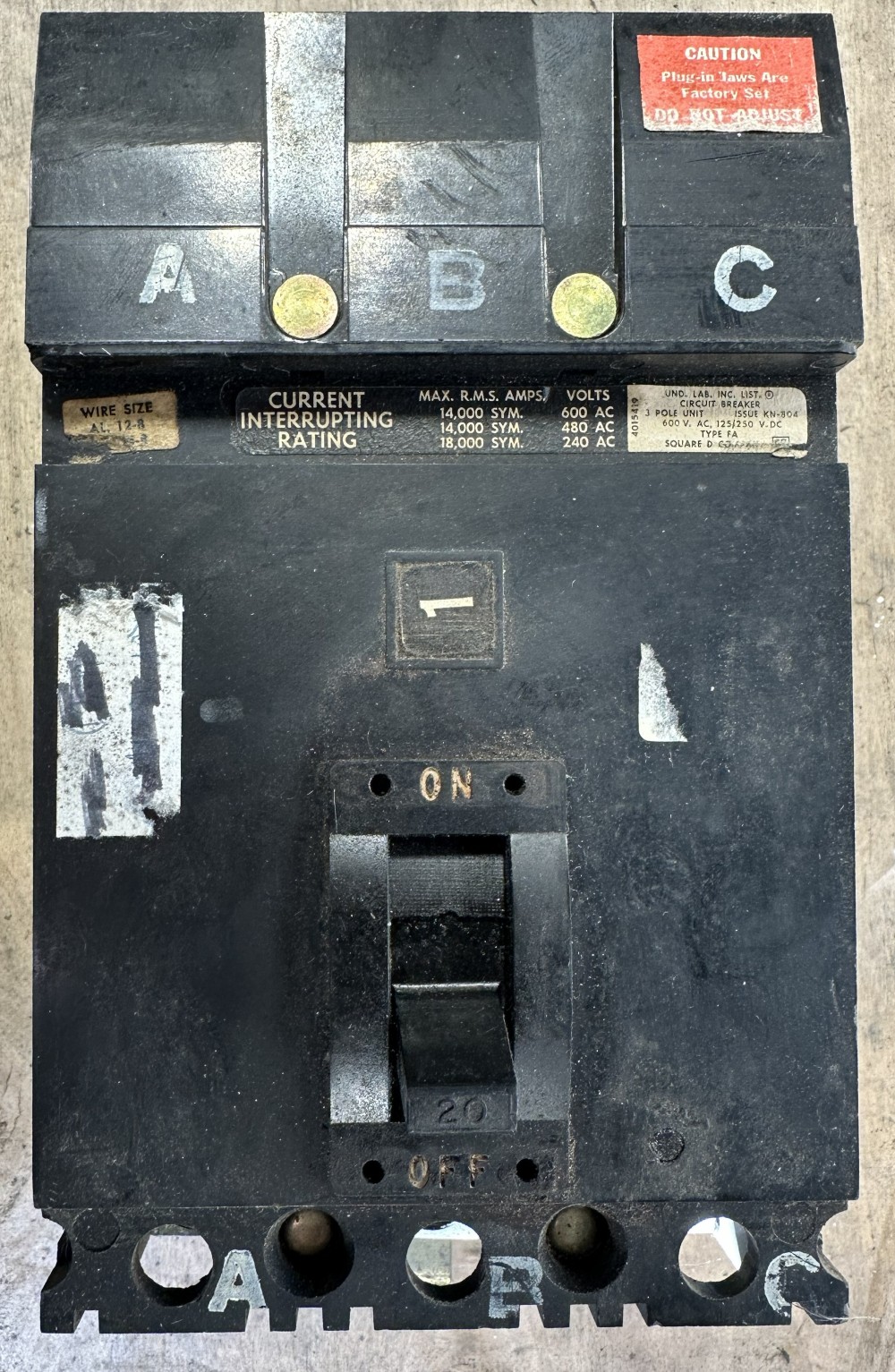

Square D Type FA thermal-magnetic molded case circuit breaker, catalog FA36020, rated 20A at 40°C, 3-pole, 600V AC / 125-250V DC, with fixed, non-adjustable trip. Interrupting rating of 18,000A at 240V, 14,000A at 480V and 14,000A at 600V. Plug-in jaws on line end (factory set) with A-B-C phase markings. Mounting bracket at load end. Two units available – priced each.
SPECIFICATIONS
Manufacturer: Square D Company
Series: Type FA (Issue No. KN-804)
Catalog #: FA36020
Type: Thermal-Magnetic Molded Case Circuit Breaker, plug-in
Poles: 3
Current Rating: 20A @ 40°C
Trip Type: Fixed – non-adjustable
Voltage: 600V AC / 125-250V DC
Interrupting Rating: 18,000A @ 240V AC, 14,000A @ 480V AC, 14,000A @ 600V AC
Line Connection: Plug-in jaws (factory set), phases A, B, C
Wire Size: Al #12–8 (label partly legible)
Accessories: Mounting bracket at load end
Date/Lot Code: K15A2982
CONDITION
Condition: Used – As-Is. Paint/marker marks on cover.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1572
