Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Federal Pioneer |
| Model | NEF311020 |
| Stock # | CB - 1597 |
Description
Federal Pioneer (FPE) NEF311020 – Type NEF
20A, 346 VAC / 125 VDC, 1 Pole – Thermal-Magnetic Molded Case Circuit Breaker
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Federal Pioneer Type NEF single-pole molded case circuit breaker, catalogue no. NEF311020. It is rated 20A at 40°C, 346 VAC / 125 VDC, with a non-adjustable thermal-magnetic trip and Cu-Al terminals. CSA certified. Made by Federal Pioneer Limited, Toronto, Ontario.
Please note: The 346 VAC single-pole rating is intended for line-to-neutral circuits on 600Y/347V solidly grounded wye systems. The interrupting rating is not marked on the label.
SPECIFICATIONS
Manufacturer: Federal Pioneer Limited (FPE)
Catalogue No.: NEF311020
Type: NEF
Amperage: 20A @ 40°C
Voltage: 346 VAC / 125 VDC
Poles: 1
Trip Unit: Thermal-Magnetic, non-adjustable
Interrupting Rating: Not marked
Terminals: Cu-Al
Approvals: CSA certified (LL12188, S. 298)
Pt. No.: Y20-065 (partly legible)
QC No.: YW51651
CONDITION

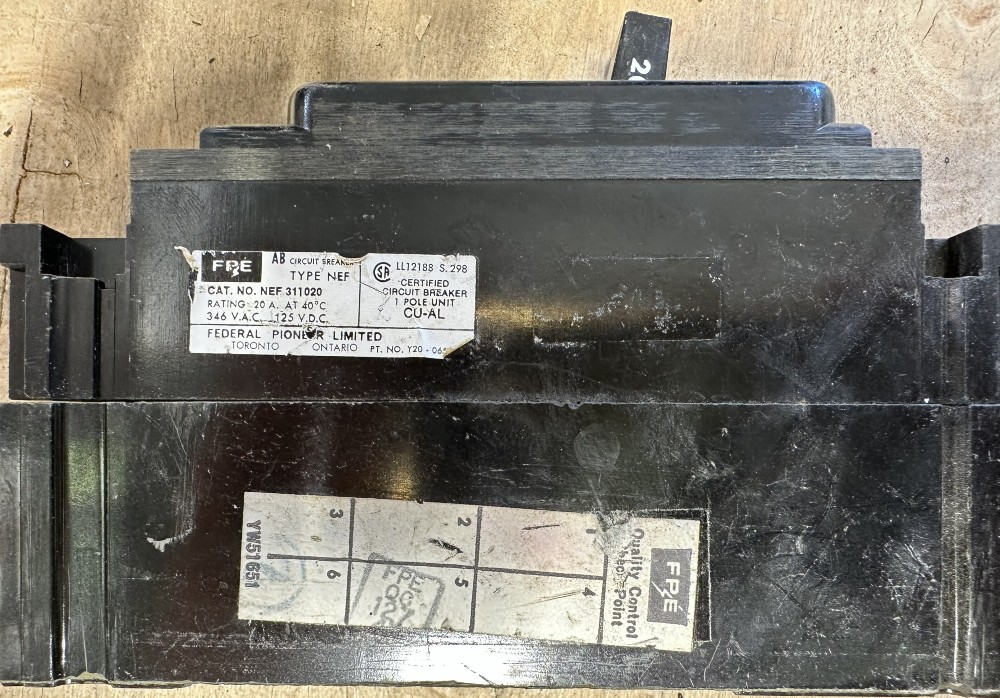

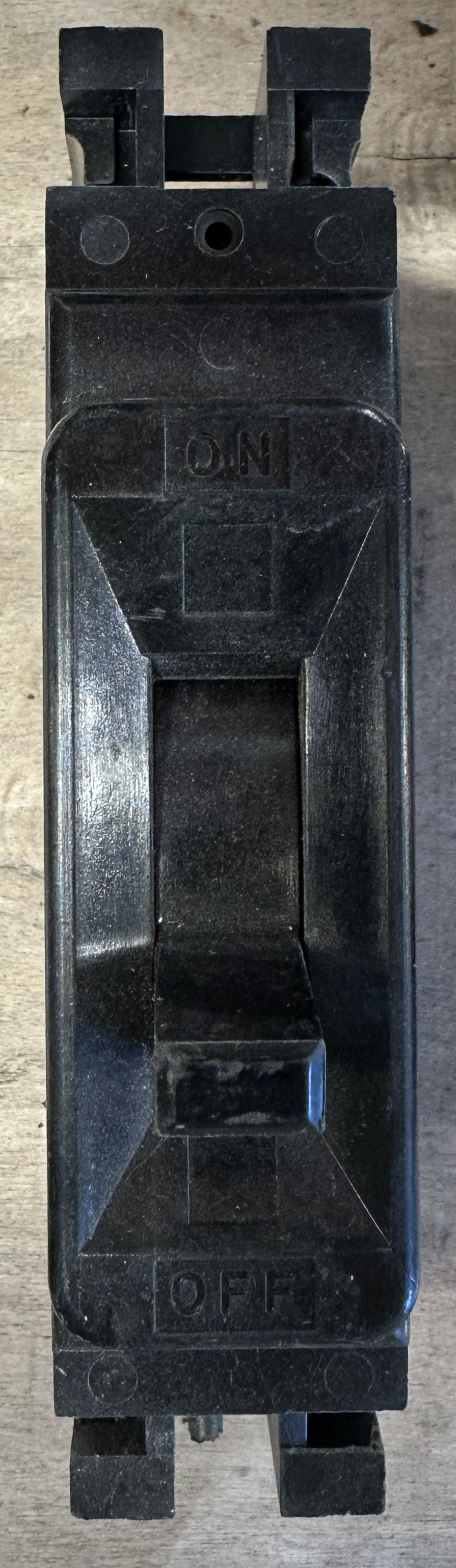

Used – As-Is. Removed from service. Label partly worn but catalogue number and ratings legible. Shows normal signs of use and age. Please review the photos.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1597
