Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Square D |
| Model | QBL32200 |
| Stock # | CB - 1502 |
Description

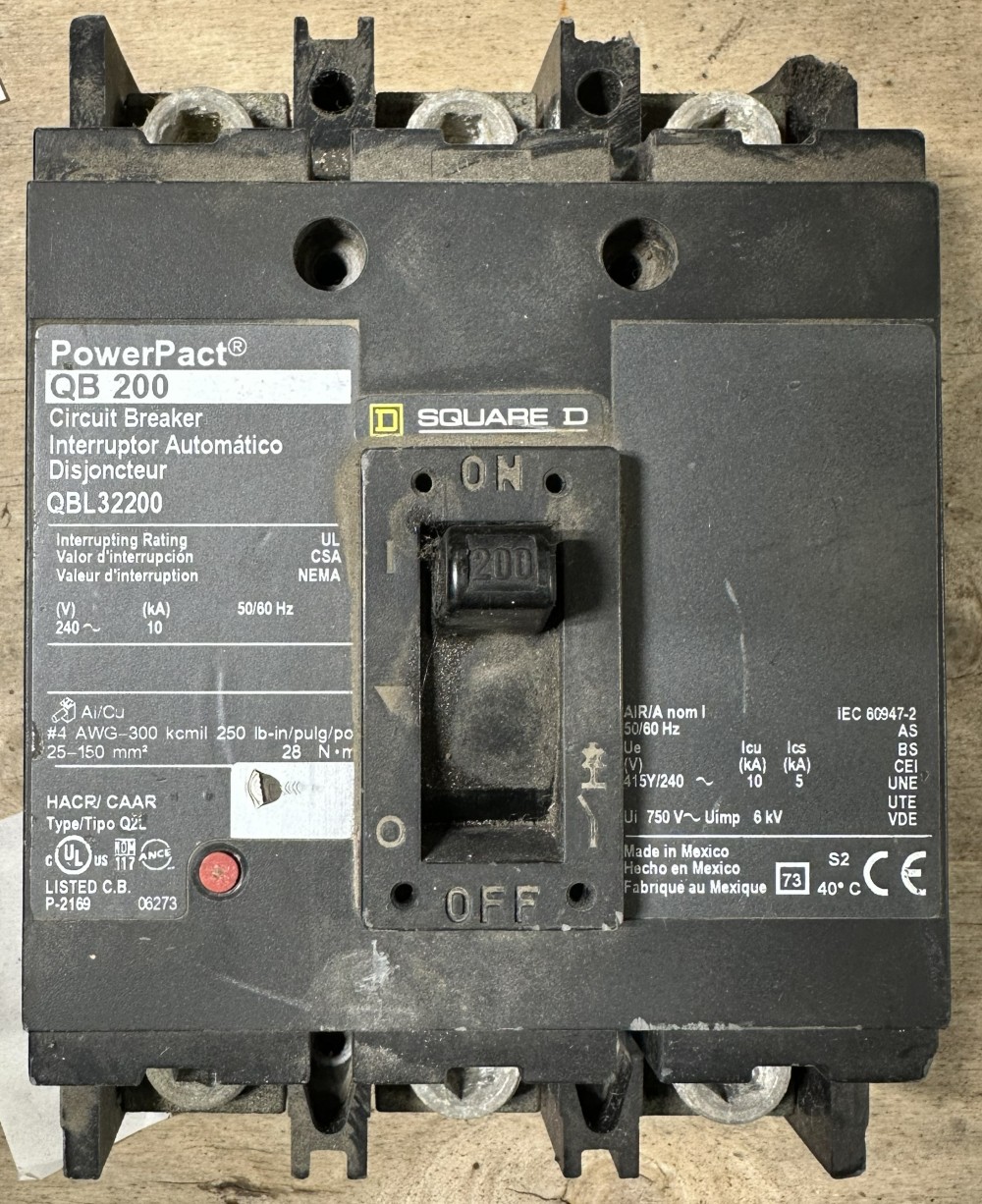

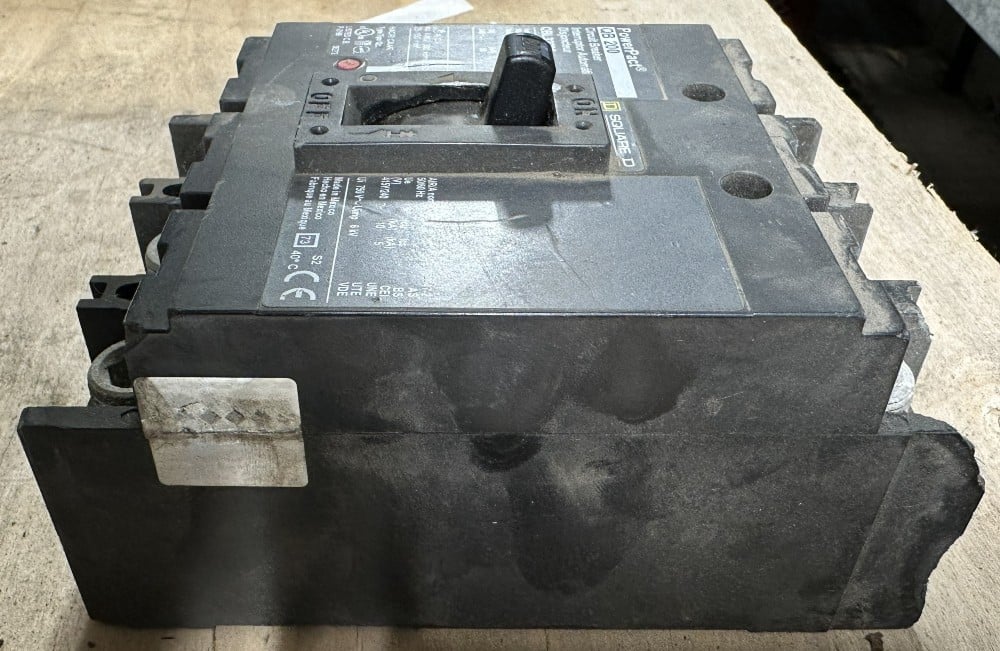

Square D PowerPact QBL32200 Molded Case Circuit Breaker
200A – 3-Pole – 240V AC – Thermal-Magnetic, Fixed Trip – 10kA @ 240V – Unit Mount with Lugs
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Square D (Schneider Electric) PowerPact Q-frame QB 200 thermal-magnetic molded case circuit breaker, catalog QBL32200, Type Q2L, unit mount. Rated 200A, 3-pole, 240V AC with fixed, non-adjustable trip. Interrupting rating of 10kA at 240V. Line and load lugs installed. HACR rated.
SPECIFICATIONS
Manufacturer: Square D (Schneider Electric)
Series: PowerPact Q-Frame (QB 200)
Catalog #: QBL32200
Type: Thermal-Magnetic Molded Case Circuit Breaker, Type Q2L
Mounting: Unit Mount
Poles: 3
Current Rating: 200A
Trip Type: Fixed – non-adjustable
Voltage: 240V AC
Interrupting Rating: 10kA @ 240V (UL/CSA/NEMA); IEC Icu 10kA / Ics 5kA @ 415Y/240V
Lugs: Line and load lugs installed, #4 AWG–300 kcmil Al/Cu
Lug Torque: 250 lb-in (28 N·m)
Approvals: UL Listed, CSA, HACR Rated
CONDITION
Condition: Used – As-Is
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1502
