Details
| Category | Circuit Breakers, Insulated and Molded Case |
|---|---|
| Manufacturer | Square D |
| Model | QBL 22200 |
| Stock # | CB - 1556 |
Description

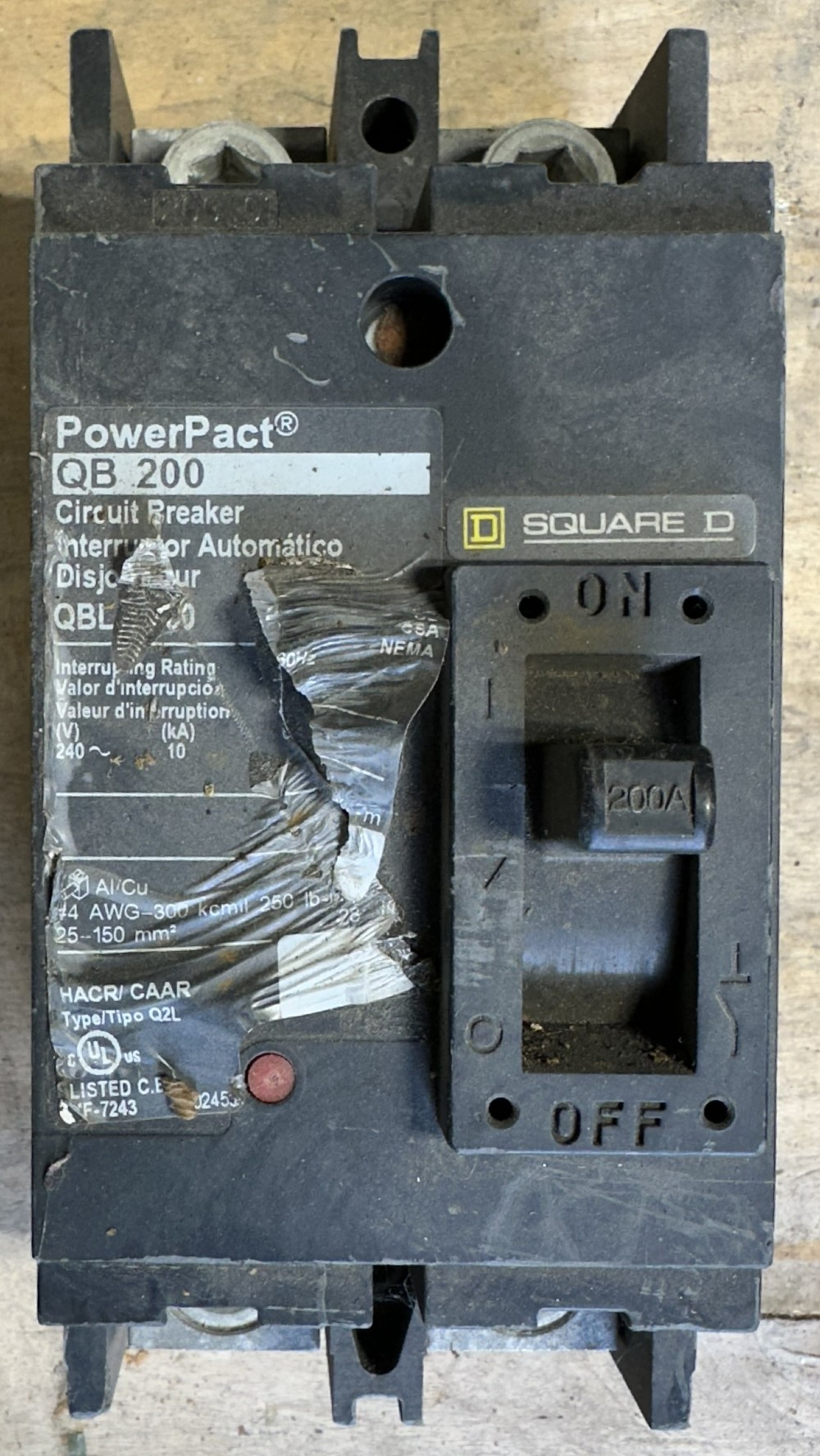

Square D PowerPact QBL22200 Molded Case Circuit Breaker
200A – 2-Pole – 240V AC – Thermal-Magnetic, Fixed Trip – 10kA @ 240V – Lugs Installed
>> Qty 1 In Stock <<
>> Call for Price – FOB Pickering, Ontario <<
Square D (Made in U.S.A.) PowerPact Q-frame QB 200 thermal-magnetic molded case circuit breaker, catalog QBL22200, Type Q2L. Rated 200A at 40°C, 2-pole, 240V AC 50/60 Hz, with fixed, non-adjustable trip. Interrupting rating of 10kA at 240V. Line and load lugs installed, #4 AWG–300 kcmil Al/Cu. HACR rated. UL Listed, CSA and CE.
SPECIFICATIONS
Manufacturer: Square D (Made in U.S.A.)
Series: PowerPact Q-Frame (QB 200)
Catalog #: QBL22200 (label partly covered)
Type: Thermal-Magnetic Molded Case Circuit Breaker, Type Q2L
Poles: 2
Current Rating: 200A @ 40°C
Trip Type: Fixed – non-adjustable
Voltage: 240V AC, 50/60 Hz
Interrupting Rating: 10kA @ 240V (UL/CSA/NEMA); IEC 60947-2 Icu 10kA / Ics 5kA @ 240V
Lugs: Installed, Al/Cu #4 AWG–300 kcmil (25–150 mm²), torque 250 lb-in (28 N·m)
Insulation: Ui 750V; Uimp 6kV
Ratings: HACR
Approvals: UL Listed, CSA, CE
CONDITION

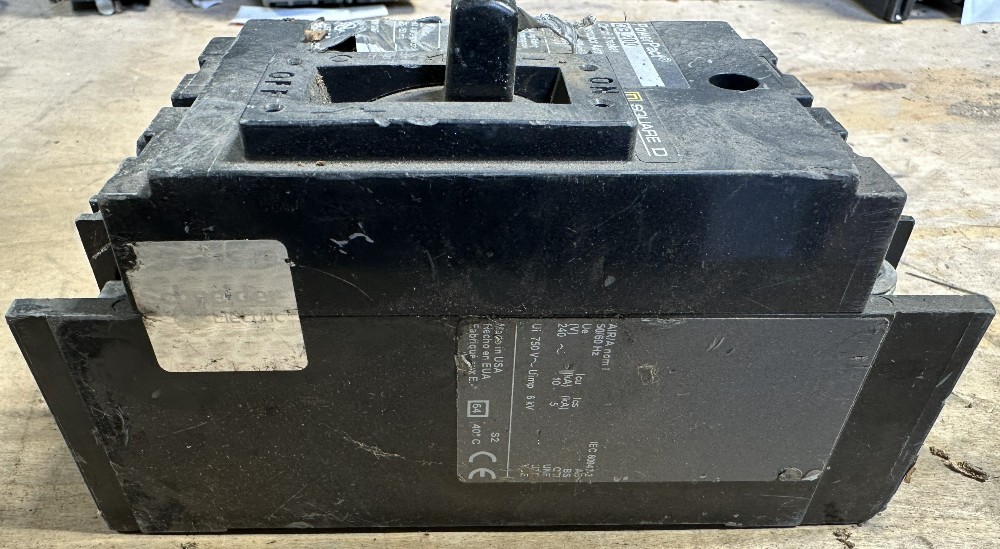

Condition: Used – As-Is. Front label partly damaged / covered.
TERMS
Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1556
