200 Amps, Square D, JJA36200, PowerPact J-Frame I-Line Circuit Breaker, 3-pole, 600 Volts, Adjustable Magnetic Trip

Details

Description

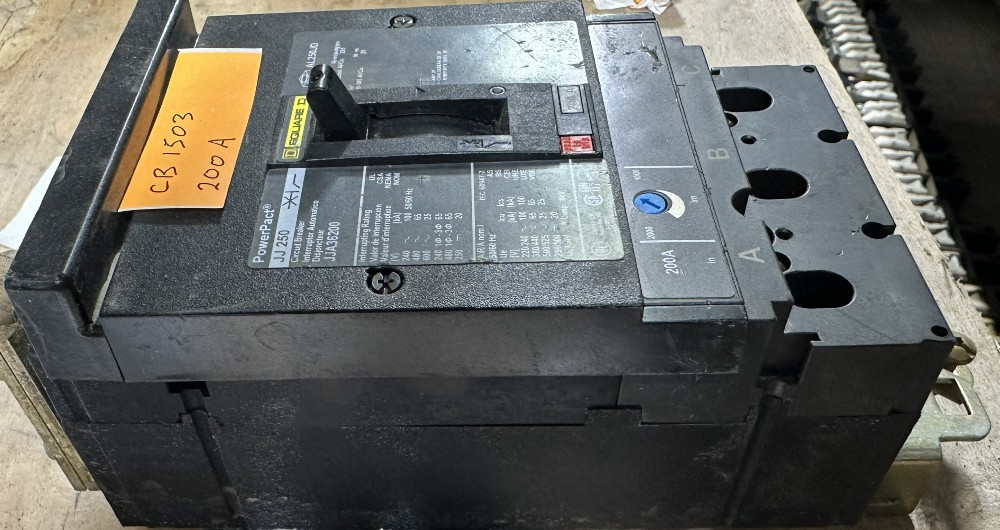

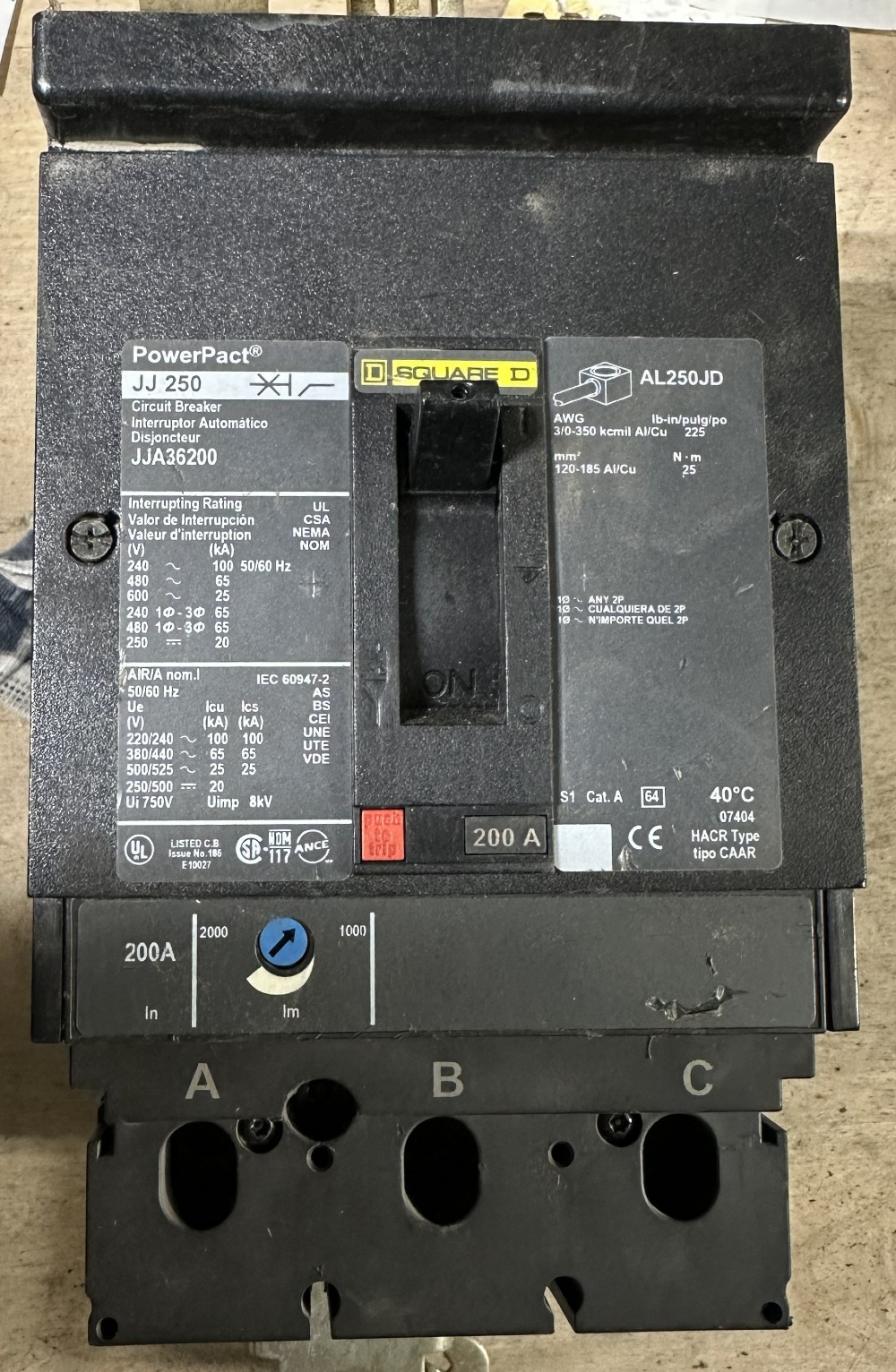

Square D PowerPact JJA36200 I-Line Molded Case Circuit Breaker
200A – 3-Pole – 600V AC / 250V DC – Thermal-Magnetic – Adjustable Magnetic Trip (Im 1000–2000A) – 65kA @ 480V

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

Square D (Schneider Electric) PowerPact J-frame JJ 250 thermal-magnetic molded case circuit breaker, catalog JJA36200, with I-Line plug-in mounting. Rated 200A, 3-pole, 600V AC / 250V DC, with adjustable magnetic trip (Im 1000–2000A). Interrupting rating of 100kA at 240V, 65kA at 480V and 25kA at 600V. Supplied with AL250JD load lugs. HACR rated.

SPECIFICATIONS

Manufacturer: Square D (Schneider Electric)
Series: PowerPact J-Frame (JJ 250)
Catalog #: JJA36200
Type: Thermal-Magnetic Molded Case Circuit Breaker
Mounting: I-Line Plug-In
Poles: 3 (A-B-C)
Current Rating: 200A (In)
Magnetic Trip: Adjustable, Im 1000–2000A
Voltage: 600V AC / 250V DC
Interrupting Rating: 100kA @ 240V, 65kA @ 480V, 25kA @ 600V, 20kA @ 250V DC
Lugs: AL250JD, 3/0–350 kcmil Al/Cu
Lug Torque: 225 lb-in (25 N·m)
Approvals: UL Listed, CSA, HACR Type

CONDITION

Condition: Used – As-Is

TERMS

Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed (parcel)
Stock #: CB-1503
