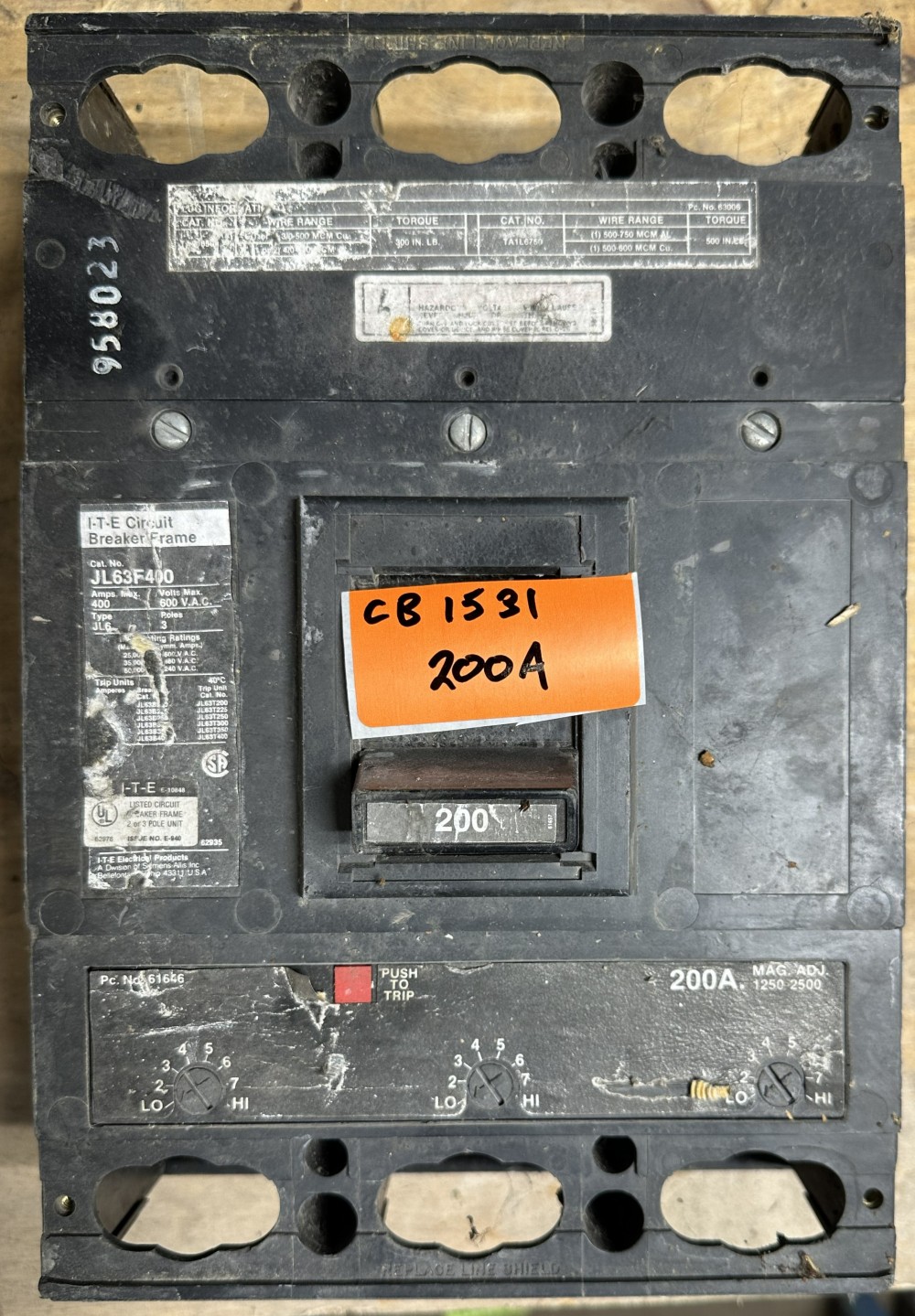

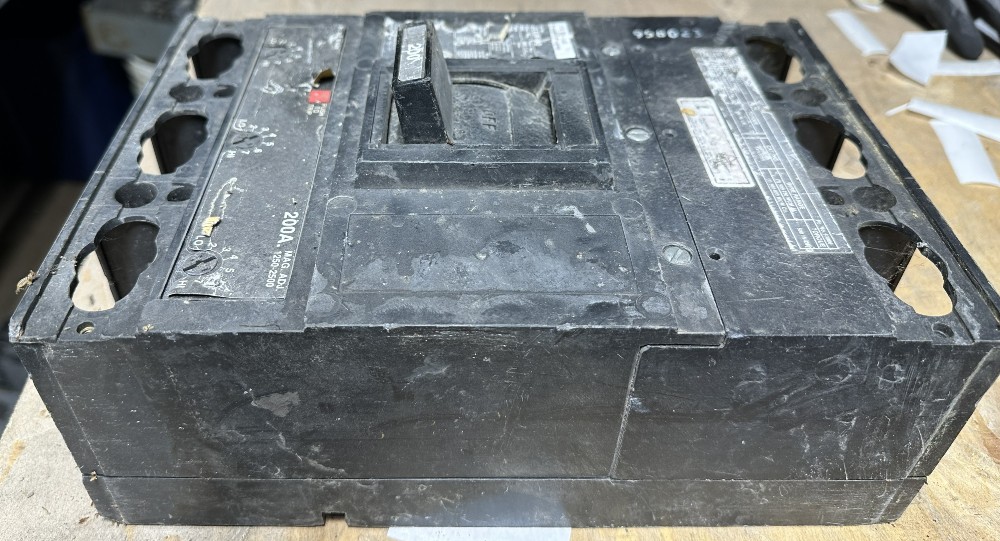

I-T-E JL63F400 Molded Case Circuit Breaker with 200A Trip Unit
200A Trip Unit in 400A JL6 Frame – 3-Pole – 600V AC – Adjustable Magnetic Trip 1250–2500A – 35kA @ 480V

>> Qty 3 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

I-T-E (Siemens-Allis) Type JL6 molded case circuit breaker, frame catalog JL63F400 (400A maximum), 3-pole, 600V AC. Fitted with a JL63T200 thermal-magnetic trip unit rated 200A at 40°C, with magnetic trip adjustable from 1250A to 2500A (LO–HI, 2–7) on each pole. Interrupting rating of 50kA at 240V, 35kA at 480V and 25kA at 600V. UL Listed and CSA certified. Three units available – priced each.

SPECIFICATIONS

Manufacturer: I-T-E Electrical Products (a Division of Siemens-Allis Inc., Bellefontaine, Ohio, U.S.A.)
Series: Type JL6

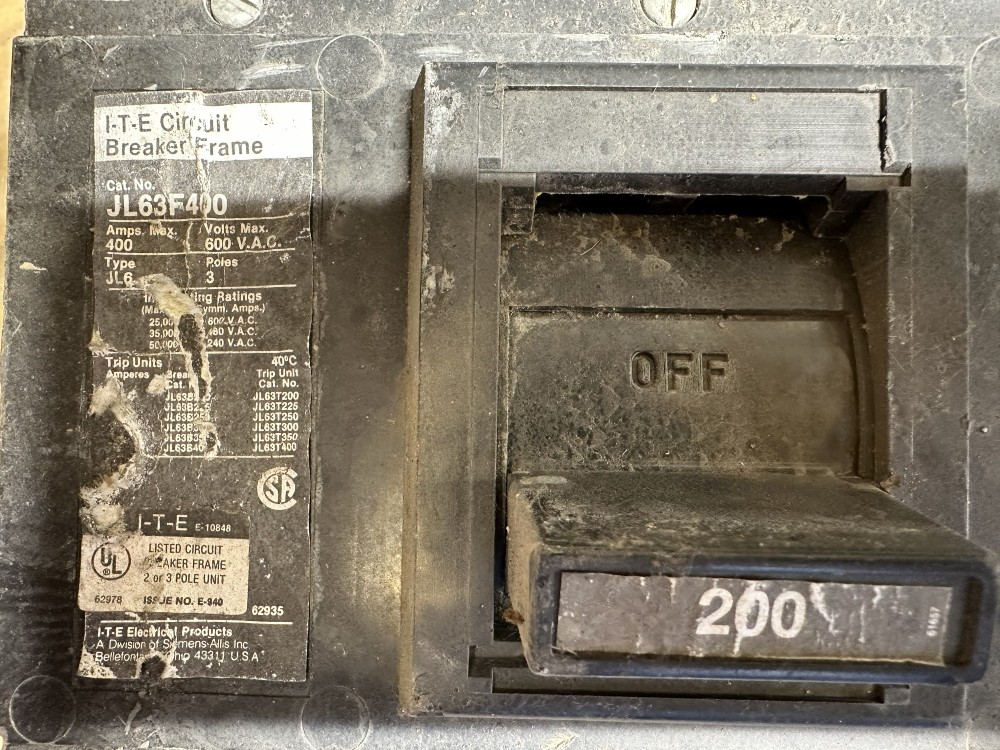

Frame Catalog #: JL63F400, 400A maximum
Trip Unit: JL63T200 (per frame label), 200A @ 40°C, Pc. No. 61646
Type: Thermal-Magnetic Molded Case Circuit Breaker, interchangeable trip unit
Poles: 3
Voltage: 600V AC

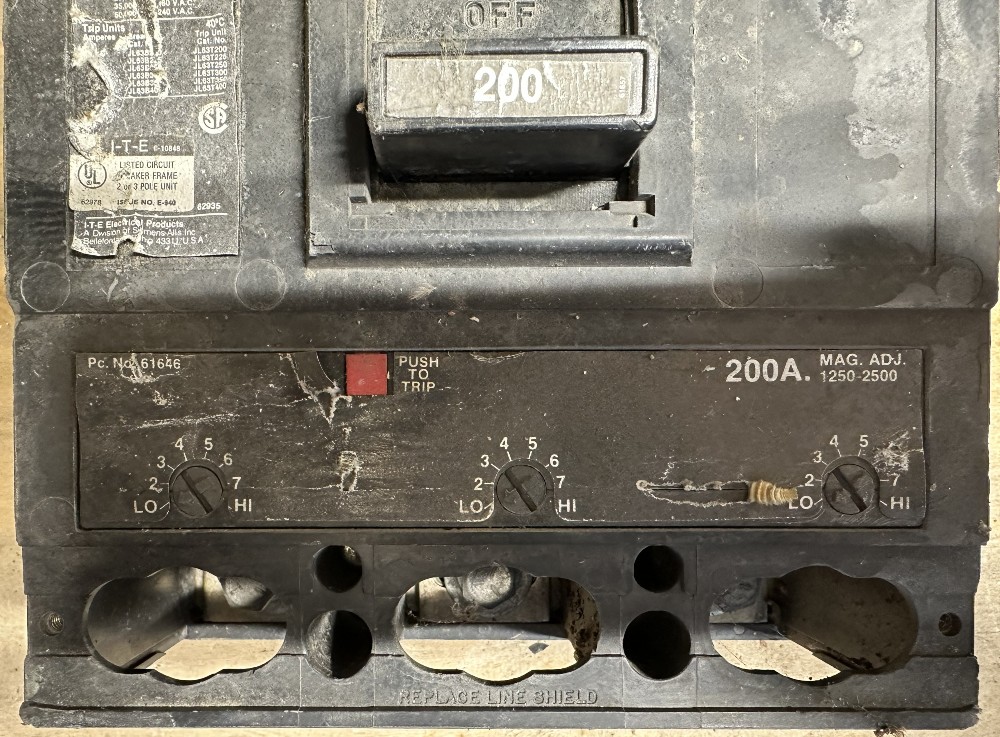

Magnetic Trip Adjustment: 1250–2500A (LO–HI, 2–7), adjustable on each pole
Interrupting Rating: 50,000A @ 240V AC, 35,000A @ 480V AC, 25,000A @ 600V AC
Wire Rating (per nameplate lug data): TA1L6750 – (1) 500–750 MCM Al / (1) 500–600 MCM Cu, 500 lb-in; second lug entry partially illegible (3/0–500 MCM Cu, 300 lb-in)
Approvals: UL Listed (E-10848), CSA

CONDITION

Condition: Used – As-Is

TERMS

Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed or on pallet (LTL)
Stock #: CB-1531
